JBL Control 440CS/T 8in Ceiling Subwoofer (Pair)

About: JBL Control 440CS/T 8in Ceiling Subwoofer (Pair)

Part of the Control 400 collection’s Premium Coverage Series, the Control 440CS/T is a high power, low distortion in-ceiling subwoofer, with a 200 mm (8 in) driver, built-in low-pass filter, and dual ports. The subwoofer is switchable for use as part of a 70V/100V distributed loudspeaker system with its 80-Watt transformer or as an 8Ω low-impedance speaker.

• High impact, direct radiating subwoofer with built-in passive crossover for two or four satellite speakers
• 200 mm (8 in) long-excursion woofer with Polymerized SBR surround
• Stylish Bezel-less grille that blends elegantly into any room design
• 32 Hz – 300 Hz Frequency Range
• 100W (400W peak) Power Handling with 80W multi-tap transformer for use with 70V/100V distributed systems

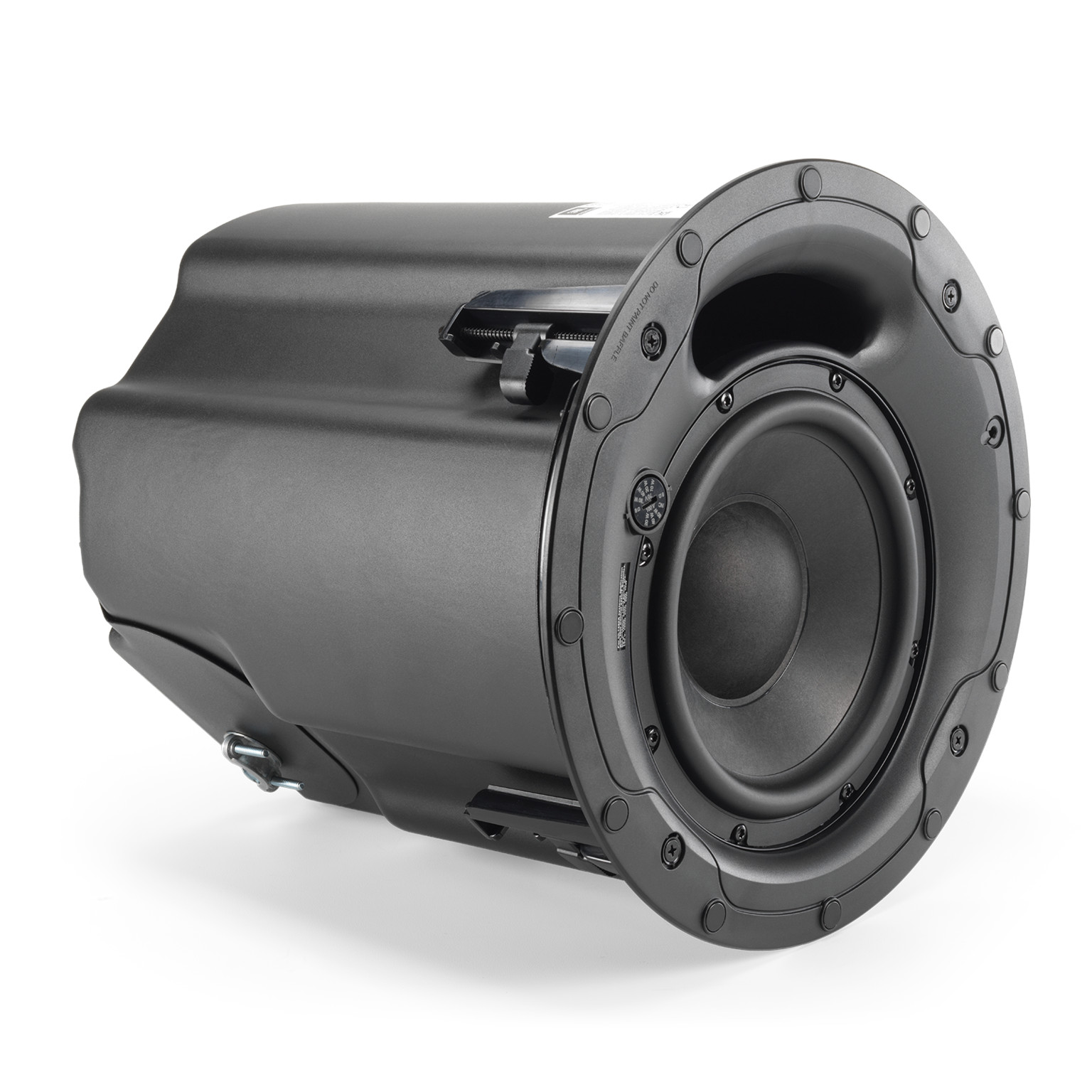

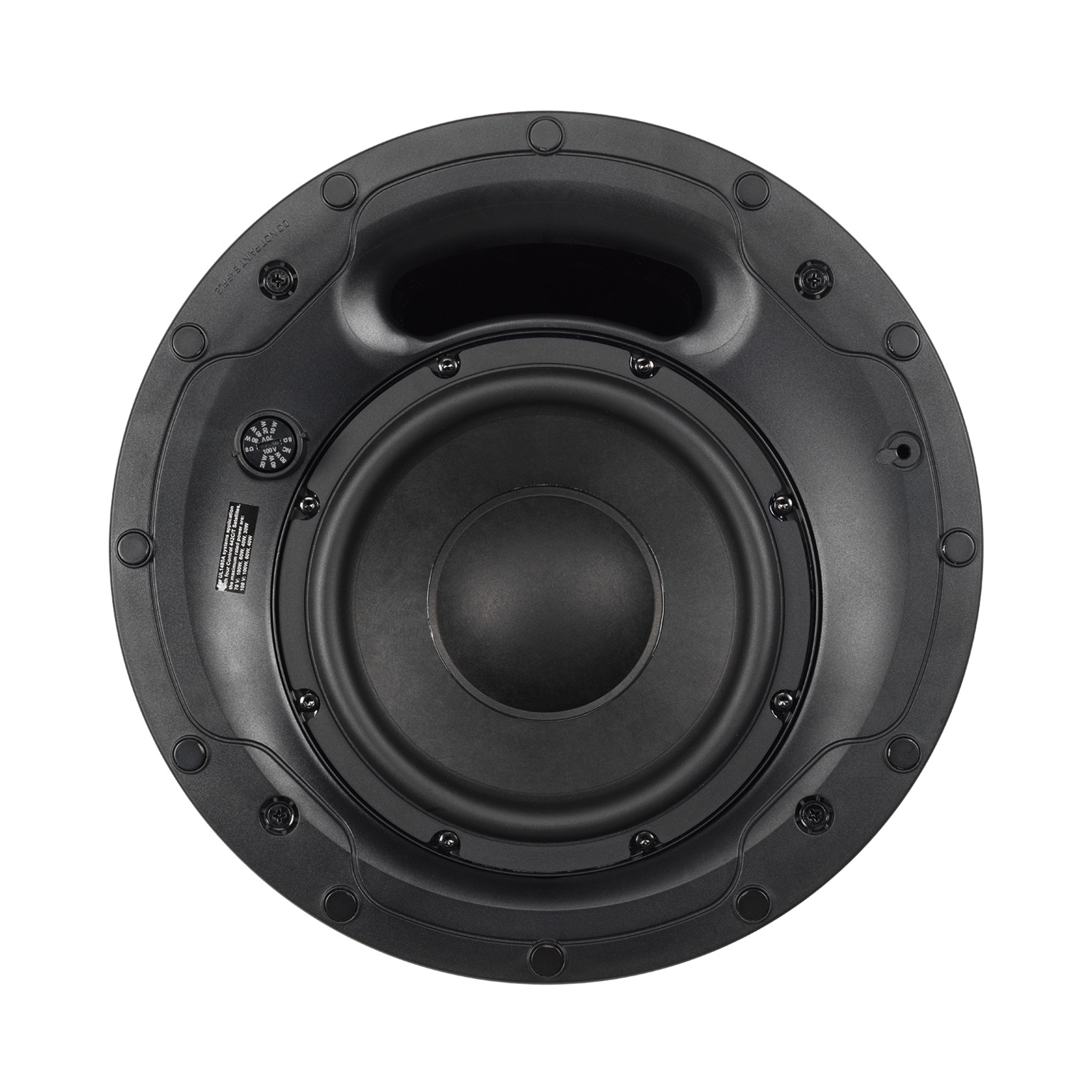

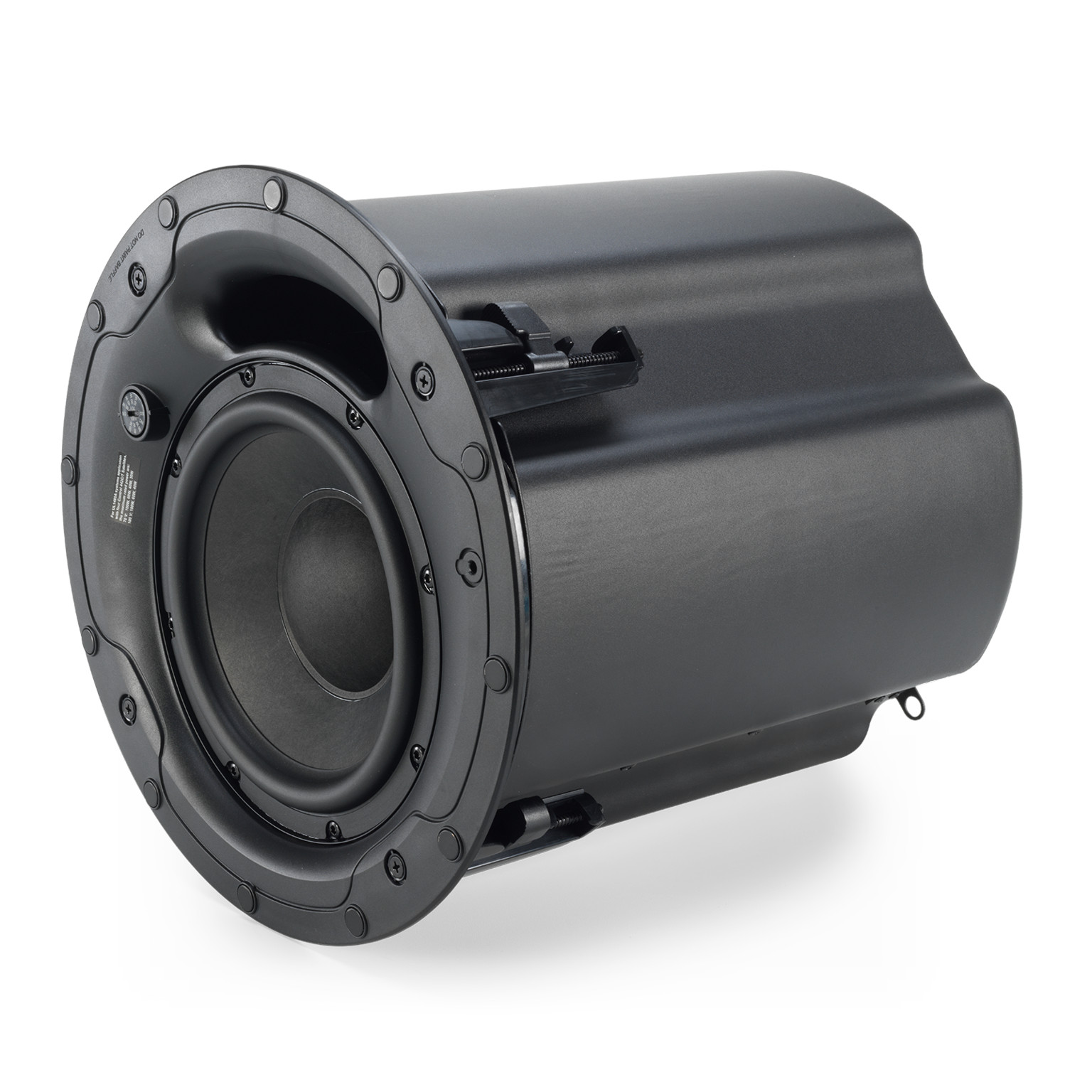

The system’s 200 mm (8 in) woofer features a treated paper cone and high-performance magnet offering extended bass response for a warm full-bodied tone. The copper-clad aluminum voice coil wound on an aluminum former offers low distortion and high-sensitivity.

The Control 440CS/T features a built-in passive crossover network enabling it to be used as part of a subwoofer-satellite system. It provides high passed satellite outputs for use with either two or four satellite loudspeakers (not for one or three satellite speakers), resulting in a full range, wide-bandwidth, subwoofer-satellite system.

The Control 440CS/T’s 8Ω impedance allows paralleling up to 2 speakers on a 4Ω capable amplifier. It may be driven by itself on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive low-pass filter. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

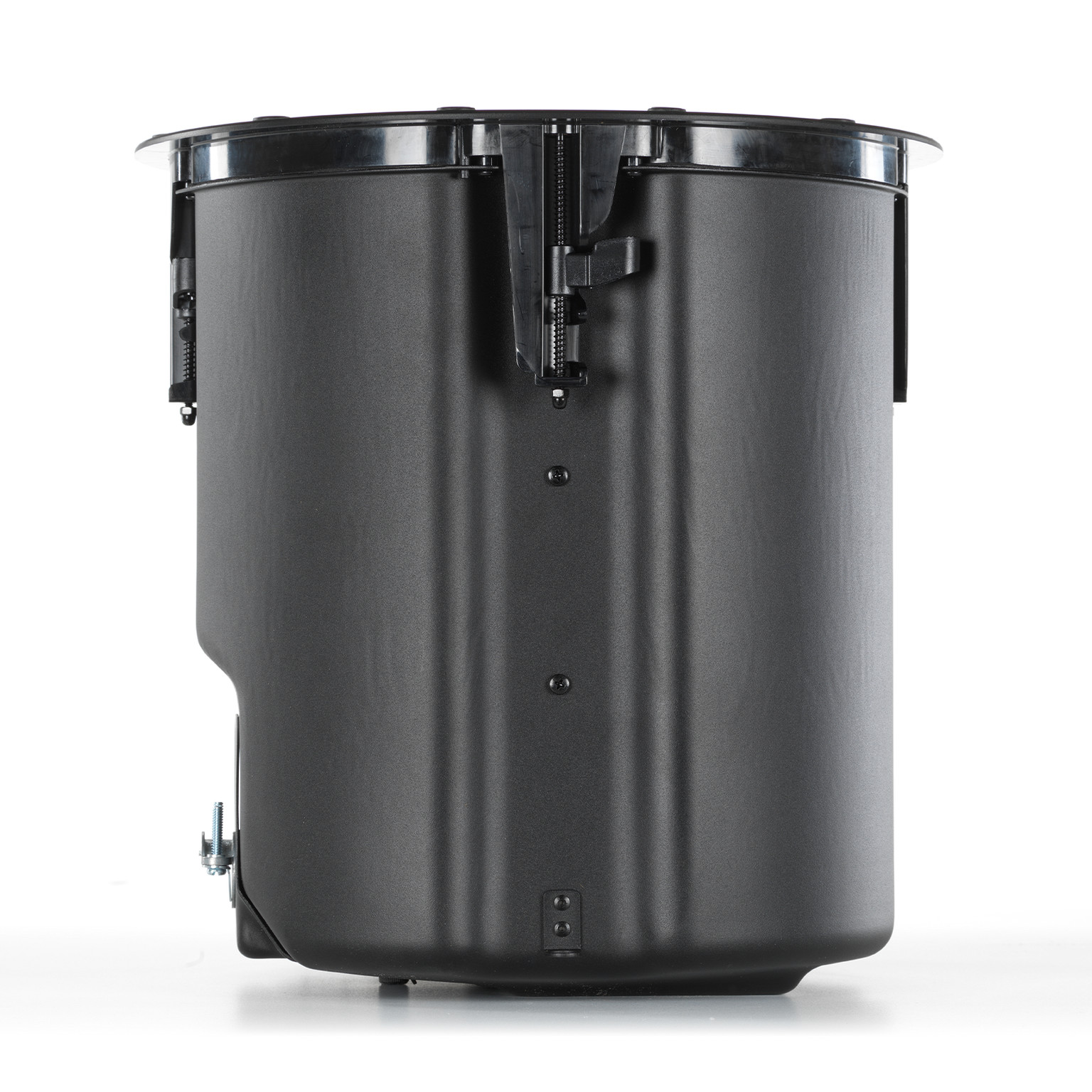

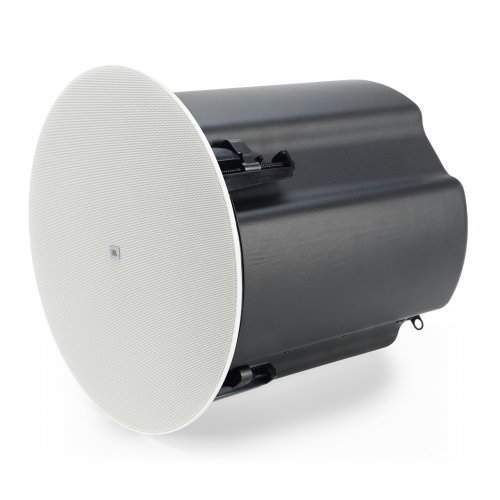

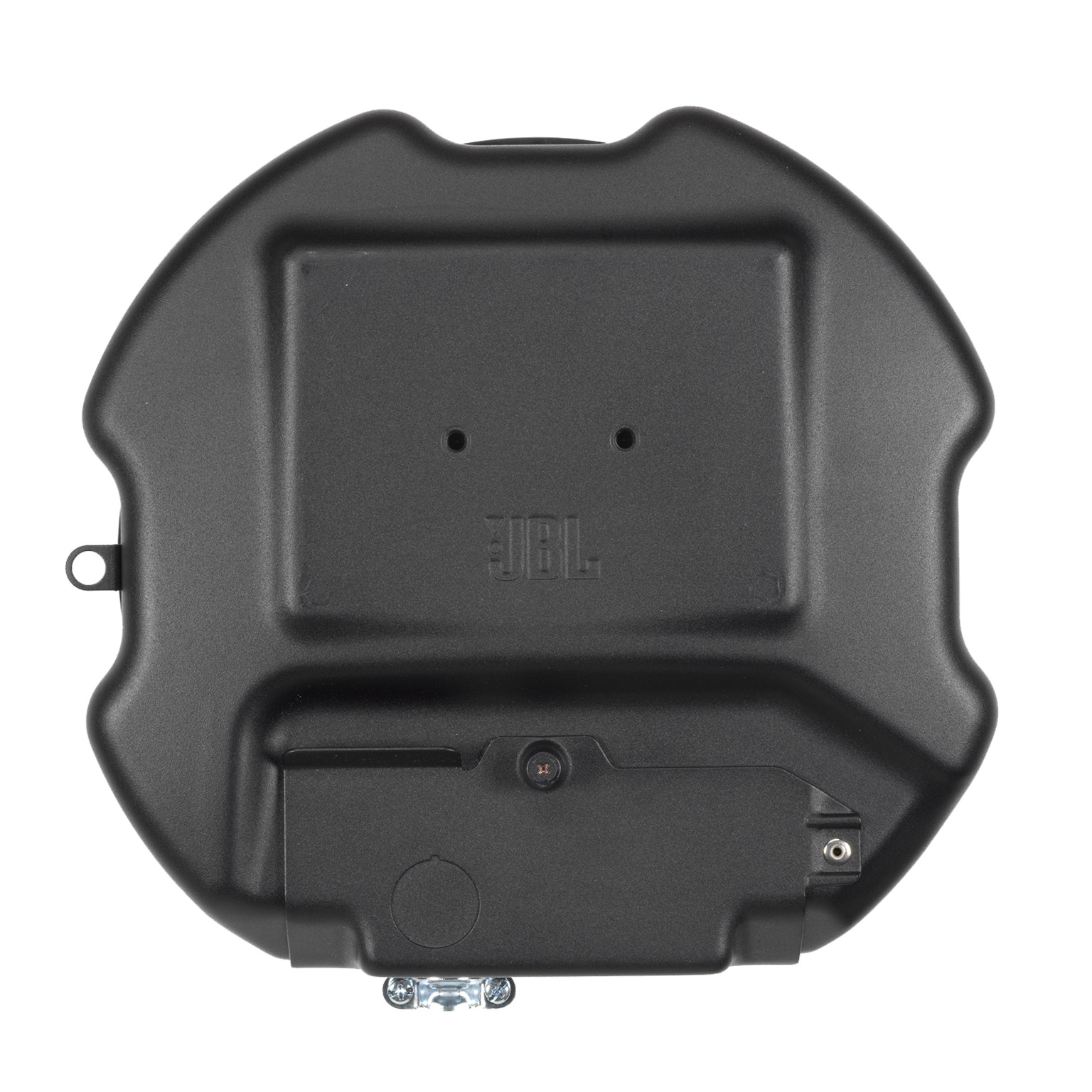

The stylish bezel-less grille fits seamlessly into a variety of architectural aesthetics. The integrated backcan on the Control 440CS/T combined with the C-ring support backing plate allows for quick and easy installation of the unit. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-440BG) and in square (JBL-MTC-440SG, white only).

Specifications

• Frequency Range (-10 dB): 32 Hz – 300 Hz
• Frequency Response (±3 dB): 42 Hz – 180 Hz
• Power Capacity
  • 300 W Continuous Program (2 hrs.)
  • 150 W (600 W Peak), Continuous Pink Noise (2 hrs.)
  • 100 W (400 W Peak) Continuous Pink Noise Power (100 hrs.)
• Sensitivity (1m/1W): 95dB in ceiling near corner (π/2 loading)
• Coverage Angle: N/A
• Maximum SPL (1m): 117 dB Cont. pink noise (123 dB peak, π/2 loading)
• Nominal Impedance: 8Ω
• Transformer Taps
  • 70 V: 80 W, 40 W, 20 W & 10 W
  • 100 V: 80 W, 40 W, 20 W
• Drivers: 200 mm (8 in) treated paper cone with SBR surround and high-performance magnet
• Ceiling Cutout Size: 307 mm (12.1 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0°C to 45°C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 13.8 x 13.5 in (351 x 342 mm)
  • Bottom of ceiling tile to top of backcan: 13.3 in (337 mm)
• Weight (each): 19.22 lbs (8.72 kg)

What's Included

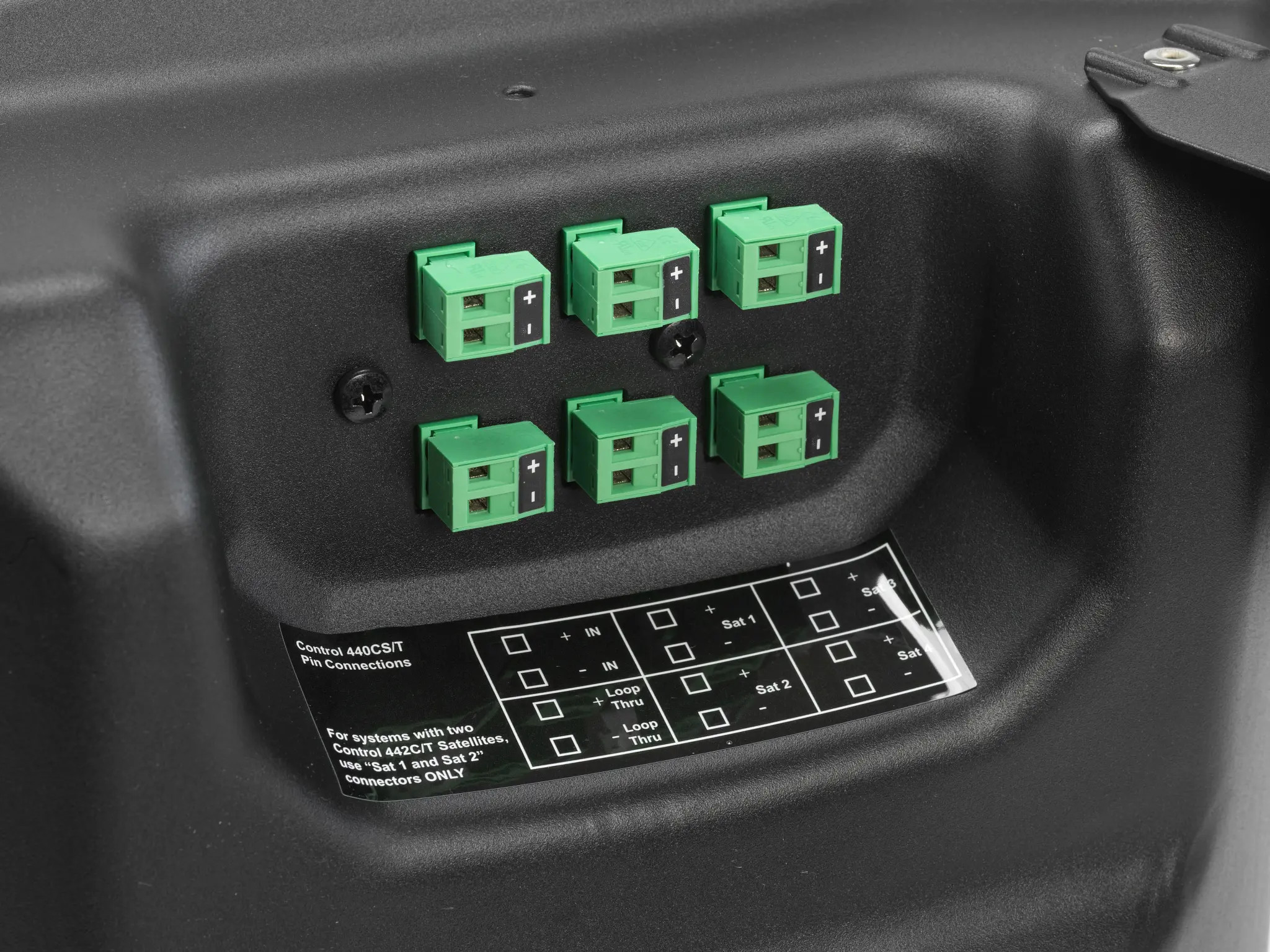

• 12x 2-pin removable locking euro-block connectors
• 2x Cable Strain Relief
• 2x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
• 2x Cutout template
• 2x C-ring
• 4x Tile Rails (fits both 2 x 4 ft and 600 x 1200 mm tiles)
• 2x C-Ring/Tile-Rail Screws
• 2x Seal Cover
• 12x Rubber Boots
