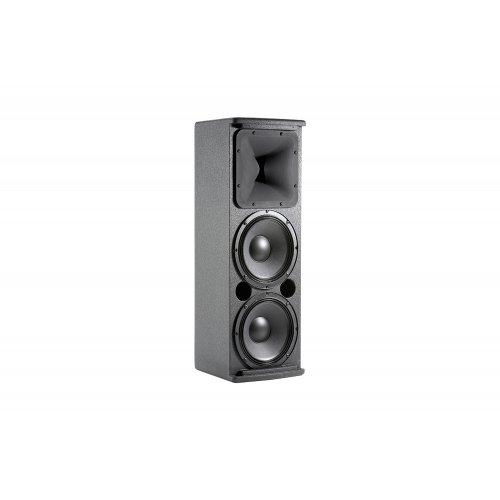

JBL AC28/26 Compact 2-Way Loudspeaker with 2x8-Inch LF (Each) - Black

About: JBL AC28/26 Compact 2-Way Loudspeaker with 2x8-Inch LF (Each) - Black

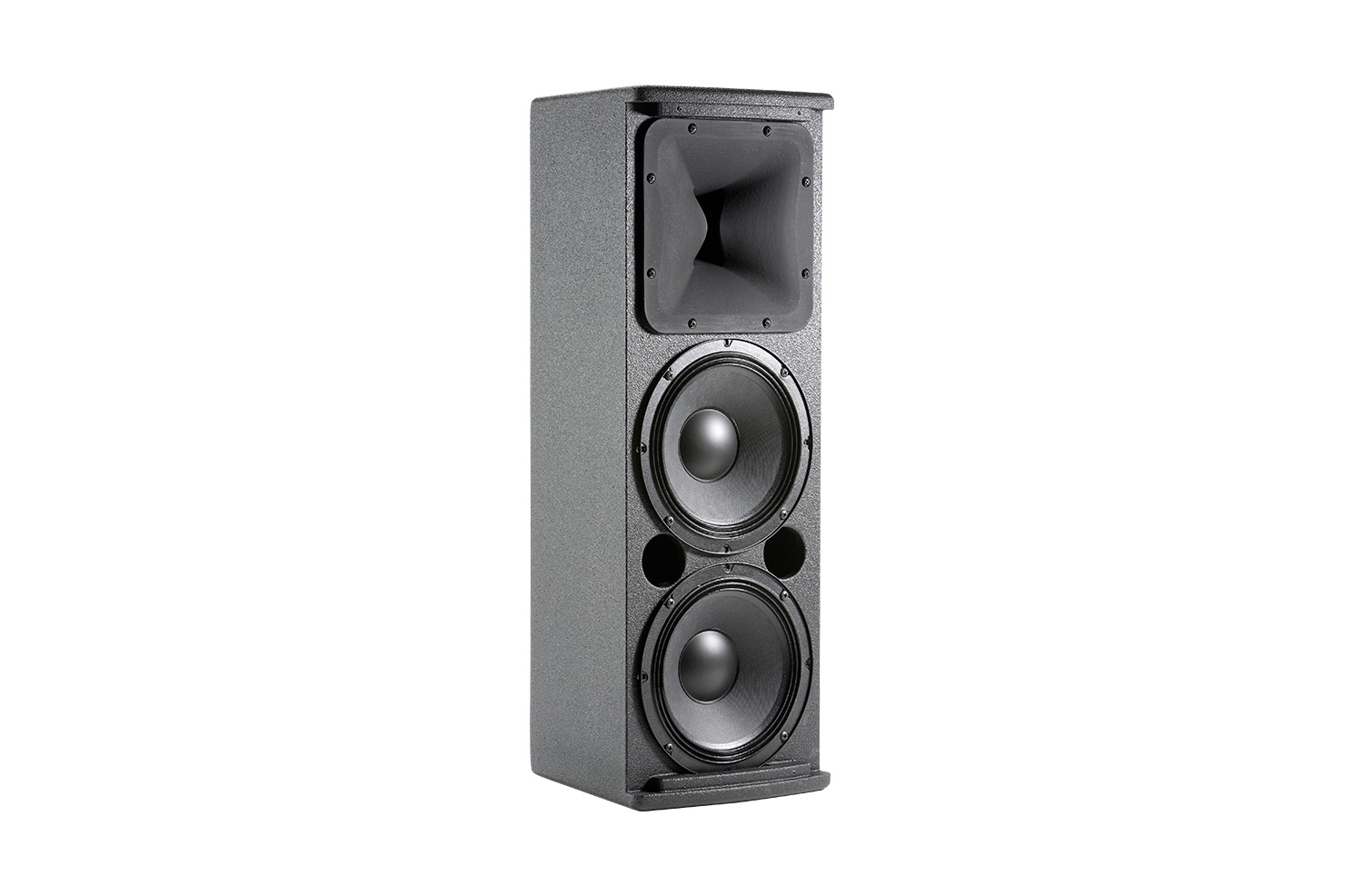

The AC28/26 is a compact full-rangeloudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1” exit compression driver integrated into a newly designed 120° x 60° rotatable PT (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC28/26 utilizes dual 8” Symmetrical Field Geometry (SFG) LF Transducers each with a copper-clad aluminum edge wound 2.5” voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion. Filtered Array Technology (FAT) is utilized to independently control the dual woofers for magnitude and phase response resulting in smoother power response and constant coverage. To further enhance the flexibility and performance of the AC28/26, JBL engineers have designed a user selectable crossover network to ensure complete accuracy of the high-frequency coverage pattern regardless of whether the loudspeaker is being used in the vertical or in the horizontal orientation when the horn is rotated.

The rugged multiply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount type bracket. The AC28/26 is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory.

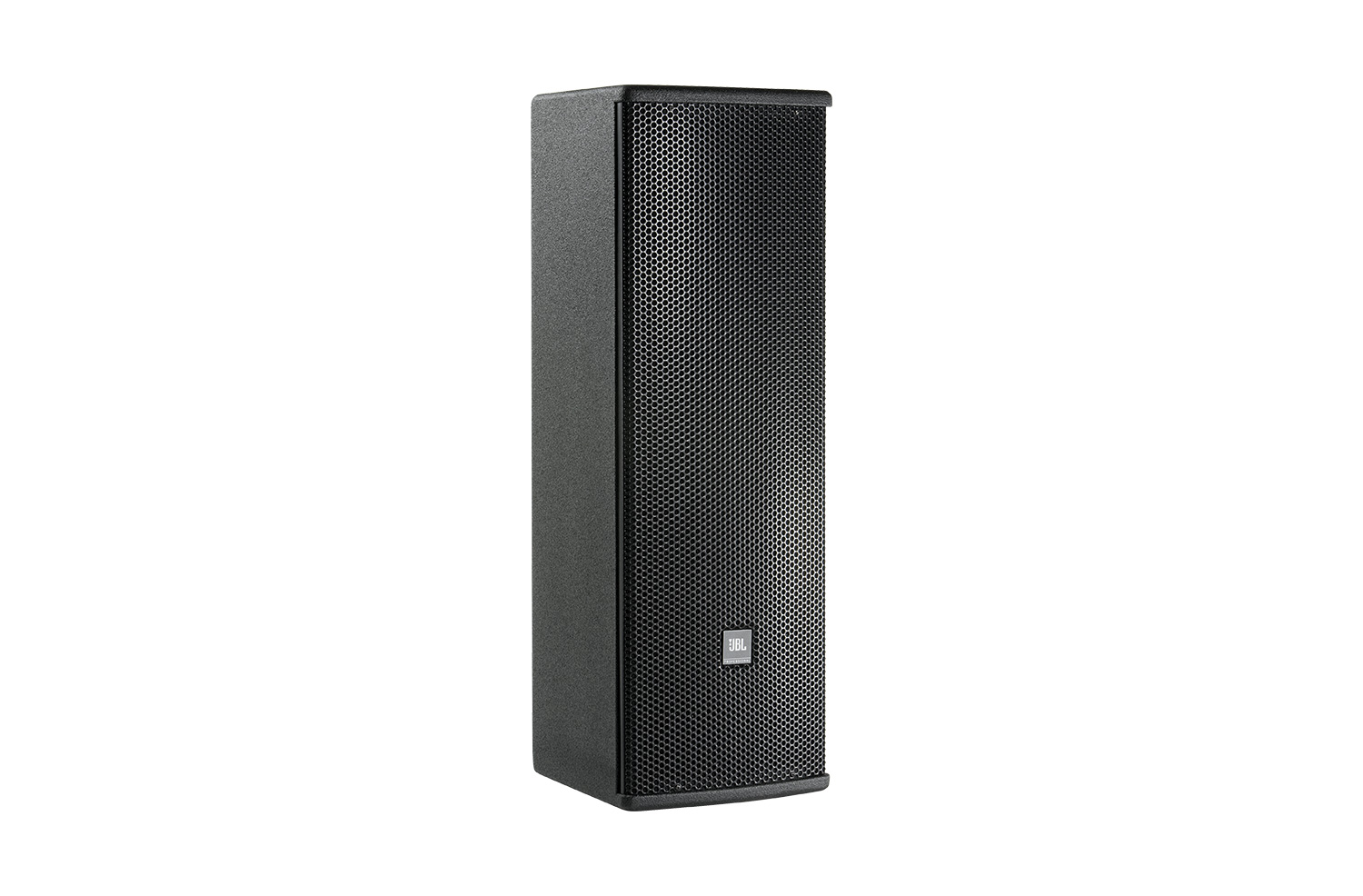

The rugged plywood enclosure features JBL’s textured DuraFlex finish and is equipped with a heavy duty powder coated steel, foam-backed grille.

Features

• 1” Exit Compression Driver with PT Waveguide
• 205 mm (8 in) LF transducer
• Compact enclosure
• 750W Program
• Dual Neutrik NL4 connectors plus screw terminal
• FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
• Attachment points for optional U-bracket, third part OmniMount type bracket and stand mount accessory

Specifications

• Frequency Range (-10dB) -  53 Hz - 20 kHz
• Frequency Response (±3 dB) -  65 Hz – 20 kHz
• System Power Rating
  • 700 W (AES rated)
  • 375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)
• Impedance 8 ohms
• Coverage Pattern
  • AC28/26: 120° x 60°
  • AC28/95: 90° x 50°
• Crossover Modes -  Passive
• Maximum SPL (1m) -  120 dB
• System Sensitivity (1w @ 1m) -  94 dB SPL
• LF Driver -  2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
• Nominal LF Driver Impedance -  8 Ohms
• HF Driver -  1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
• Enclosure -  12 mm and 15 mm exterior grade multi-ply hardwood plywood
• Suspension Attachment
  • 6 x M8 points; 1 top, 3 bottom, 2 rear.
  • 4 x M8 rear for MultiMount MM-120-BT.
• Environmental -  Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
• Dimensions (HxWxD) -  26.75 x 9.35 x 10 inch ( 679.5 x 237.5 x 254 mm)
• Net Weight (each) -  41 lb (18.6 kg)
