TOA Canada PJ-304 30W Projection Speaker - White
Model: PJ-304
About: TOA Canada PJ-304 30W Projection Speaker - White

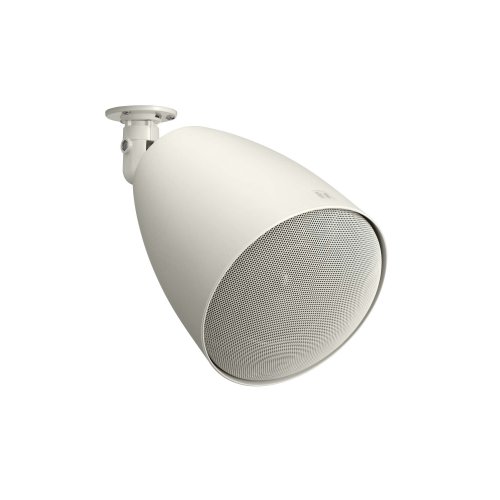

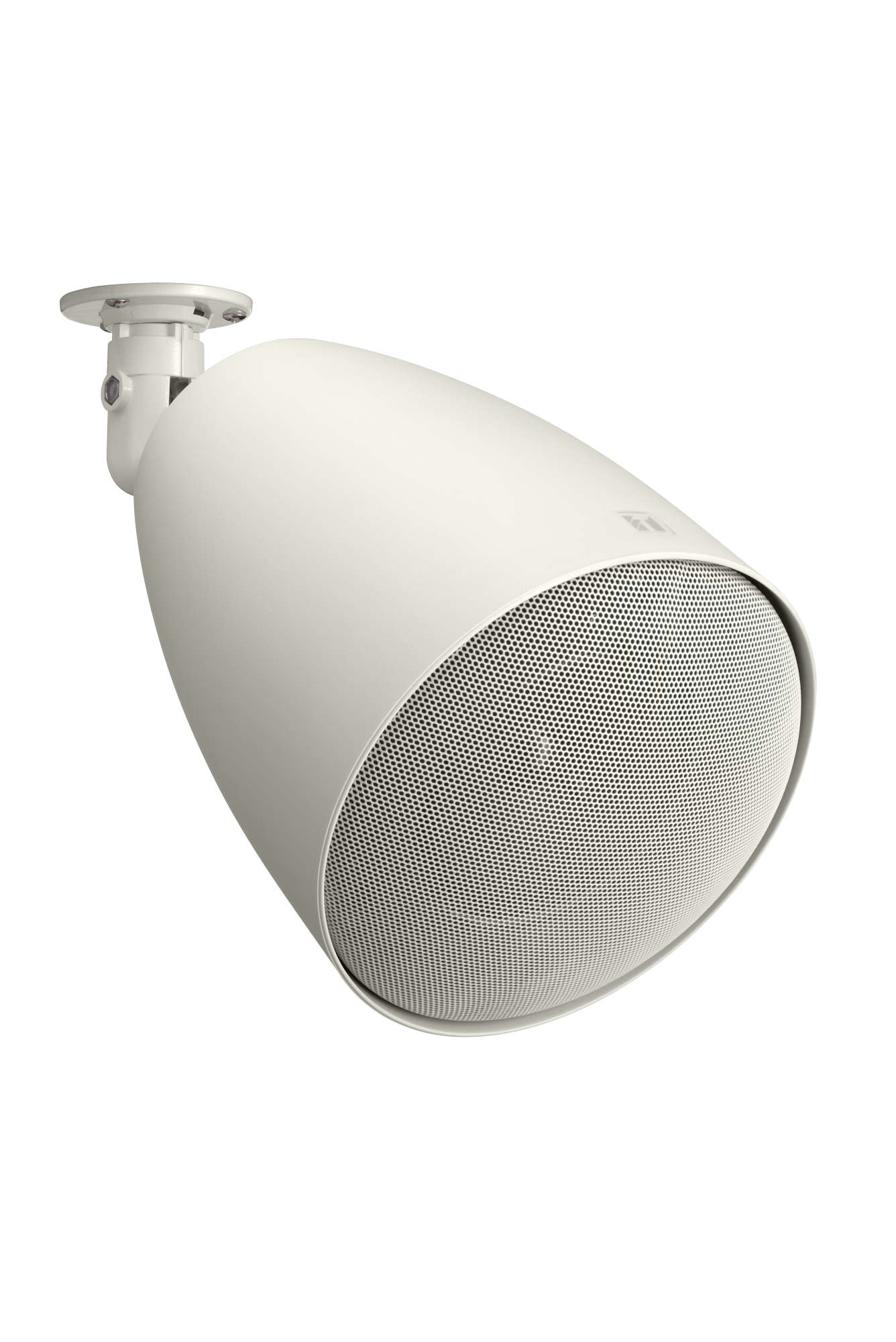

The PJ-304 is a projection speaker designed for ceiling and wall installations. Considered in architectural design, it can blend in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment. The PJ-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 #9b) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.
- Stylish and outstanding design inspired by the finest lighting fixtures
- Flexible speaker direction adjustment with accessory brackets
- Repaintable
- Input impedance easily changeable
- Bass-reflex type
Specifications
- Enclosure - Bass-reflex type
- Rated Input - 30 W (100 V, 70 V line, 8 Ω)
- Rated Impedance
- 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
- 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
- 8 Ω
- Sensitivity - 91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
- Frequency Response - 70 - 20,000 Hz (peak -20 dB)
- Speaker Component - 12 cm (5) cone-type + balanced dome-tweeter
- Speaker Cable - 2-core cabtyre cord 60 cm (1.97 ft) with diameter of 6 mm (0.24)
- Finish
- ​Enclosure: HIPS resin, off-white
- Grille: Surface-treated steel plate net, off-white, paint
- Dimensions - Φ186 x 369 (H) mm (Φ7.32 x 14.33")
- Weight - 2.1 kg (4.63 lb) (unit only)
- Included Accessories
- 1x Swivel bracket
- 3x Speaker mounting screw
Reviews: TOA Canada PJ-304 30W Projection Speaker - White
Warranty: TOA Canada PJ-304 30W Projection Speaker - White
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
