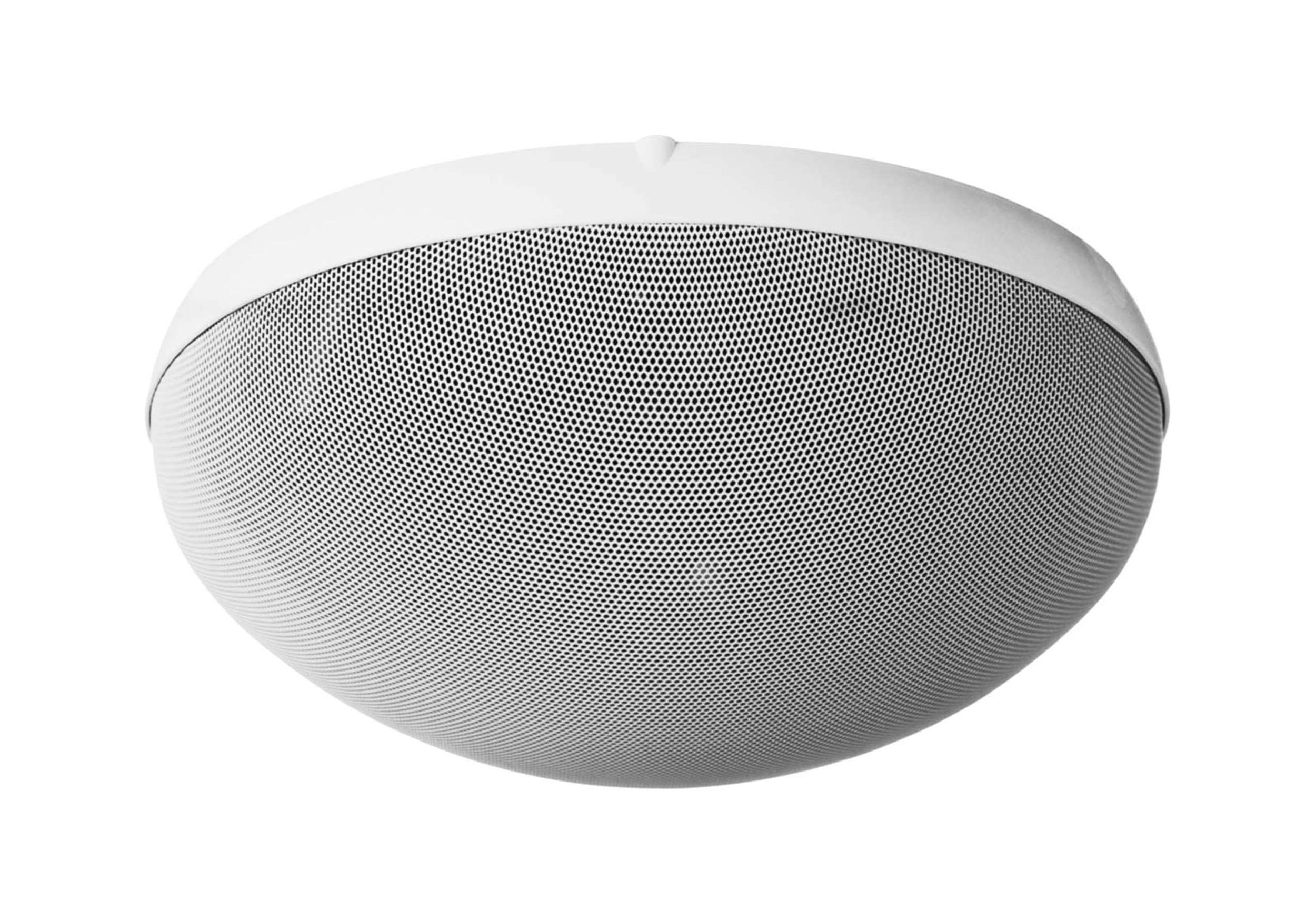

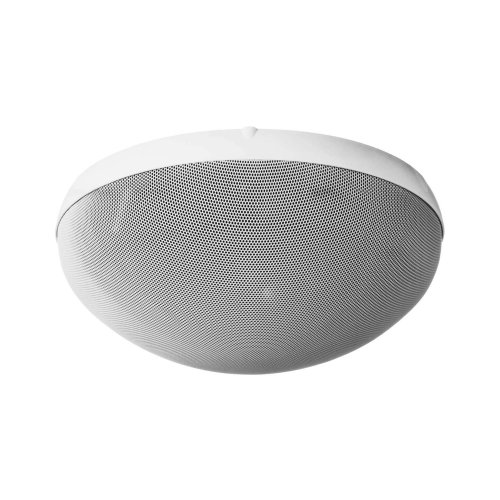

TOA Canada H-2WP Dome-Shaped Design Speaker (Weather Resistant)
Model: H-2WP
About: TOA Canada H-2WP Dome-Shaped Design Speaker (Weather Resistant)
Designed for outdoor-use applications, the H-2WP is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface. (For the installation on walls, however, keep the speaker facing down within 45 degrees left and right each.)
- 2-way design speaker
- Ferrofluid-cooled balanced dome tweeters, neodymium magnet cone woofers
- Narrow coverage area allows a controlled sound
- Sound direction can be adjusted within 360°
- High power handling of 120 W (continuous program)
- Fire-rated ABS enclosure (UL 94-V0)
- Weatherproof IP64 certified
Specifications
- Enclosure - Sealed type
- Rated Input - 12 W (16 Ω, high impedance)
- Power Handling - 120 W (continuous program/4 Ω), 40 W (continuous pink noise/4 Ω)
- Rated Impedance
- 4 Ω, 16 Ω
- 100 V line: 830 Ω (12 W), 1.7 kΩ (6 W), 3.3 kΩ (3 W)
- 70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
- Sensitivity
- 88 dB (1 W, 1 m) at installation in 1/2 free sound field
- (Measured by installing the unit in the center of a wall.)
- 88 dB (1 W, 1 m) at installation in 1/2 free sound field
- Frequency Response - 100 Hz - 20 kHz
- Speaker Component - Low frequency: 10 cm cone-type, High frequency: Balanced dome-type
- Input Terminal - Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
- Cable Requirements - Solid cable, stranded cable: 0.2 - 2.5 mm² (AWG No. 24 - 14 equivalent)
- Dust/Water Protection - IP64
- Operating Temperature - -10 °C to +50 °C
- Installation Environment - Indoor installation, under-eave installation*
- *Avoid installing the speaker in locations close to the seashore or in indoor swimming facilities that are not well ventilated
- Finish
- Punched net: Steel plate (zinc plating), white, powder coating
- Frame: Fire-resistant ABS, white, paint
- Base frame: Stainless plate
- Recommended Electrical Box - 1-gang type (with cover)*
- *Without using an electrical box, mounting the supplied base frame directly to a wall or ceiling allows the speaker installation.
- Other Feature - Angle of speaker: 360 degrees adjustable in parallel to the mounting surface.
- Dimensions - Ø268 x 111 mm
- Weight - 2.1 kg (including base frame)
- Included Accessories
- 1x Base frame
- 1x Electrical box mounting screw (set)
