JBL Control 442C/T 2.5in Compact Ceiling Loudspeaker (Pair)

About: JBL Control 442C/T 2.5in Compact Ceiling Loudspeaker (Pair)

Part of the Control 400 collection’s Premium Coverage Series, the JBL Control 442C/T is an ultra-compact in-ceiling professional satellite loudspeaker designed for use with the Control 440CS/T in-ceiling subwoofer. When combined with the Control 440CS/T, the Control 442C/T offers an extremely refined, natural, and powerful sounding subwoofer-satellite system that is ideal for applications requiring wide bandwidth, superior sonic performance, and minimal visual impact.

• 60mm (2.5in) full range driver
• Stylish bezel-less grille blends elegantly into room design
• Very broad 160° coverage pattern
• 130 Hz – 20 kHz frequency range
• 16Ω driver and 12W transformer for use with 70V/100V distributed systems

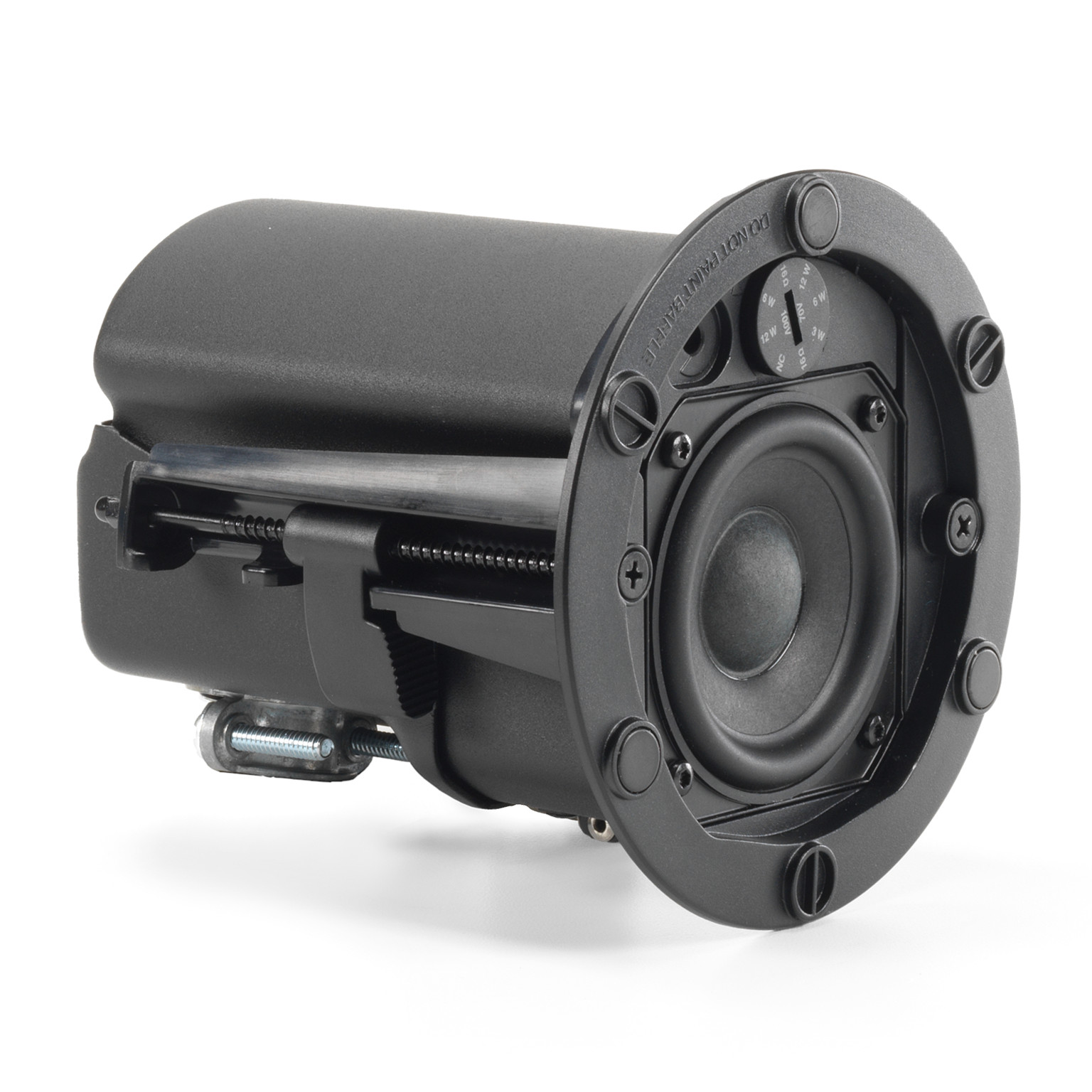

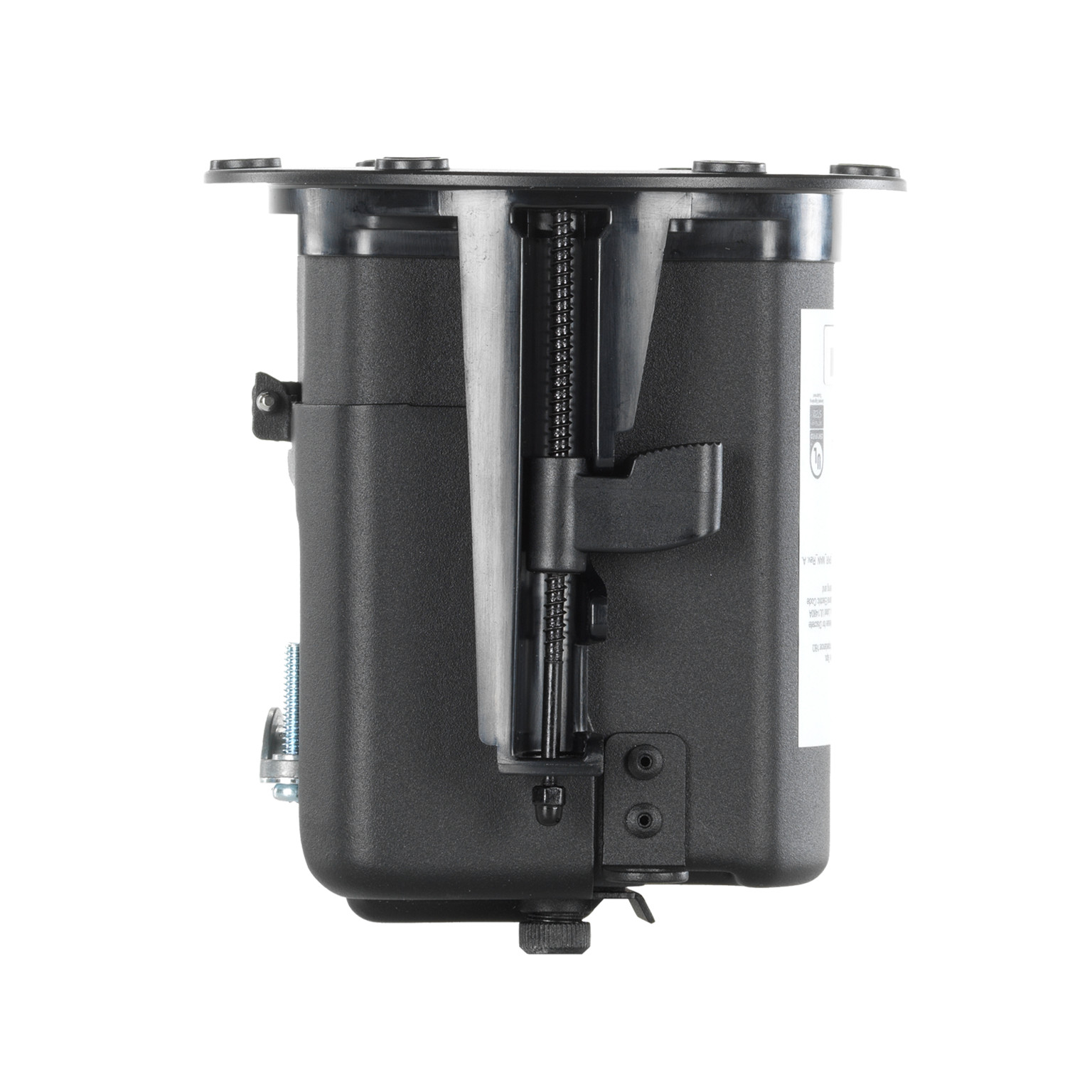

The stylish bezel-less grille fits seamlessly into a variety of architectural aesthetics. The integrated backcan on the Control 442C/T combined with the C-ring support backing plate allows for quick and easy installation of the unit. The system’s 60 mm (2.5 in) mid/high driver features a polypropylene cone and pure butyl rubber surround for long life. The copper-clad aluminum voice coil wound on a vented aluminum former offers low distortion.

The 16Ω impedance allows paralleling up to 4 speakers on a 4Ω capable amplifier. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

The Control 442C/T must be operated with either an active high-pass filter or a passive crossover, such as the one built into the Control 440CS/T subwoofer, to protect it against damage from low frequencies. Because of the very light weight of Control 442C/T, tile rails may not be required for many in-ceiling applications. They are not packaged with this model, however MTC-RAIL tile rail sets are available separately. Housed in a compact package, the lightweight Control 442C/T features an elegant, unobtrusive design and is ideal for both small and large projects alike.

The speaker is packaged with grille, integral backcan, and c-ring for fast installation. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-442BG) and in square (JBL-MTC-442SG, white only).

Specifications

• Frequency Range (-10 dB): 130Hz - 20kHz
• Frequency Response (±3 dB): 178 Hz – 20 kHz
• Power Capacity
  • 45 W Continuous Program (2 hrs.)
  • 22.5 W (90 W Peak), Continuous Pink Noise (2 hrs.)
  • 15 W (60 W Peak) Continuous Pink Noise Power (100 hrs.)
• Sensitivity (1m/1W): 86dB
• Coverage Angle: 160° conical
• Maximum SPL (1m): 99.5 dB Cont. pink noise (105.5 dB peak)
• Nominal Impedance: 16Ω

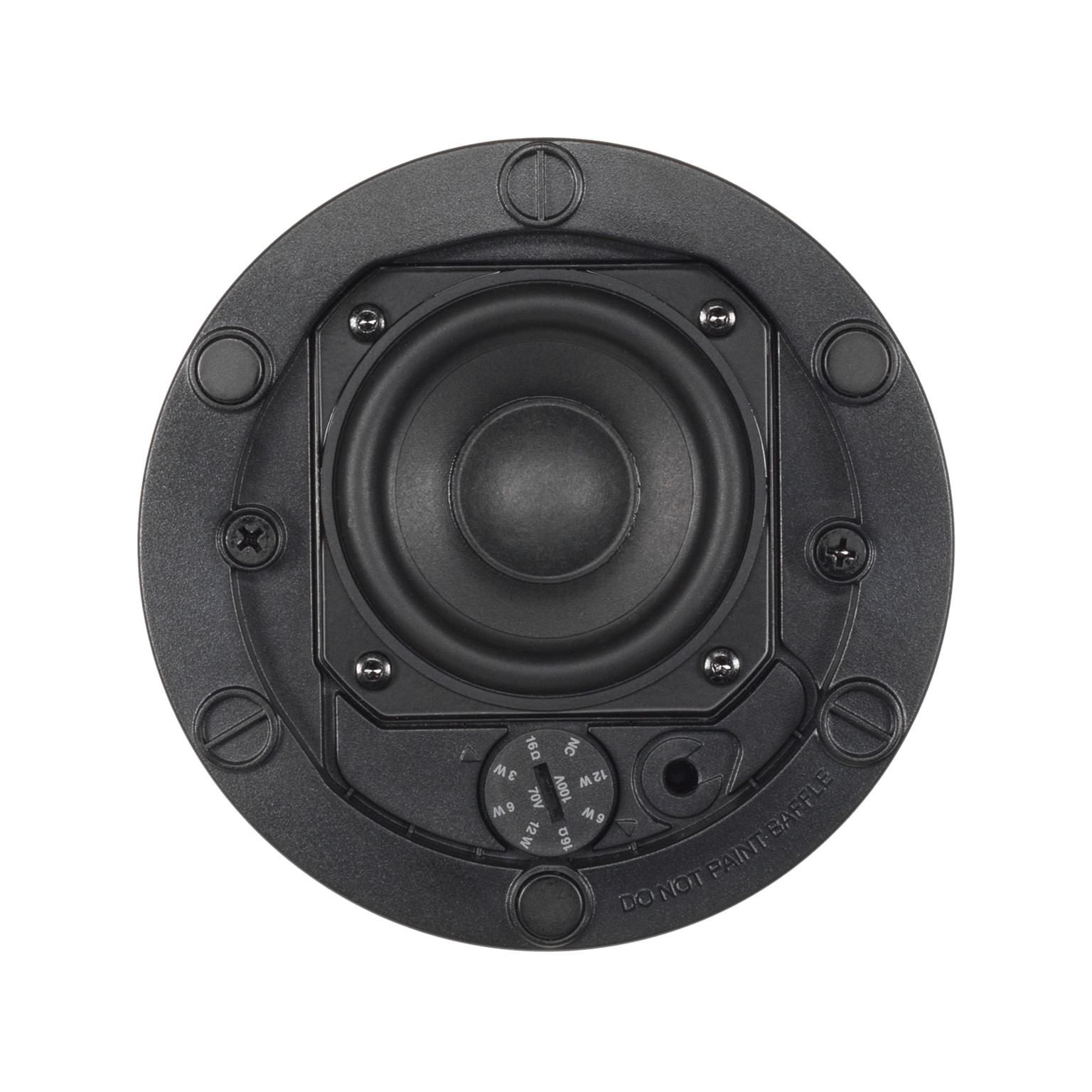

• Transformer Taps
  • 70 V: 12 W, 6 W & 3 W
  • 100 V: 12 W, 6 W
• Drivers: 60 mm (2.5 in) Full Range driver with paper cone, Rubber surround, CCAW coil
• Ceiling Cutout Size: 104 mm (4.1 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0°C to 45°C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 5.4 x 5.2 in (138 x 131 mm)
  • Bottom of ceiling tile to top of backcan: 5.1 in (129 mm)
• Weight (each): 2.43 lbs (1.1 kg)

What's Included

• 4x 2-pin removable locking euro-block connectors
• 2x Cable Strain Relief
• 2x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
• 2x Cutout template
• 2x C-ring
• 2x C-Ring/Tile-Rail Screws
• 2x Seal Cover
• 4x Rubber Boots
