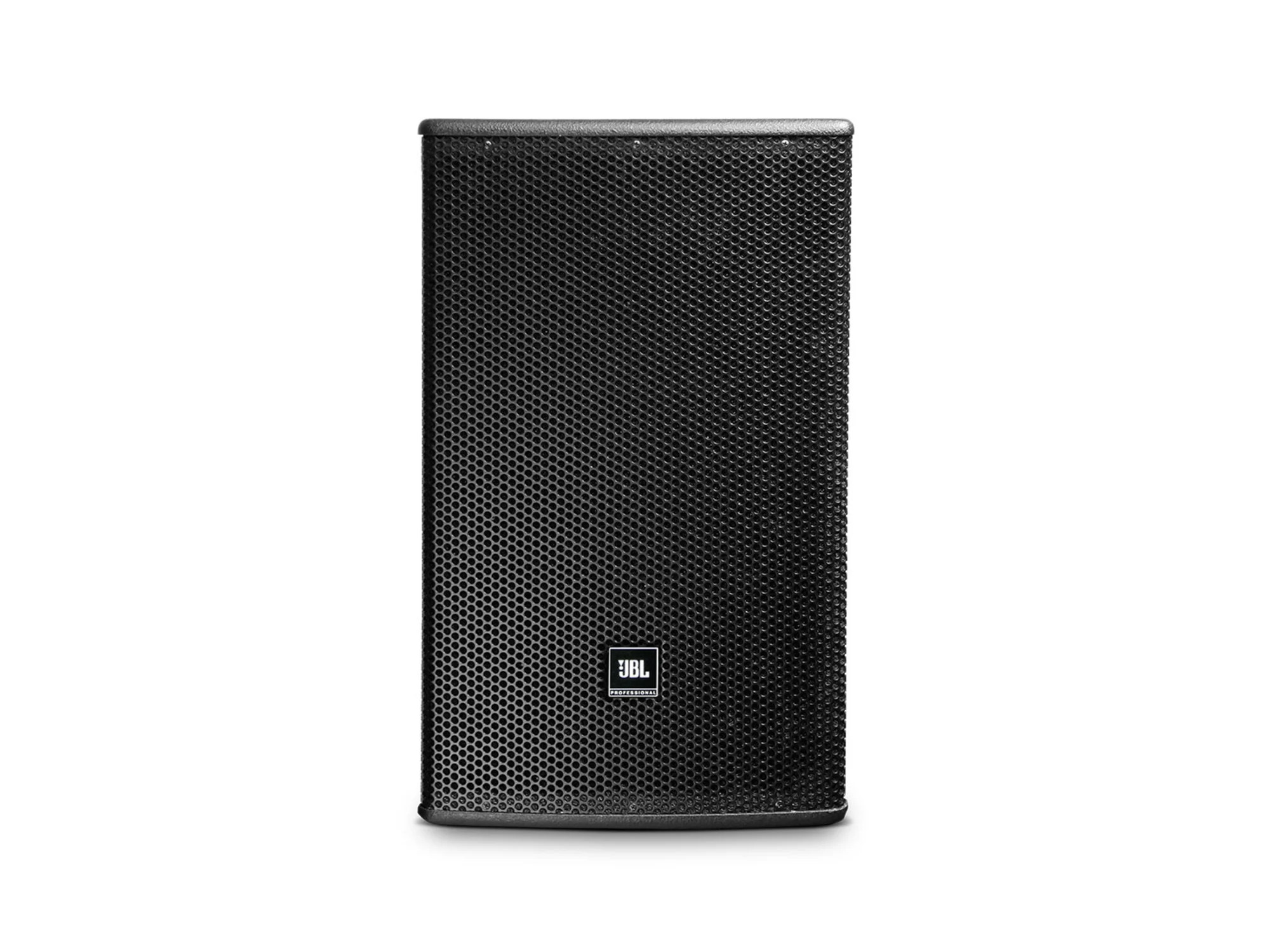

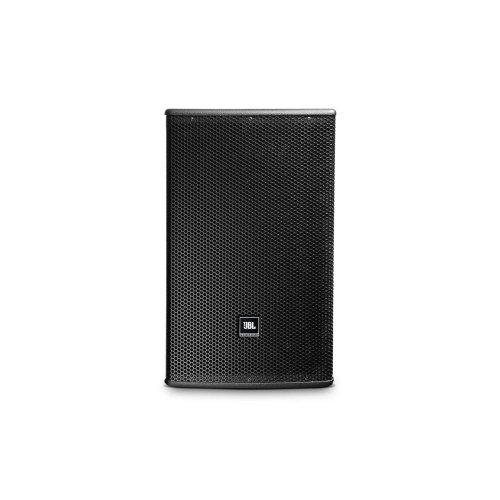

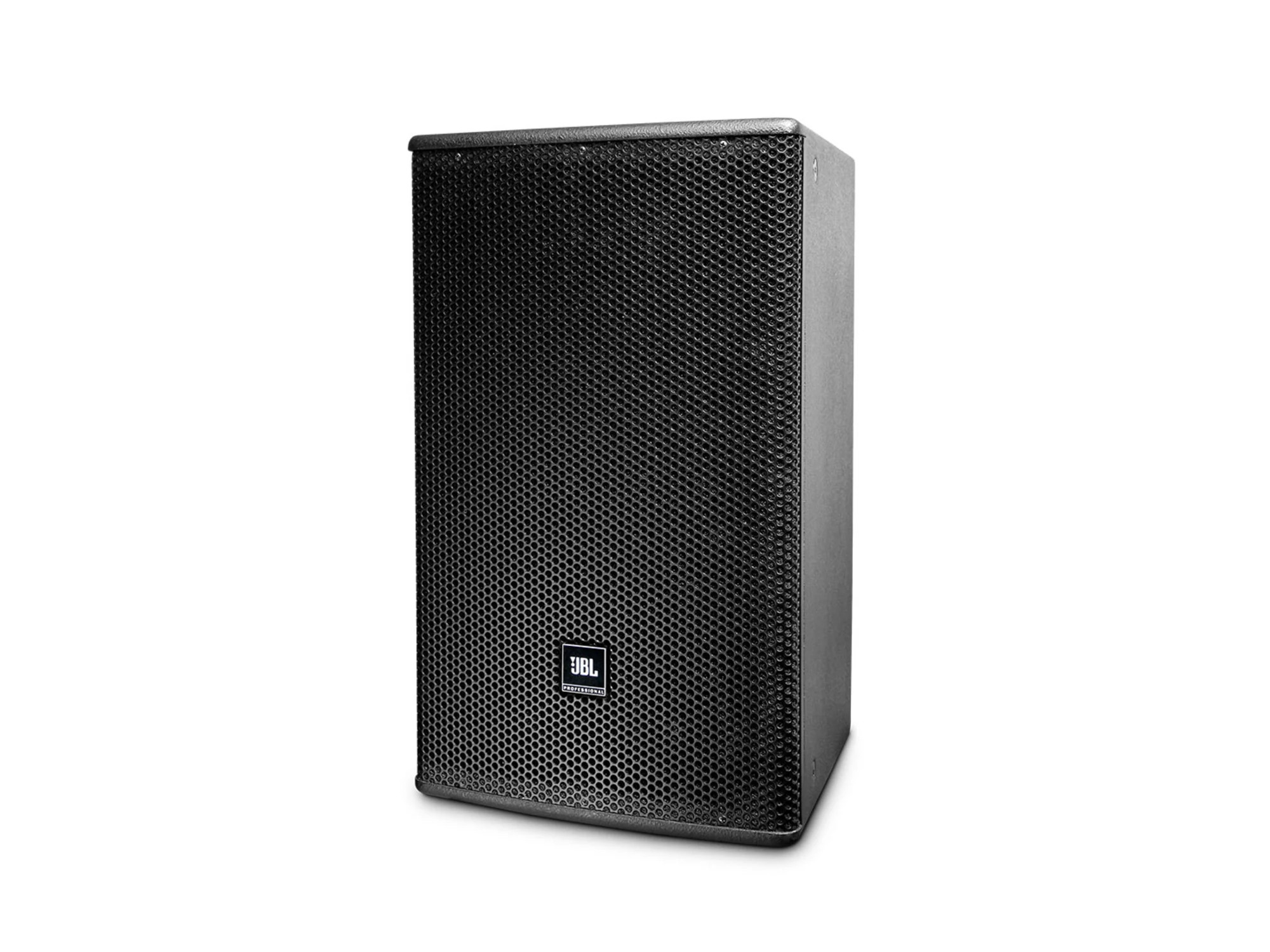

JBL AC299 Two-Way Full-Range Loudspeaker with 1x12-Inch LF (Each)

About: JBL AC299 Two-Way Full-Range Loudspeaker with 1x12-Inch LF (Each)

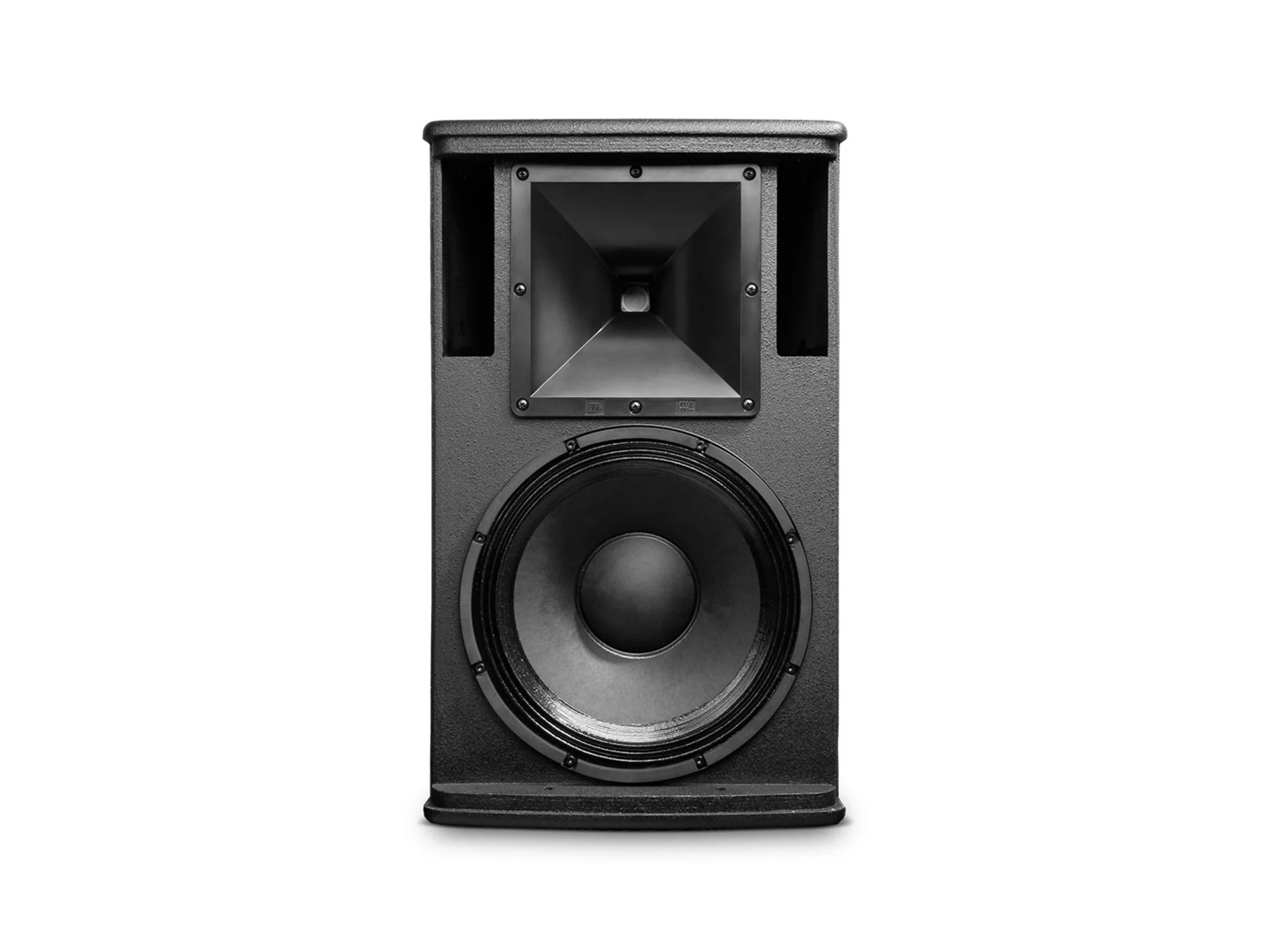

The JBL AC299 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response.

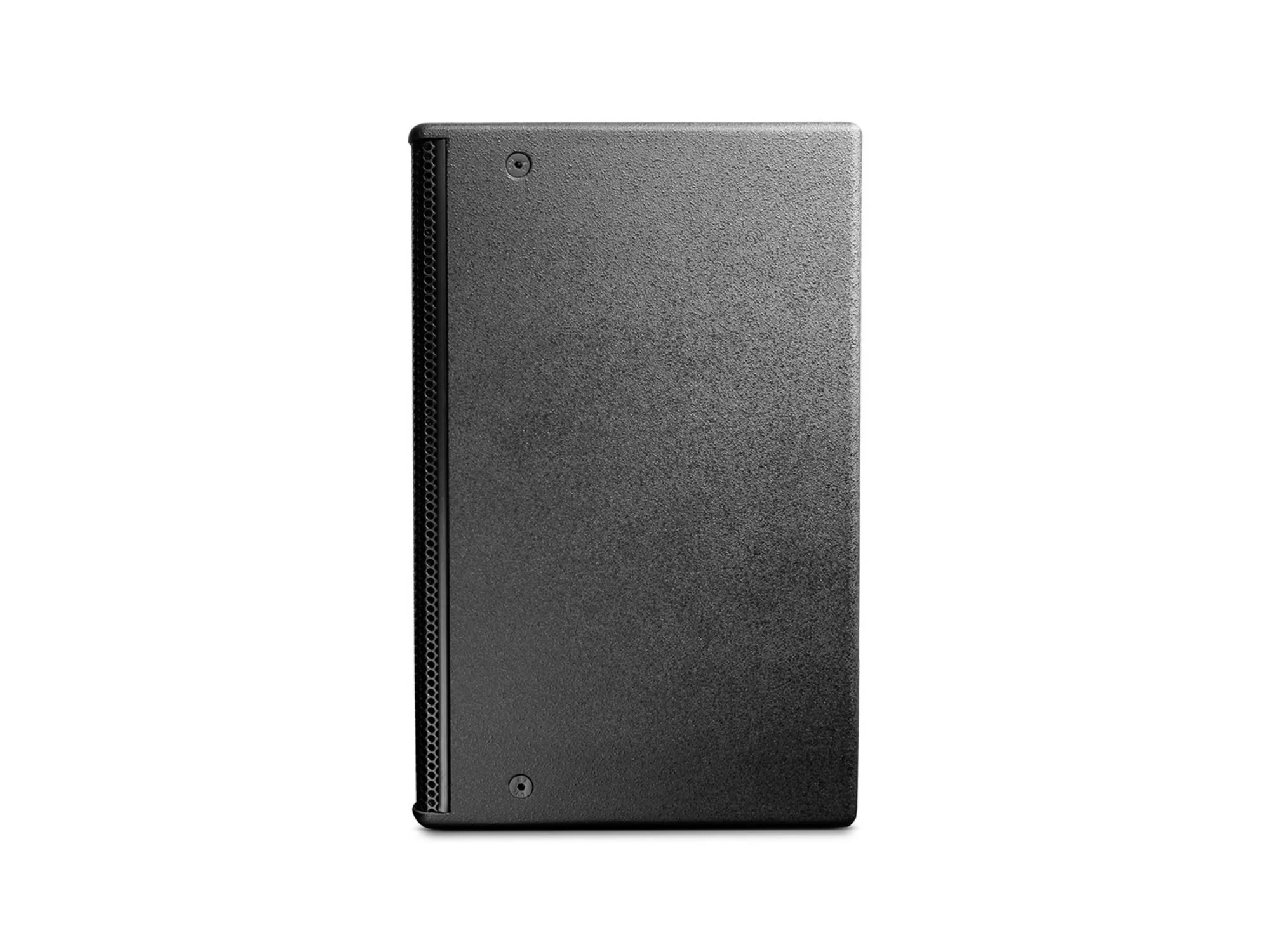

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.

AC299 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features

• Robust 15mm enclosure with black textured finish
• 310 mm (12 in) LF transducer
• 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple attachment points for ultimate flexibility

Specifications

• Frequency Range (-10dB) -  63 Hz - 20 kHz
• Frequency Response (±3 dB) -  80 Hz - 18 kHz
• System Sensitivity (1w @ 1m) -  97 dB
• Nominal Impedance -  8 ohms
• Maximum SPL (1m) -  121 dB (127 dB peak)
• System Power Rating
  • 350W (1400W peak), 2 hrs (AES rated)
  • 250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated)
• Coverage Pattern -  90° x 90° (H x V)
• Crossover -  1.5 kHz
• LF Driver -  1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
• HF Driver -  1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
• Input Connector -  Dual Neutrik NL4MP connectors plus covered barrier trip terminals
• Enclosure -  15 mm multi-ply hardwood plywood
• Grille -  Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
• Finish -  Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
• Suspension Attachment -  14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
• Crossover Modes -  Passive
• Nominal LF Driver Impedance -  8 ohms
• Nominal HF Driver Impedance -  8 ohms
• Dimensions (HxWxD) -   23.62 x 14.57 x 15.43 inch (600 x 370 x 392 mm)
• Net Weight (each) -  38.14 lbs (17.3 kg)
