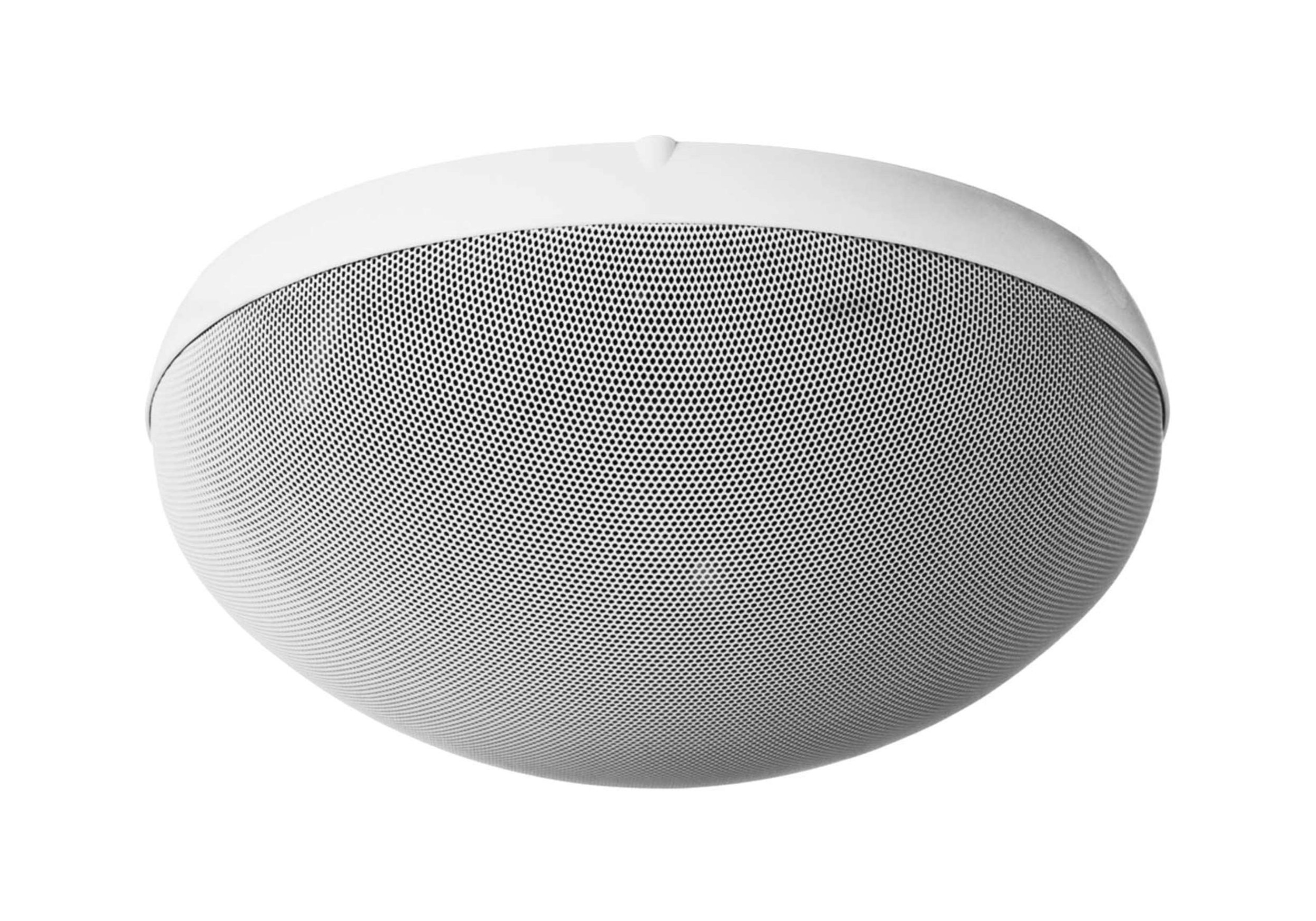

TOA Canada H-2 Dome-Shaped Design Speaker

About: TOA Canada H-2 Dome-Shaped Design Speaker

The H-2 is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface.

• 2-way design speaker
• Ferrofluid-cooled balanced dome tweeters, neodymium magnet cone woofers
• Narrow coverage area allows a controlled sound
• Sound direction can be adjusted within 360°
• High power handling of 120 W (continuous program)
• Fire-rated ABS enclosure (UL 94-V0)

Specifications

• Enclosure - Sealed type
• Rated Input - 12 W (16 Ω, high impedance)
• Power Handling - 120 W (continuous program/4 Ω), 40 W (continuous pink noise/4 Ω)
• Rated Impedance
  • 4 Ω, 16 Ω
  • 100 V line: 830 Ω (12 W), 1.7 kΩ (6 W), 3.3 kΩ (3 W)
  • 70 V line: 420 Ω (12 W), 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
• Sensitivity
  • 88 dB (1 W, 1 m) at installation in 1/2 free sound field
    • (Measured by installing the unit in the center of a wall.)
• Frequency Response - 100 Hz - 20 kHz
• Speaker Component - Low frequency: 10 cm cone-type, High frequency: Balanced dome-type
• Input Terminal - Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
• Cable Requirements - Solid cable, stranded cable: 0.2 - 2.5 mm² (AWG No. 24 - 14 equivalent)
• Finish
  • Punched net: Steel plate, white, paint
  • Frame: Fire-resistant ABS resin, white, paint
  • Base frame: Steel plate
• Recommended Electrical Box - 1-gang type (with cover)*
  • *Without using an electrical box, mounting the supplied base frame directly to a wall or ceiling allows the speaker installation.
• Other Feature - Angle of speaker: 360 degrees adjustable in parallel to the mounting surface.
• Dimensions - Ø268 x 111 mm
• Weight - 2.1 kg (including base frame)
• Included Accessories
  • 1x Base frame
  • 1x Electrical box mounting screw (set)
