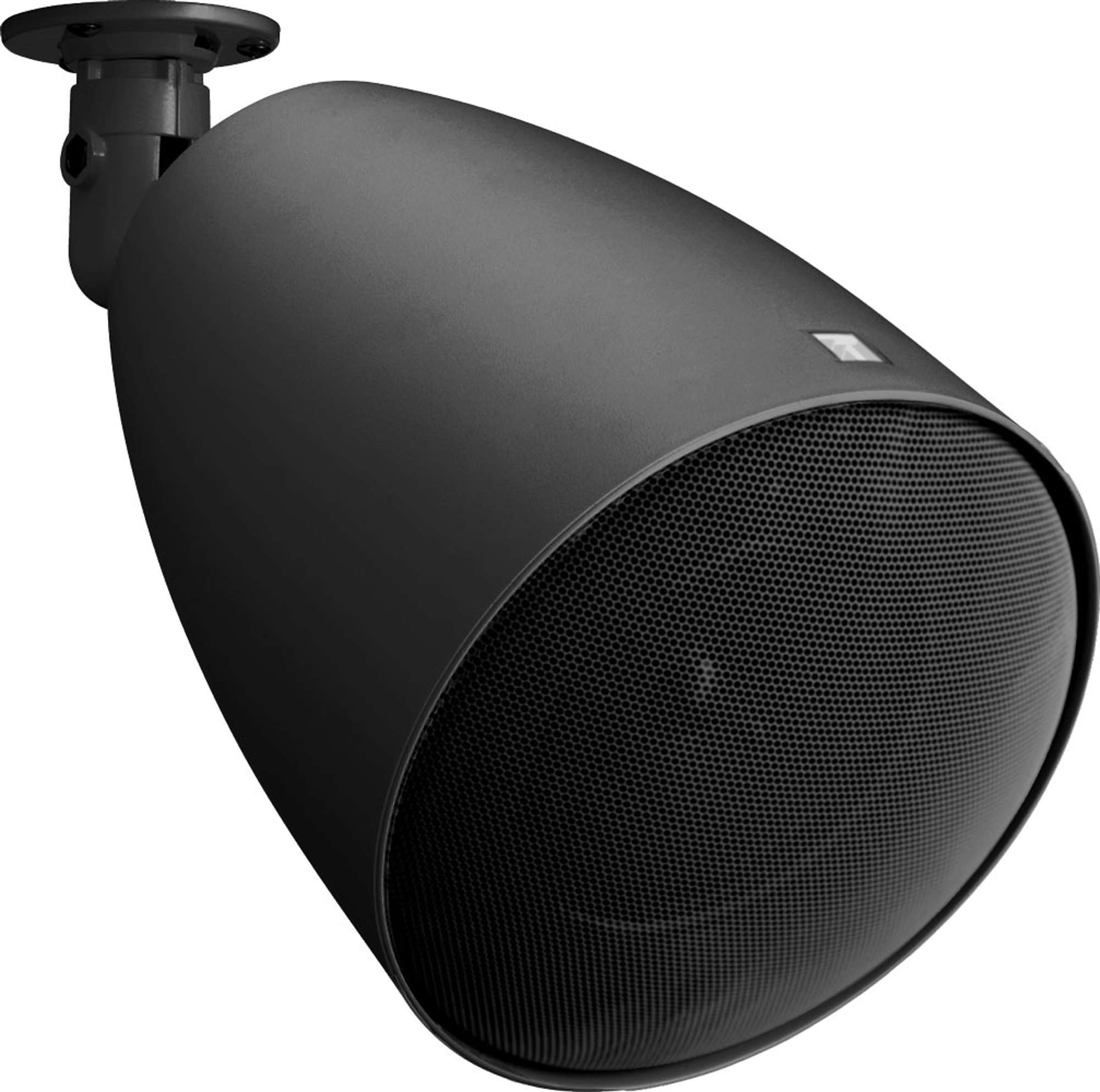

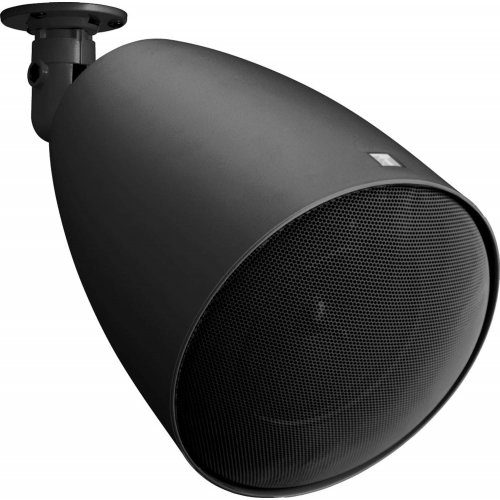

TOA Canada PJ-304 30W Projection Speaker - Black
Model: Q-PJ-304BK
About: TOA Canada PJ-304 30W Projection Speaker - Black
The Q-PJ-304BK is a projection speaker designed for ceiling and wall installations. Considered in architectural design, it can blend in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment. The Q-PJ-304BK is driven on both high-impedance (100 V and 70 V) and low-impedance (Ohm) lines. The impedance can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.
- Stylish and outstanding design inspired by the finest lighting fixtures
- Flexible speaker direction adjustment with accessory brackets
- Input impedance easily changeable
- Bass-reflex type
- Paintable
Specifications
- Enclosure - Bass-reflex type
- Rated Input - 30 W (100 V, 70 V line, 8 Ω)
- Rated Impedance
- 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
- 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
- 8 Ω
- Sensitivity - 91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
- Frequency Response - 70 - 20,000 Hz (peak -20 dB)
- Speaker Component - 12 cm (5) cone-type + balanced dome-tweeter
- Speaker Cable - 2-core cabtyre cord 60 cm (1.97 ft) with diameter of 6 mm (0.24)
- Finish
- ​Enclosure: HIPS resin, black
- Grille: Surface-treated steel plate net, black, paint
- Dimensions - Φ186 x 369 (H) mm (Φ7.32 x 14.33")
- Weight - 2.1 kg (4.63 lb) (unit only)
- Included Accessories
- 1x Swivel bracket
- 3x Speaker mounting screw
