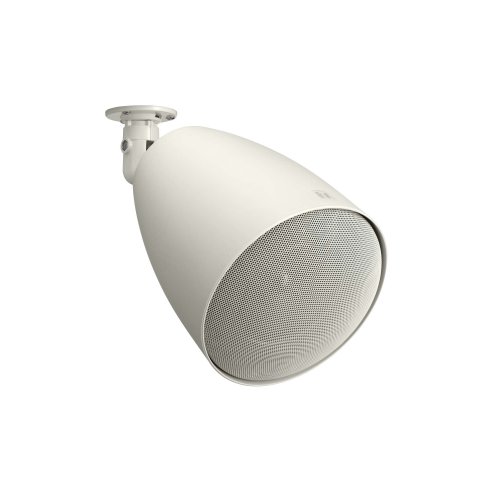

TOA Canada PJ-64 6W Projection Speaker
Model: PJ-64
About: TOA Canada PJ-64 6W Projection Speaker

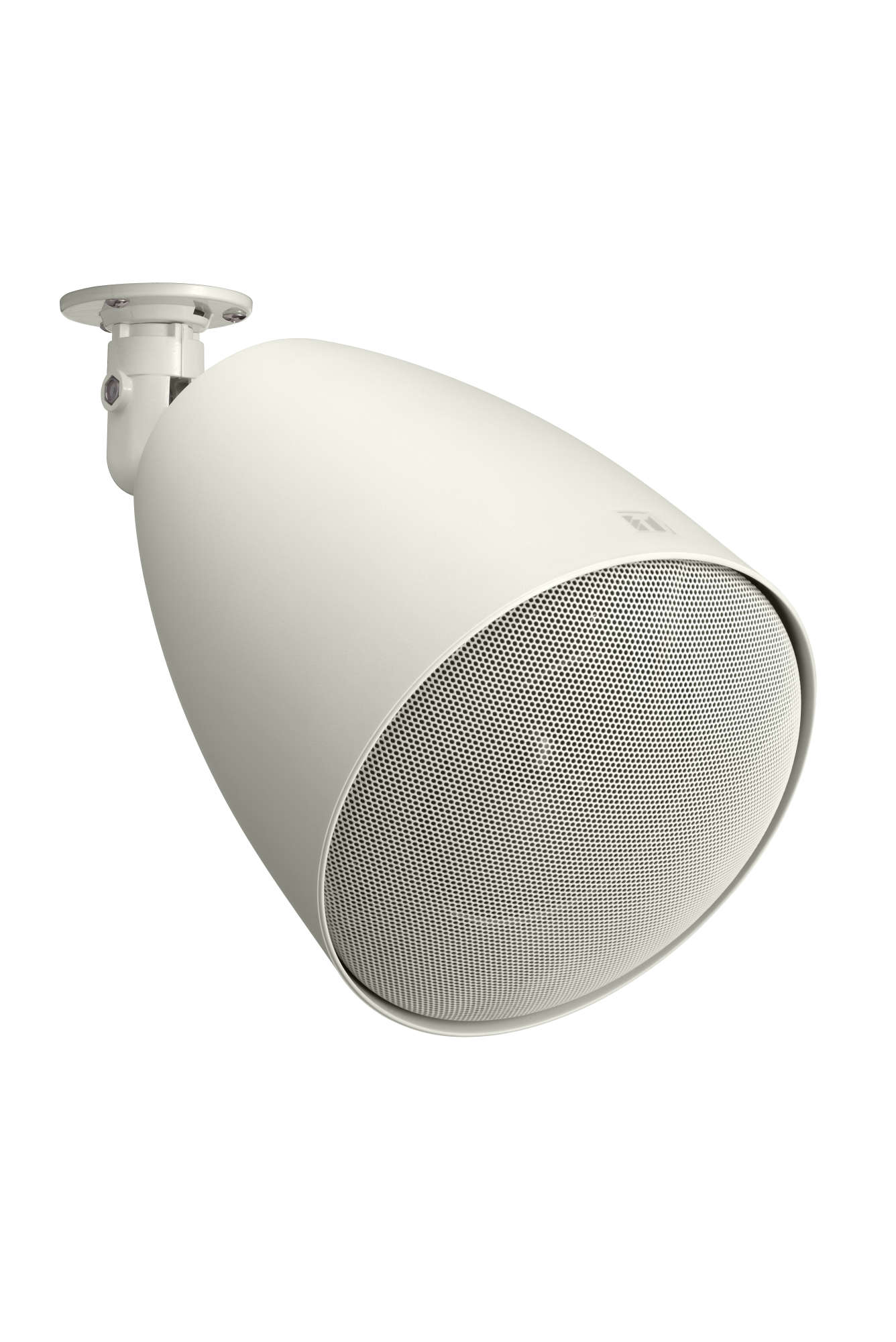

The PJ-64 is a projection speaker designed for ceiling and wall installations. Considered in architectural design, it can blend in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment. The PJ-64 is driven on high-impedance (100 V and 70 V) line. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.
- Stylish and outstanding design inspired by the finest lighting fixtures
- Flexible speaker direction adjustment with accessory brackets
- Repaintable
- Input impedance easily changeable
- Bass-reflex type
Specifications
- Enclosure - Bass-reflex type
- Rated Input - 6 W (100 V line), 3 W (70 V line)
- Rated Impedance
- 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
- 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
- Sensitivity - 90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
- Frequency Response - 100 - 18,000 Hz (peak -20 dB)
- Speaker Component - 12 cm (5) cone-type
- Speaker Cable - 2-core cabtyre cord 60 cm (1.97 ft) with diameter of 6 mm (0.24)
- Finish
- Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
- Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
- Dimensions - Φ186 x 369 (H) mm (Φ7.32 x 14.33")
- Weight - 1.5 kg (3.31 lb) (unit only)
- Included Accessories
- 1x Swivel bracket
- 3x Speaker mounting screw
