JBL Control 447HC 6.5in RBI Two-Way Coax High-Ceiling Loudspeaker (Pair)

About: JBL Control 447HC 6.5in RBI Two-Way Coax High-Ceiling Loudspeaker (Pair)

Part of the Control 400 collection’s Premium Coverage Series, the JBL Control 447HC is a professional in-ceiling loudspeaker designed for applications that require a focused beamwidth pattern along with very consistent coverage. The Control 447HC features a narrow 85° coverage pattern that helps minimize sound reflecting off of room surfaces making it ideal for use in highly reverberant spaces and high ceiling applications. It shares its sonic character with Control 447C/T which allows intermixing of the two models into systems as needed.

• Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1 in) soft-dome tweeter
• Stylish Bezel-less grille that blends elegantly into any room design
• Focused 85° narrow pattern control featuring JBL’s Radiation Boundary Integrator (RBI) technology
• 55 Hz - 20 kHz Frequency Range
• 75W (300W peak) Power Handling with 60W multi-tap transformer for use with 70V/100V distributed systems

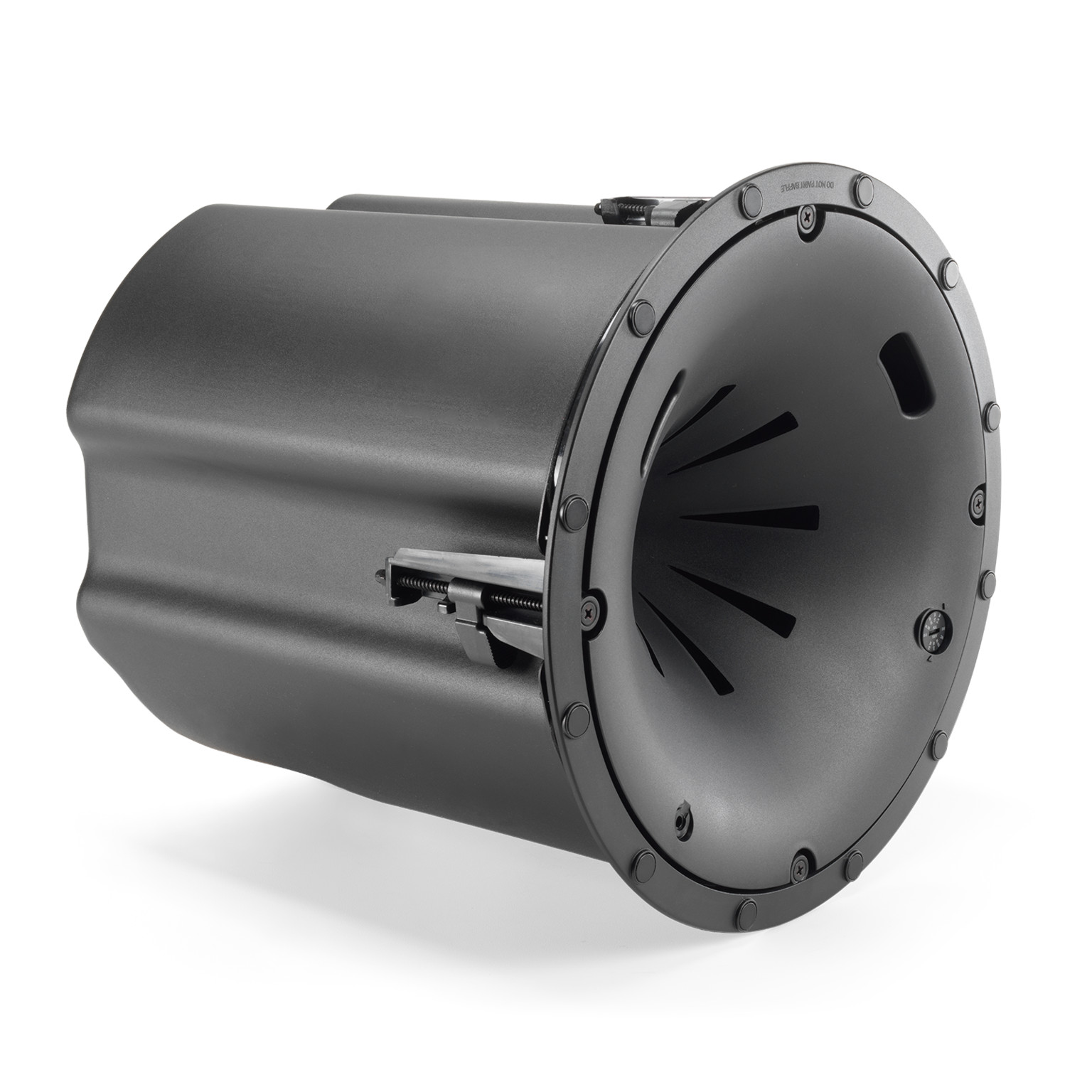

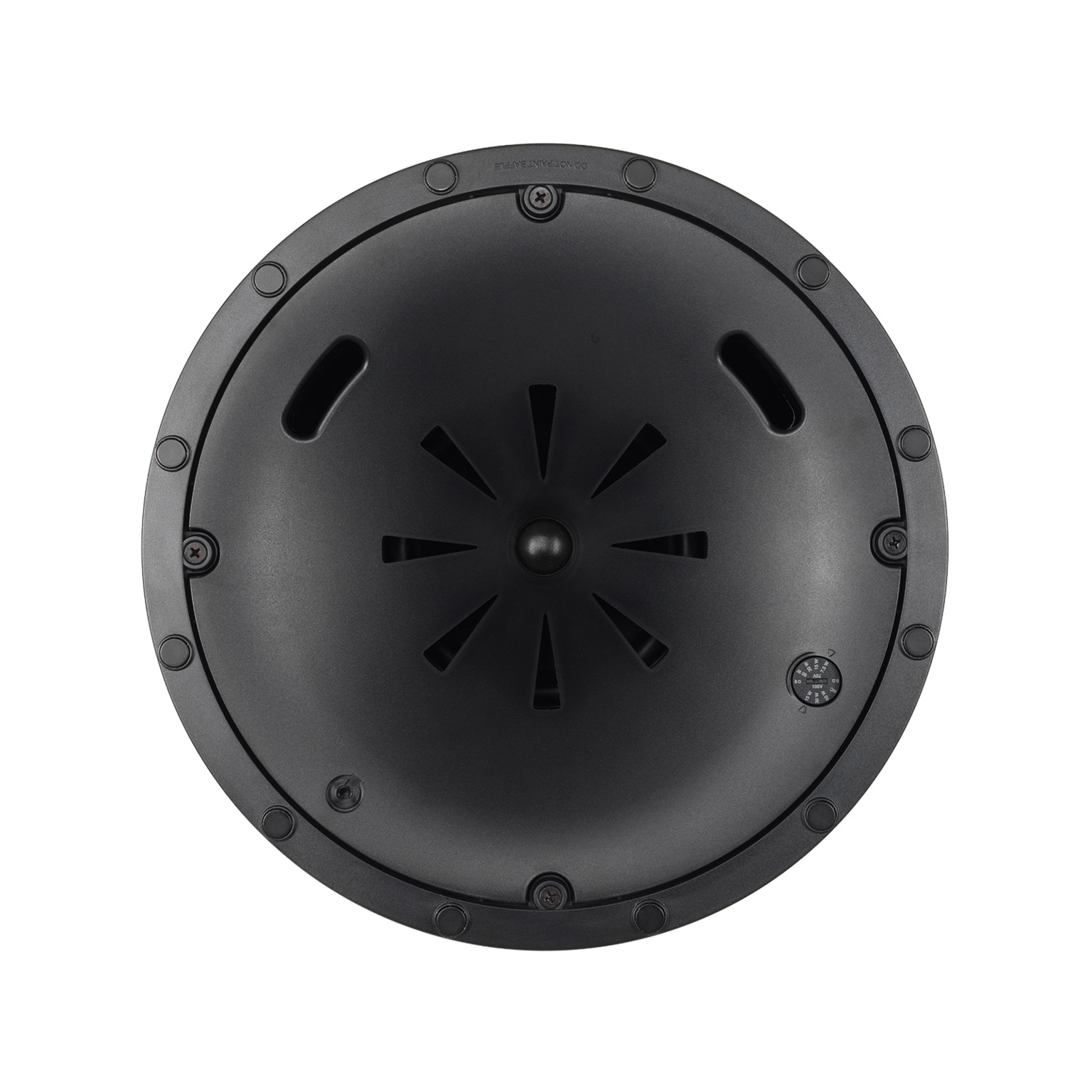

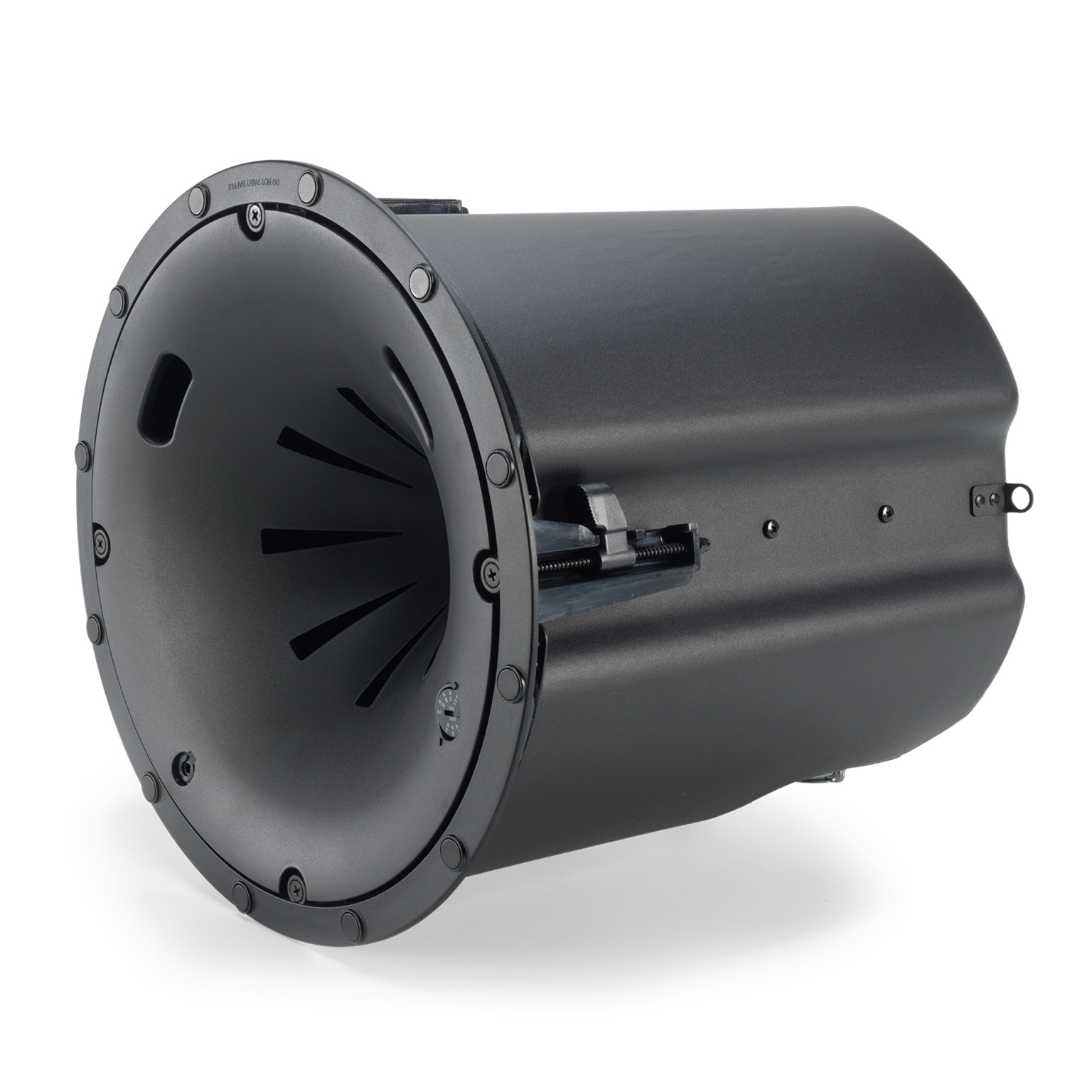

It features JBL’s exclusive conical Radiation Boundary Integrator (RBI), the RBI provides a large waveguide for the tweeter while low-frequency sound projects through specially designed apertures in the RBI, allowing for a seamless integration of coverage between the two coaxially mounted drivers. The result is extremely consistent sound character with very little variation throughout the listening space. The wide coverage allows for the use of fewer loudspeakers compared to speakers with less consistent coverage control, while at the same time providing better coverage of the area.

The system’s 165 mm (6.5 in) woofer features a treated paper cone and high-performance magnet offering extended bass response for a warm full-bodied tone. The copper-clad aluminum voice coil wound on an aluminum former offers low distortion and high-sensitivity.

Coaxially mounted 25 mm (1 in) cloth soft-dome tweeter with neodymium magnet assembly and aluminum voice coil former provides crisp and clear highs with enhanced power handling.

Control 400 collection’s Premium Coverage Series is designed for applications where wide frequency response, superior clarity and high-power handling are required. For applications where more bass is desired, the Control 447HC is tuned to pair well with the Premium Coverage Series Control 440CS/T subwoofer.

The 8Ω impedance allows paralleling up to 2 speakers on a 4Ω capable amplifier. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

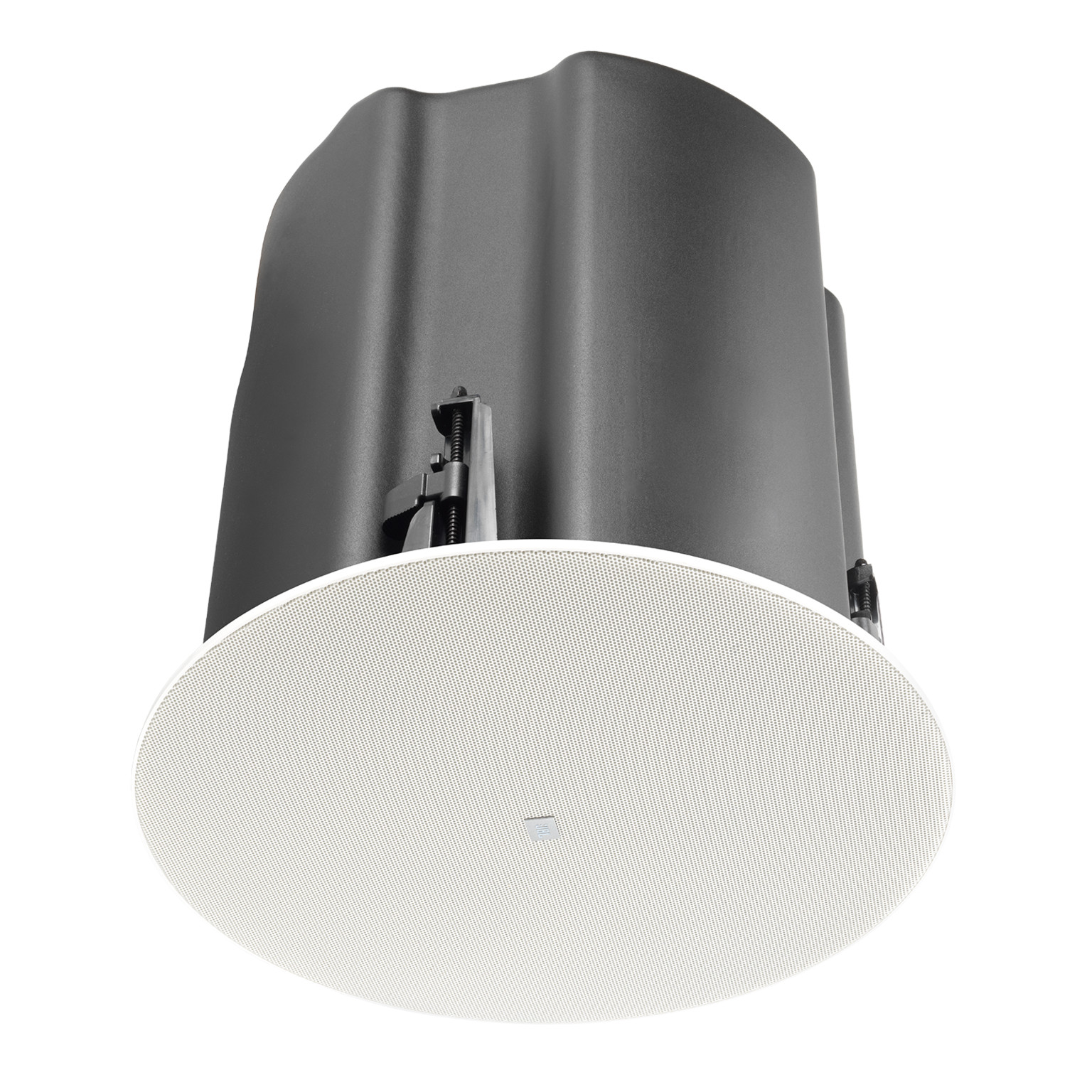

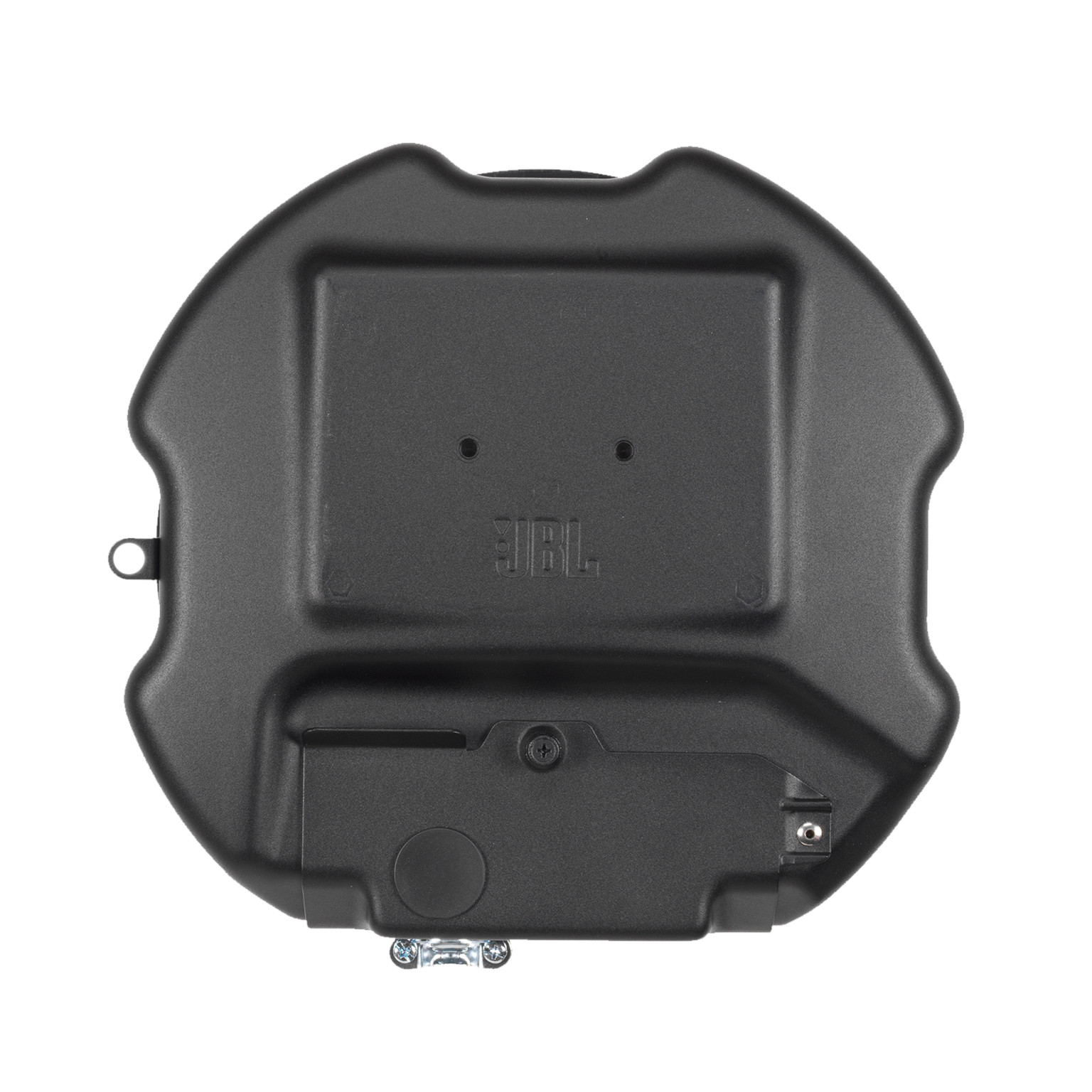

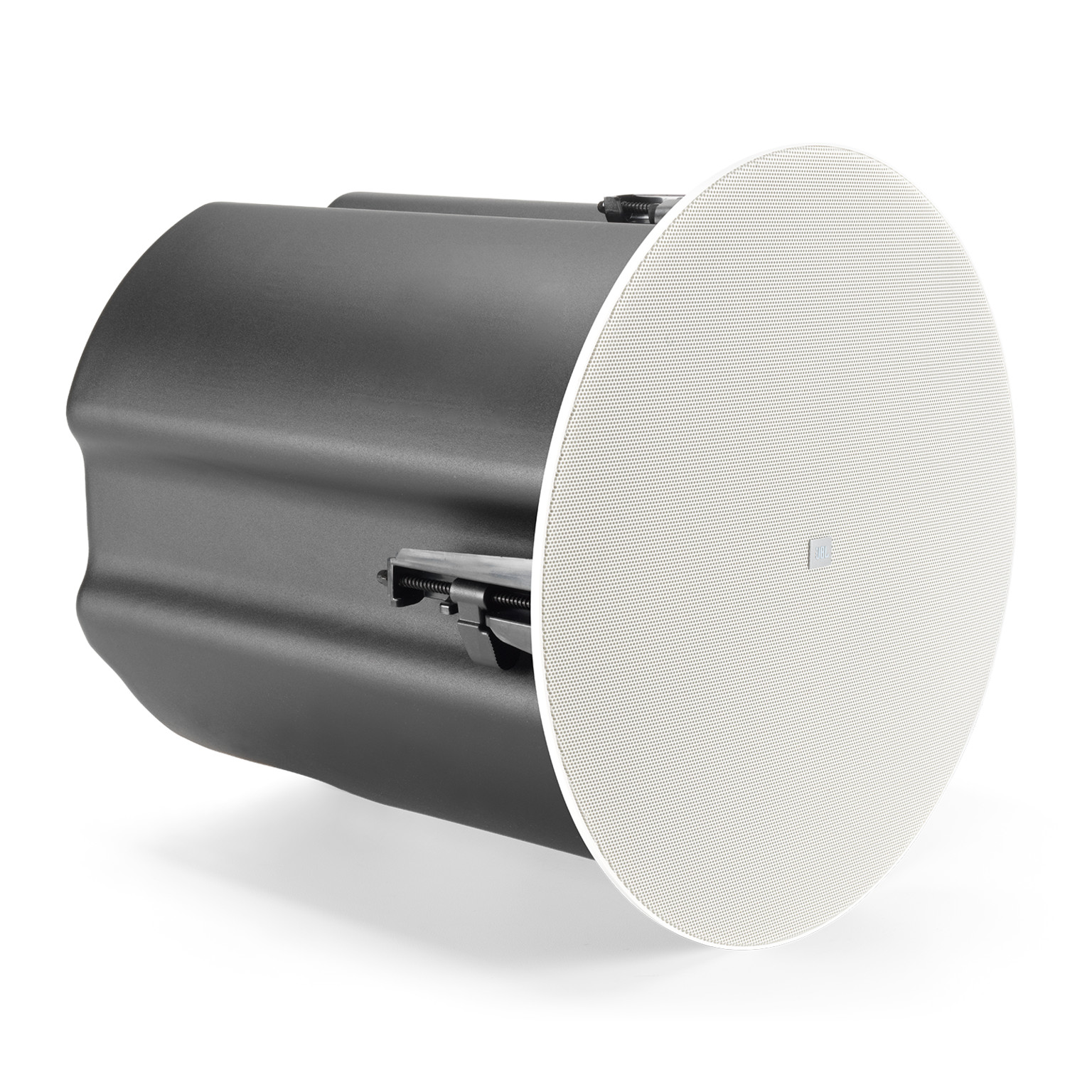

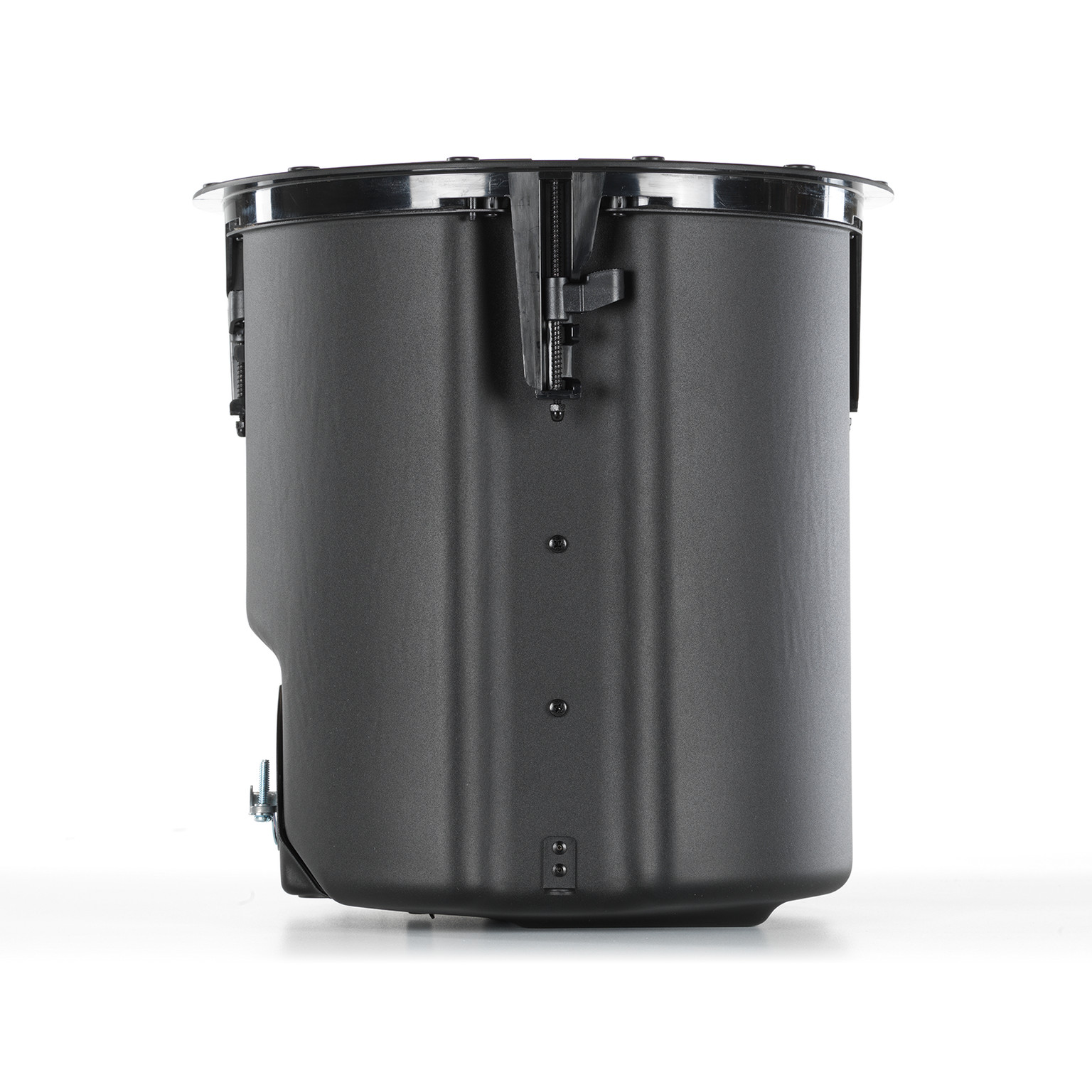

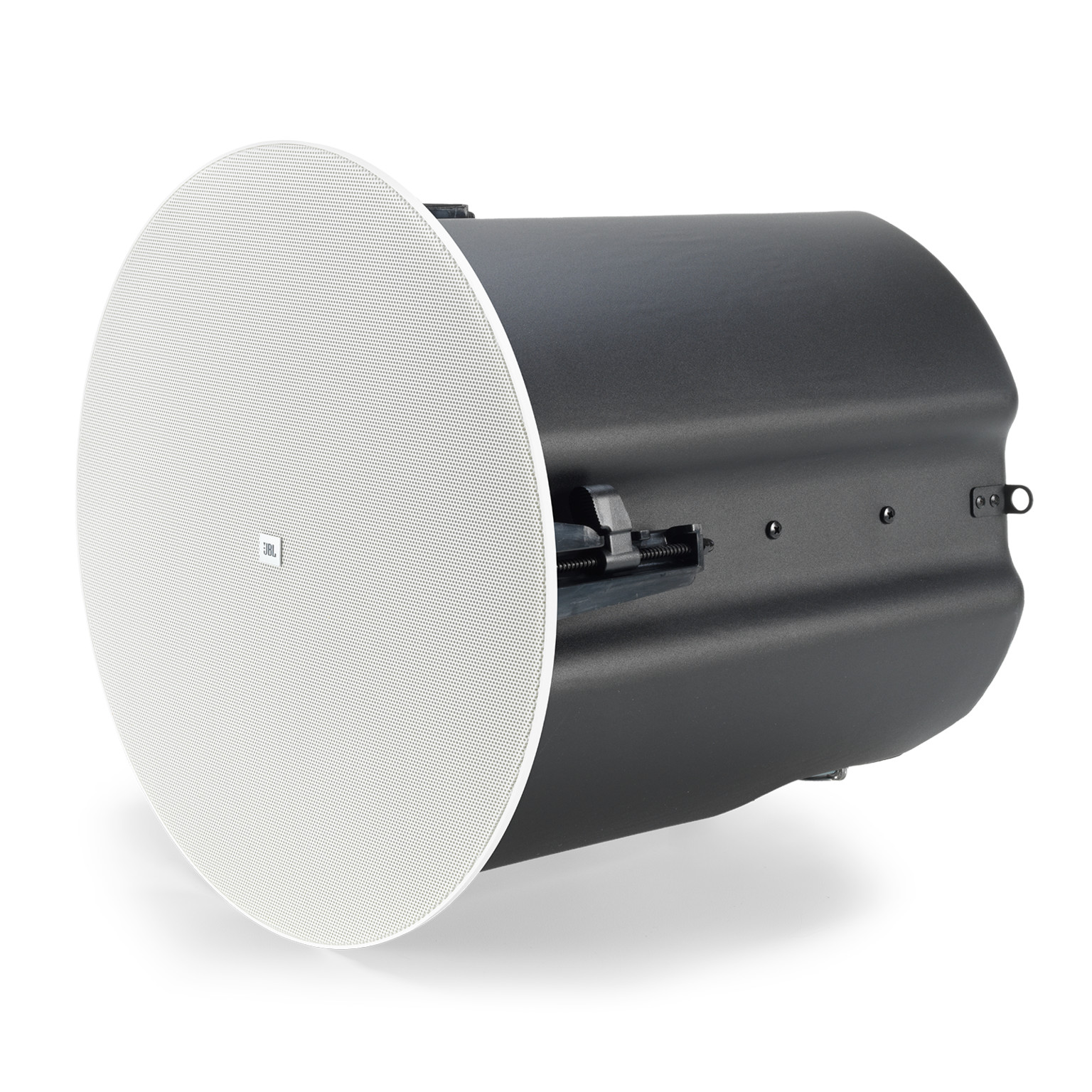

The stylish bezel-less grille fits seamlessly into a variety of architectural aesthetics. The integrated backcan on the Control 447HC combined with the C-ring support backing plate allows for quick and easy installation of the unit. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-440BG) and in square (JBL-MTC-440SG, white only).

Specifications

• Frequency Range (-10 dB): 55Hz - 20kHz
• Frequency Response (±3 dB): 72 Hz – 14 kHz
• Power Capacity
  • 224 W Continuous Program (2 hrs.)
  • 112 W (448 W Peak), Continuous Pink Noise (2 hrs.)
  • 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs.)
• Sensitivity (1m/1W): 93dB
• Coverage Angle: 85° conical
• Maximum SPL (1m): 113.5 dB continuous pink noise (119.5 dB peak)
• Nominal Impedance: 8Ω
• Transformer Taps
  • 70 V: 60 W, 30 W, 15 W & 7.5 W
  • 100 V: 60 W, 30 W, 15 W
• Drivers
  • ​LF: 165mm (6.5 in) with treated paper cone and high-performance magnet
  • HF: 25 mm (1 in) soft-dome with Neodymium magnet
• Ceiling Cutout Size: 307 mm (12.1 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0°C to 45°C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 13.8 x 13.5 in (351 x 342 mm)
  • Bottom of ceiling tile to top of backcan: 13.3 in (337 mm)
• Weight (each): 16.16 lbs (7.33 kg)

What's Included

• 4x 2-pin removable locking euro-block connectors
• 2x Cable Strain Relief
• 2x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
• 2x Cutout template
• 2x C-ring
• 2x C-Ring/Tile-Rail Screws
• 2x Seal Cover
• 4x Rubber Boots
