TOA Canada PE-64 3W Pendant Speaker

About: TOA Canada PE-64 3W Pendant Speaker

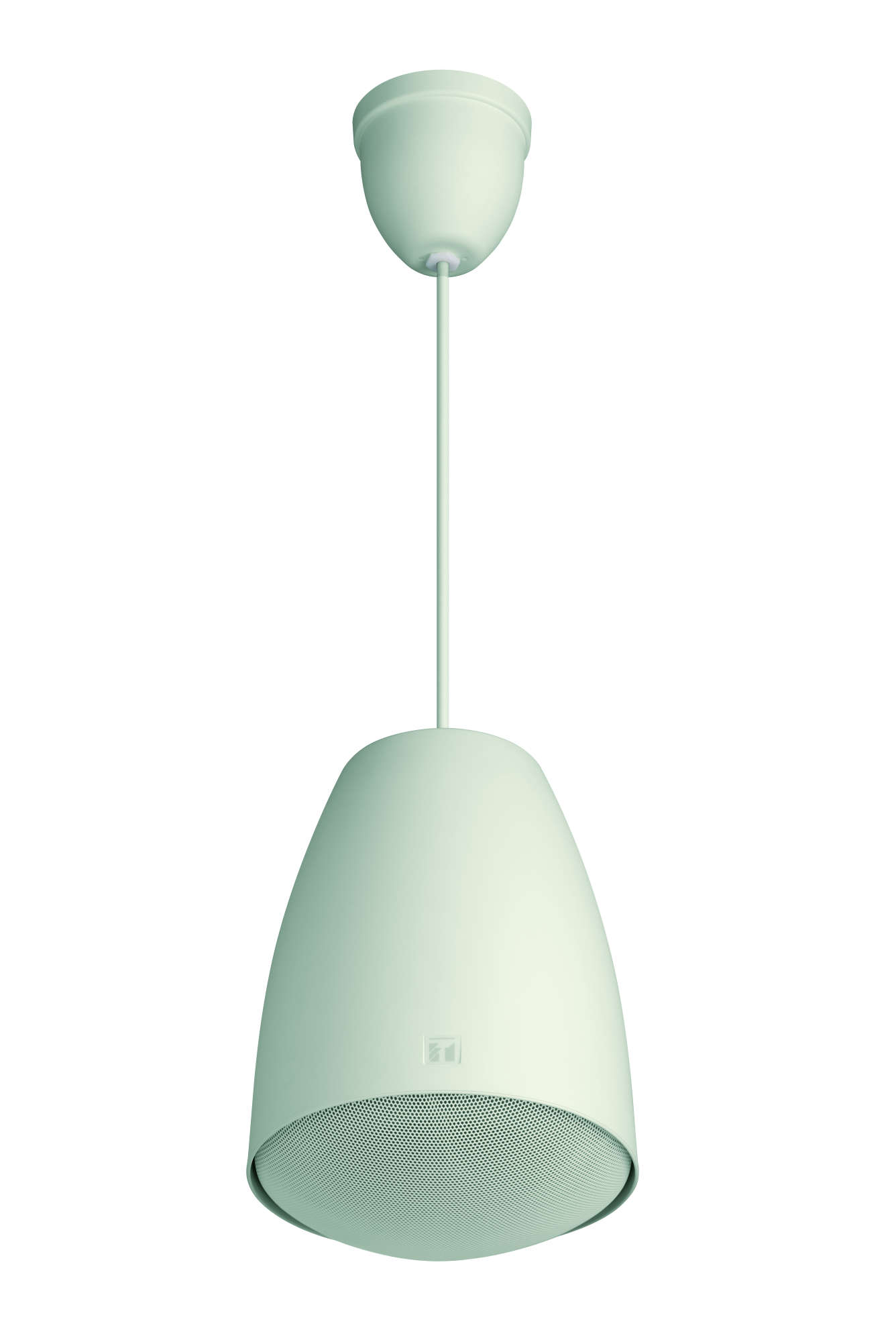

The PE-64 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-64 is driven on high-impedance (100 V and 70 V) line. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

• Ideally suited for BGM and announcements
• Stylish and outstanding design inspired by the finest lighting fixtures
• Excellent sound quality
• Sturdy cable extendable up to 5 meters
• Paintable
• Input impedance easily changeable
• Bass-reflex type

Specifications

• Enclosure - Bass-reflex type
• Rated Input - 6 W (100 V line), 3 W (70 V line)
• Rated Impedance
  • 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
  • 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
• Sensitivity - 90 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
• Frequency Response - 100 - 18,000 Hz (peak -20 dB)
• Speaker Component - 12 cm (5) cone-type
• Speaker Cable - 2-core cabtyre cord 5 m (16.4 ft)
• Cable Requirements
  • 600 V vinyl-insulated cable (IV wire or HIV wire)
  • Solid copper wire: Φ0.8 - Φ1.6 mm (equivalent to AWG 20 - 14)
  • 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
• Connection - Push-in connector (bridging terminal-2 branch type)
• Finish
  • Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
  • Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
• Dimensions - Φ186 x 251 (H) mm (Φ7.32 x 9.88") (unit only)
• Weight - 1.5 kg (3.31 lb) (unit only)
• Included Accessories
  • 1x Ceiling bracket
  • 1x Mounting hanger
  • 1x Ceiling cover
  • 4x Speaker mounting screw
