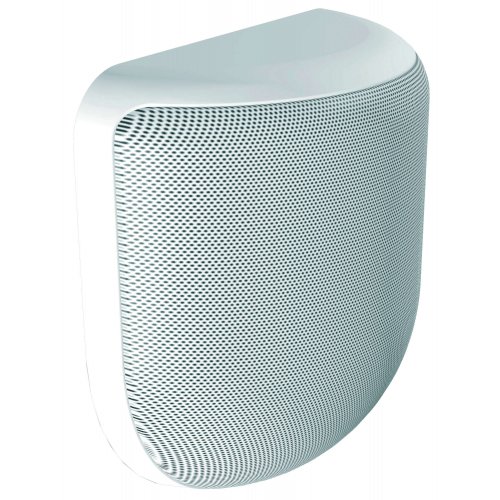

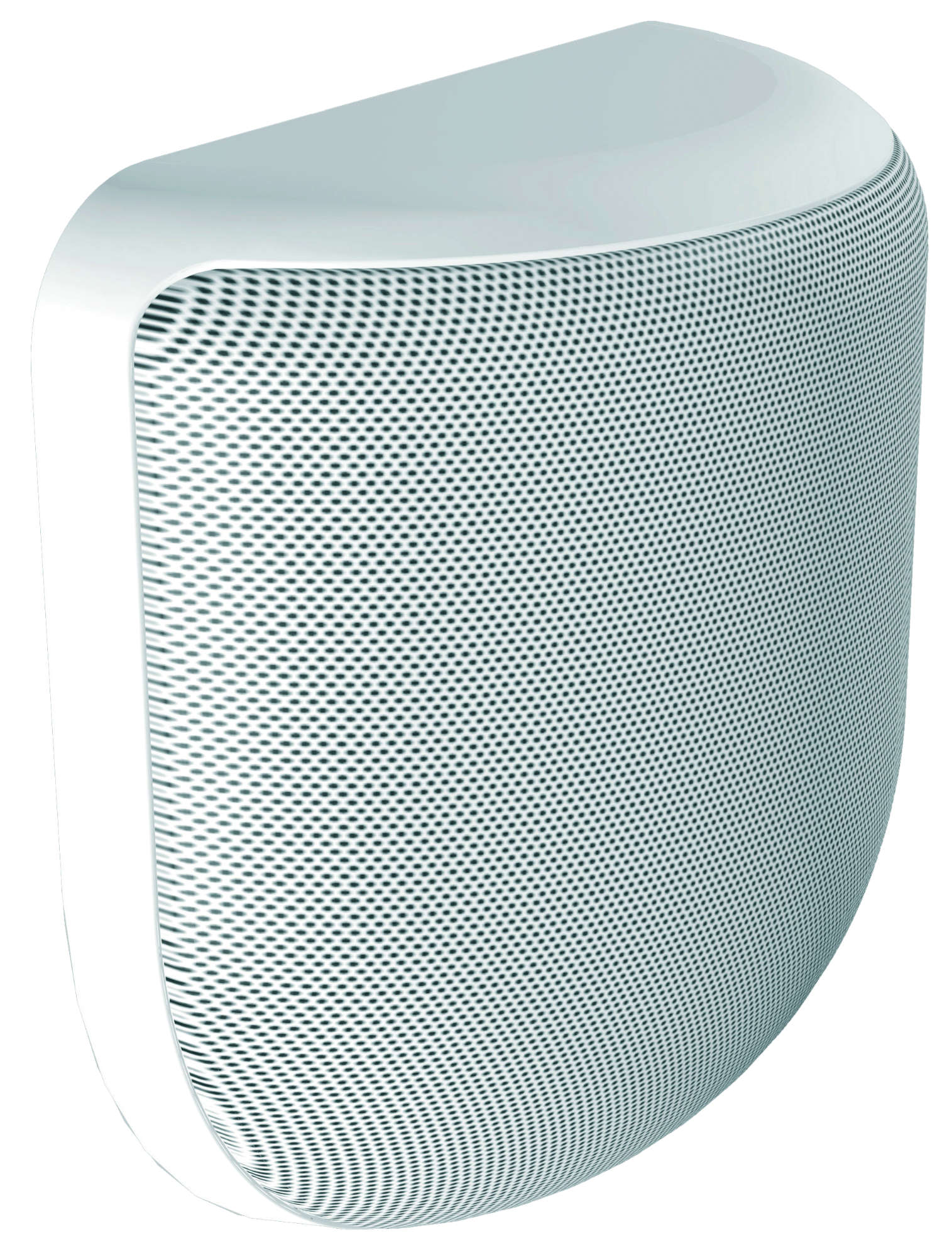

TOA Canada H-3WP Design Speaker (Weather Resistant)
Model: H-3WP
About: TOA Canada H-3WP Design Speaker (Weather Resistant)
The H-3WP is a wall-mountable, outdoor 2-way speaker that provides horizontally-wide dispersion.
- 2-way design speaker
- Dome tweeters and neodymium magnet cone woofers
- Quality audio between the speakers as well as directly in front of each speaker unit
- 180° coverage pattern, eliminating dead audio spaces
- Either low impedance (8 Ω / 16 Ω) or high impedance (70 V / 100 V)
- Easy unobtrusive installation at above head-height
- Fire-resistant ABS according to UL94: V-0
- Weatherproof
Specifications
- Enclosure - Sealed type
- Rated Input - 30 W (16 Ω, high impedance)
- Power Handling
- 150 W (Continuous program/8 Ω)
- 50 W (Continuous pink noise/8 Ω)
- Rated Impedance
- 8 Ω, 16 Ω
- 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)
- 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1.3 kΩ (3.75 W)
- Sensitivity - 89 dB (1 W, 1 m) at installation in 1/2 free sound field
- (Measured by installing the unit in the center of a wall.)
- Frequency Response - 100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field
- (Measured by installing the unit in the center of a wall.)
- Crossover Frequency - 4 kHz
- Speaker Component
- Low frequency: 10 cm cone-type x 2
- High frequency: 2.5 cm dome-type (neodymium magnet)
- Input Terminal - Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
- Cable Requirements - Solid cable, stranded cable: 0.2 - 2.5 mm² (AWG No.24 - 14)
- Water Protection - IPX4
- Installation Environment - Indoor installation, under-eave installation
- *Avoid installing the speaker in locations close to the seashore or in indoor swimming facilities that are not well ventilated
- Recommended Electrical Box - 2-gang type
- Finish
- Enclosure: Fire-resistant ABS resin, black
- Front frame: Fire-resistant ABS resin, off-white, paint
- Punched net: Steel plate, off-white, paint
- Base frame: Steel plate, plating
- Dimensions - 295 (W) x 318 (H) x 129 (D) mm
- Weight - 3.3 kg
- Included Accessories
- 1x Front grille
- 1x Base frame
- 1x (set) Electrical box mounting screws
