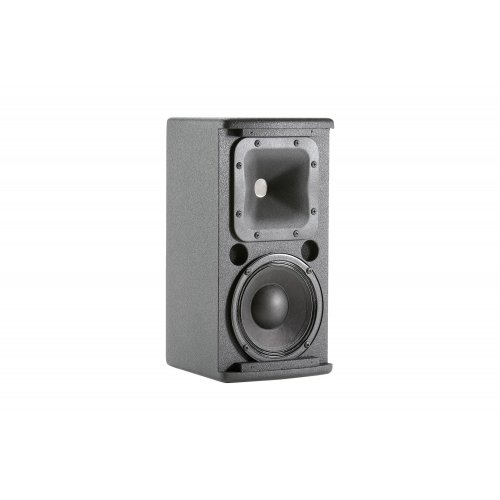

JBL AC16 Ultra Compact 2-Way Loudspeaker with 1x6.5-Inch LF (Each)

About: JBL AC16 Ultra Compact 2-Way Loudspeaker with 1x6.5-Inch LF (Each)

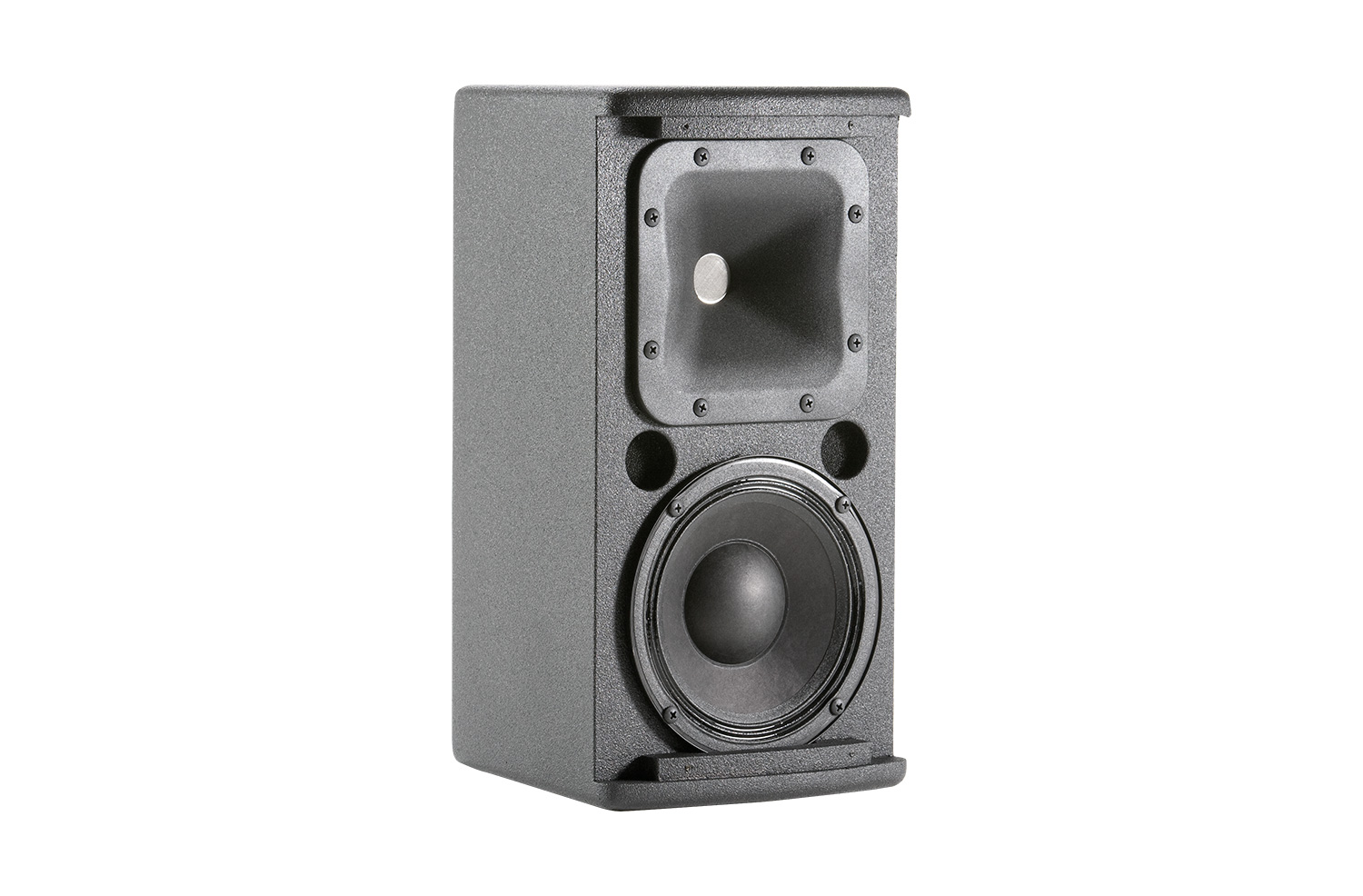

The AC16 is an ultra-compact full- range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1” exit compression driver integrated into a newly designed 90° x 90° PT (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC16 utilizes a 6.5” Symmetrical Field Geometry (SFG) LF Transducer with a copper-clad aluminum edge wound 2” voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion.

The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount type bracket. The AC16 is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory.

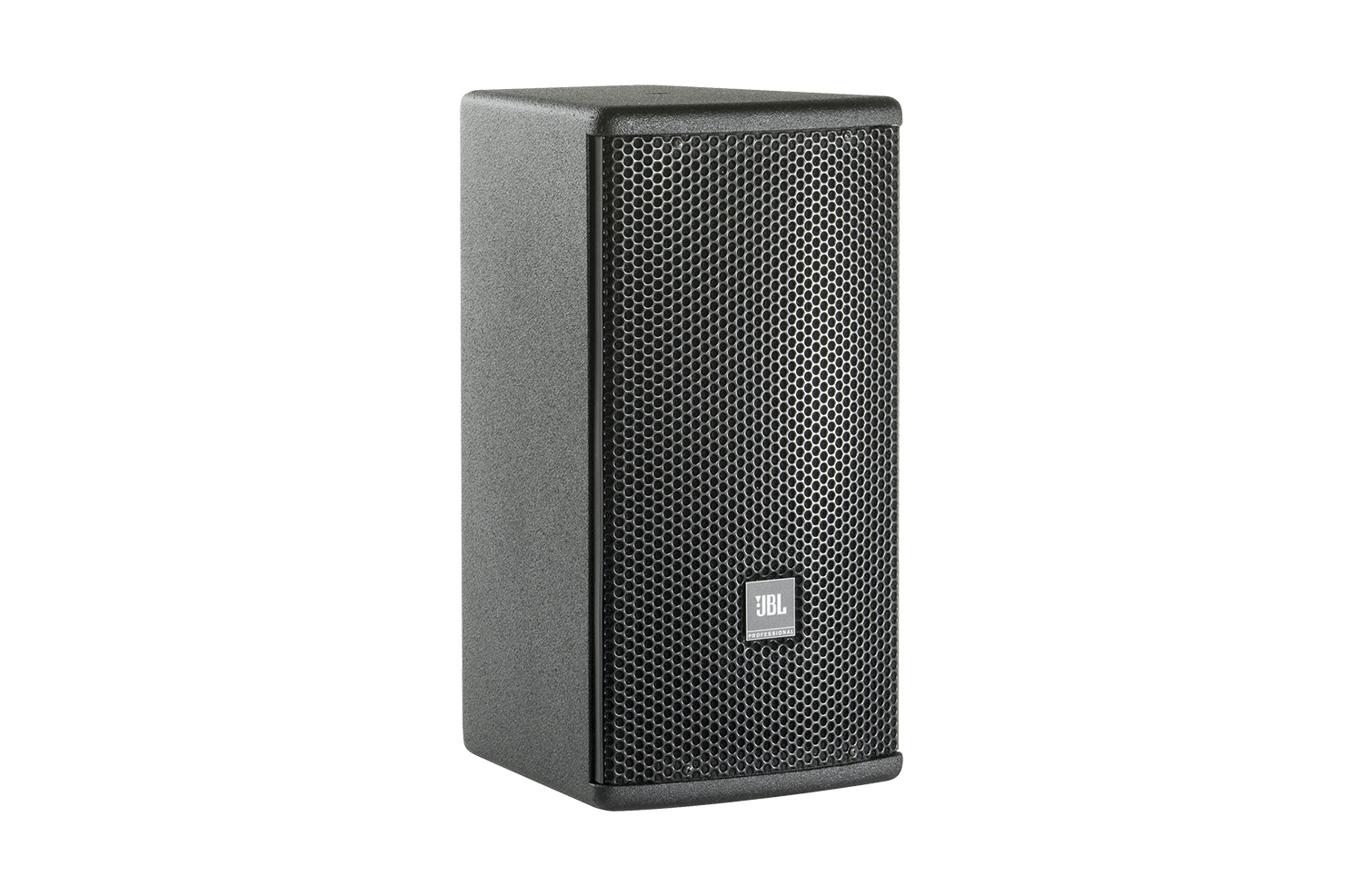

The rugged plywood enclosure features JBL’s textured DuraFlex finish and is equipped with a heavy duty powder coated steel, foam-backed grille.

Features

• 1” Exit Compression Driver with 90° x 90° Coverage PT Waveguide
• 165 mm (6.5 in) LF transducer
• Ultra compact enclosure
• 320W Program
• Dual Neutrik NL4 connectors plus screw terminal
• FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
• Attachment points for optional U-bracket, third part OmniMount type bracket and stand mount accessory

Specifications

• Frequency Range (-10dB) -  55 Hz -20 kHz
• Frequency Response (±3 dB) -  65 Hz -18 kHz
• System Power Rating
  • 250 W (AES rated)
  • 160 W / 320 W / 640 W (Continuous/Program/Peak) (IEC rated)
• Nominal Impedance -  16 Ohms
• Coverage Pattern -  90° x 90°
• Crossover Modes -  Passive
• Maximum SPL (1m) -  110 dB
• System Sensitivity (1w @ 1m) -  90 dB SPL
• LF Driver -  1 x JBL 226J, 165 mm (6.5 in) SFG driver with 50 mm (2 in) edge wound voice coil
• Nominal LF Driver Impedance -  16 Ohms
• HF Driver -  1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
• Enclosure -  12 mm and 15 mm exterior grade multi-ply hardwood plywood
• Suspension Attachment
  • 5 x M8 points; 1 top, 3 bottom, 1 rear
  • 4 x M6 rear for OmniMount 30.0 and MultiMount MM-022-BT, MM-024-BT, MM-020-CM
• Environmental -  Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
• Dimensions (HxWxD) -  15 x 7.85 x 8.9 inch (381.0 x 199.4 x 226.1mm)
• Net Weight (each) -  7.2 kg (15.8 lb)
