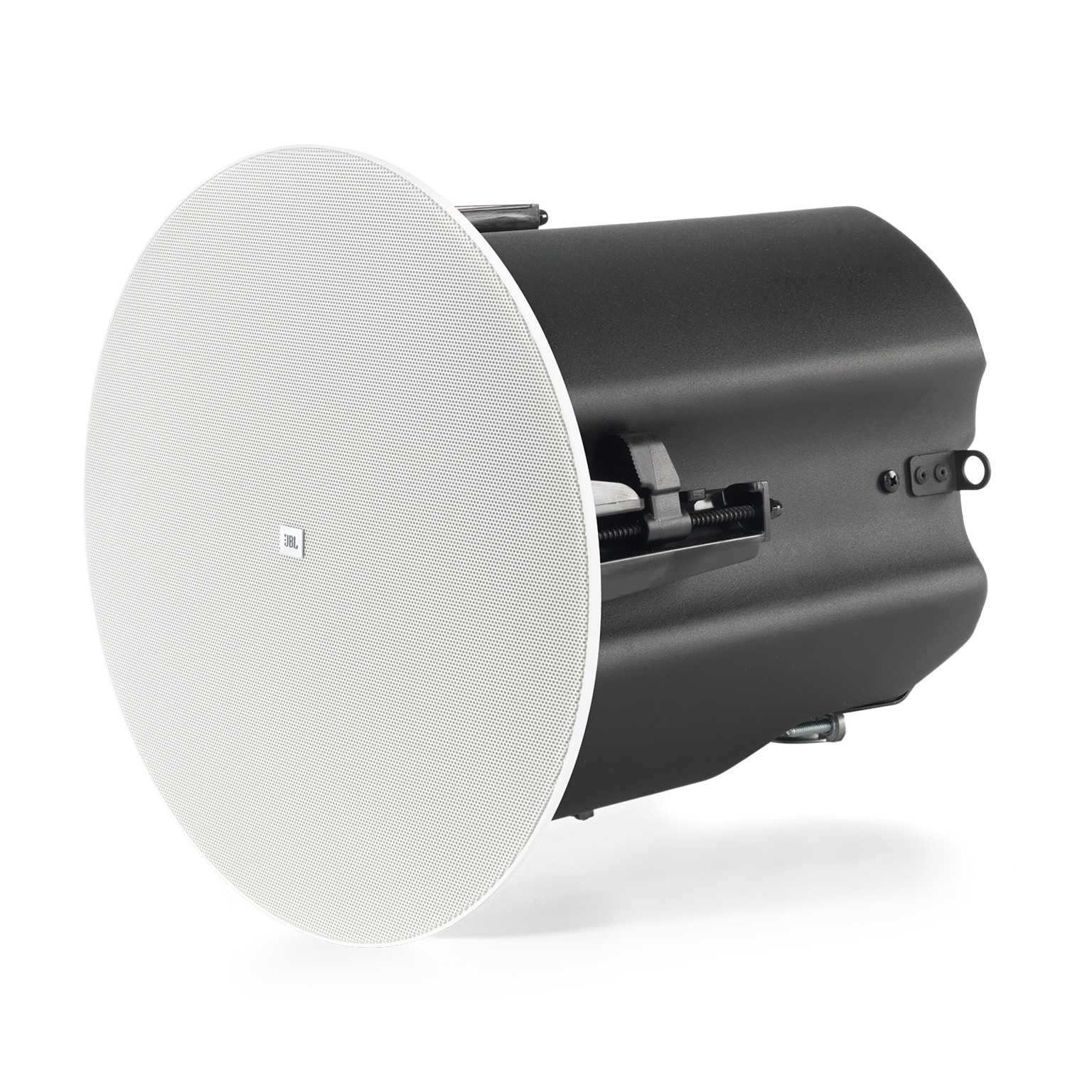

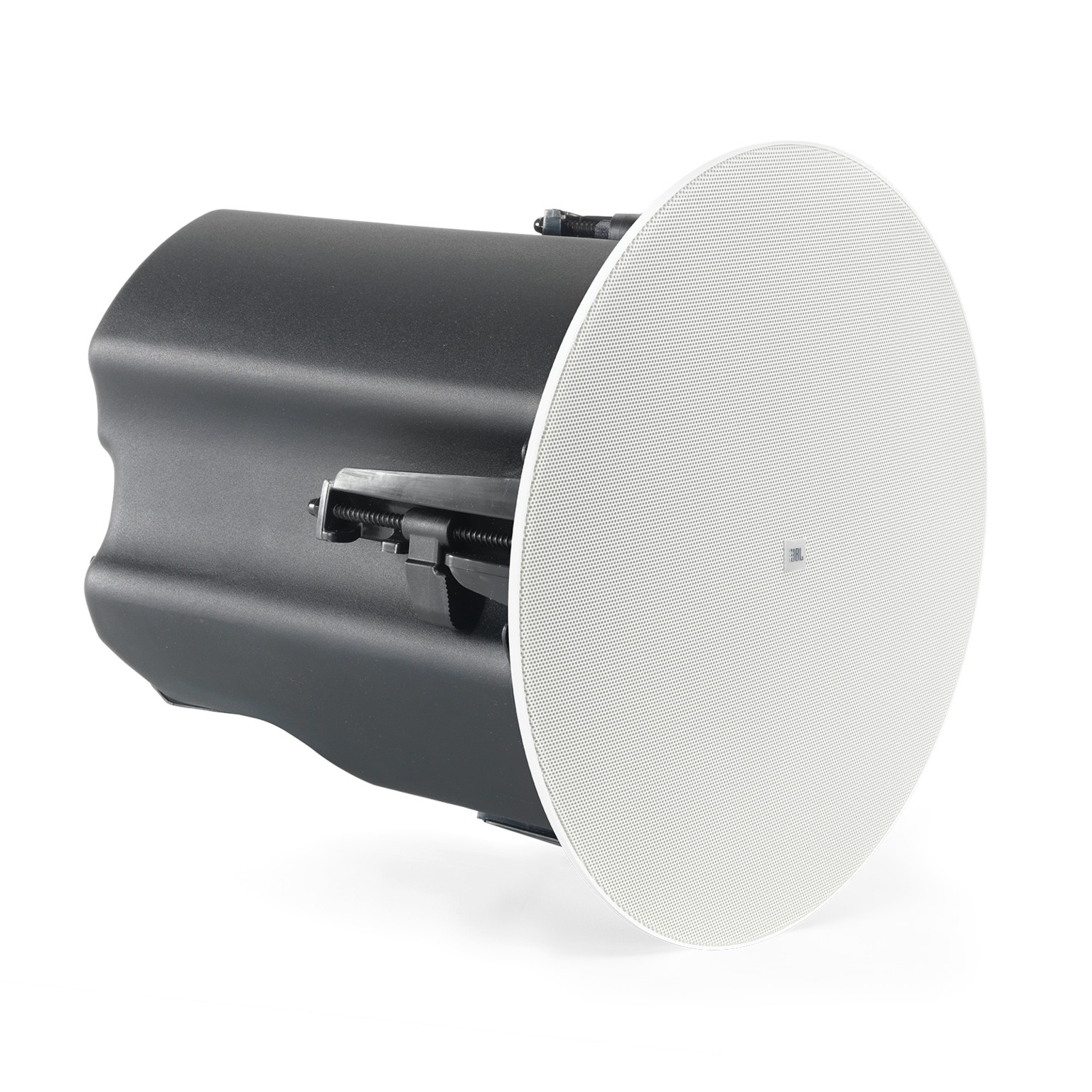

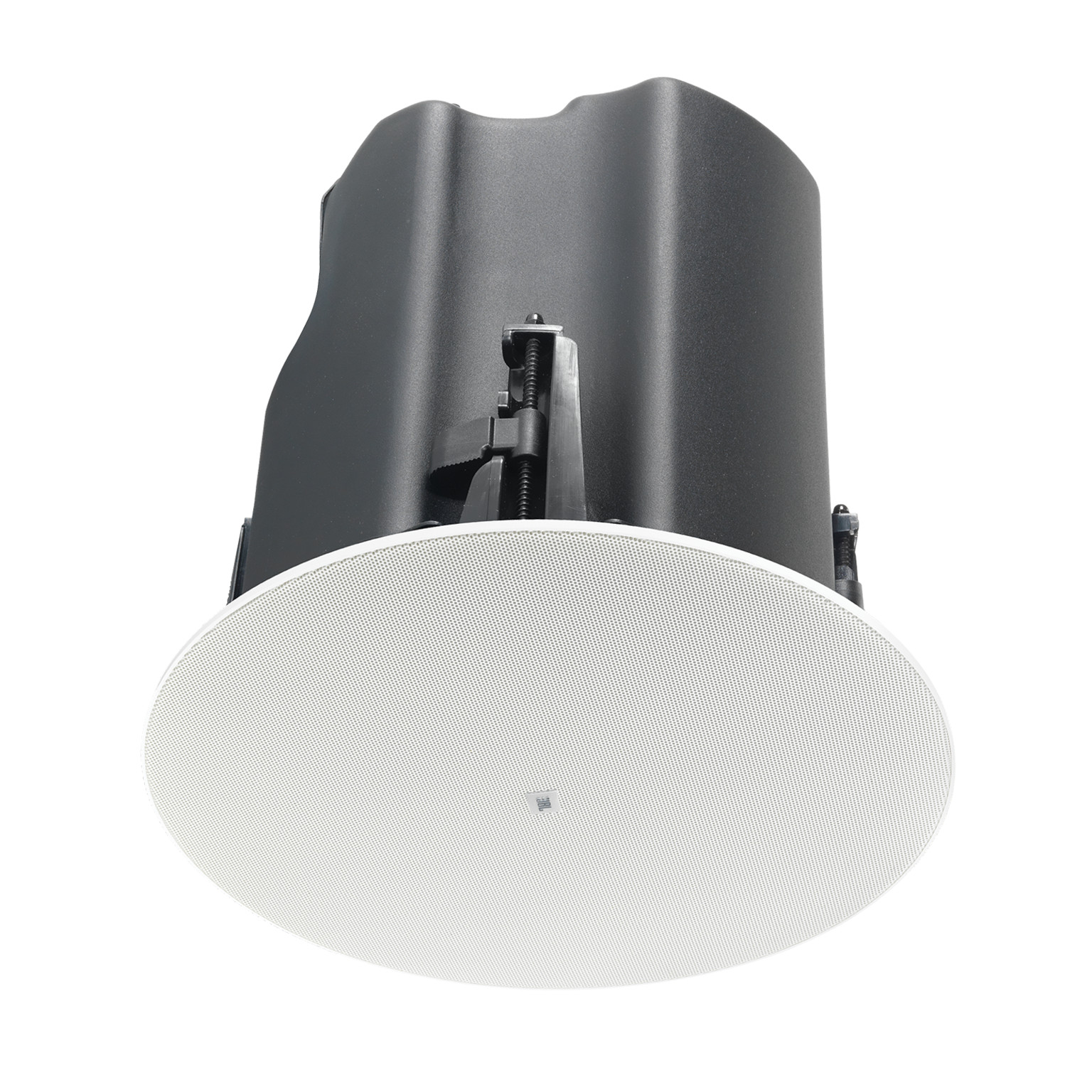

JBL Control 445C/T 5.25in RBI Two-Way Coaxial Ceiling Loudspeaker (Pair)

About: JBL Control 445C/T 5.25in RBI Two-Way Coaxial Ceiling Loudspeaker (Pair)

Part of the Control 400 collection’s Premium Coverage Series, the JBL Control 445C/T is a professional in-ceiling loudspeaker designed for applications requiring superior sonic performance, wide bandwidth with very consistent coverage.

• Coaxially mounted 130 mm (5.25 in) woofer and 20 mm (0.75 in) soft-dome tweeter
• 9 Stylish Bezel-less grille that blends elegantly into any room design
• Broadband pattern control featuring JBL’s Radiation Boundary Integrator (RBI) technology
• 55 Hz - 20 kHz Frequency Range
• 75W (300W peak) Power Handling with 60W multi-tap transformer for use with 70V/100V distributed systems

It features JBL’s exclusive conical Radiation Boundary Integrator (RBI), the RBI provides a large waveguide for the tweeter while low-frequency sound projects through specially designed apertures in the RBI, allowing for a seamless integration of coverage between the two coaxially mounted drivers. The result is extremely consistent sound character with very little variation throughout the listening space. The wide coverage allows for the use of fewer loudspeakers compared to speakers with less consistent coverage control, while at the same time providing better coverage of the area.

The system’s 130 mm (5.25 in) woofer features a treated paper cone and high-performance magnet offering extended bass response for a warm full-bodied tone. The copper-clad aluminum voice coil wound on an aluminum former offers low distortion and high-sensitivity.

Coaxially mounted 20 mm (0.75 in) cloth soft-dome tweeter with neodymium magnet assembly and aluminum voice coil former provides crisp and clear highs with enhanced power handling.

Control 400 collection’s Premium Coverage Series is designed for applications where wide frequency response, superior clarity and high-power handling are required. For applications where more bass is desired, the Control 445C/T is tuned to pair well with the Premium Coverage Series Control 440CS/T subwoofer.

The 8Ω impedance allows paralleling up to 2 speakers on a 4Ω capable amplifier. For distributed systems, the UL-registered transformer is designed for exceptionally low-saturation, even at high drive levels, providing top quality, low distortion distributed sound character.

The stylish bezel-less grille fits seamlessly into a variety of architectural aesthetics. The integrated backcan on the Control 445C/T combined with the C-ring support backing plate allows for quick and easy installation of the unit. The included white grille is paintable (grille backing is removeable and re-applicable for painting), and optional accessory grilles are available in black (JBL-MTC-445BG) and in square (JBL-MTC-445SG, white only).

Specifications

• Frequency Range (-10 dB): 55Hz - 20kHz
• Frequency Response (±3 dB): 70 Hz – 20 kHz
• Power Capacity
  • 224 W Continuous Program (2 hrs.)
  • 112 W (448 W Peak), Continuous Pink Noise (2 hrs.)
  • 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs.)
• Sensitivity (1m/1W): 88dB
• Coverage Angle: 120° conical
• Maximum SPL (1m): 108.5 dB Cont. pink noise (114.5 dB peak)
• Nominal Impedance: 8Ω
• Transformer Taps
  • 70 V: 60 W, 30 W, 15 W & 7.5 W
  • 100 V: 60 W, 30 W, 15 W
• Drivers
  • ​LF: 130 mm (5.25 in) with treated paper cone and high-performance magnet
  • HF: 20 mm (0.75 in) soft-dome with Neodymium magnet
• Ceiling Cutout Size: 223 mm (8.8 in)
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental
  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0°C to 45°C.
• Color: Stock grille is white, paintable
• Dimensions (HxDia.): 10.4 x 10.2 in (255 x 260 mm)
  • Bottom of ceiling tile to top of backcan: 9.6 in (240 mm)
• Weight (each): 9.48 lbs (4.3 kg)

What's Included

• 4x 2-pin removable locking euro-block connectors
• 2x Cable Strain Relief
• 2x White Round Bezel-less Grille (with pre-attached safety tether and tether clip)
• 2x Cutout template
• 2x C-ring
• 2x C-Ring/Tile-Rail Screws
• 2x Seal Cover
• 4x Rubber Boots
