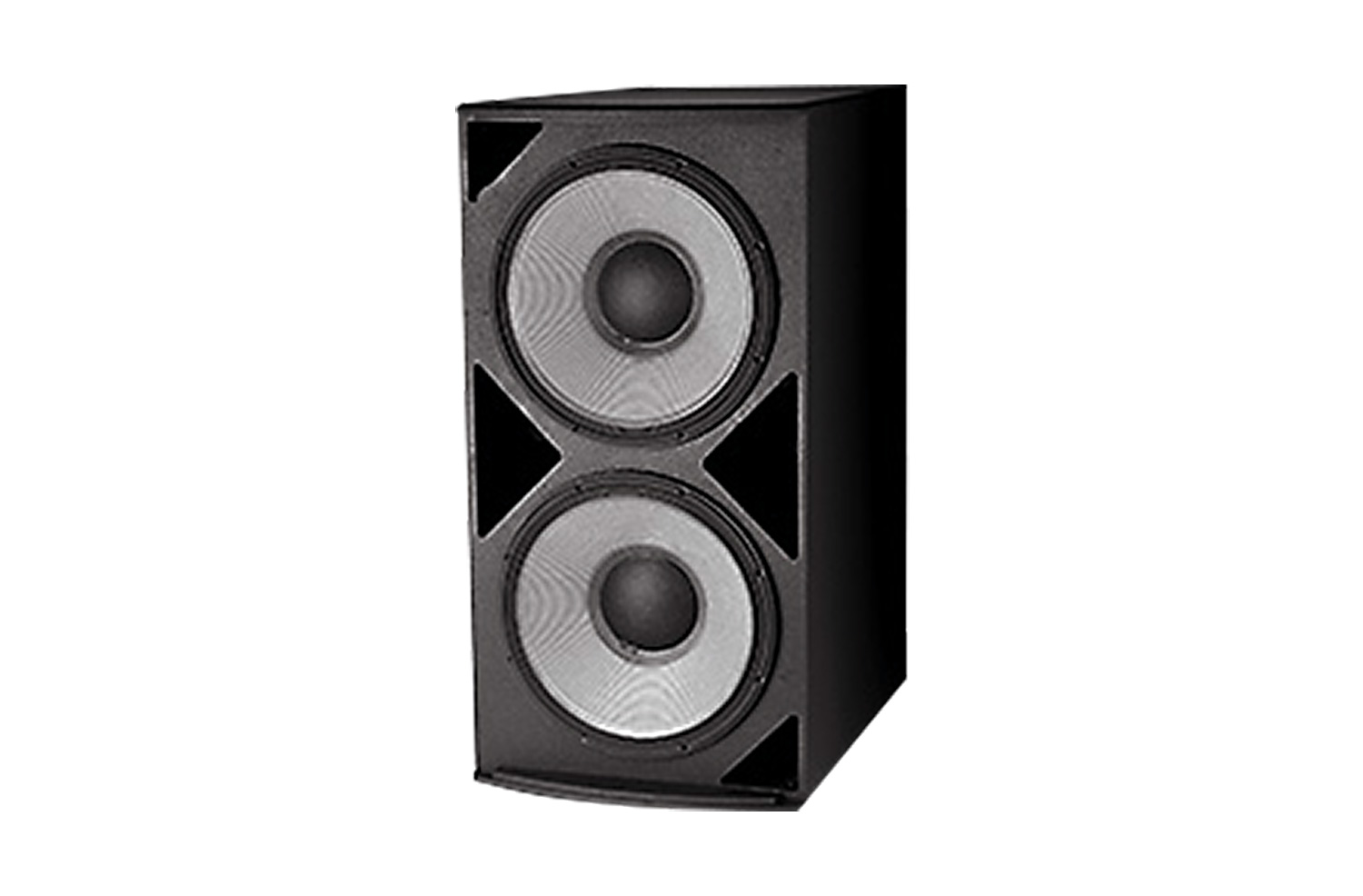

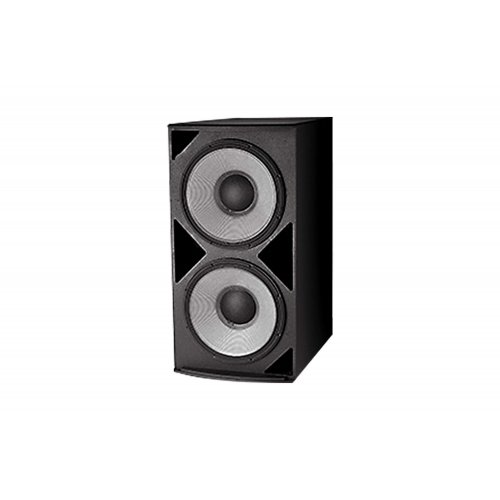

JBL ASB6128 High Power Dual 18-Inch Subwoofer
Model: ASB6128
About: JBL ASB6128 High Power Dual 18-Inch Subwoofer
ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration. The deep cabinet allows for extended low frequency bandwidth with minimum frontal profile. The rectangular cabinet is fitted with M10 threaded suspension points. Pre-Engineered array bracketry is available.
ASB6128 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.
Features
- Large vent area for high output.
- Parallel/Discrete Switchable.
- FIR Tuning Set Matches Phase Profile to Full-Range Models
- For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
Specifications
- Frequency Range (-10dB) - 28 Hz – 1 kHz
- Frequency Response (±3 dB) - 35 Hz – 1 kHz
- Input Modes - Drivers Parallel / Drivers Discrete
- Transducer Power Rating (AES) - 2400 W (9600 W peak), 2 hrs
- System Power Rating - 1600 W (6400 W peak), 100 hrs
- Maximum SPL (1m) - 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak)100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
- System Sensitivity (1w @ 1m) - 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB
- Nominal Impedance - 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
- LF Driver - 2 x JBL 2242H 460 mm (18 in) SVG drivers with 100 mm (4 in) voice coil
- Nominal LF Driver Impedance - 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
- Enclosure - Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment - 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
- Environmental - Mil-Std 810; IP-x3 per IEC529.
- Dimensions (HxWxD) - 43.07 x 22.09 x 32.13 inch (1094 x 561 x 861 mm)
- Net Weight (each) - 161 lbs. (73 kgs)
UPC: 691991011764
Reviews: JBL ASB6128 High Power Dual 18-Inch Subwoofer
Warranty: JBL ASB6128 High Power Dual 18-Inch Subwoofer
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Pro Products:
The warranty on JBL professional loudspeaker products (except for enclosures, electronic components, and portable products) is valid for 5 years from the date of the first consumer purchase. Enclosures and electronic components are warranted for 1 year from the date of original purchase.
Extended 7 Year Warranty
- EON ONE Compact
- EON700 Series
- EON ONE MK2
- PRX ONE
Note: The extended warranty program applies to all product components, except batteries, which continue to include a robust, three-year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and JBL do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
