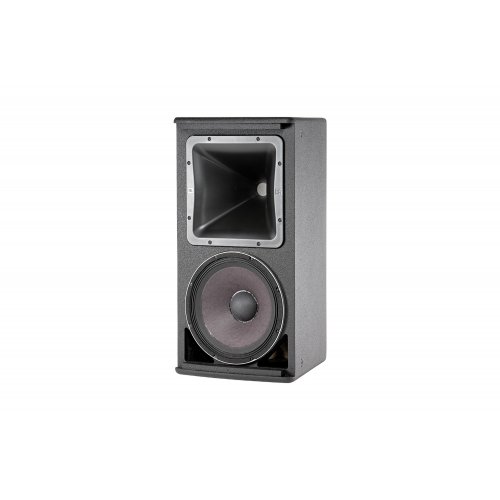

JBL AM5212/00 2-Way Loudspeaker System with 1x12-Inch LF (Each) - Black

About: JBL AM5212/00 2-Way Loudspeaker System with 1x12-Inch LF (Each) - Black

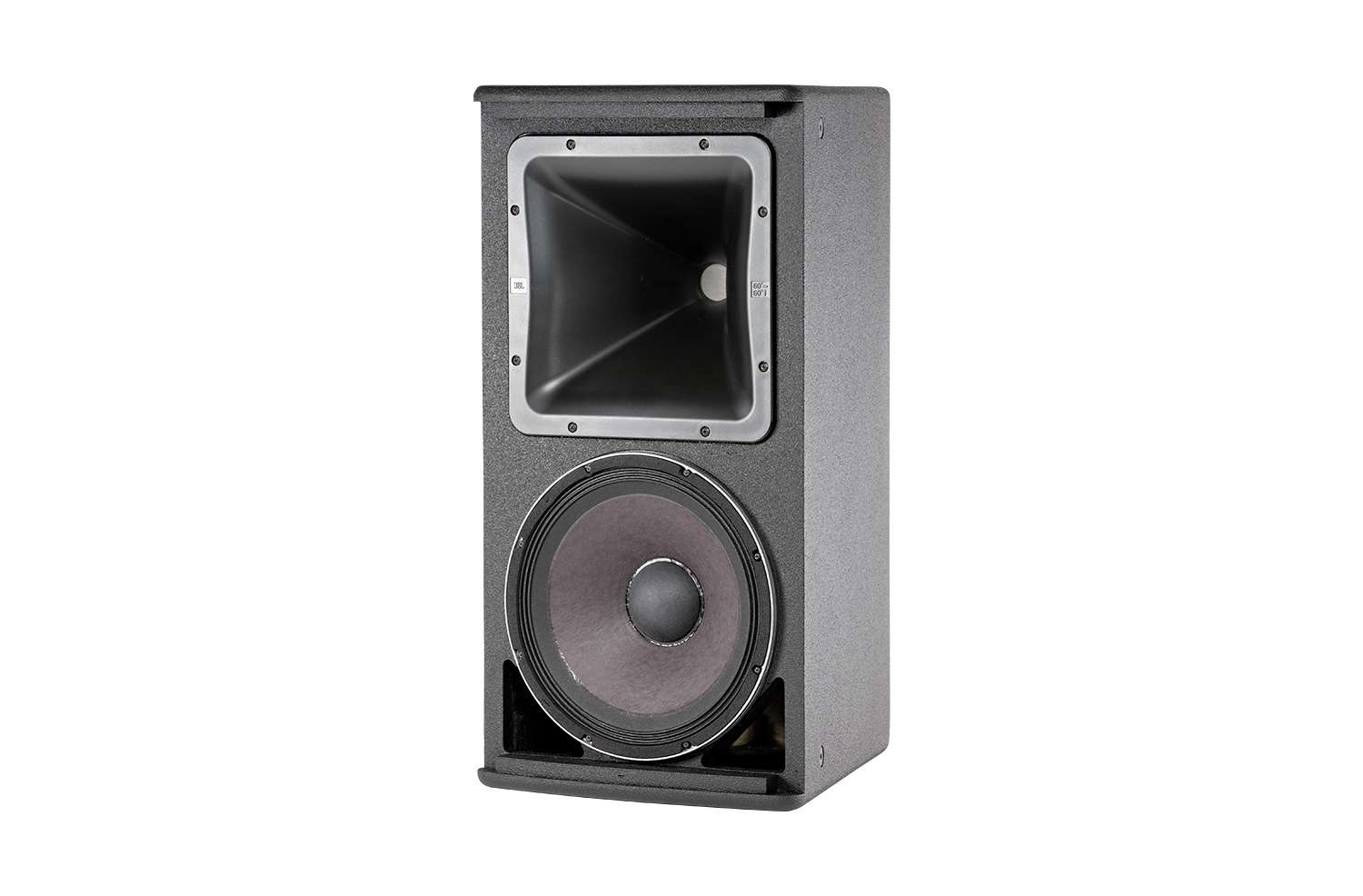

The AM5212/00 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high-frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 100° x 100° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

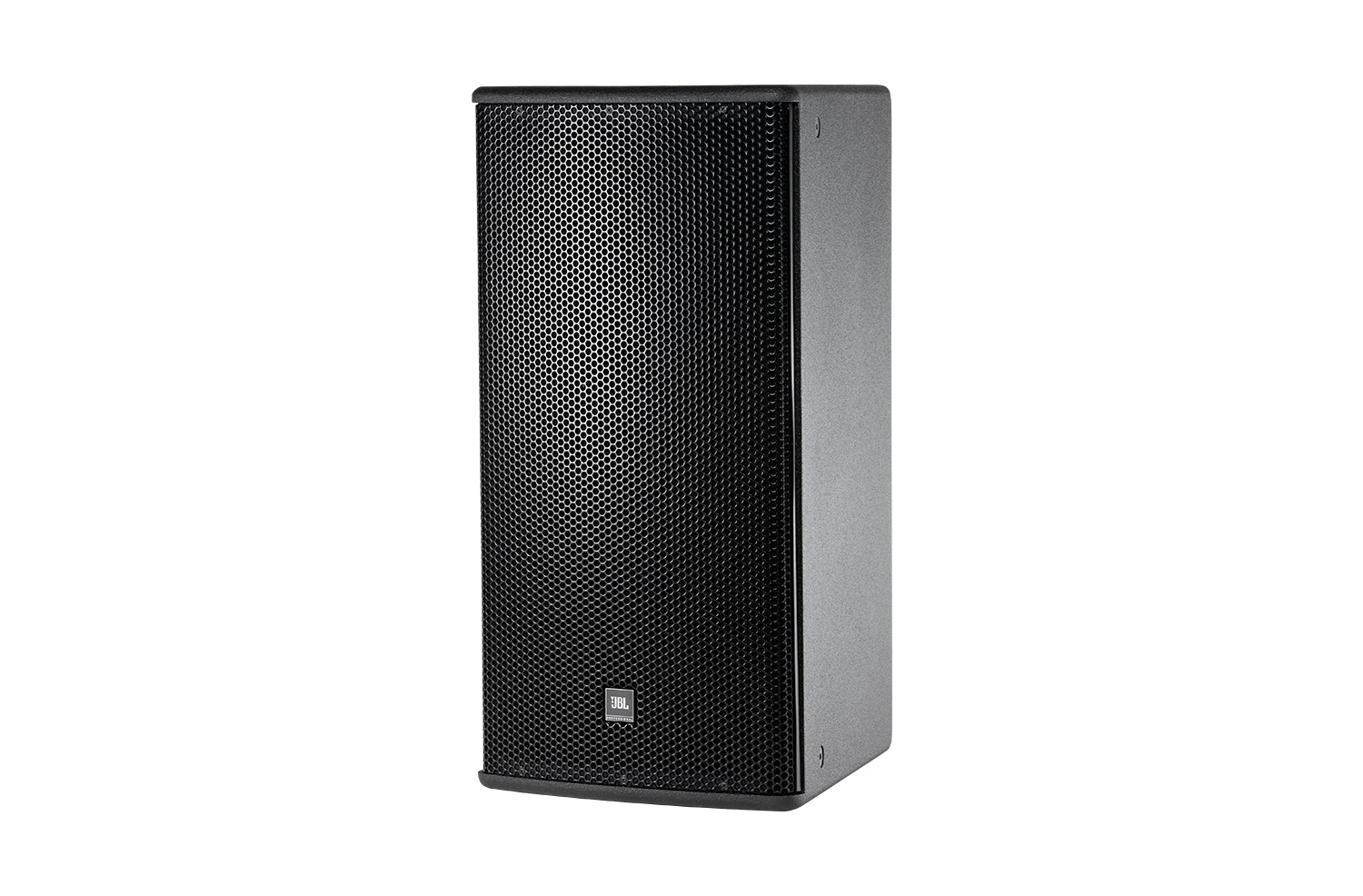

The enclosure is constructed of multi-ply birch coated in JBL’s rugged DuraFlex finish and is heavily braced to maximize low-frequency performance. The trapezoid enclosure is fitted with fifteen M10 threaded attachment points and utilizes a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

The AM5212/00 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features

• 100° x 100° Coverage
• 262H-1 Differential Drive Low-Frequency Driver
• 2408H-1 High-Frequency Compression Driver
• Large PT Progressive Transition waveguide for excellent pattern control and low distortion
• Rotatable waveguide for vertical or horizontal orientation
• Bi-Amp/Passive Switchable
• Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
• Available in Black, White and WRC/WRX weather resistant finishes

Specifications

• Frequency Range (-10dB) -  37 Hz – 20 kHz
• Frequency Response (±3 dB) -  43 Hz – 20 kHz
• Coverage Pattern
  • /64: 60° x 40° (Contact us to order model)
  • /66: 60° x 60° (Contact us to order model)
  • /95: 90° x 50° (Contact us to order model)
  • /00: 100° x 100°
  • /26: 120° x 60° (Contact us to order model)
• Crossover Modes -  Bi-amp/Passive switchable
• Passive Crossover Frequency -  1.5 kHz
• Transducer Power Rating (AES) -  LF: 400 W (1600 W peak), 2 hrs300 W (1200 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs
• System Power Rating -  Passive mode: 300 W (1200 W peak), 100 hrs
• Maximum SPL (1m) -  Bi-amp mode: LF: 122 dB HF: 131 dB
• System Sensitivity (1w @ 1m) -  Passive mode: 96 dB SPL
• LF Driver -  1 x JBL 262H-1 300 mm (12 in ) driver with 50.8 mm (2 in) dual voice coil
• Nominal Impedance -  8 ohms
• Sensitivity (1W @ 1m, within operational band) -  97 dB SPL
• HF Driver -  JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
• Sensitivity -  113 dB SPL
• Waveguide -  PT-H126HF-1
• Enclosure -  Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
• Suspension Attachment -  15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
• Finish -  Black DuraFlex finish. White available upon request.
• Grille -  Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

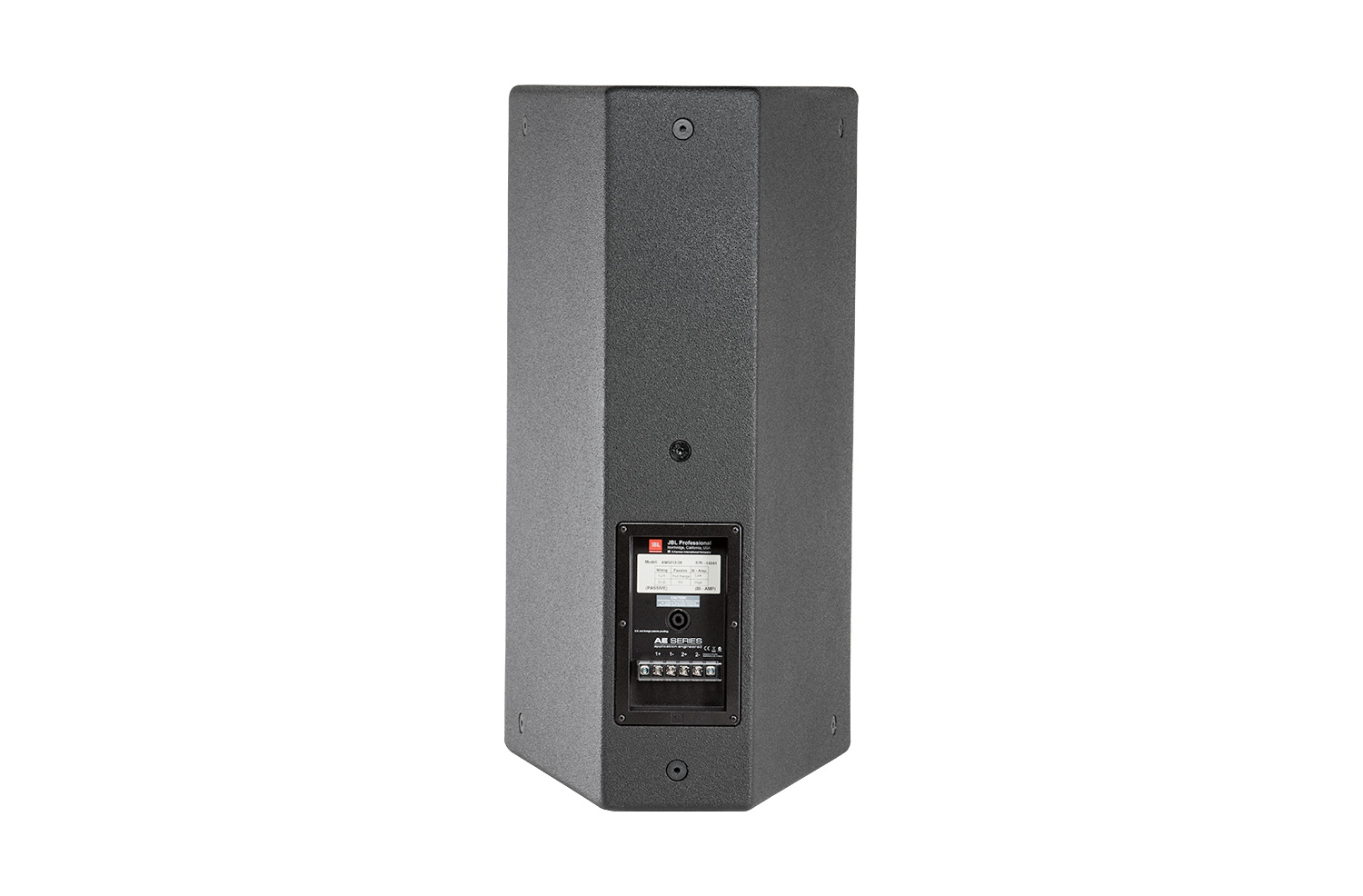

• Input Connector -  NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
• Environmental -  Mil-Std 810; IP-x3 per IEC529
• System Power Rating -  Passive mode: 300 W (1200 W peak), 100 hrs (IEC rated)
• Nominal LF Driver Impedance -  8 ohms
• Nominal HF Driver Impedance -  8 ohms
• Optional Accessories -  M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
• Dimensions (HxWxD in vertical orientation) -  28.06 x 14.6 x 18.1 inch (713 x 371 x 458 mm)
• Net Weight (each) -  44.5 lb (20.2 kg)
