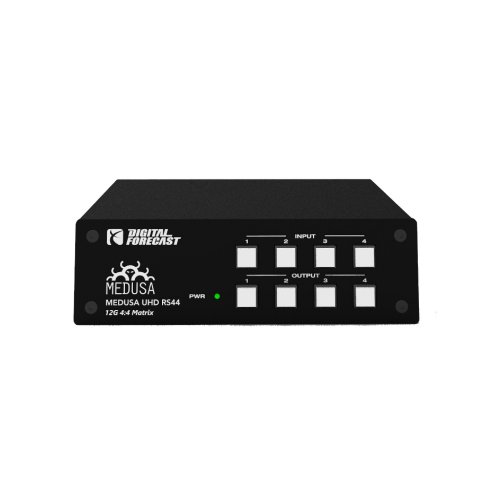

Digital Forecast Medusa UHD RS44 12G-SDI 4x4 Matrix Switcher
Model: Medusa UHD RS44
About: Digital Forecast Medusa UHD RS44 12G-SDI 4x4 Matrix Switcher
The Medusa UHD RS44 is a compact, easy-to-use 4x4 matrix router designed for 12G SDI signals.
It accepts four 12G SDI input signals and allows for flexible routing to any of four desired outputs.
Additionally, it supports remote control via external RS422 signals, making it an ideal and straightforward solution for small-scale 12G SDI systems.
- 12G SDI x 4 Inputs
- 12G SDI x 4 Outputs
- 12G SDI 4x4 matrix
- Supports standard SMPTE SDI signals
- Supports Serial RS422 interface for remote device control
- DC +12V Power
Specifications
- Power Level: +12 VDC
- Power Consumption: 10Watts (Max : 11 Watts)
- Operating Temperature: 0C ~ 60C
- Humidity: 0 to 95% RH, non-condensing
- Dimension (WxHxD): 5.51 x 4.37 x 1.69 in (140 x 111 x 43 mm)
- Weight: 0.49 lbs (220g)
What's in the Box
- Digital Forecast Medusa UHD RS44
- Power Adapter
UPC: 704006294998
