Inogeni TOGGLE ROOMS XT 3 Host Switcher for USB/HDMI w/ Extension

About: Inogeni TOGGLE ROOMS XT 3 Host Switcher for USB/HDMI w/ Extension

The TOGGLE ROOMS XT 4K60 USB/HDMI switcher effortlessly connects to five USB devices and an HDMI display. Seamlessly switching between 3 hosts, it automatically transitions to a connected laptop, providing convenient charging capabilities of up to 100W via USB-C. In addition, this versatile solution allows for remote control through RS-232 or GPI and ensures a seamless and user-friendly experience in any videoconference setting.

One cable to own the room! Any room! ONE USB-C CABLE (100W) TO TAKE CONTROL OF YOUR LARGE ROOM

4K BYOD/BYOM FOR LARGE ROOMS: 3 host switcher for USB/HDMI devices with extension

Switch 6 peripherals between 3 hosts: Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.

Versatile technology (BYOD/BYOM)

• Automatic or manual switching between Room PC & laptops (3 hosts capable).
• Direct connection of 5x USB devices + 1 HDMI display.
• Flexible laptop connectivity: USB-C (100W) or USB-B + HDMI.

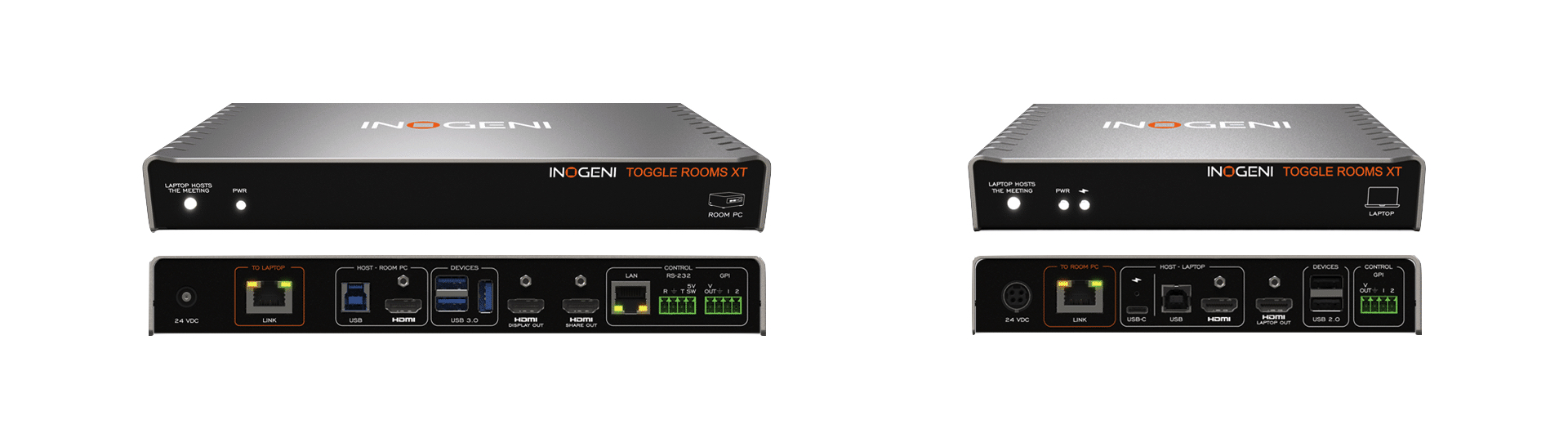

• 2 box system: At the display (Room PC hub) and at the table (laptop hub).
  • Connected with a single CAT6A cable
  • Uncompressed video signal via HDBaseT proven technology
  • Reach: 40 m / 132 ft at 4K60 and 70 m / 230 ft at 1080p
• 1 display: 4K60 / 16:9 and 5K30 / 21:9 widescreen (HDMI).
• Tested and compatible by design with major UC systems and camera manufacturers, such as Crestron, Logitech, Lenovo, Poly, MAXHUB, Jabra, Teams, Zoom, etc.

Flexibility

• USB 3.2 Gen 1/USB 3.1 Gen 1, backward compatible with USB 3.0/2.0.
• IP, RS-232 and GPI Control.
• Optional host switch button: Table surface-mounted button for BYOM laptop selection.

Peace of mind

• Made in Canada and TAA-compliant.
• Quality and reliability.
• No driver required.
• New Maestro device controller for easy configuration and update.

TOGGLE ROOMS XT facilitates videoconferencing management without any hassles. Users can switch seamlessly without waiting.

How it works - ONE CABLE SOLUTION TO TAKE CONTROL OF A LARGE ROOM

Switch up to 6 peripherals between 3 hosts (5 USB + 1 display): This flexibility extends across various settings, from large boardrooms to classrooms and auditoriums, making it an ideal solution for unified videoconferences.

OPTIMIZID DESIGN FOR LARGE ROOMS WITH TOGGLE ROOMS XT

Long distance resolved between the Room PC and laptop hubs

Room PC hub

• Connect up to 3 USB3 devices and an HDMI display
• Connect to the UC system (such as Lenovo, Logitech, MAXHUB Room PC)
• 4K60 / 16:9 and 5K30 / 21:9 wide screen (HDMI)

CAT6A extension cable

• Reach up to 70 m/230 ft from the main Room PC with a CAT6A cable
• Video signal up to 40 m for 4K60 and up to 70 m for 4K30

Laptop hub

• Connect up to 2 USB2 devices
• Connect the laptop via USB-C (100W) or HDMI and USB-B
• INO-HOST BUTTON via GPI
• Routes Laptop content to control pads such as MAXHUB XCore and the Logitech Tap

ROOM PC HOSTS THE MEETING

• Room PC mode: In this mode, the USB and HDMI devices are routed only to the Room PC.
• Room PC mode with laptop sharing content (BYOD):  If the user wants to send HDMI content from the laptop’s USB-C or HDMI connection to the Room PC, it is possible to do so with the HDMI SHARE output connection.

 LAPTOP HOSTS THE MEETING

• Laptop BYOM mode: In this mode, the laptop is the system that is currently selected for the main USB and HDMI peripherals. The Room PC is completely disconnected from the setup.

Features

TOGGLE ROOMS XT – SWITCH from BYOD to BYOM modes with only one cable for a Room PC and laptop

Switch up to 6 peripherals between 3 hosts (5 USB + 1 display) and use one USB-C (100W) cable to connect the laptop. Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.

AUTOMATIC/MANUAL HOST SWITCHING

• TOGGLE ROOM XT comprises 2 hubs linked with a CAT6A extension of up to 70 m.

 Host connections for the TOGGLE ROOMS XT / Room PC & Laptop hubs

• Resolutions: 4K60 / 16:9 and 5K30 / 21:9 widescreen (HDMI)
• Reach: Up to 70 m/230 ft from the main Room PC with CAT6A cable
• Video signal: Up to 40 m/132 ft for 4K60 and up to 70 m/230 ft for 4K30

TOGGLE ROOMS XT – Room PC hub

Near the Room PC system, display, videobar, camera and audio.

Link to the Room PC:

• 1x USB-B host connection and 1x HDMI 2.0 video input.

INPUTS

• 3x USB 3.0/2.0 devices (high-quality cameras, videobar or audio devices).

OUTPUTS

• 4K60 in 16:9 and 5K30 21:9 in widescreen (HDMI)
• 1x HDMI 2.0, up to 4K60 for DISPLAY connection from selected host.
• 1x HDMI 2.0, up to 4K60 for SHARE connection from BYOD to Room PC HDMI ingest.

CONTROL OPTIONS:

• RS-232
• IP
• 2x GPI

TOGGLE ROOMS XT – Laptop hub

Under the table connected to laptop, speakerphone and control pad.

INPUTS

• Laptop connections
  • 1x USB-C host connection (USB 2.0, DP alternate mode and power delivery 100W)
  • 1.8 m/6 ft USB-C 100W cable included.
  • 10 m/33 ft USB-C tested solutions.
  • – OR –
  • 1x USB-B host connection and 1x HDMI 2.0 video input, up to 4K60.

Other devices

• 2x USB 2.0 devices (speaker phone, 360 camera, document camera, etc.).
• INO-HOST BUTTON via GPI.

 OUTPUT

• Routes Laptop content to control pads, such as MAXHUB XCore and the Logitech Tap.
• 1x HDMI 2.0

 COST-EFFECTIVE and RELIABLE SOLUTION

• Simple to install and connect (no driver required).
• Compatibility with leading MTR, Zoom Rooms, and UC systems.
• Compatible with USB cameras, videobars and videoconferencing audio devices.

CONTROL OPTIONS

• RS-232
• IP
• 2x GPI
• Host switch button: Table surface-mounted button for BYOM laptop selection
  • Accessories are available separately
  • OPTIONAL: INO – Host button

OTHER FEATURES

• Bidirectional audio system AEC works for videobars, such as Cisco, Poly, Logitech, Bose, Shure, Sennheiser, Nureva, Biamp or Lumens.
• Multiple mounting options.
• Visual LED status.
• Switch button on the front of the devices.
• Audio embedded in USB and HDMI signal.

ADVANCED VIDEO QUALITY

• Automatic scaling.
• Supports multiple devices on the same host.
• Device configuration via the INOGENI MAESTRO device controller.

Plug & Go with INOGENI’s TOGGLE ROOMS XT!

These videoconferencing systems (Room PCs) need TOGGLE ROOMS XT to enable BYOM and BYOD so that users can easily switch peripherals (cameras, microphones, speakerphones, display screens or videobars) to the guest laptop in the meeting room.

Compatible with all USB cameras, video bars and pro-AV audio devices

Unlock ultimate versatility with INOGENI’s TOGGLE ROOMS XT! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Specifications

• Link
  • Technology - HDBaseT
  • Range
    • Up to 40 m when using 4Kp60
    • Up to 70 m when using 1080p60
  • Medium - CAT6A U/FTP
• Laptop hub
  • USB-C connector (host #1)
    • Supports USB-C DisplayPort Alternate Mode
      • DisplayPort up to 3840x2160p60 / 4096x2160p60
      • USB 2.0 (480 Mbps)
      • Charges up to 100W
      • USB-C cable locking option
  • USB connector (host #2) - USB 2.0 Type-B
  • HDMI input connector (host #2) - Up to 3840x2160p60 / 4096x2160p60
    • Cable locking option
  • HDMI output connector - Up to 3840x2160p60 / 4096x2160p60
    • Cable locking option
  • USB devices connectors - USB 2.0 Type-A ports for peripherals
  • LINK connector - HDBaseT 3.0 interface
  • GPI
    • 4-POS terminal block connector
    • 2x Contact-closure control
    • GPI:
      • Controlled by open-drain IO (short to ground) or driven IO
      • Supported voltage range: 0 to 12V max
      • Voltage threshold is 2.3V
    • VOUT:
      • Able to power up the LED on the button of our INO-Button accessory
      • Logic-low level: 0 @ 0.5V
      • Logic-high level: 4.5 @ 5V
  • Power connector - 24 VDC/160W
• Room PC hub
  • LINK connector - HDBaseT 3.0 interface
  • USB connector (host #3) - USB 3.0 Type-B/5 Gbps
  • HDMI input connector (host #3) - Up to 3840x2160p60 / 4096x2160p60
    • Cable locking option
  • HDMI display output - Up to 3840x2160p60 / 4096x2160p60
    • HDMI with cable locking option
  • HDMI share output - Up to 3840x2160p60 / 4096x2160p60
    • HDMI with cable locking option
  • USB devices
    • 3x USB 3.0 Type-A ports.
    • 1.8A shared between downstream ports
  • GPI
    • 4-POS terminal block connector
    • 2x Contact-closure control
    • GPI:
      • Controlled by open-drain IO (short to ground) or driven IO
      • Supported voltage range: 0 to 12V max
      • Voltage threshold is 2.3V
    • VOUT:
      • Able to power up the LED on the button of our INO-Button accessory
      • Logic-low level: 0 @ 0.5V
      • Logic-high level: 4.5 @ 5V
  • IP interface
    • 10/100Mbps
    • Supports DHCP or static addressing
    • IP control available through RESTAPI and Telnet connections
  • RS-232 interface
    • 4-pos terminal block connector
    • Baud rates: 9600 [default], 19200, 38400 and 115200
    • Data bits: 8
    • Stop bits: 1
    • Parity: None
    • Flow control: None
  • Power connector - 24 VDC/36W
• Video - HDMI
  • HDCP compliance - Compliant with HDCP2.3, HDCP2.2 and HDCP1.4
  • HDMI compliance - Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
  • Sampling frequency - 600 MHz
  • Video scaling - Crosspoint switch supports video downscaling from 4K to 1080p
  • Chroma subsampling
    • YUV/RGB
    • 4:4:4, 4:2:2
  • CEC - Ability to send CEC commands to connected HDMI display sink
• Audio - HDMI
  • Audio - Audio passthrough from input to output
  • Formats - LPCM, Dolby Digital and DTS up to 192kHz
• Control
  • Control options - ​Front button – For laptop selection
    • RS232
    • GPI
    • LAN
    • USB
• Compatibility
  • Operating systems - NO driver installation necessary!
    • Windows 7 and above (32/64-bit)
    • macOS 10.10 and above
    • Linux (kernel v2.6.38 and above)
• Physical details
  • Room PC hub - Dimensions (W x L x H) - 25.10 cm x 11.57 cm x 3.26 cm (9.88” x 4.56” x 1.28”)
  • Room PC hub - Power supply - 36W (85-264VAC 50/60Hz to 24V/1.5A DC)
  • Room PC hub - Weight - 760 g (1.68 lb)
  • Laptop hub - Dimensions (W x L x H) - 18.4 cm x 11.57 cm x 3.26 cm (7.24” x 4.56” x 1.28”)
  • Laptop hub - Power supply - 160W (85-264VAC 50/60Hz to 24V/6.67A DC)
  • Laptop hub - Weight - 580 g (1.28 lb)
  • Operating temperature - 0°C to 45°C / 32°F to 113°F
  • Storage temperature - -40°C to 105°C / -40°F to 221°F
  • Relative humidity - 0% to 90% non-condensing
  • Mounting options - Ability to mount under the table or on a wall

What's in the box

• 1x TOGGLE ROOMS XT / ROOM PC device
• 1x TOGGLE ROOMS XT / LAPTOP device
• 1x USB-C to USB-C cable – 6 ft
• 1x USB 3.0 cable (USB-A to USB-B) – 3 ft
• 3x terminal block 4-pos
• 4x mounting brackets
• 8x M2.5 mounting screws for brackets on product
• 8x screws for Toggle Rooms devices for table/wall mount
• 1x power supply 85-264VAC 50/60Hz to 24V/6.67A DC for LAPTOP hub
• 1x power supply 85-264VAC 50/60Hz to 24V/1.5A DC for ROOM PC hub
• 2x international adapters included in the box (USA/CA)
• 1x Quick Start Guide / Thank You Card
• 4x PSU mounting bracket
• 8x screws for PSU table/wall mount
• 8x rubber feet
