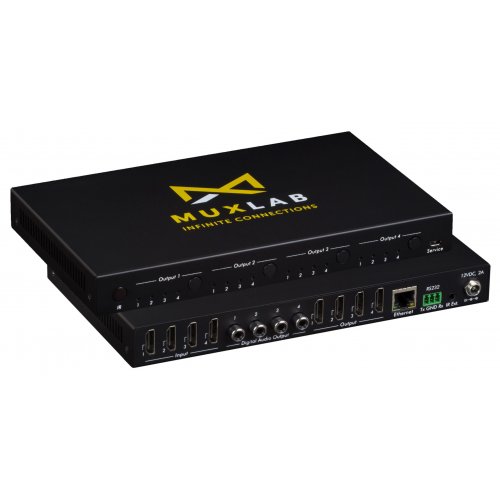

Muxlab 4x4 HDMI Matrix Switch, 4K/60

About: Muxlab 4x4 HDMI Matrix Switch, 4K/60

The 4×4 HDMI Matrix, 4K/60 connects four HDMI sources to four displays. This matrix provides four HDMI outputs supporting up to 4K/60 (4:4:4) plus all 3D formats, and supporting EDID management. It works with Blu-Ray players, media players/streamers, cameras, set-top boxes, home theater systems, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel.

• Supports HDMI 2.0 (4K/60, 4:4:4)
• Supports 4K/60 (4:2:0) for compatibility with HDBT extenders
• HDCP 2.2 compliant
• Supports HDR (4:2:2) 12 bit
• Powerful EDID management
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X
• Controllable via front panel, IR, RS232 and TCP/IP
• Supports a web interface

Specifications

• Video Bandwidth - 594 MHz
• Support Video Resolution - 480i,576i,480p,576p,720p,1080i,1080p@ 24/30/50/60Hz, 4K@60Hz, 1080P3D@60Hz
• Audio - LPCM, compressed (Dolby, DTS) and HBR
• HDCP - Revision 1.4 & 2.2
• HDR - 4:2:2 12 Bit
• Input Ports
  • Four (4) HDMI Receptacle
  • One (1) RS-232 Terminal Block Connector
  • One (1) Ethernet Port (Control)
• Output Ports - Four (4) HDMI Receptacle
• Control - Push Button, RS232, Telnet, Web GUI & IR
• ESD Protection
  • Human-body Model:
    • ± 8kV (Air-gap discharge)
    • ± 4kV (Contact discharge)
• Power Supply - One (1) 110-240V/12VDC/2.0A power supply with interchangeable blades
• Chassis Material - Metal
• Chassis Color - Black
• Operating Temperature - 0 C to 40 C / 32 F to 104 F
• Storage Temperature - −20 C to 60 C / −4 F to 140 F
• Relative Humidity - 20 to 90 % RH (non-condensing)
• Dimensions - 10.63 x 4.33 x 0.98 inch (270 × 110 × 25 mm)
• Weight - 2.4 lb (1090 g)
