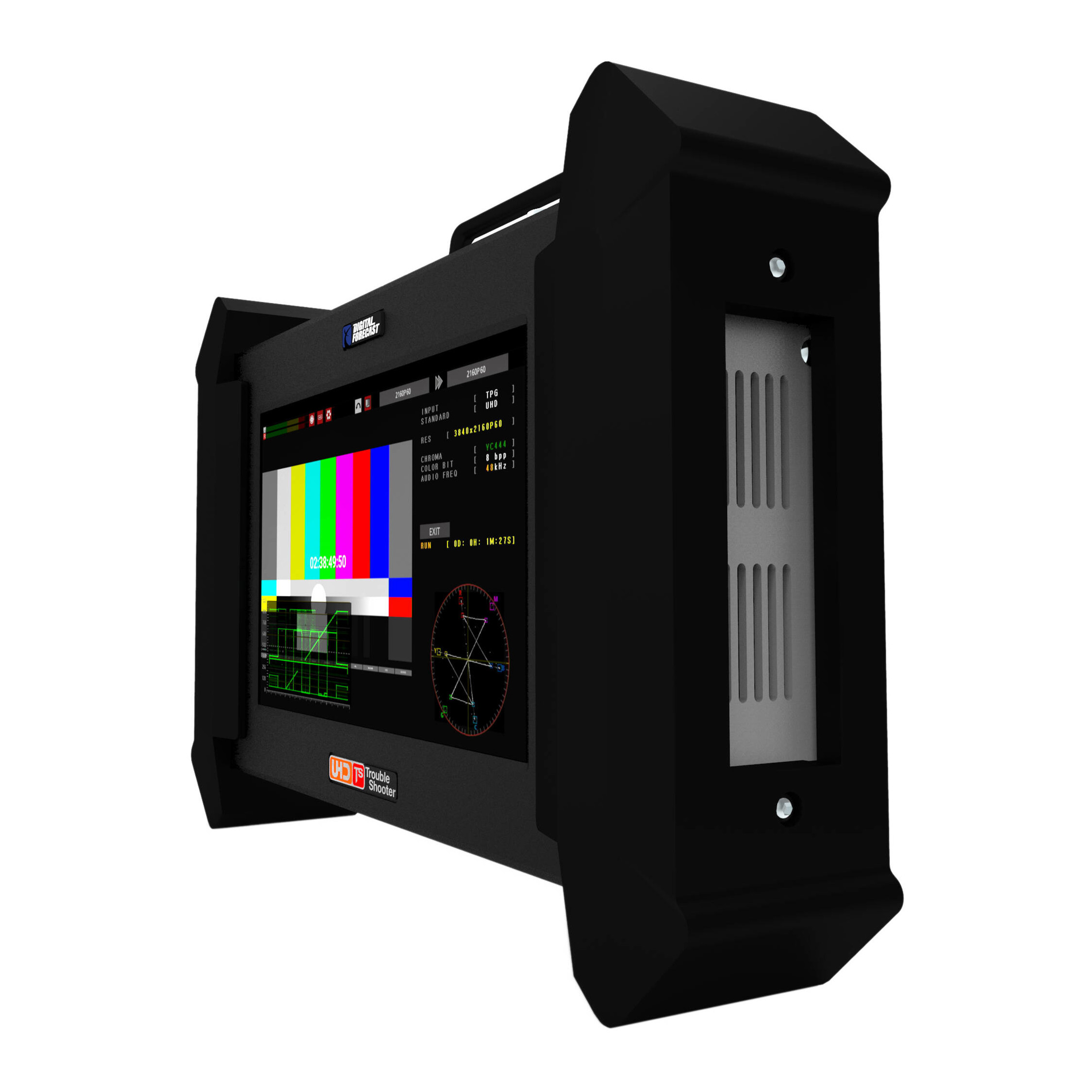

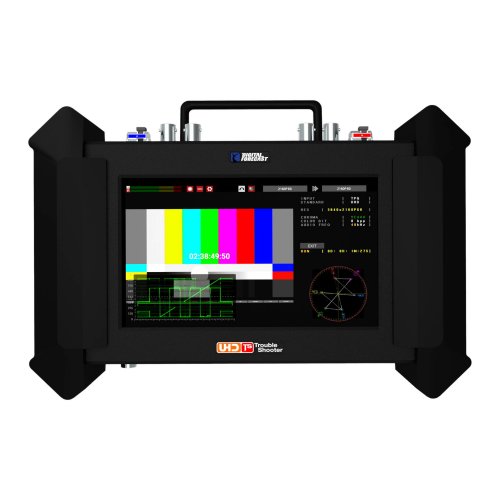

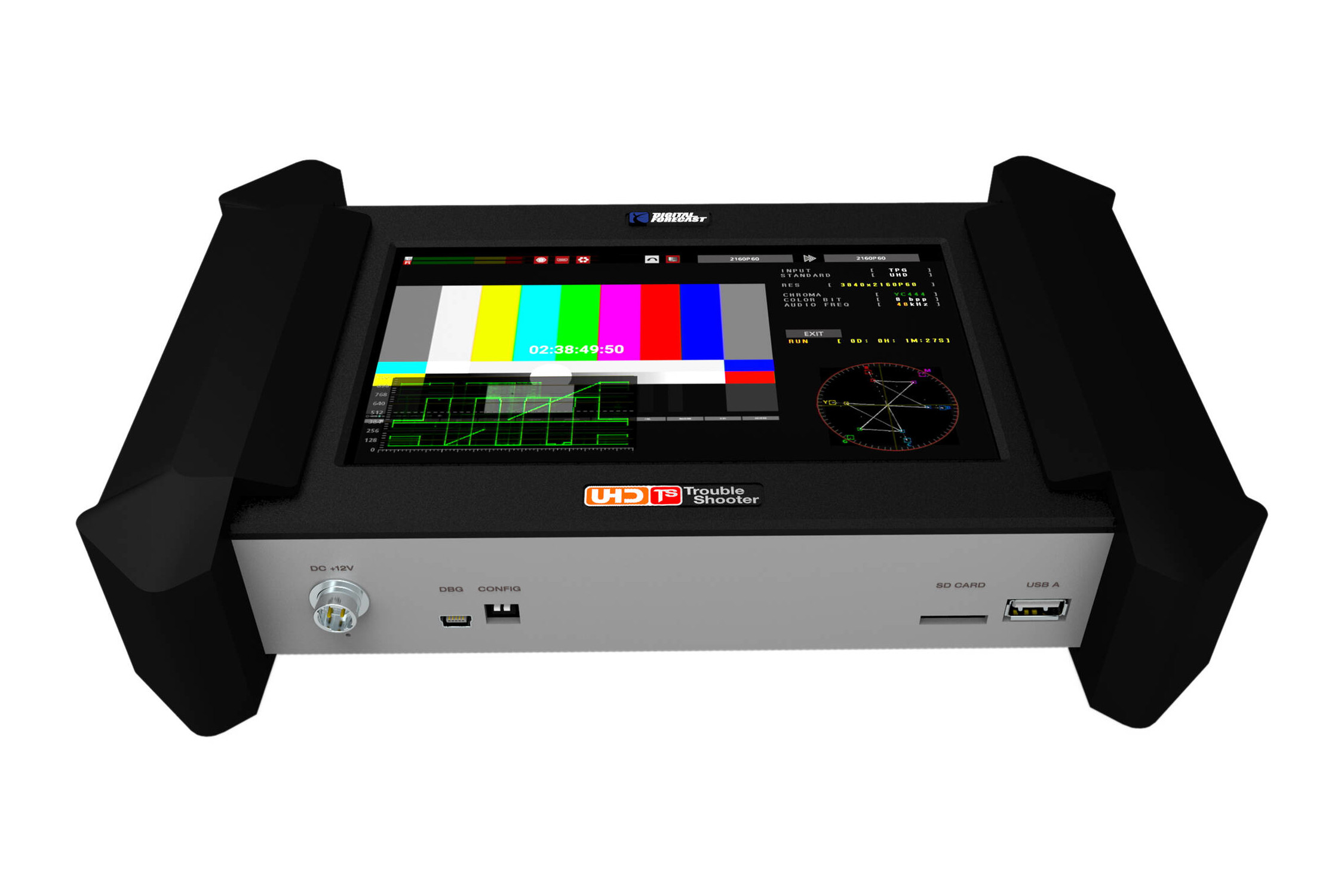

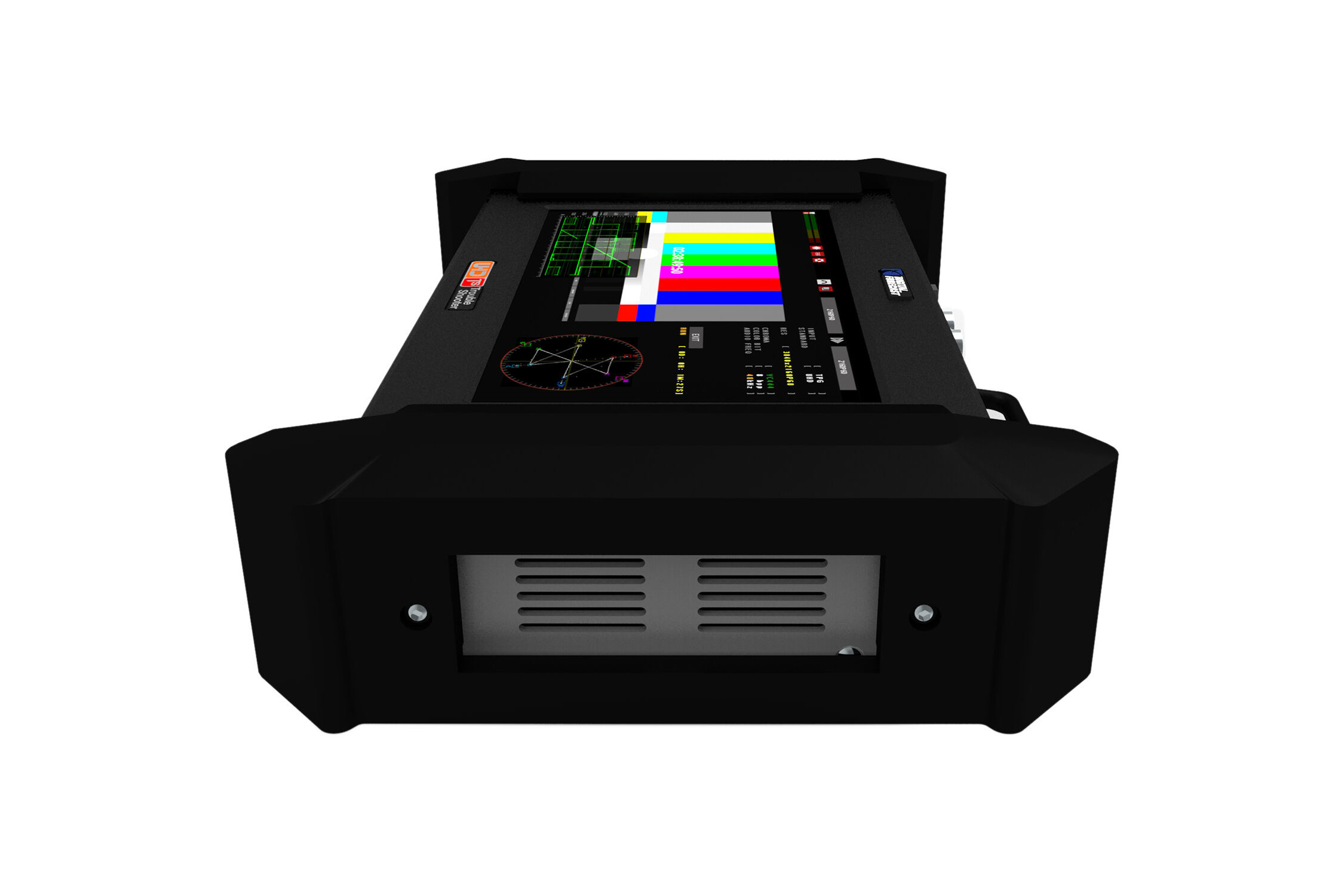

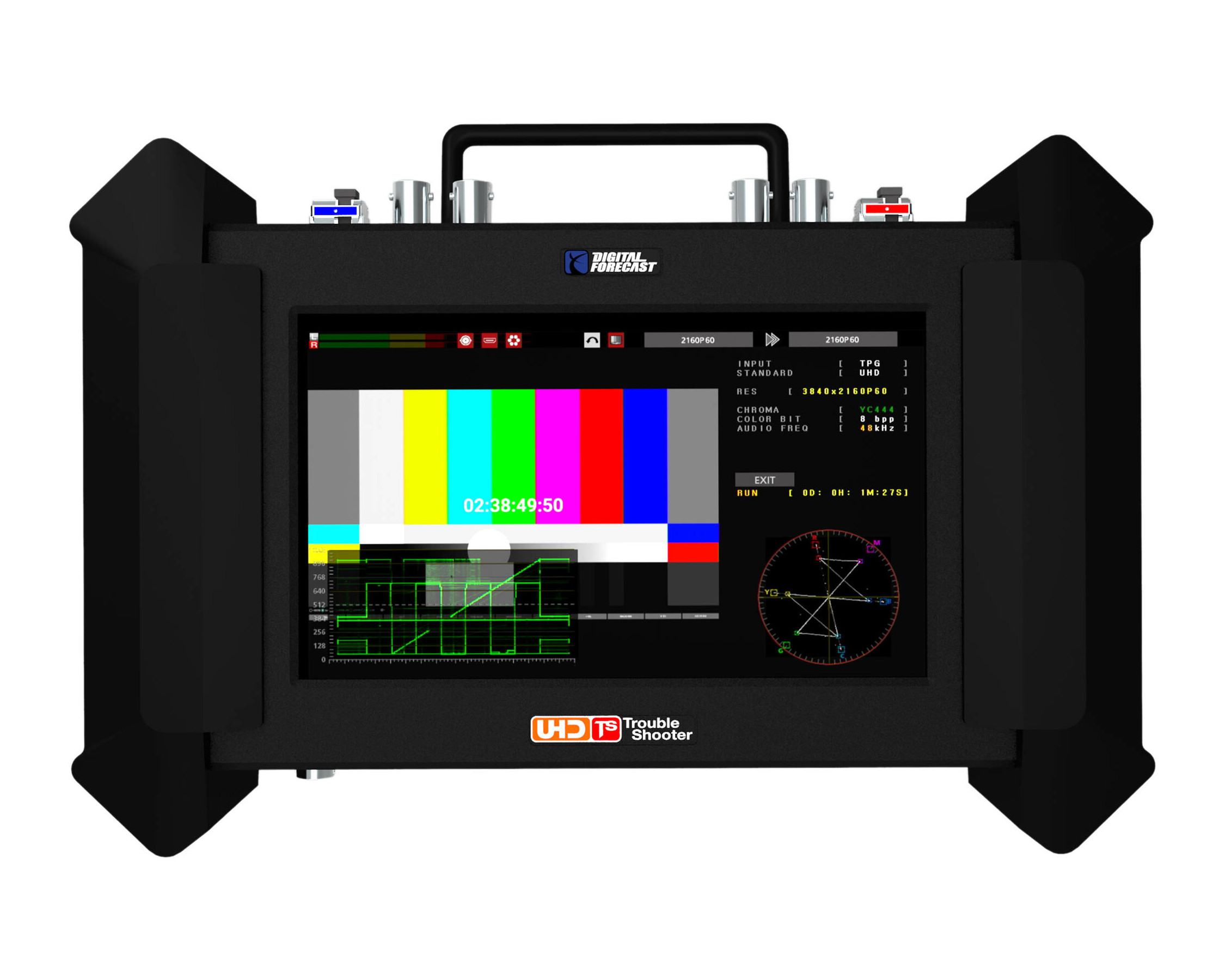

Digital Forecast UHD X_TS Trouble Shooter
Model: UHD X_TS
About: Digital Forecast UHD X_TS Trouble Shooter
UHD X_TS is Multi-Platform UHD Signal Converter with Measurement and Test Pattern Generator.
UHD X_TS can be effectively used in the installation and maintenance service of UHD video signal.
Very handy but powerful functions of UHD X_TS series enables to conveniently check a variety of UHD signal status through 7” Touch screen LCD from video display up to SDI EYE monitor and SDI Cable conditions.
- UHD Up/Down/Cross/Scan converter
- Standard UHD & FHD Video signal supported (12G SDI, HDMI 2.0, 12G Optic)
- Embedded Audio signal Monitor & Speaker out
- EYE monitoring for SDI signal (720p, 1080i, 1080p, 2160p)
- Test Pattern Generator ( Still , Moving UHD Generator)
- 12G SDI signal integrity check (Loss, CRC Error count)
- HDMI 2.0 signal integrity check (Loss, Resolution, HDCP)
- Audio Level Monitoring (Up to 8 channels)
- 7” Touch Screen LCD (1024x600)

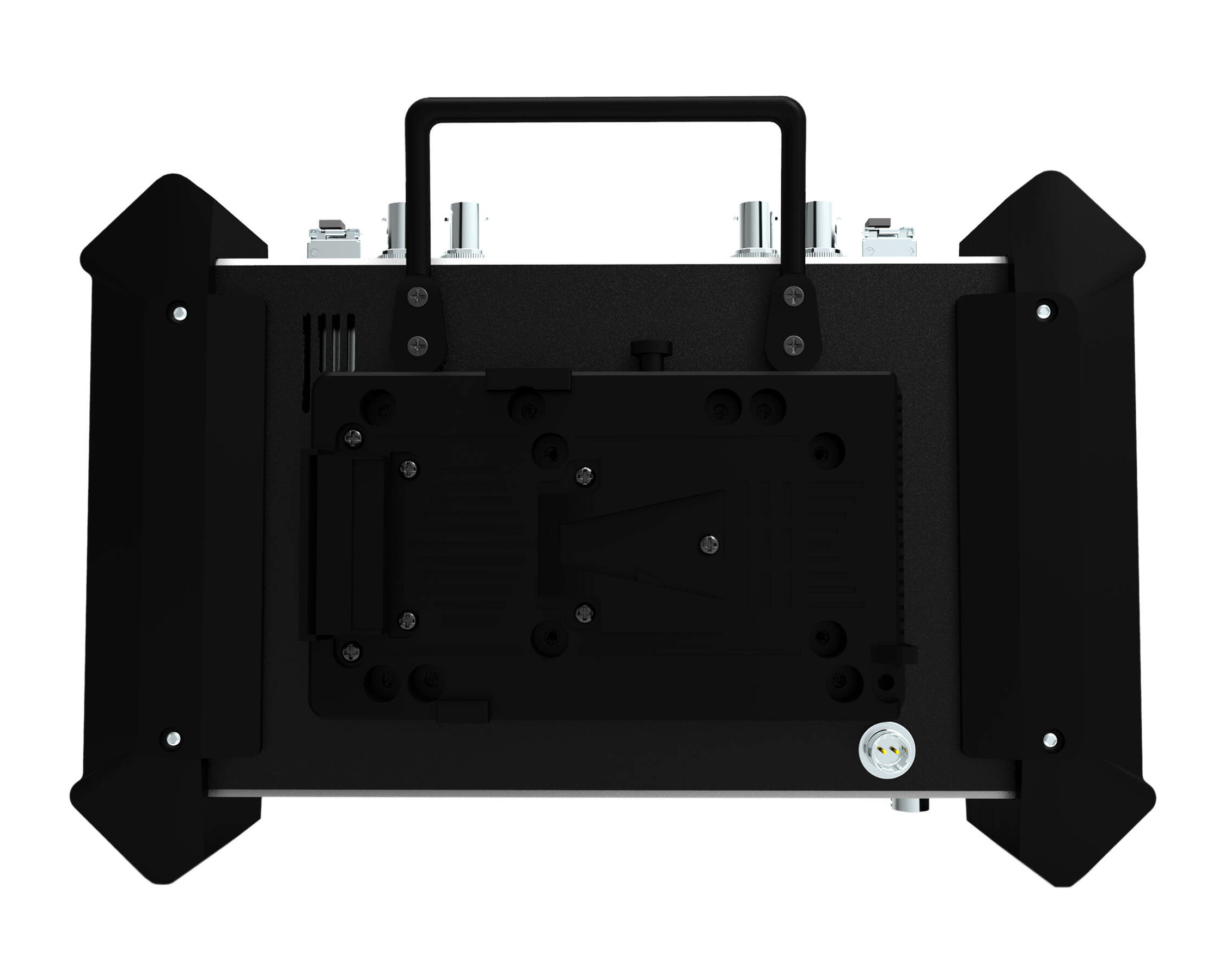

- Support V-Mount Battery Plate
Specifications
- Video Standards
- SMPTE-296M : 720p (60/59.94/50)
- SMPTE-274M, SMPTE-292M : 1080i (60/59.94/50)
- SMPTE-424M : 1080p (60/59.94/50) 3G
- SMPTE-ST2081 : 2160p (30/29.97/25) 6G
- SMPTE-ST2082 : 2160p (60/59.94/50) 12G
- HDMI V2.0
- Operating Environment
- Power Level +12V DC
- Power Consumption 40 Watts (Maximum 45 Watts)
- Operating Temperature 0℃ ~ 70℃
- Humidity 0% ~ 95% RH, Non-condensing
- Dimensions (WxLxH) - 261 x 174 x 57mm
- Weight - 1.635kg
UPC: 704006295094
