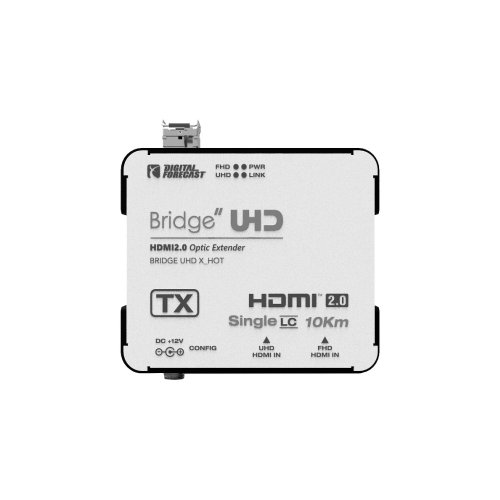

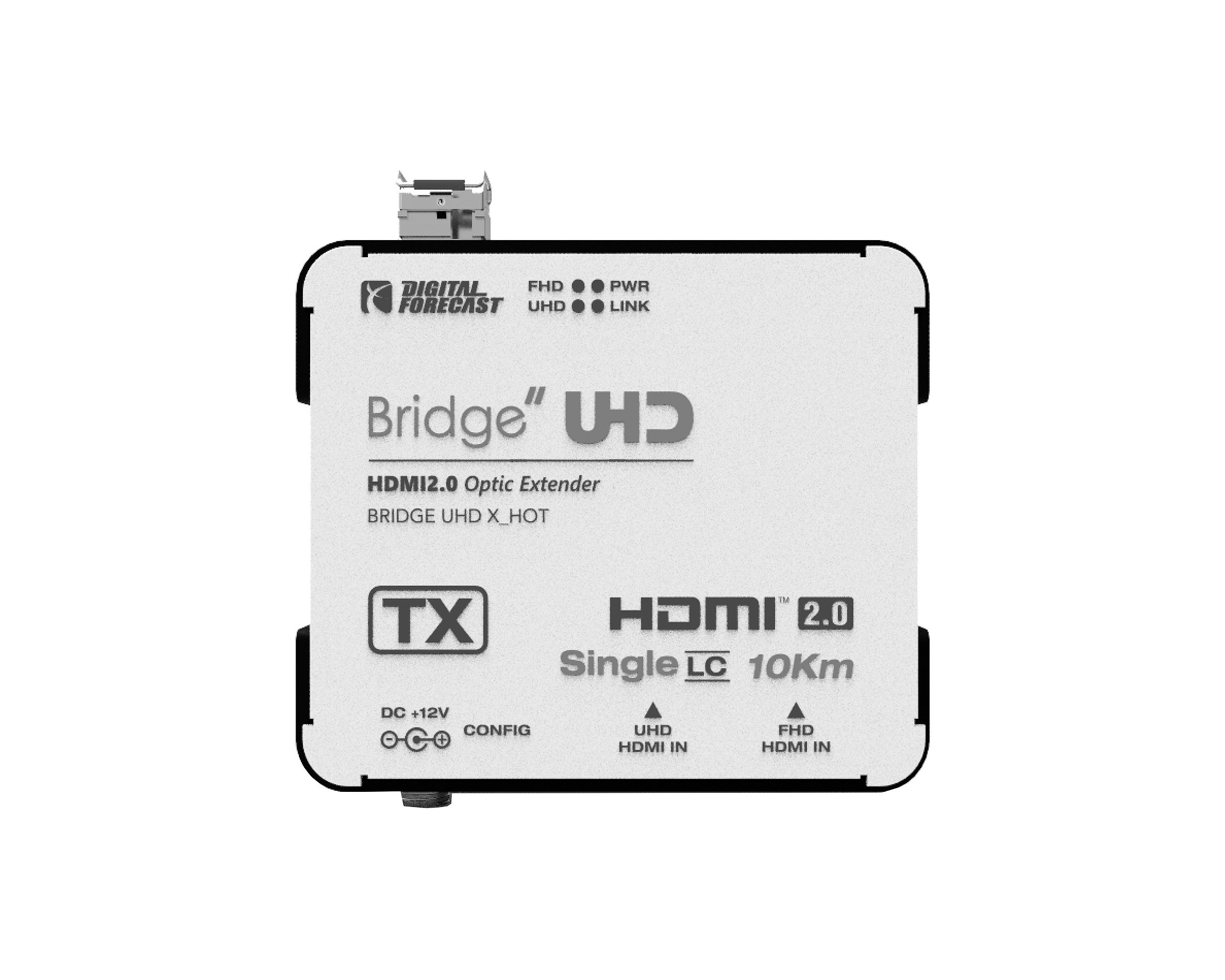

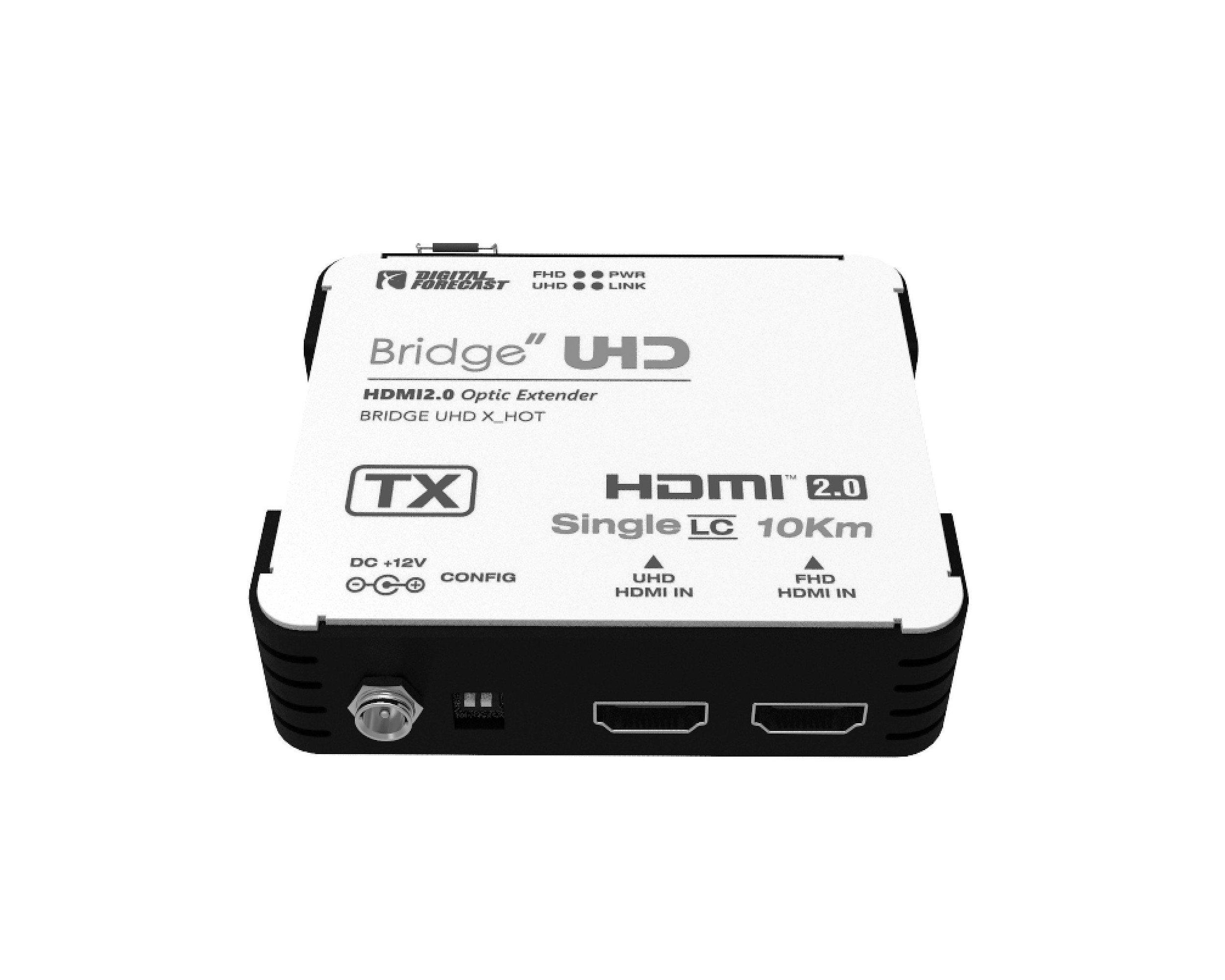

Digital Forecast Bridge UHD X_HOT HDMI 2.0 to Optic FHD/UHD Converter
Model: UHD X_HOT
About: Digital Forecast Bridge UHD X_HOT HDMI 2.0 to Optic FHD/UHD Converter
Bridge UHD X_HOT is a device that converts HDMI2.0 UHD signals into 4K UHD Optics and transmits them.
To facilitate intuitive and distinct EDID resolution configuration, input signals are separated into FHD and UHD categories, allowing for effortless setup.
To ensure compatibility across various color formats, the device supports all chroma formats, including RGB, YCbCr 4:4:4, and YCbCr 4:2:2.
- Optima technology applied
- HDMI1.3 FHD input , HDMI2.0 UHD input
- UHD 4K Optic output ( 1 Core ) LC Single-mode
- Chroma Format RGB, YCbCr444, YCbCr422 Support
- LC single mode, max 10Km
Specifications
- Optical
- Type: Small Form-Factor Pluggable (SFP)
- Power: 3.3 V
- Data Rate: max 6G dual
- Wavelength: 1310 nm, 1490 nm
- Receiver Sensitivity: -14 dBm
- Physical
- Power Level: 7V ~ 16VDC
- Power Consumption: 8.5 Watts (Max 10 Watts)
- Operating Temperature: 0℃ ~ 55℃
- Humidity: 0 to 95% RH, non-condensing
- Data Rate: Max 600Mhz
- Signal Level: 800mVp-p +/- 80mV
- Dimension (WxHxD): 3.86 x 3.23 x 1.02 in (98 x 82 x 26 mm)
- Weight: 0.4 lbs (180g)
UPC: 704006294486
