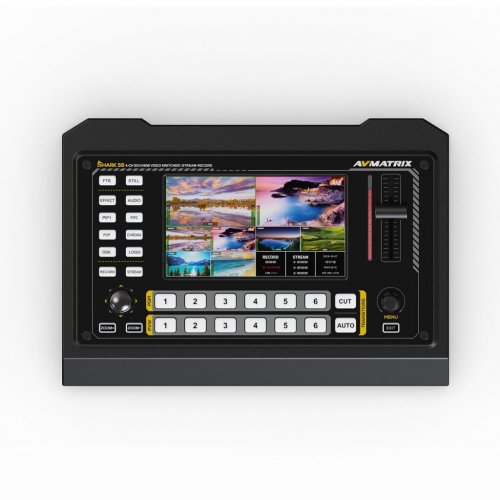

AVMatrix Shark S6 6-Channel HDMI/SDI Video Switcher

About: AVMatrix Shark S6 6-Channel HDMI/SDI Video Switcher

The SHARK S6 is a 6-channel HDMI & SDI multi-format video Switcher with a 5-inch LCD display. It supports various functions including LAN streaming, recording, video switching, audio mixing, PGM/ Multiview/ AUX out, different transition effects, Luma Key, Chroma Key, DSK, LOGO, PIP/ POP, PTZ control etc.

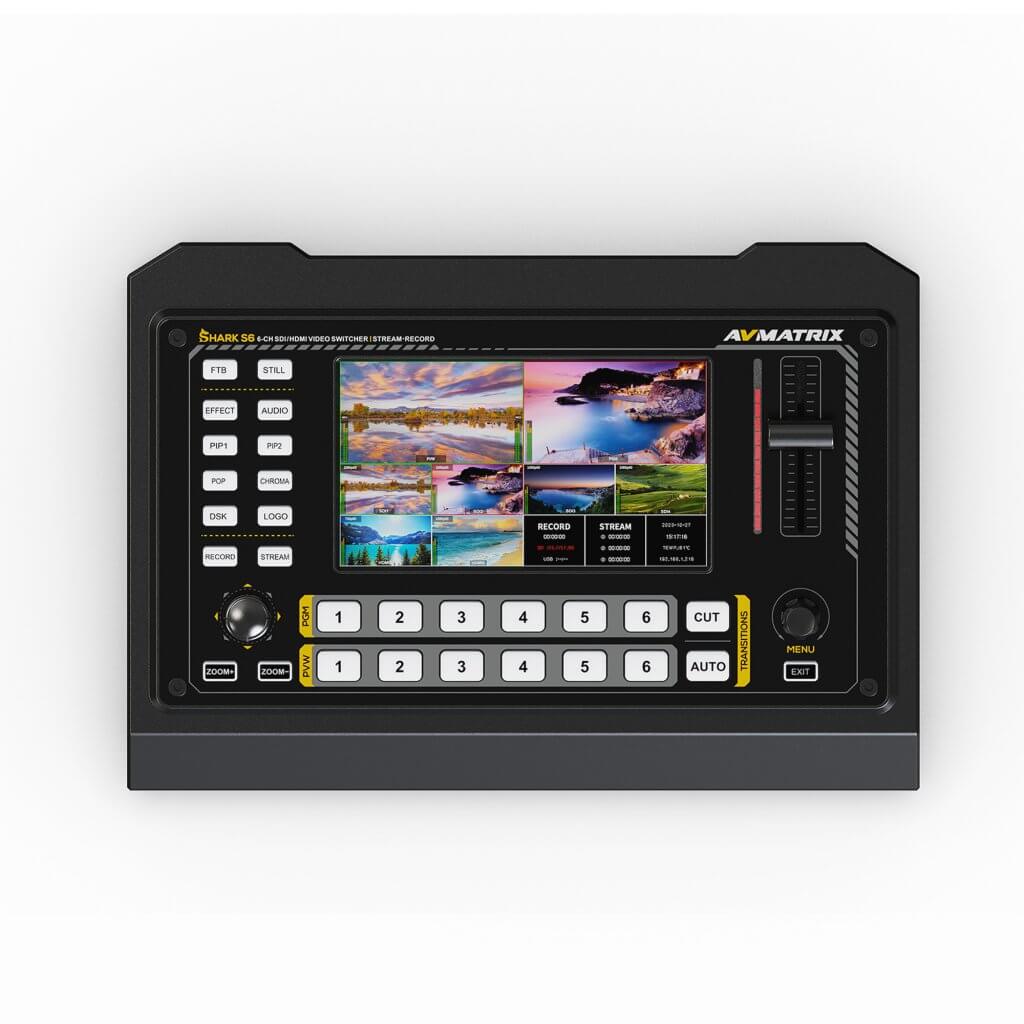

• Built-in 5 inch LCD display
• Input: 4×SDI and 2×HDMI
• Output: 2×SDI, 1×HDMI PGM, 2×SDI AUX ,1×HDMI Multiview, 1×USB Type-C
• RTMP stream & USB Disk & SD Card Record
• USB for capturing and streaming on PC
• Professional chroma Key, downstream key, 2PIP/ POP, and LOGO overlay
• T-bar/ Auto/ Cut transitions, various effects: MIX/ DIP/WIPE effects
• Audio mixer:4×SDI, 2×HDMI audio & 2×MIC in
• PTZ camera control: VISCA, VISCA over IP, Pelco D/P & ONVIF
• Layout style: landscape & portrait mode
• FTB/ STILL, GPIO port for tally system, RS232/RS422/RS485

Specifications

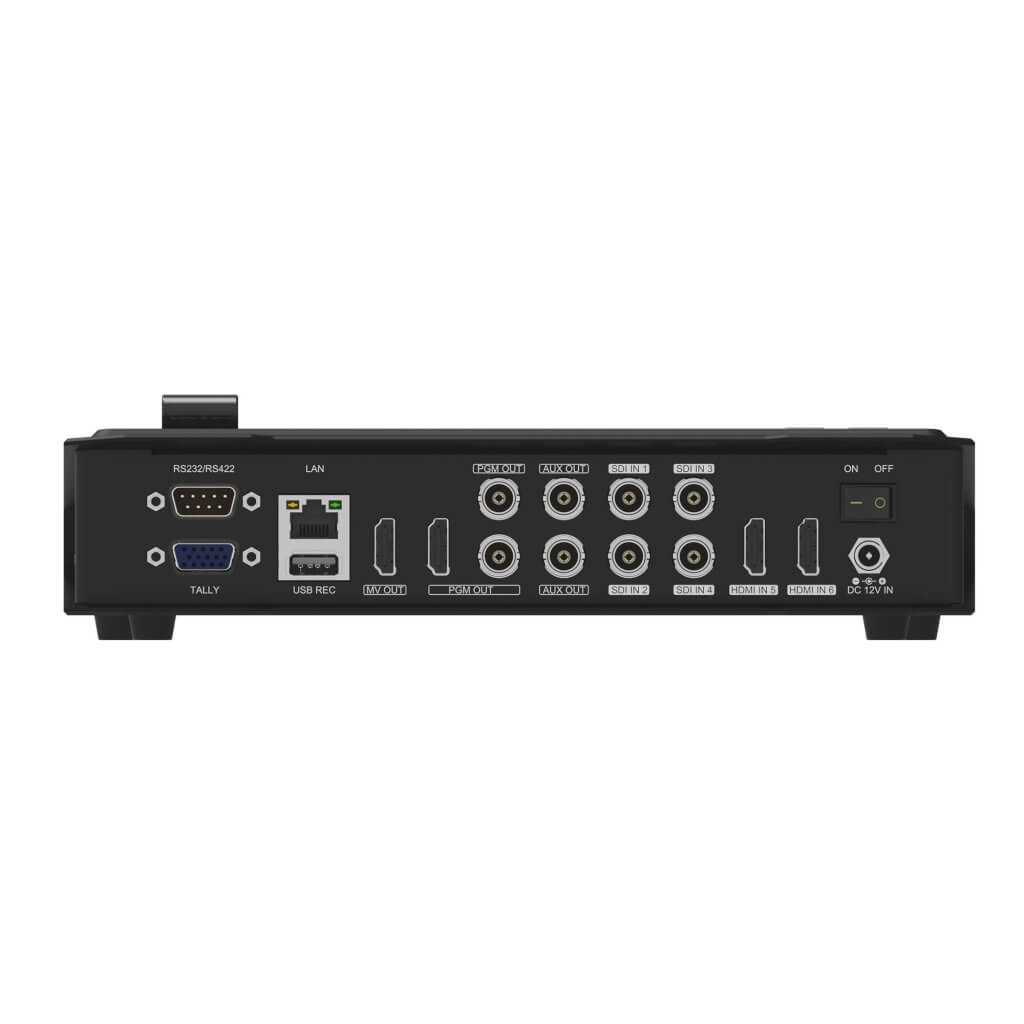

• CONNECTION
  • Video In - SD/HD/3G-SDI(75Ω) ×4, HDMI type-A(100Ω) ×2
  • PGM Outputs - HD/3G-SDI(75Ω) ×2, HDMI Type-A(100Ω) ×1
  • Multiview Outputs - HDMI type-A(100Ω) ×1
  • AUX Outputs - 3G-SDI(75Ω) ×2, including IN1~6, PVW, PGM, Color Bar, Multiview
  • Stream Output - LAN
  • Capture Output - USB type-C

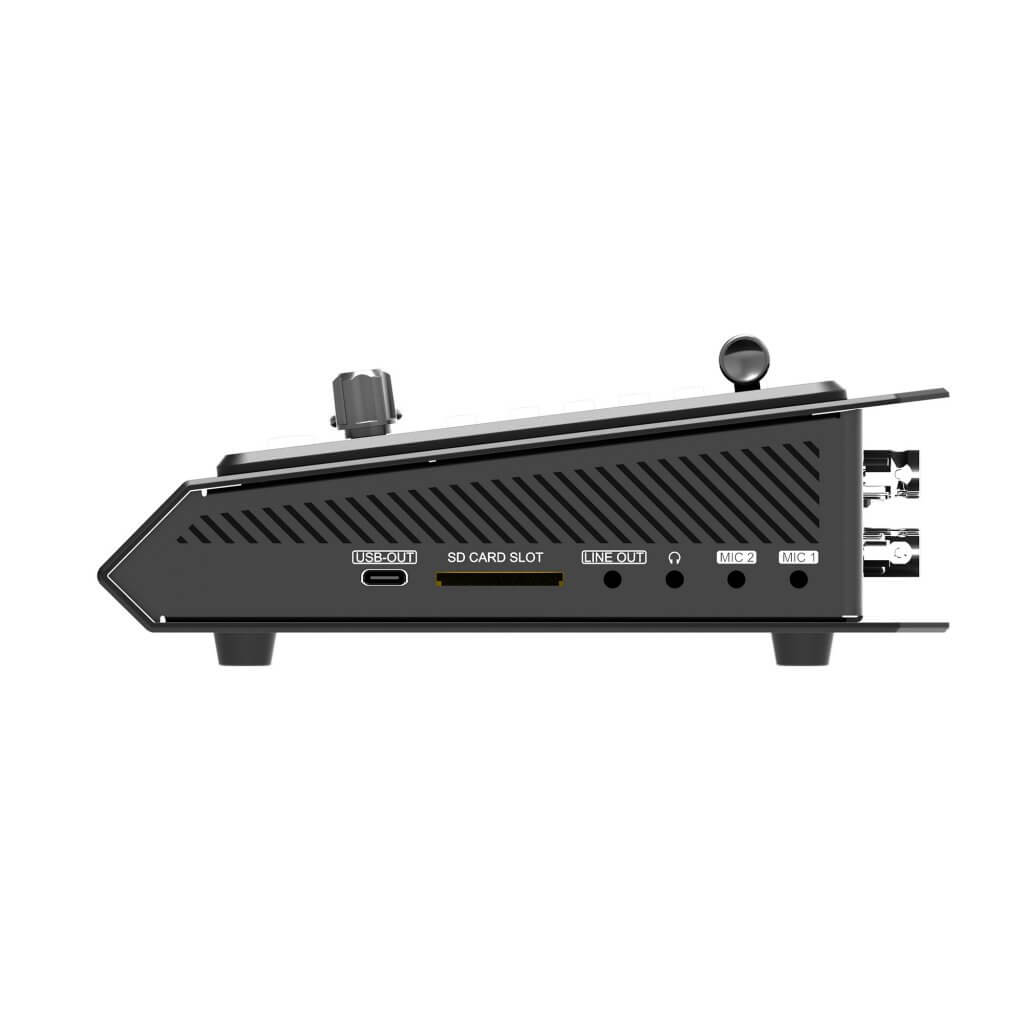

  • Audio Input - MIC ×2
  • Audio Output - Line ×1, Earphone slot×1
  • Media Port - USB type-A×1
  • Camera Control Port - LAN, RS232/RS422/RS485
  • Tally Port - DB-15
  • Power In - DC 12V
• STREAM& REC
  • Bitrate - 2M~32Mbps
  • Rate Control - CBR/VBR
  • Stream Protocols - RTMP(S)/ RTSP/ SRT
  • REC SD Card Format - FAT32/exFAT/NTFS
  • REC USB Disk Format - FAT32/exFAT/NTFS
  • REC File segment - 1~120mins
• FUNCTIONS
  • Transitions - T-Bar/ AUTO/ CUT
  • Effects - WIPE(11×3 patterns)/ MIX/ DIP/ STILL(freeze)/ FTB
  • Multiview Layout - Landscape & Portrait Mode
  • Upstream Key - Chroma Key ×1, PIP ×2/ POP×1
  • Downstream Key - DSK ×1, Logo ×1
  • Audio Function - AFV, Mix, Audio delay
  • Logo Library - Up to 8 PNG images
  • Record Storage - USB Disk/ SD Card
  • Display - 5-inch HD LCD Display
• STANDARDS
  • SDI Input Format Support
    • 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98
    • 1080i 60/59.94/50
    • 720p 60/59.94/50/30/29.97/25/24/23.98
    • 625i 50 PAL, 525i 59.94 NTSC
  • HDMI Input Format Support
    • 1200p 60/50/30
    • 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
    • 1080i 50/59.94/60
    • 720p 60/59.94/50/30/29.97/25/24/23.98
    • 576i 50, 576p 50
  • PGM Output Format
    • 1080p 60/59.94/50/30/29.97/25/24/23.98
    • 1080i 60/50/59.94
  • Multiview Output Format - 1080p 60
  • Color Space - RGB Full/ RGB Limited/ YUV
  • SDI Video Rate - Auto Detection, SD/HD/3G-SDI
  • SDI Compliance - SMPTE 292M/ SMPTE 259M/ SMPTE 424M
  • USB Capture Out - MJPG, up to 1080p 60
  • Supports OS - Windows 7/8/10/11, Linux (Kernel version 2.6.38 and above), Mac OS (10.8 and above)
  • Capture Compatibility - OBS Studio, Skype, ZOOM, Teams, Youtube, Live, etc.
• OTHERS
  • Power - DC 12V 1.5A, 18W
  • Temperature
    • Working: -20°C~60°C
    • Storage: -30°C~70°C
• ​Dimension (LxWxD) - 9.39 x 6.62 x 1.87 inch (238.5 × 168.2 × 47.5mm)
• Weight
  • Net Weight: 3.2 lbs (1450g)
  • Gross Weight: 5.22 lbs (2370g)
