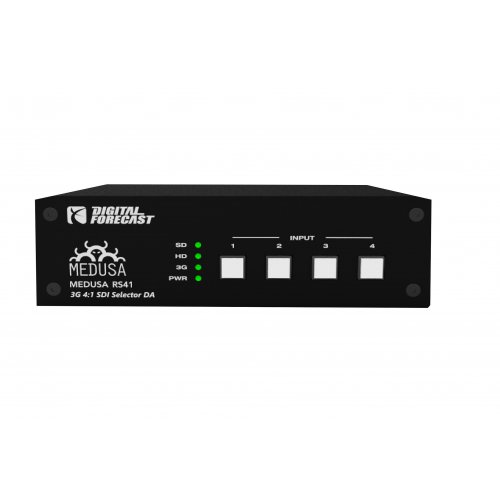

Digital Forecast Medusa RS41 3G-SDI 4x1 Selector Distribution Amplifier
Model: Medusa RS41
About: Digital Forecast Medusa RS41 3G-SDI 4x1 Selector Distribution Amplifier
The Medusa RS41 is a compact and user-friendly 4:1 SDI selector and distributor. It selects one of four SDI input signals and distributes it to four separate outputs.
Additionally, it supports remote control via an external RS422 signal, making it an ideal and simple solution for small-scale SDI systems.
- SDI x 4 Inputs
- SDI x 4 Outputs
- SDI 4:1 Selector & DA
- Supports standard SMPTE SDI signals
- Supports Serial RS422 interface for remote device control
- DC+ 12V Power
Specifications
- Power Level: +12 VDC
- Power Consumption: 10Watts (Max : 11 Watts)
- Operating Temperature: 0C ~ 60C
- Humidity: 0 to 95% RH, non-condensing
- Dimension (WxHxD): 5.51 x 4.37 x 1.69 in (140 x 111 x 43 mm)
- Weight: 0.49 lbs (220g)
What's in the Box
- Digital Forecast Medusa RS41
- Power Adapter
UPC: 704006295001
