Digital Forecast OLINK 4TX+4RX 3G SDI Over Fiber Transceiver with Loop Out

Model: OLINK 4TRX 3G

Digital Forecast OLINK 4TX+4RX 3G SDI Over Fiber Transceiver with Loop Out
Digital Forecast OLINK 4TX+4RX 3G SDI Over Fiber Transceiver with Loop Out
Digital Forecast OLINK 4TX+4RX 3G SDI Over Fiber Transceiver with Loop Out
Digital Forecast OLINK 4TX+4RX 3G SDI Over Fiber Transceiver with Loop Out
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed



About: Digital Forecast OLINK 4TX+4RX 3G SDI Over Fiber Transceiver with Loop Out

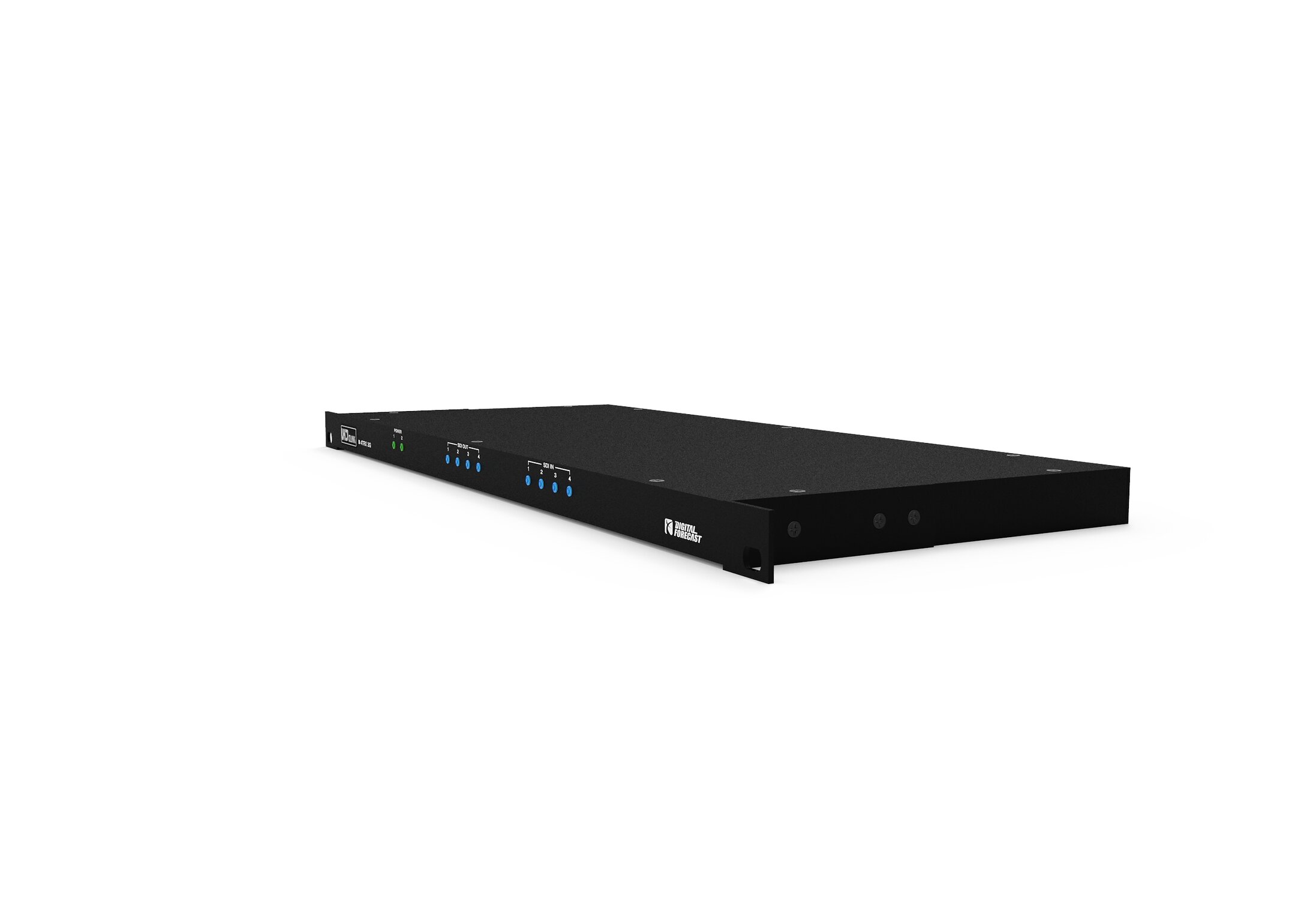

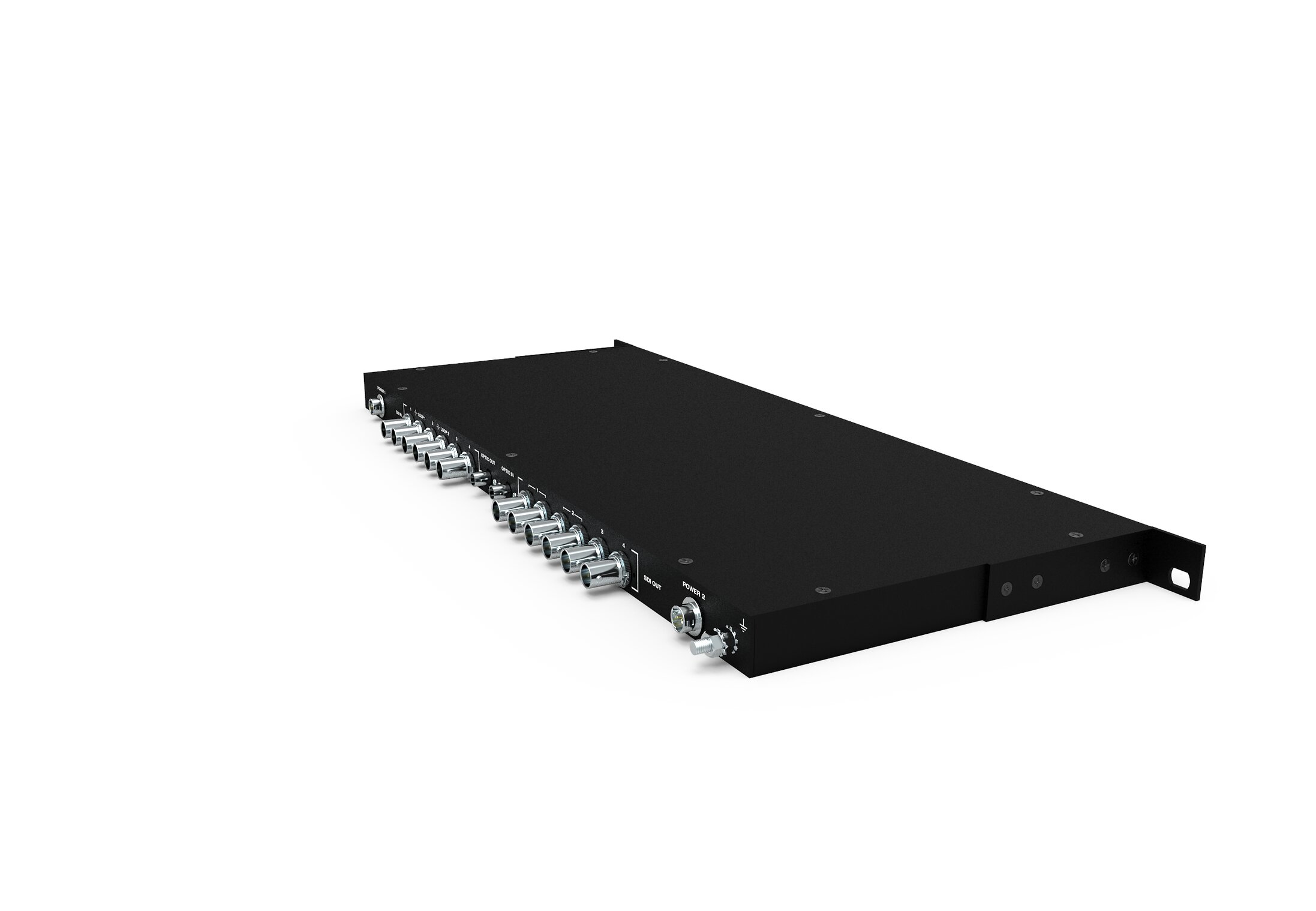

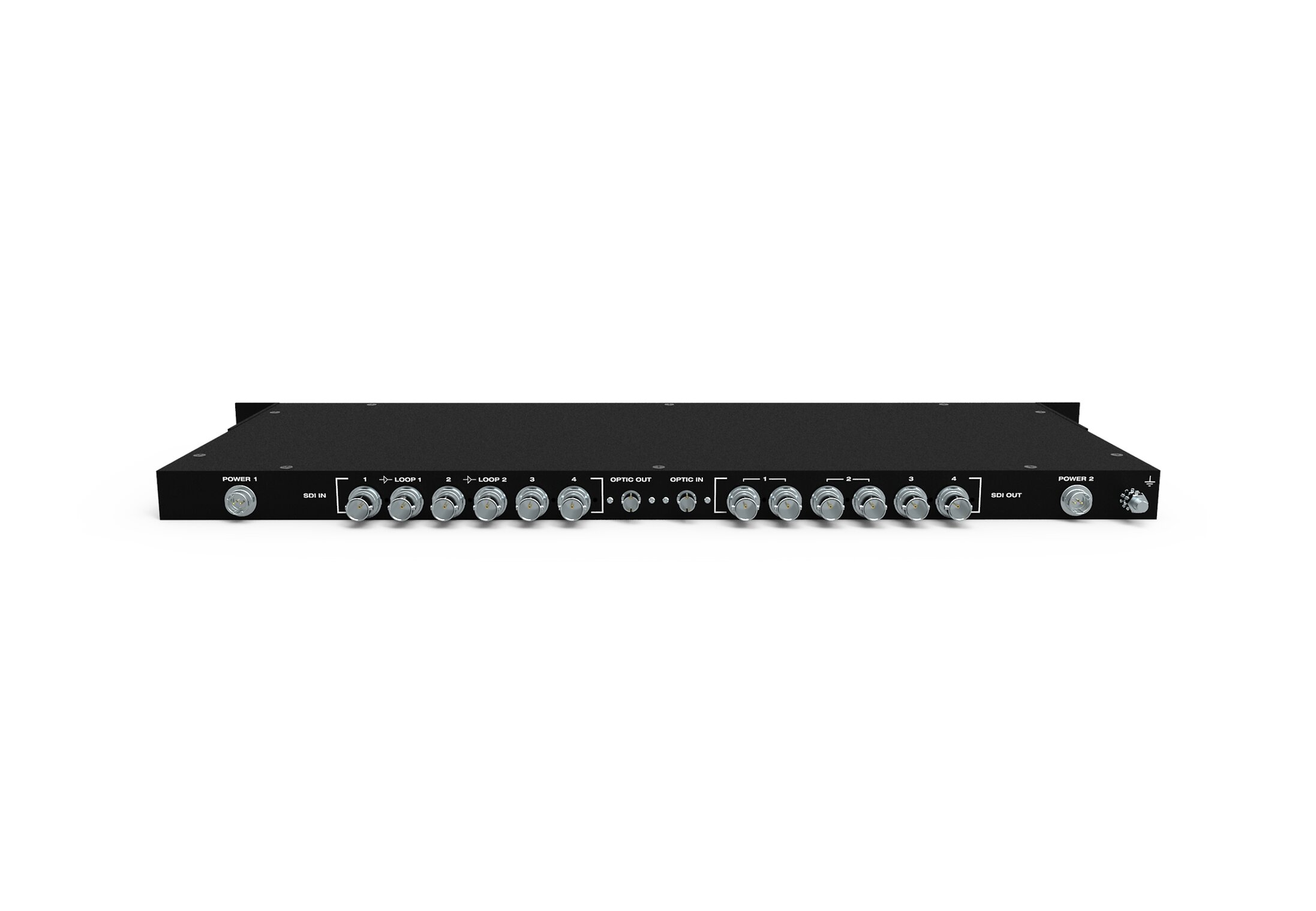

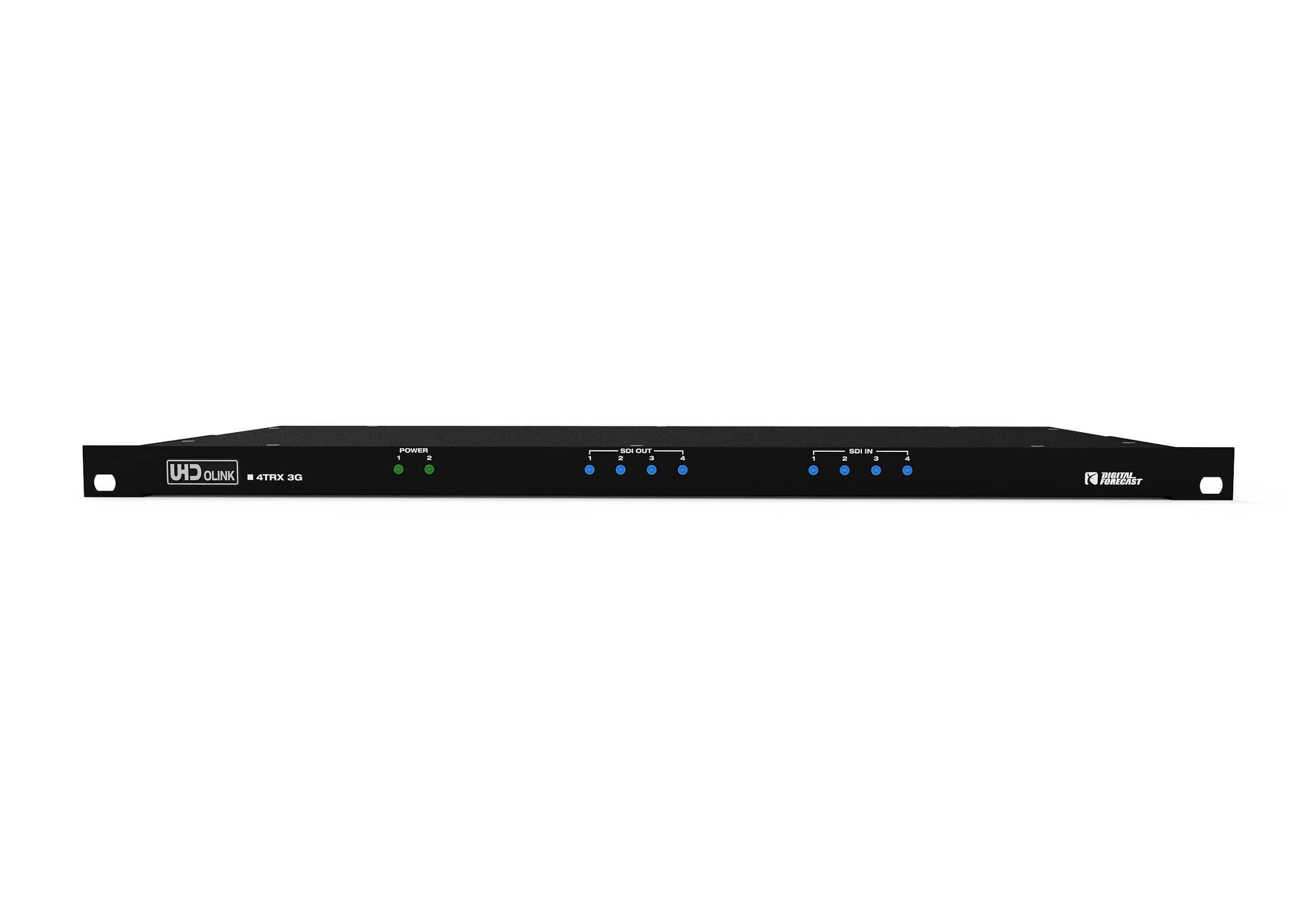

Bridge UHD OLINK 4TRX 3G system is a 0.5 rack-mount type system that can convert 8 Channel 3G SDI signals into optical signal and transmit them. It is a two-way model, and 4CH TX and 4CH RX are supported simultaneously. The compact-sized UHD OLINK system for long-distance transmission of a large number of SDI signals enables the construction of a stable transmission system in a variety of environments.

  • Standard SDI (SD,HD,3G ) format supported
  • 8Channel Bi-directional transceiver (4Ch TX + 4Ch RX)
  • Signal transmission possible up to 10km using dual core
  • Use of dual single mode cable (ST type optical connector)
  • +12V Dual Power.

Specifications

  • Digital Video
    • SMPTE-296M : 720p (60/59.94/50)
    • SMPTE-274M, SMPTE-292M : 1080i (60/59.94/50) , 1080p (23.98/24/25/29.97/30/23.98PSF/24PSF)
    • SMPTE-424M : 1080p (60/59.94/50) 3G
  • Operation Environment
    • Power Level - 7-16V DC
    • Power Consumption - 12 Watts (Max 15 Watts)
    • Operating Temperature - 32-131&def;F (0-55°C)
    • Humidity - 0-95% RH, Non-condensing
    • Data Rate - 3G
    • Signal Level - 800mVp-p ± 80mV
  • Dimensions - 17 x 7.3 x .87" (432 x 185 x 22mm)
  • Weight - 1.98 lbs (0.9kg)

UPC: 704006295971
