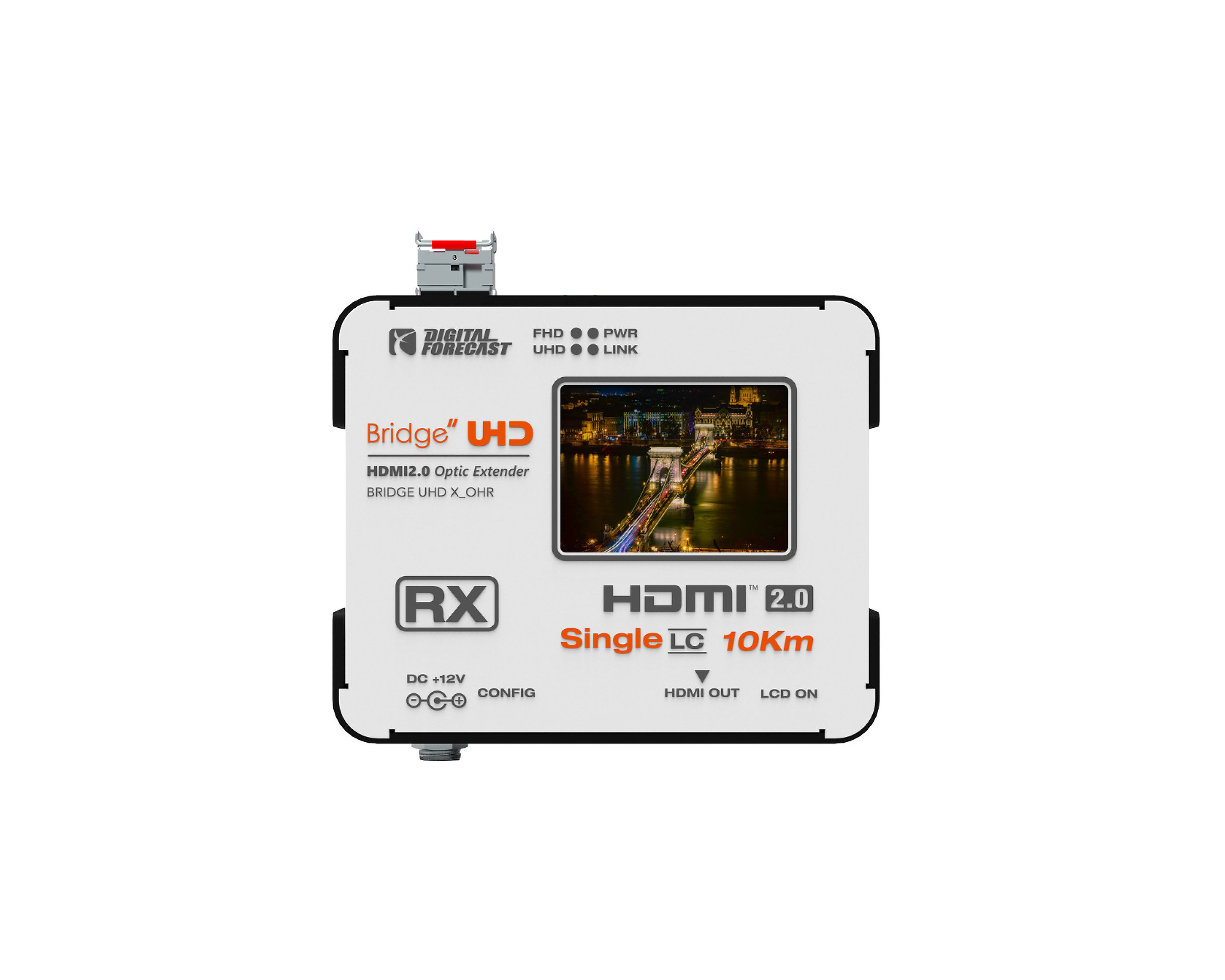

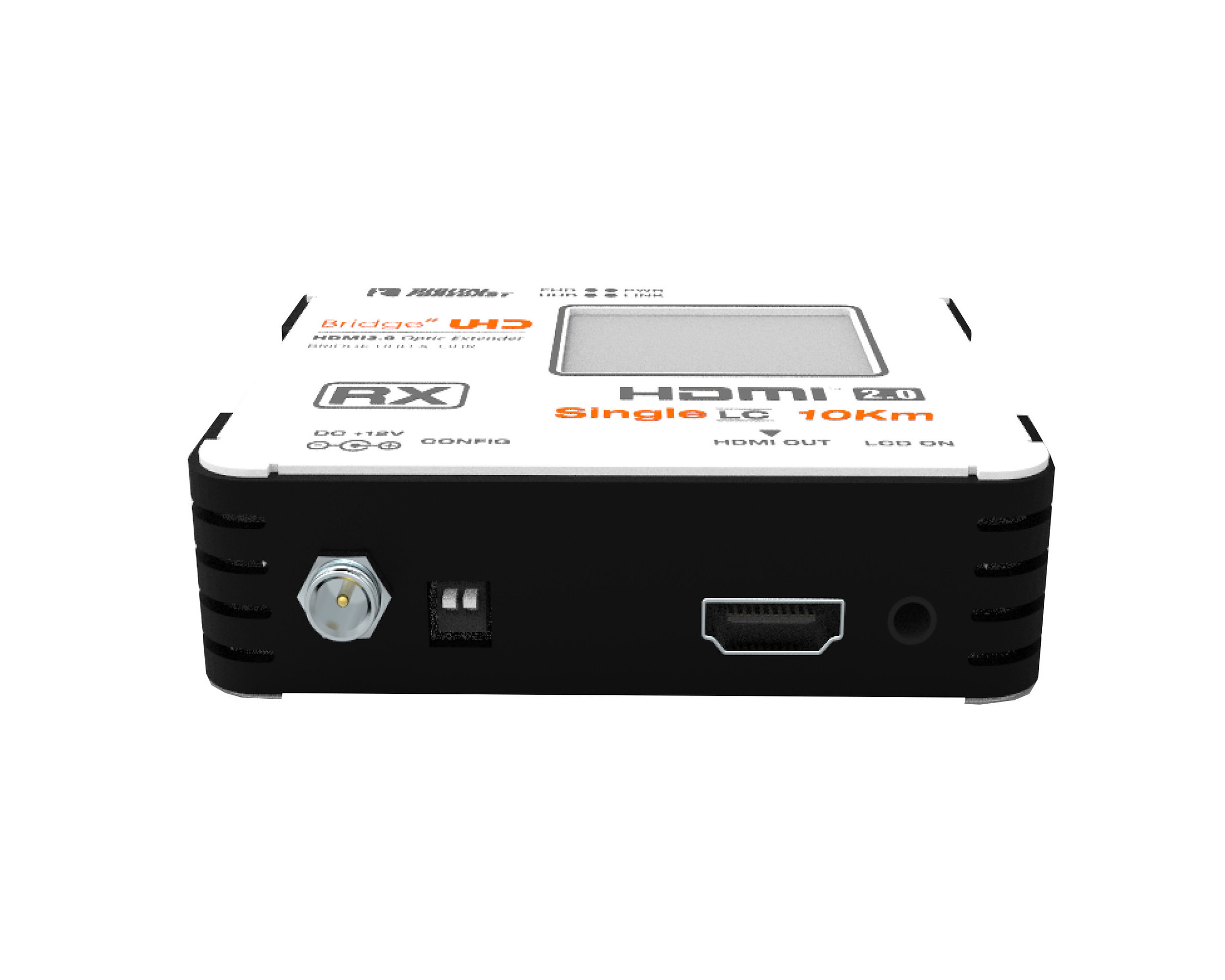

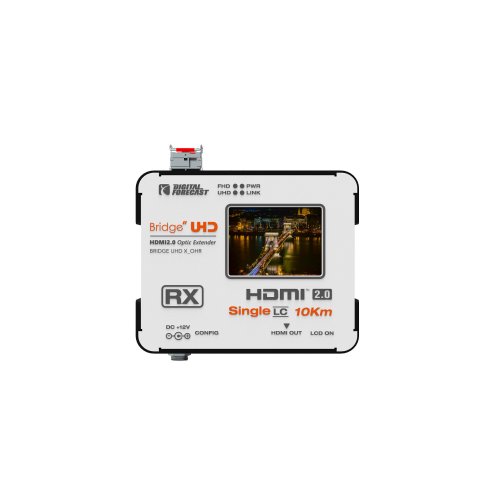

Digital Forecast Bridge UHD X_OHR Optic to HDMI 2.0 Converter w/ 2in LCD
Model: UHD X_OHR
About: Digital Forecast Bridge UHD X_OHR Optic to HDMI 2.0 Converter w/ 2in LCD
Bridge UHD X_OHR is a device that converts 4K Optic signals into HDMI2.0 UHD signals. Equipped with an LCD screen for monitoring optical inputs, the device allows you to easily verify incoming video signals.
Furthermore, to ensure compatibility with the chroma formats and color spaces of various equipment, you can select between RGB and YCbCr422 for the output signal.
- Optima technology applied
- HDMI x1 Output ( Color format RGB or YCbCr422 Select )
- UHD Optic input x 1 ( 1 Core LC Single )
- Monitoring of audio and video status via 2 inch LCD screen
- LC single mode, max 10Km
Specifications
- Optical
- Type: Small Form-Factor Pluggable (SFP)
- Power: 3.3 V
- Data Rate: max 6G dual
- Wavelength: 1310 nm, 1490 nm
- Receiver Sensitivity: -14 dBm
- Physical
- Power Level: 7V ~ 16VDC
- Power Consumption: 8 Watts (Max 9 Watts)
- Operating Temperature: 0℃ ~ 55℃
- Humidity: 0 to 95% RH, non-condensing
- Data Rate: Max 600Mhz
- Signal Level: 800mVp-p +/- 80mV
- Dimension (WxHxD): 3.86 x 3.23 x 1.02 in (98 x 82 x 26 mm)
- Weight: 0.4 lbs (180g)
UPC: 704006294493
