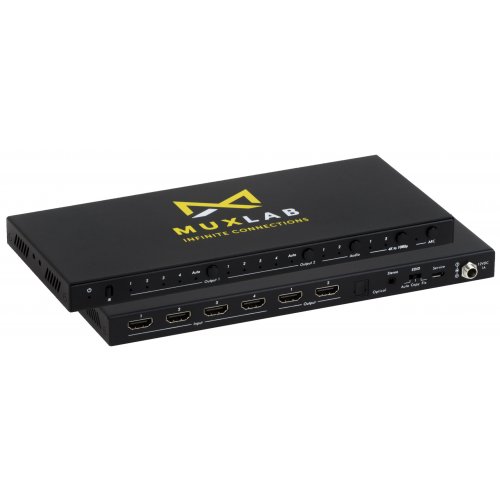

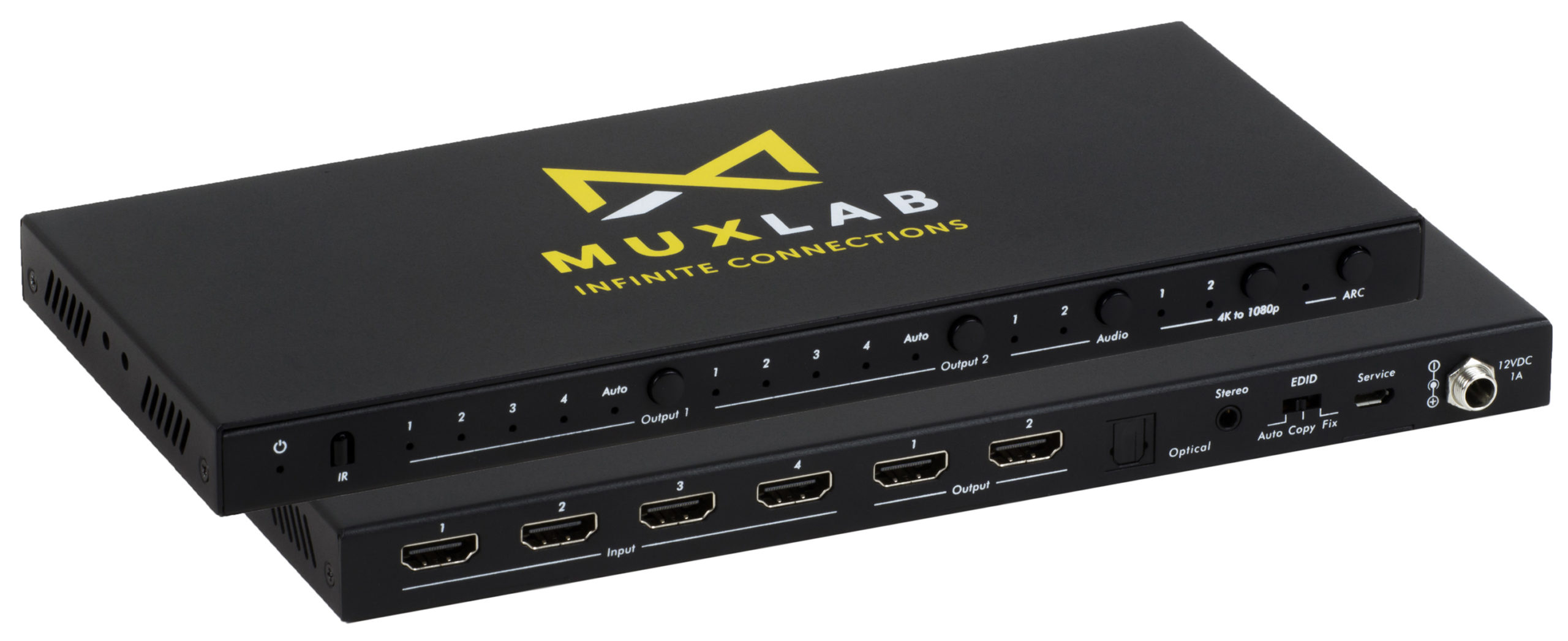

Muxlab 4x2 HDMI Matrix Switch, 4K60

About: Muxlab 4x2 HDMI Matrix Switch, 4K60

This high performance HDMI 4×2 Matrix Switch 4K60 device can switch any of four HDMI sources to two HDMI displays. It supports resolution up to 4K @ 60Hz (4:4:4) and is HDCP 2.2 compliant. It can extract HDMI source audio to digital optical and analog L/R outputs. It supports a 4K to 1080P downscale function for cases where the source is 4K, but the TV only supports up to 1080P. It also supports ARC (Audio Return Channel) capability and an EDID (AUTO/COPY/STD) function. The device supports an 18Gbps bandwidth and the additional features, including the latest HDMI standards. Flexible control is available via front panel buttons and an IR remote.

• HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Supports 4 HDMI inputs and 2 HDMI outputs
• Video resolution up to 4K @ 60Hz (4:4:4)
• Supports 18Gbps uncompressed bandwidth
• Supports Dolby Vision, HDR 10+, HLG
• Supports audio extract to digital optical audio Out A or Out B, and to analog L/R Out A and Out B
• Supports a 4K to 1080P downscale function
• Supports ARC (Audio Return Channel)
• Supports advanced EDID management including AUTO, COPY and STD
• Control is via front panel buttons and included IR remote

Specifications

• Environment - HDMI 2.0
• HDCP Compliance - HDCP 2.2 and HDCP 1.4
• Video Bandwidth - 18 Gbps
• Video Resolution - Up to 4K@50/60Hz (YCbCr 4:4:4), 4K@30Hz. All HDMI 3D TV format, etc.
• Color Space - RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
• Color Depth - 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)] 8-bit [4K60Hz (YCbCr4:4:4)]
• HDMI Audio Formats - PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• ​Optical Audio Formats - PCM2.0, Dolby Digital / Plus, DTS
• L/R Audio Formats - PCM2.0CH (Note: If the ARC function is turned on, the audio port will mute.)
• Connectors
  • Four (4) HDMI Inputs
  • Two (2) HDMI Outputs
  • One (1) L/R Analog Audio Output [3.5mm Stereo Mini-jack]
  • One (1) Digital Optical Audio Output [S/PDIF - TosLink]
• Enclosure - Metal Enclosure (color black)
• Power Supply
  • Input: AC100~240V 50/60Hz
  • Output: DC12V/1A
• Power Consumption - 3.8W (max)
• Temperature
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity: 20~90% RH (non-condensing)
• Dimensions (WxDxH) - 251 x 105 x 20 mm
• Weight - 1.37 lbs (620g)
