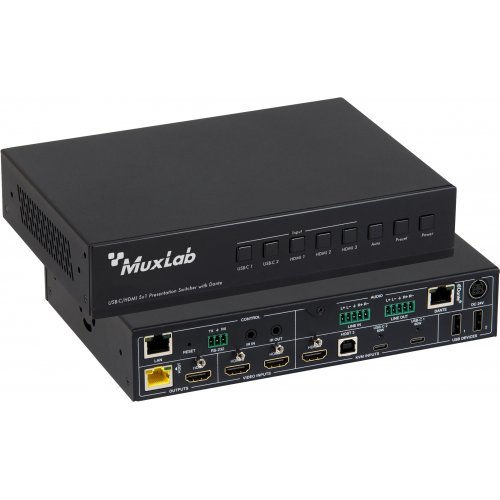

Muxlab USB-C/HDMI 5x1 Presentation Switcher w/ Dante

About: Muxlab USB-C/HDMI 5x1 Presentation Switcher w/ Dante

Enhance your audiovisual experiences with the MuxLab USB-C/HDMI 5×1 Presentation Switcher, a cutting-edge solution designed for seamless connectivity and advanced presentation capabilities. This versatile switcher offers a myriad of features to meet your diverse multimedia needs.

The MuxLab USB-C HDMI 5×1 Presentation Switcher with Dante combines innovation with functionality, providing a superior solution for presentations, conferences, and multimedia applications. Elevate your audiovisual experiences with this state-of-the-art presentation switcher.

• 18Gbps video bandwidth 5×1 switcher
• HDMI 2.0b and HDCP 2.2 complaint
• Supports video resolution up to 4K@60Hz 4:4:4
• Supports HDBaseT 3.0 with PoE
• Supports 5×1 seamless switching
• Dante 2×2 audio embedding input and output
• Provides 5 Multiview display modes
• Local USB 2.0 KVM switching and extendingUSB 2.0 over HDBT 3.0
• Manual switching or automatic switching
• Flexible control via front panel buttons, IRremote, RS-232, TCP/IP or Web GUI
• Support standard PoE power supply

Specification

• Technical
  • HDMI Compliance - HDMI 2.0b
  • HDCP Compliance - HDCP 2.2
  • Video Bandwidth - 18Gbps
  • Input Video Resolution
    • 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50Hz/60Hz 4:4:4
    • Auto, 3840x2160p60, 3840x2160p50, 4096x2160p60, 4096x2160p50,
  • Output Video Resolution
    • 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60,
    • 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60
  • Color Space - Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4) Output: 8-bit
  • Color Depth - RGB, YCbCr 4 :4 :4/4 :2 :2/4 :2 :0
  • Audio Formats - LPCM 2.0
  • Audio Sample Rate - 48KHz
  • Transmission Distance - 1080P&4K30 -- 230ft/70m; 4K60-- 131ft/40m
  • HDR - Input supports HDR, outputdoes not support HDR.
  • ESD Protection - Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
• TX Analog Audio (Base)
  • Input Impedance - 10K Ohms
  • Output Impedance - 330 Ohms
  • Line Input Level (Max) - 8.2dBu (2Vrms)@ balanced or unbalanced audio
  • Line Output Level (Max) - 8.2dBu (2Vrms)@ balanced, 2.2dBu (1Vrms)@ unbalanced audio
  • Frequency Response - (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  • Audio Output Sync Delay - 0 to 50ms
  • Audio S/N Ratio - 93dB @ 2Vrms, 1kHz A-weighted
  • Audio THD+N - <0.1% @ 0dBV, 1kHz
• RX Analog Audio (HDBaseT)
  • Output Impedance - 330 Ohms
  • Line Input Level (Max) - 8.2dBu (2Vrms)@ balanced or unbalanced audio
  • Line Output Level (Max) - 8.2dBu (2Vrms)@ balanced, 2.2dBu (1Vrms)@ unbalanced audio
  • Frequency Response - (+0.5 dB, -1 dB) 20 Hz to 20 kHz
  • Audio Output Sync Delay - 0 to 50ms
  • Audio S/N Ratio - 93dB @ 2Vrms, 1kHz A-weighted
  • Audio THD+N - <0.1% @ 0dBV, 1kHz
• Dante Audio
  • Audio Formant - LPCM2.0
  • Sample Rate - 44.1, 48, 88.2 and 96KHz at 24 bits
  • Audio Delay - 2ms, 3ms, 4ms, 5ms,10ms
  • Network Bandwidth - 100Mbps
• Connection
  • Transmitter (Switcher)
    • Inputs
      • 3 x HDMI INPUT [Type A, 19-pinfemale] 2 x USB-C [24-pin female]
      • 1 x LINE IN [5pin-3.5mm phoenix connector]
      • 1 x DANTE [RJ45]
    • Outputs
      • 1 x HDMI OUTPUT [Type A, 19-pinfemale]
      • 1 x HDBT OUTPUT [RJ45]
      • 1 x LINE OUT [5pin-3.5mm phoenix connector]
    • Controls
      • 1 x RS-232 [3pin-3.5mm phoenix connector]
      • 1 x LAN [RJ45]
      • 1 x USB HOST [USB Type B]
      • 2 x USB DEVICES [USB Type A]
      • 1 x IR IN [3.5mm stereo mini-jack]
      • 1 x IR OUT [3.5mm stereo mini-jack]

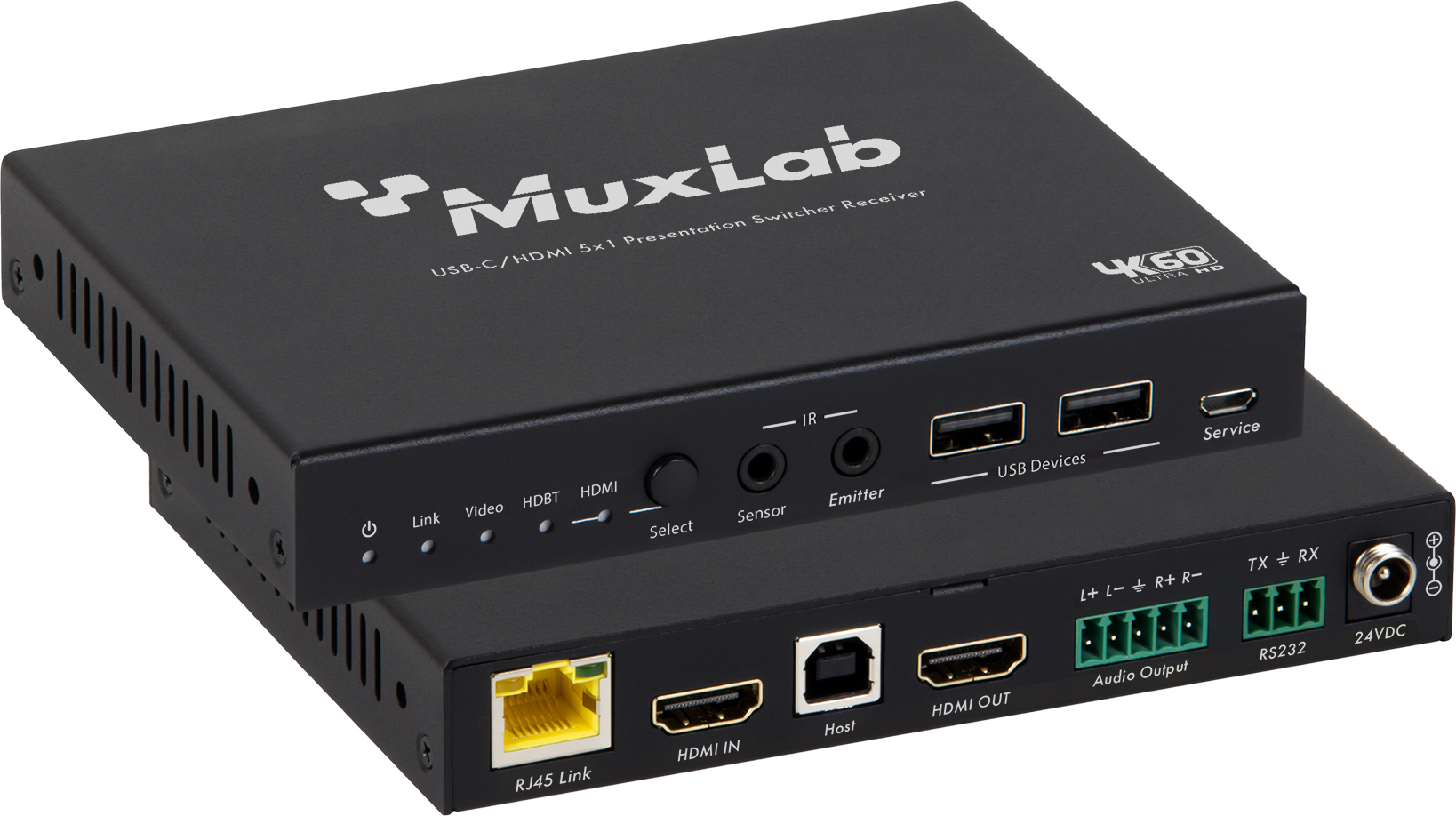

  • HDBaseT receiver
    • Inputs - 1 x HDBaseT IN [RJ45]
    • Outputs
      • 1 x HDMI OUT [Type A, 19-pinfemale]
      • 1 x LINE OUT [5pin-5mm phoenix connector]
    • Controls
      • 1 x RS-232 [3pin-3.5mm phoenix connector] 1 x USB HOST [USB Type B]
      • 2 x USB DEVICES [USB Type A]
      • 1 x SERVICE [Micro USB]
      • 1 x IR IN [3.5mm stereo mini-jack]
      • 1 x IR OUT [3.5mm stereo mini-jack]
• Mechanical
  • Housing - Metal enclosure with Aluminum front panel
  • Color - Black
  • Power Supply
    • Input: 100VAC - 240VAC 50/60Hz
    • Output: 24VDC/8A
  • Power Consumption - 150W (Max)
  • Operating Temperature - 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature - -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity - 20~90% RH (non-condensing)
  • Dimensions (WxDxH)
    • Transmitter: 220 × 150 × 44 mm
    • Receiver: 140 × 105 × 21.5 mm
  • Weight
    • Transmitter: 2.67 lb (1.21 kg)
    •  Receiver: 0.93 lbs (424g)​
