Digital Forecast X_MC Micro View, 3G-SDI Cross Scaler Converter w/ 2in LCD
Model: X_MC Micro View
About: Digital Forecast X_MC Micro View, 3G-SDI Cross Scaler Converter w/ 2in LCD

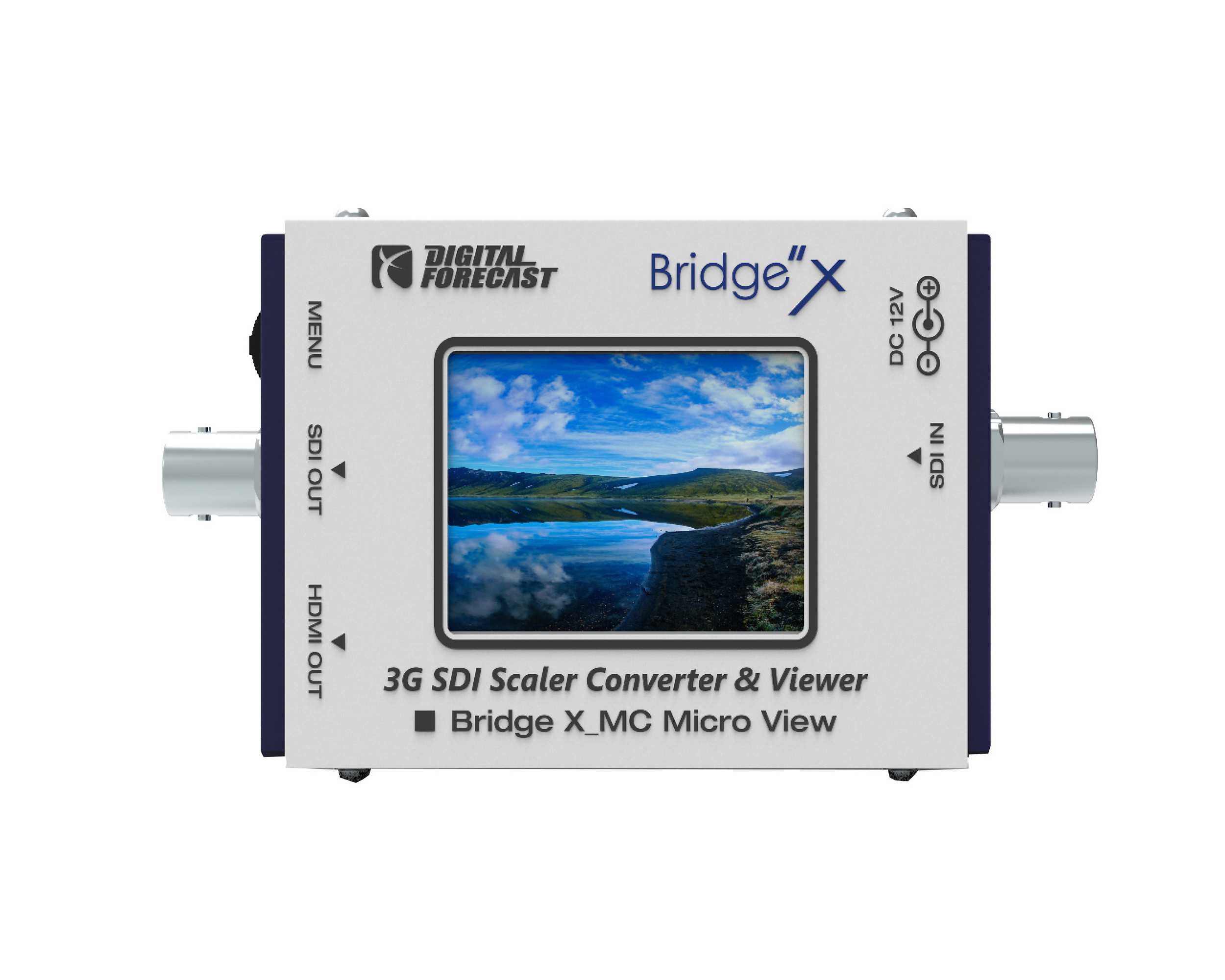

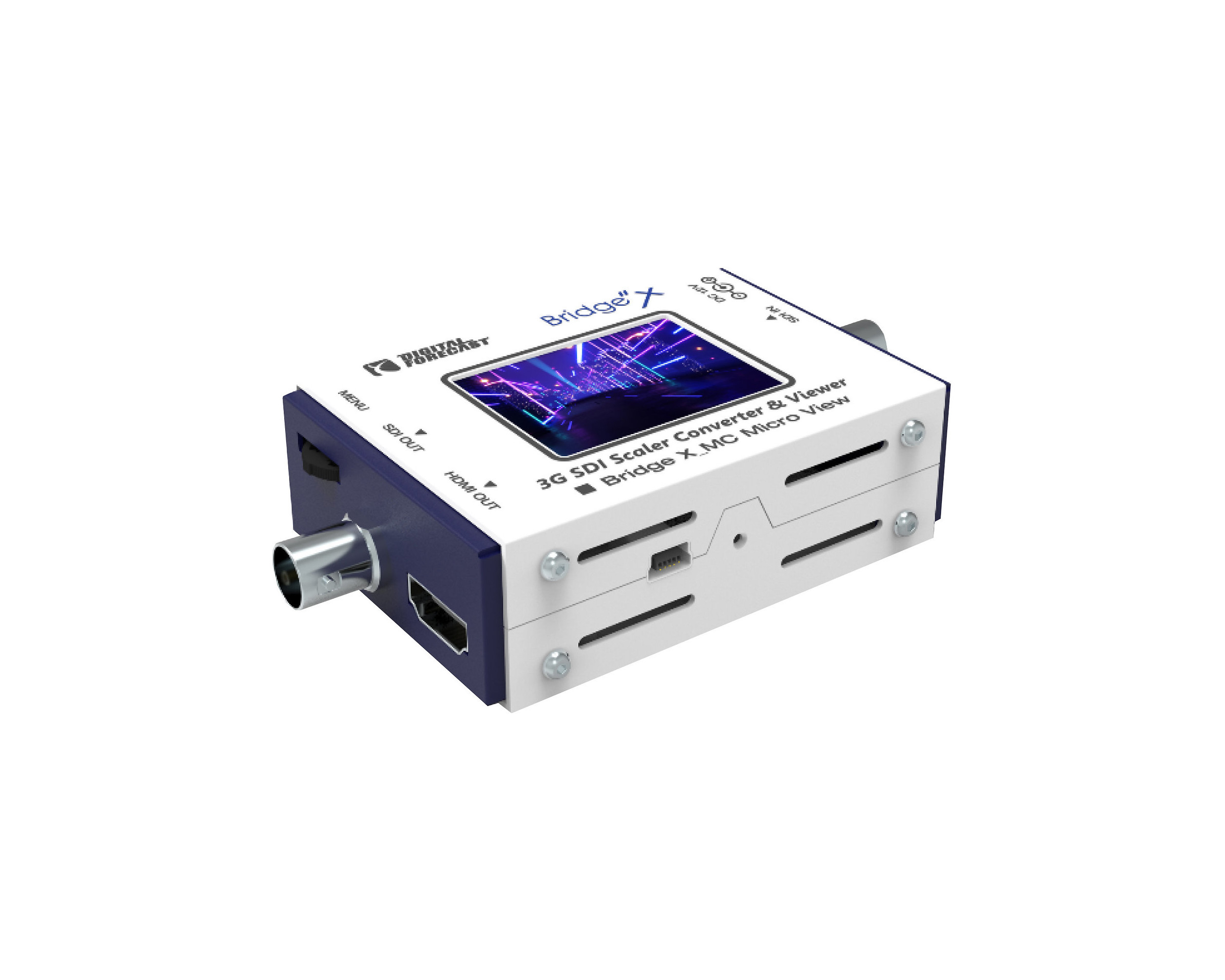

The Bridge X_MC Micro View is a scaler converter that accepts a 3G SDI input and converts it into SDI & HDMI signals at desired resolution.
Equipped with a 2-inch LCD screen, it allows for quick and convenient monitoring of 3G SDI signals.
Furthermore, the display of audio levels and input/output resolutions enables rapid signal verification.
- SDIx1 Inputs ( Up to 1080P Full-HD)
- SDIx1 , HDMIx1 Outputs ( Up to 1080P Full-HD)
- Built-in test pattern generator
- Cross converter with Up/Down scaler
- Output resolution and frame rate conversion function
- 2 Inch Monitoring LCD
- Convenient OSD menu function
Specifications
- Power Level: +12VDC
- Power Consumption: 8 Watts (Max 10 Watts)
- Operating Temperature: 0℃ ~ 55℃
- Humidity: 0 to 95% RH, non-condensing
- Dimension (WxHxD): 3.31 x 2.34 x 1.01 in (84 x 59.4 x 25.7 mm)
- Weight: 0.29 lbs (130g)
What's in the Box
- Digital Forecast X_MC Micro View
- Power Adapter
UPC: 704006294981
