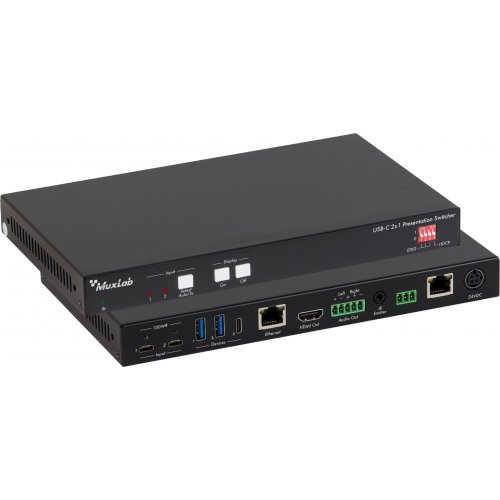

Muxlab USB-C 2×1 Presentation Switcher

Model: 500531

Muxlab USB-C 2×1 Presentation Switcher
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed



About: Muxlab USB-C 2×1 Presentation Switcher

The MuxLab USB-C 2×1 Presentation Switcher offers seamless switching of USB-C inputs to a single HDMI output, providing versatility and enhanced connectivity for presentation environments. It supports video resolution up to 4K@60Hz 4:4:4, delivering high-quality visuals for presentations and displays, as well as audio de-embedding on a balanced analog audio output, ensuring clear and synchronized audio playback.

  • 18Gbps 2×1 switcher with USB-C inputs
  • Supports HDMI 2.0, 4K@60Hz 4:4:4, HDR 10, HDCP 2.2
  • Support automatic 4K downscaling to 1080P
  • Support 1G network pass-through
  • Guest mode control via TCP/IP and RS232
  • Provides USB-C charging up to 100W
  • Balanced analog audio for output audio de-embedding
  • Smart EDID capabilities

The switcher features multiple methods of control, AUTO mode enables automatic switching to the first detected device source, and Manual control available through front panel buttons.RS232 commands are also supported, offering additional control flexibility.

The MuxLab USB-C 2×1 Presentation Switcher is designed to meet the demands of modern presentation setups, providing a user-friendly and feature-rich solution for enhanced connectivity and control.

Specification

  • Video
    • Video Input - 2 x USB Type-C
    • USB-C Input Resolution - Up to 4K@60Hz 4:4:4
    • Video Output - 1 x HDMI Type A Female
    • HDMI 2.0 Output Resolution - Up to 4K@60Hz 4:4:4
    • HDCP - Support Version 2.2
    • USB - USB Version 3.2 gen2 cable recommended
    • HDR 10 - Supported
    • CEC - Supported
    • HDP - Supported
  • Audio
    • Audio Output - 1 x AUDIO OUT (Stereo balanced L/R)
    • Audio Output Connector - 1 x 5-pin terminal block
    • HDMI Audio Format - LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS: XTM, and DTS-HD® Master AudioTM pass-through
    • Control
    • Control - (1) EDID, (1) RS232, (3) USB, (1) IR
    • Control Connectors
      • (1) 4-pin DIP switch, (1) 3-pin terminal block, (1) Type-C USB 3.2 gen2, (2) Type-A
      • USB 3.2 gen2, (1) 3.5mm interface
  • General
    • HDMI 2.0 Cable Length - 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 10m, 1080P ≤ 15m
    • Bandwidth - 18Gbps
    • Operating Temperature - 0°C ~ +55°C
    • Storage Temperature - -25°C ~ +70°C
    • Power Consumption - 112 W Max
    • Power Supply - DC 24V 6.5A
    • Dimension - 228.0 x 24.5 x 135.0 mm
    • Net Weight - 810g

UPC: 627699005316

Reviews: Muxlab USB-C 2×1 Presentation Switcher

There are currently no product reviews.


Warranty: Muxlab USB-C 2×1 Presentation Switcher

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

PASSIVE PRODUCTS: LIFETIME WARRANTY*

ACTIVE PRODUCTS: 2 YEAR LIMITED WARRANTY

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
