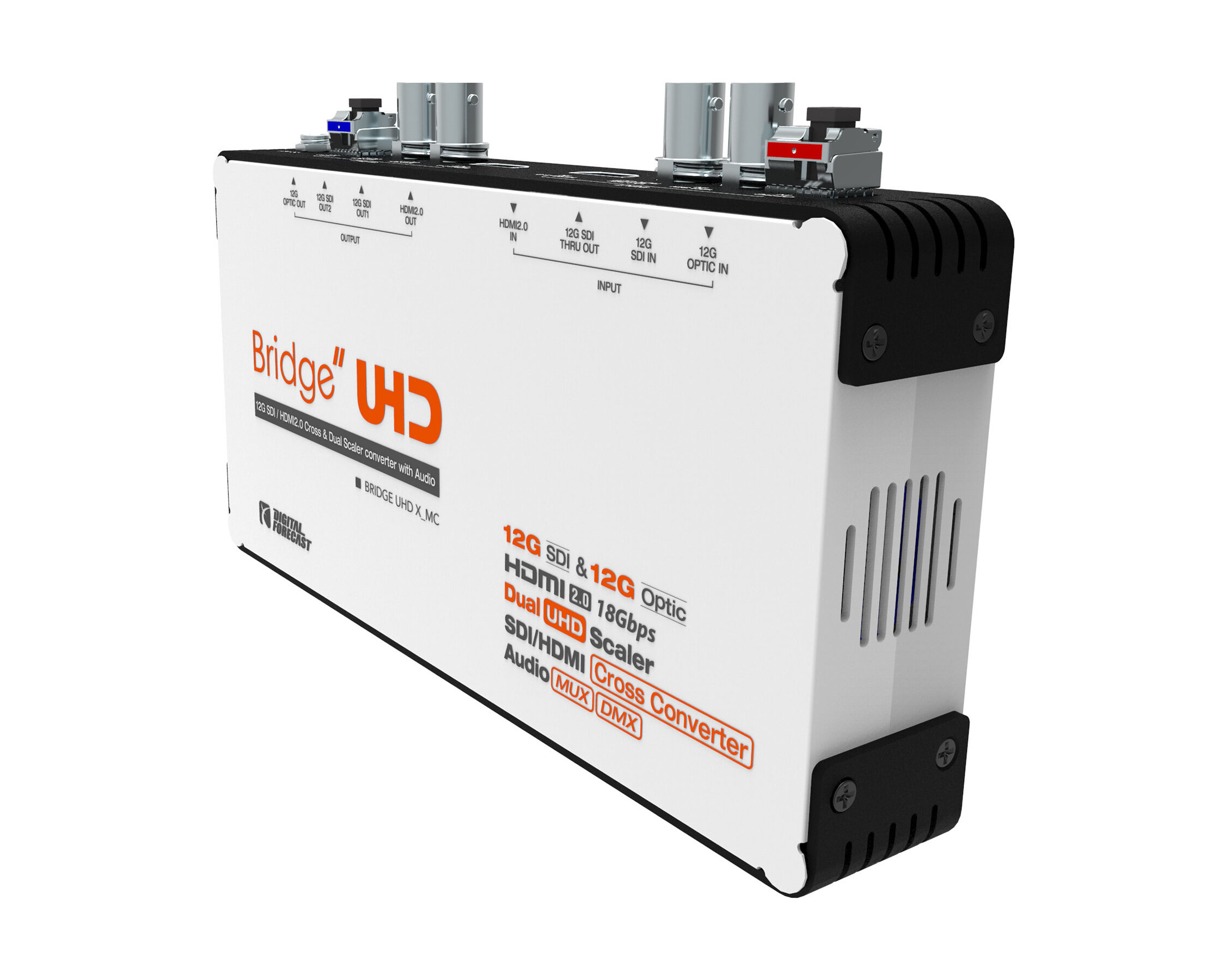

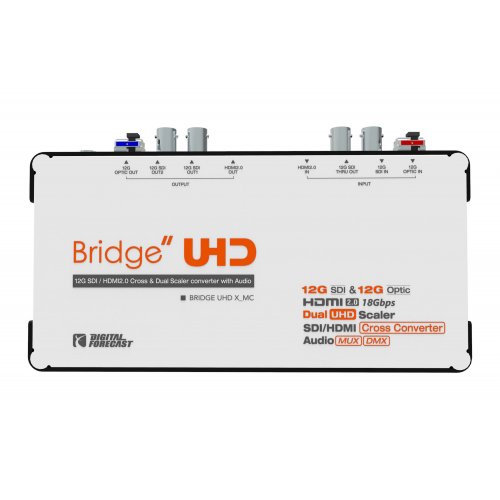

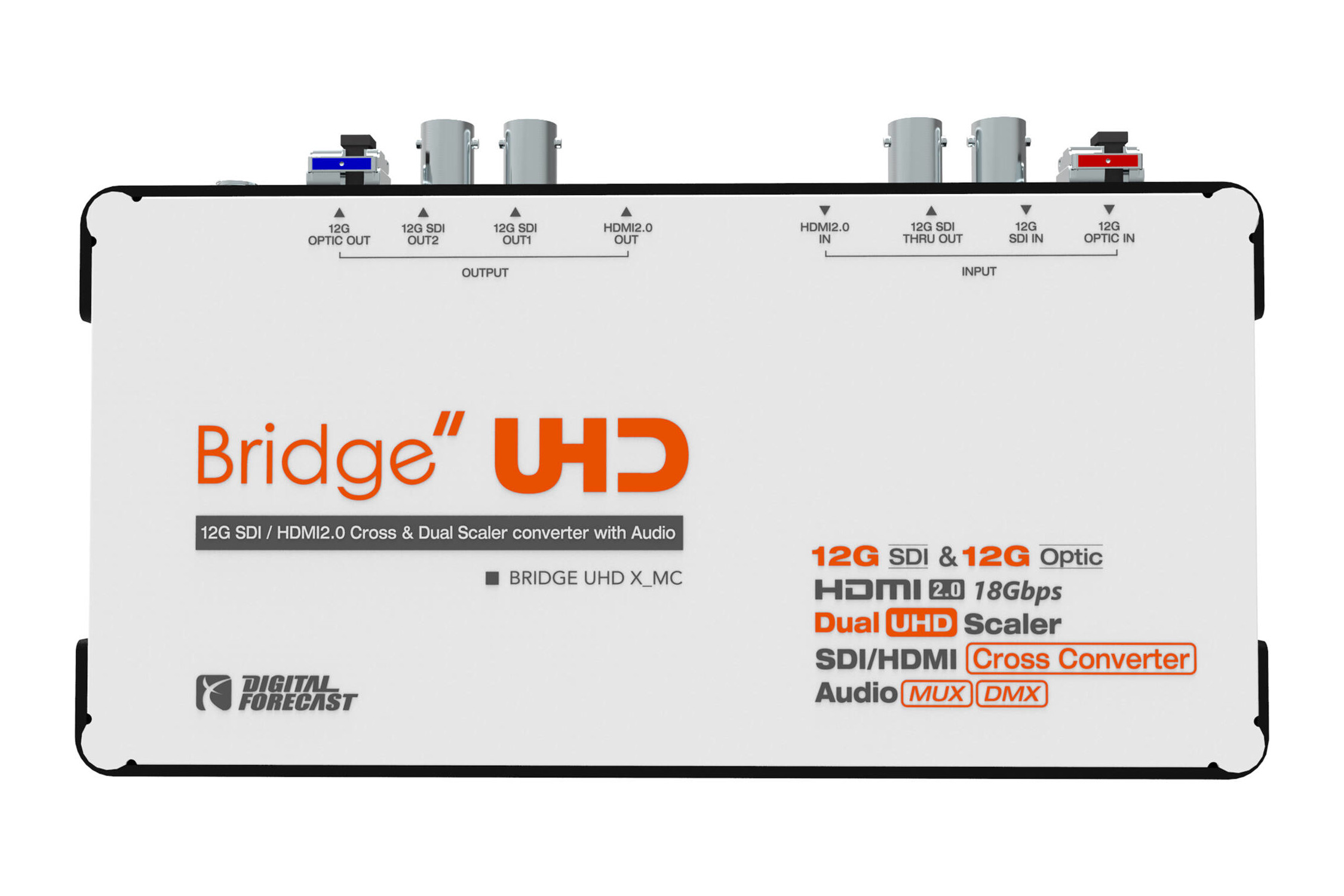

Digital Forecast UHD X_MC Multi Scaler Converter
Model: UHD X_MC
About: Digital Forecast UHD X_MC Multi Scaler Converter
Bridge UHD X_MC is a multi-scaler converter that can process HDMI2.0 signals and 12G SDI signals simultaneously.
With a built-in dual scaler, the resolution of 12G SDI output and HDMI2.0 output can be individually set as desired.
Additionally, it has a built-in audio MUX/DMX function, providing convenient functions

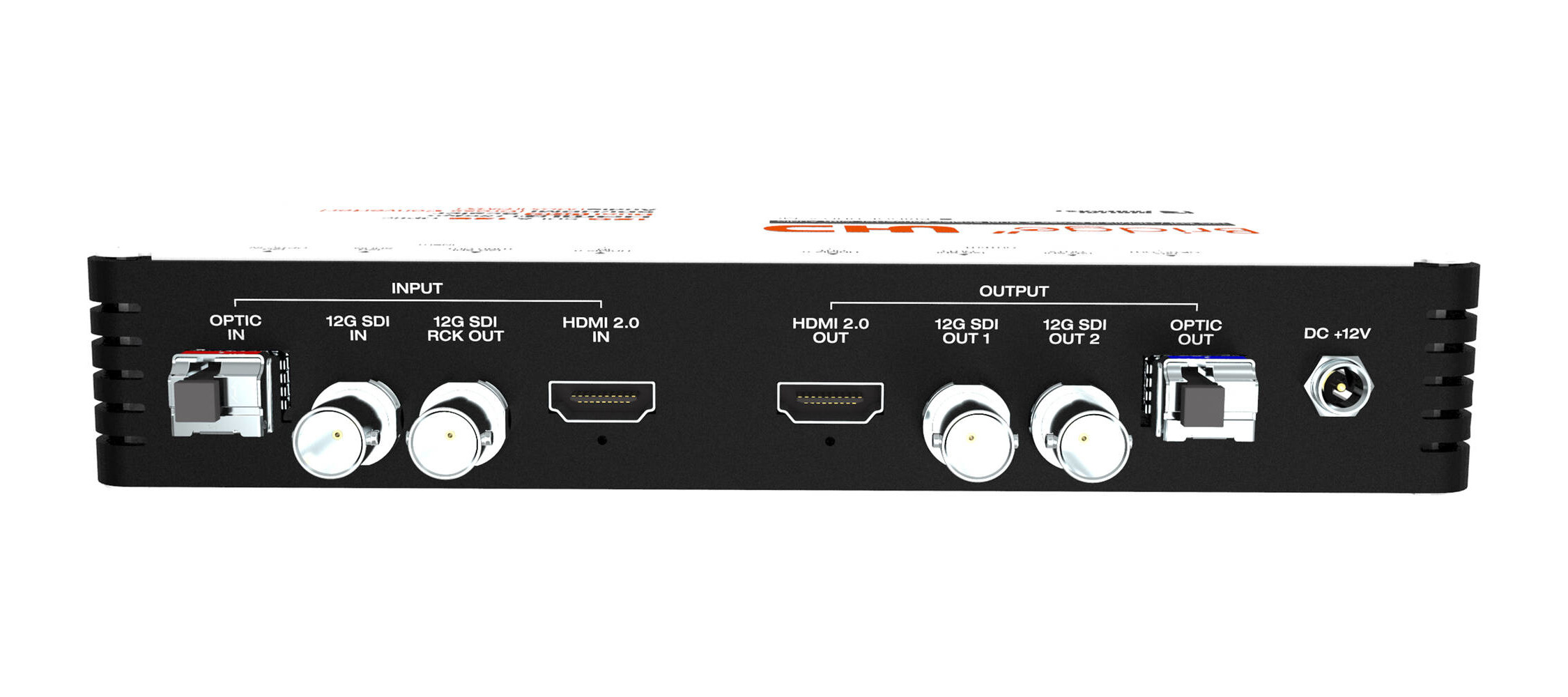

- 1 x HDMI 2.0 Input, 1 x 12G SDI Input, 1 x 12G SDI Thru Output, 1 x 12G Optic Input
- 1 x HDMI 2.0 Output, 2 x 12G SDI Outputs, 1 x 12G Optic Output
- Standard SDI (HD, 3G, 6G, 12G) format supported
- Standard HDMI (Max 4096x2160) format supported
- Dual UHD 4K Scaler (SDI, HDMI output can be set individually)
- Analog Audio MUX/DMX supported

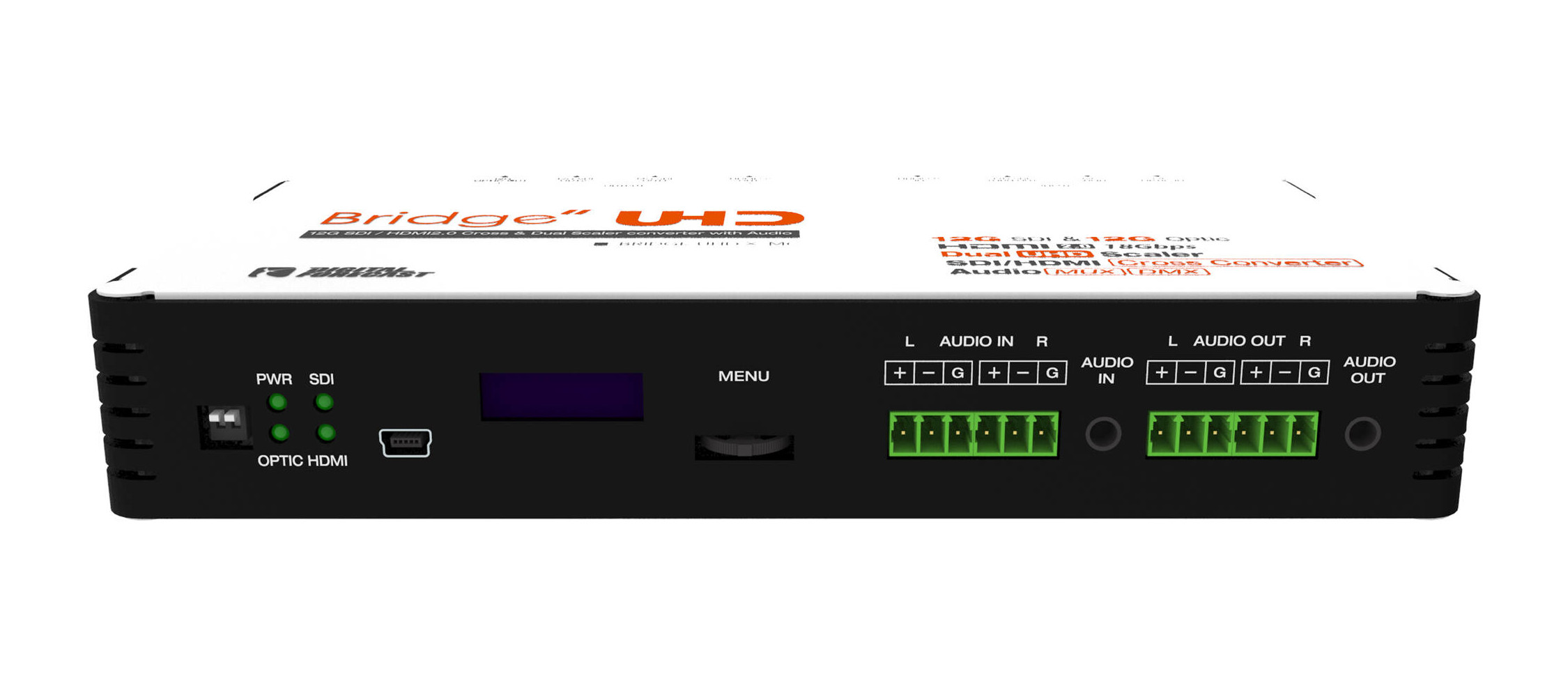

- Convenient setting support through Front OLED Display
Specifications
- Digital Video
- HD : 720p (60/59.94/50) , 1080i (60/59.94/50) , 1080p (23.98/24/25/29.98/30)
- FHD : 1080p (60/59.94/50)
- 2K/4K : 2160p (23.98/24/25/29.98/30)
- 4K : 2160p (60/59.94/50)
- Operating Environment
- Power Level - + 12V DC Power
- Power Consumption - 30 Watts (Max 35 Watts)
- Operating Temperature - 0℃ ~ 55℃
- Humidity - 0% ~ 95% RH, Non-condensing
- Data Rate - HDMI (600MHz) , SDI ( 12Gbps )
- Signal Level - 800mVp-p +/- 80mV
- Dimensions - 210 x 105 x 37mm
UPC: 704006295100
