AVMatrix Shark H4 Plus 4-Channel HDMI Video Switcher w/ 10.1" IPS Screen
Model: Shark H4 Plus
About: AVMatrix Shark H4 Plus 4-Channel HDMI Video Switcher w/ 10.1" IPS Screen

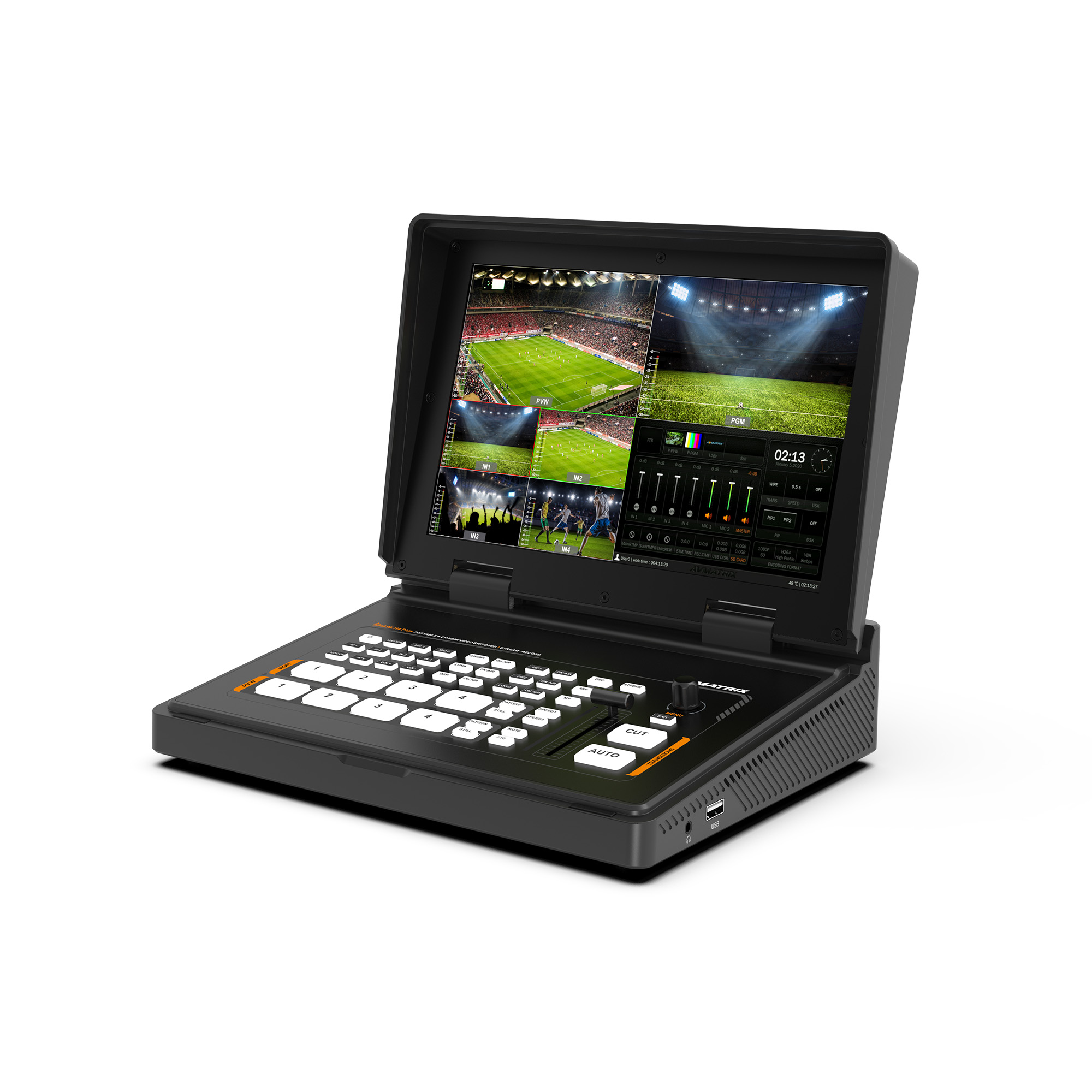

The SHARK H4 PLUS is a portable design 4-channel HDMI multi-format video switcher integrated with a full HD 10.1inch FHD LCD panel. It supports various functions including streaming, recording, video switching, audio mixing, PGM/ multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library etc. Inputs support multi-format while output can be scaled, compatible with a variety of equipment. Enjoy flexible live streaming and recording options with this unit. Stream directly over the Ethernet or USB, and record to USB disk or SD card, all at up to 1080P resolution and 32Mbps bitrate. Users can also customize different settings and import or export the configuration quickly for various scenarios. It’s a powerful and professional video switcher for your choice.
- 10.1 inch FHD IPS LCD display
- 4 channel auto-detected HDMI inputs
- 2×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
- RTMP/SRT stream via Ethernet
- USB disk/ SD card recording
- USB-C for capturing and streaming on PC
- Clearly visible multiview & status page
- Upstream key: Luma key, Chroma key, PIP×2/ POP
- Downstream key : DSK and LOGO overlay
- T-bar/ Auto/ Cut transitions; various effects: WIPE(11×3patterns) / MIX/ DIP
- Audio mixer: 4×HDMI embedded audio and 2-Ch MIC in; audio delay available
- Media library: 39 default patterns, 16 imported images, 16 captured images, 2 color generators
- Customer configuration import and export
- Broadcast video monitoring, FTB/ MUTE/ STILL/ GPIO for tally
Specifications

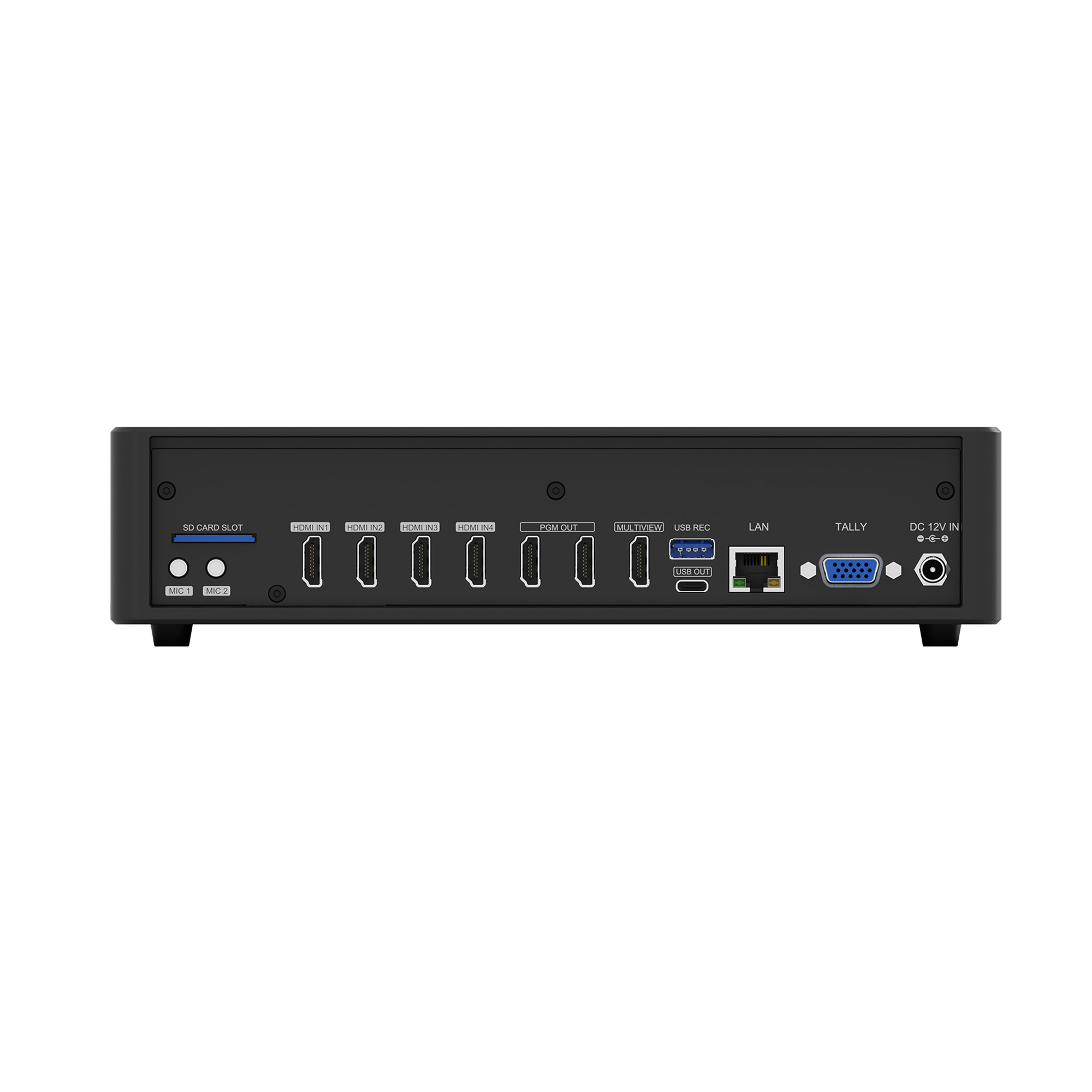

- CONNECTION
- Video In - 4x HDMI Type-A
- Video Out
- 2x HDMI PGM
- 1x HDMI Multiview
- 1x USB Capture: USB type-C
- 1x Streaming: LAN
- Recording Port - SD card slot; USB port
- Audio In - 2x MIC/ Line level (3.5mm stereo audio)
- PC Control Port - 1x LAN
- Media Library - 1x USB type-A (USB disk port for image import and firmware upgrade)
- Tally Port - 1x DB-15
- Power In - 1x DC 12V
- STREAM & REC
- Bitrate - 2M~32Mbps
- Rate control - CBR/VBR
- Control protocols - RTMP, RTMPS, SRT
- REC SD card format - FAT32/exFAT/NTFS
- REC U disk format - FAT32/exFAT/NTFS
- REC File segment - 1/5/10/20/30/60/90/120mins
- FUNCTIONS
- Transitions - T-Bar/AUTO/ CUT
- Effects - Wipe (11×3 patterns)/ Mix/ DIP/ Pattern/ Still(freeze)/ MUTE/ FTB
- Layouts - 2 styles of Multiview layout (6 windows and status)
- Keys
- Upstream Key: Luma Key ×1/ Chroma Key ×1/ PIP ×2/ POP
- Downstream Key: DSK ×1/ Logo ×1
- Audio Mixer
- HDMI ×4 and MIC/ Line level ×2
- Audio delay: 0-500ms
- Media
- Default image: 39 preset patterns
- Local image: up to 16 imported images
- Capture image: up to 16 captured images
- Generators
- Pattern generator ×1
- Color generators ×2
- Display
- 10.1 Inch IPS FHD display
- STANDARDS
- HDMI In Format Support
- 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
- 1080i 50/ 59.94/ 60
- 720p 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98
- 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
- HDMI PGM Out - 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
- HDMI Multiview Out - 1080p 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i 60/ 59.94/ 50
- HDMI Color Space - RGB/ YUV
- USB Capture Out - Up to 1080p 60
- Media Format
- USB disk format support: FAT32, Ext3, Ext4, up to 256GB
- Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
- Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
- Logo size support: 10×10 pixel to 600×600 pixel
- HDMI In Format Support
- OTHERS
- Power - Wide voltage: 7~24V; Operating power:15.6W(12V 1.3A)
- Temperature - Working: -20°C~60°C, Storage: -30°C~70°C
- Dimension (LxWxD) - 261.4 × 193.9 × 58 mm
- Weight - 3.82 lbs (1734.5g)
- Accessories
- 1x Power supply (12V 2A)
- 1x USB cable (type A-C)
- 1x Tally connector (DB-15)
UPC: 6971118002382
