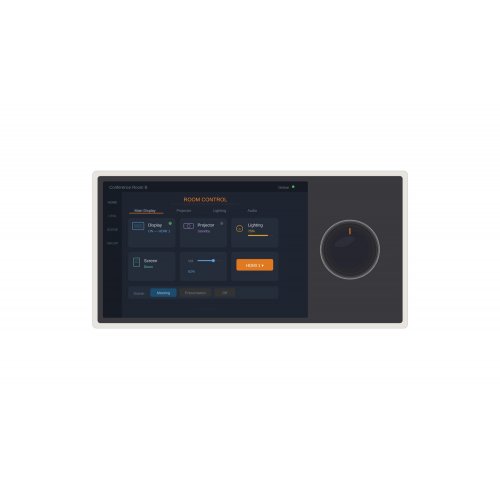

KanexPro CR-TOUCH6R 6in Widescreen Touch Panel w/Knob, RS232/RS485 & PoE

About: KanexPro CR-TOUCH6R 6in Widescreen Touch Panel w/Knob, RS232/RS485 & PoE

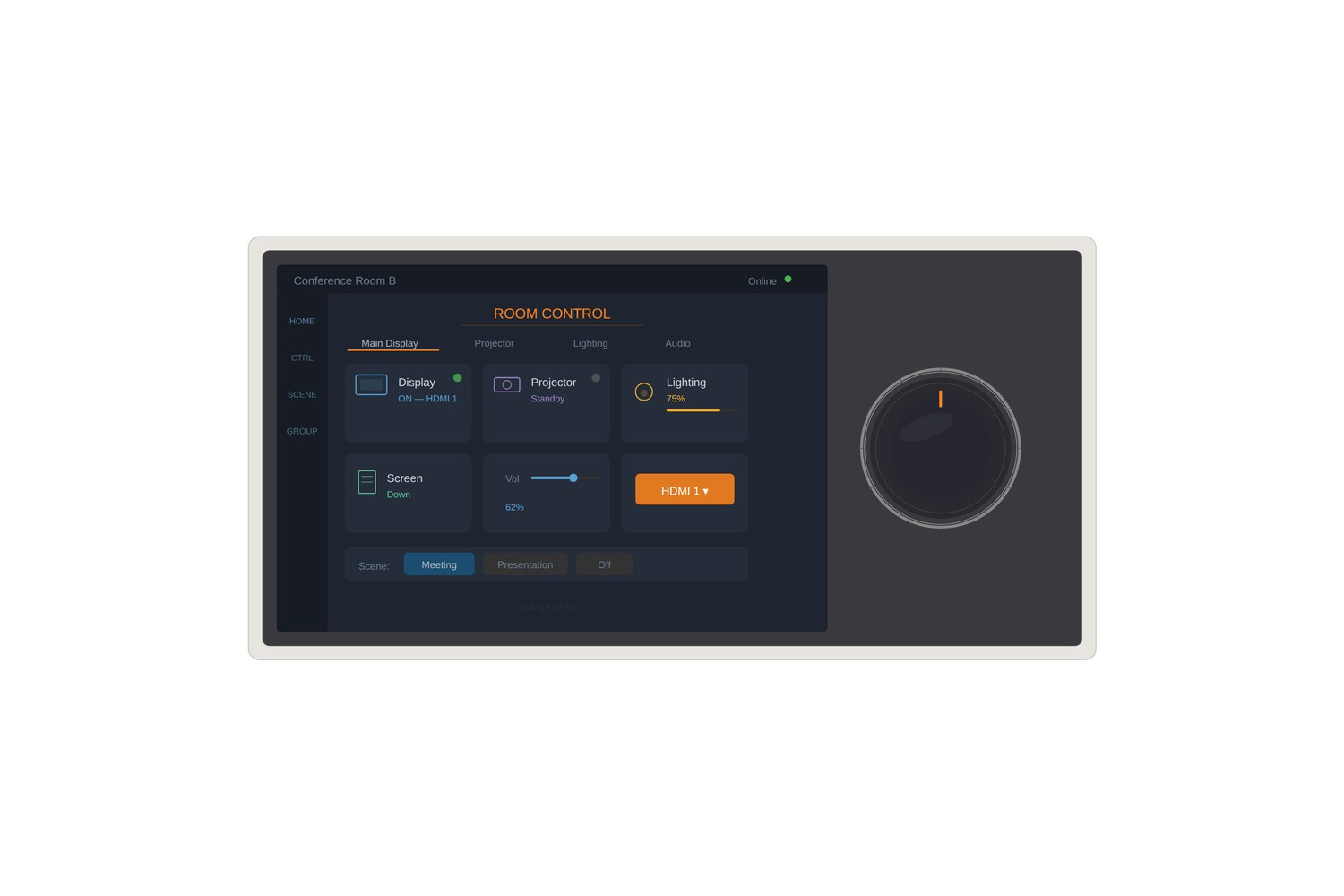

The KanexPro CR-TOUCH6R is a 6-inch widescreen capacitive touch panel with integrated programmable knob, running Android 11 for advanced AV room control. Powered by a quad-core ARM Cortex-A55 at 1.8GHz with 4GB DDR4 RAM and 32GB eMMC, it combines a 1440x720 customizable graphical interface with a physical knob for tactile volume and dimming control.

The CR-TOUCH6R features both RS232 and RS485 serial ports, 100Mbps Ethernet with PoE, and optional Wi-Fi/Bluetooth, 4-array microphone, stereo speakers, light/distance sensor, and temperature/humidity sensor. Programming is handled through EASYAccomplish software for Windows, Mac, and iOS. For US installations, a surface-mount 86 box adapter or retrofit plate would be needed since US standard gang boxes have different screw spacing.

• 6-inch 1440x720 widescreen capacitive touchscreen with customizable graphical interface
• Programmable knob for tactile volume, dimming, or level control
• Android 11 on quad-core ARM Cortex-A55 (1.8GHz) with 4GB DDR4 RAM and 32GB eMMC
• 1x RS232 and 1x RS485 serial ports with configurable baud rates (2400–115200 bps)
• 100Mbps Ethernet with PoE — TCP/IP, HTTP, UDP, and WebSocket protocols
• Optional Wi-Fi (2.4G+5G) / Bluetooth 5.4, 4-array microphone, stereo speakers
• Optional light/distance sensor and temperature/humidity sensor
• Standard 86 box wall-mount; dual-mode: standalone controller or user terminal
• Programmable via EASYAccomplish (Windows, Mac, iOS) with web GUI

Specifications

• CPU: Quad-core ARM Cortex-A55, 1.8GHz
• Operating System: Android 11
• RAM: 4GB DDR4
• Flash Memory: 32GB eMMC
• Display: 6″ 1440x720 (2:1) capacitive touchscreen
• Knob: 1x programmable knob
• ESD Protection: IEC 61000-4-2: ±8kV air / ±4kV contact
• Connection
  • RS232: 1x 3-pin phoenix, 2400–115200 bps
  • RS485: 1x 3-pin phoenix, 2400–115200 bps
  • LAN/PoE: 1x 10/100M Ethernet RJ45, PoE
  • Power: 1x 2-pin phoenix, 24V DC
  • Debug: 1x Micro USB
• Optional Modules
  • Wi-Fi / Bluetooth: Wi-Fi (2.4G+5G) / Bluetooth 5.4
  • Microphone: 4-array microphone input
  • Speakers: Dual stereo speaker output
  • Sensors: Light/distance sensor, temperature/humidity sensor
• Power
  • Power Supply: 24V DC/1A or PoE
  • Power Consumption: 10W
  • Environmental
  • Operating Temperature: 32°F–104°F (0°C–40°C)
  • Operating Humidity: 20%–80% RH, non-condensing
  • Storage Temperature: -4°F–140°F (-20°C–60°C)
  • Storage Humidity: 10%–90% RH, non-condensing
• Mechanical
  • Housing: Plastic (front and rear)
  • Color: Screen: Black; Front: Grey; Rear: Black
  • Installation: Standard 86 box (UK/CN)
    • For US installations, a surface-mount 86 box adapter or retrofit plate would be needed since US standard gang boxes have different screw spacing.
  • Dimensions: 8.11″ x 3.39″ x 2.05″ (206 x 86 x 52mm)
  • Weight: 0.71 lbs (321g)

What's Included

• 1x Programmable Touch Panel
• 2x 3-pin 3.81mm Phoenix Connector (male)
• 1x 2-pin 3.81mm Phoenix Connector (male)
• 1x Wall Mounting Bracket (pre-installed)
• 2x Bracket Fixing Screws
• 1x User Manual
