KanexPro Premium HDMI Extender up to 150M 18G

About: KanexPro Premium HDMI Extender up to 150M 18G

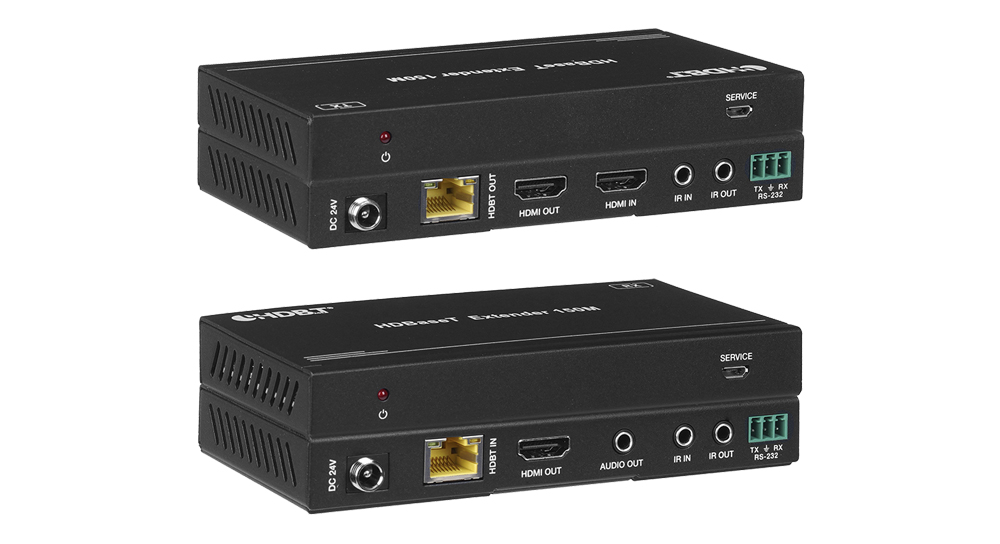

The KanexPro EXT-4KHD150M2 is a powerful audio video extender that allows you to extend your 4K video signal up to a distance of 150 meters (492 feet). This extender supports resolutions of up to 4K2K@60Hz 4:4:4 and has a data rate of 18Gbps, making it ideal for use in a variety of settings where high quality video is required.

In addition to its video capabilities, the EXT-4KHD150M2 also supports audio de-embedding and has a built-in two-way IR pass-through, allowing you to control your source and display from a distance.

Audio video extenders like the KanexPro EXT-4KHD150M2 can be used in a variety of settings, including churches, classrooms, and presentation halls. In a church setting, an extender like this one can be used to transmit audio and video signals from the pulpit to the front of the house, allowing worshippers to experience the service in high definition. In a classroom or presentation hall, an extender can be used to transmit video from a remote source to a display, reducing the need for complex cabling and repeaters.

Overall, the KanexPro EXT-4KHD150M2 is a versatile and reliable audio video extender that is well-suited for use in a wide range of settings. With its long range and professional performance, it is an excellent choice for anyone in need of high quality video transmission

Features

• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Support 18Gbps video bandwidth
• The maximum extended transmission distance via a single Cat5e/6 cable:
  • 394ft / 120 meters for 4K2K signal;
  • 92ft / 150 meters for 1080P signal
• Support one HDMI loop output on the transmitter
• Extract audio to analog stereo output on receiver
• With bi-directional IR, RS-232 and CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG function supported
• Support PoC (Power over Cable)
• Compact design for easy and flexible installation
• Covered by KanexPro’s 3 year limited product warranty

Applications

Ideal for use with court rooms, classrooms, conference rooms or showrooms where audio-visual and control devices can be extended from a remotely located HDMI sources. With an 150m/492ft extender distance capability, this kit can extend at distances that are 50% longer than the leading industry (100m) extenders.

• Professional Performance - Built to commercial standards, KanexPro products offer premium features like locking power connectors, metal enclosures, and passive cooling designs which are a must for long term reliable and stable installations.
• Lecture hall installations - Connect HDMI computers or video processors to a transmitter and connect to an overhead projector or display that requires the cabling to run a very long distance or across rooms.
• House of Worship - The long distance extenders allow for audio video signals to be extended from the pulpit to the front of house which would require very long lengths of cabling.
• Reduce Complexity - Because the extender kit allows for transmission of Full HD video at distances up to 492ft, there is less need for video repeaters or additional equipment to make the long distance run to the display or sink device.

Specifications

• Technical Performance
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth:
  • HDMI: 18 Gbps
  • HDMI Supported Resolutions: Up to 4K2K@50/60Hz(YCbCr 4:4:4),[email protected] HDMI 3D TV format, etc.
  • Color Space: RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
  • Supported Audio Formats:100-240V , 50/60Hz, 0.3A
  • Transmission Distance:
  • Max distance (4K) : 394ft/120m overCAT5e/6 Max distance (1080p) : 492ft / 150m over CAT5e/6

Connections

• Transmitter
  • Inputs:
    • 1x HDMI Type A [19-pin female]
    • 1x IR IN [3.5mm Stereo Mini-jack]
  • Outputs:
    • 1x HDMI Type A [19-pin female]
    • 1x Premium Extender OUT [RJ45]
    • 1× Service [Mini-USB]
    • 1x IR OUT [3.5mm Stereo Mini-jack]
• ​Receiver
  • Input Ports:
    • 1 x CAT6 IN [RJ45, 8-pin female]
    • 1x IR IN [3.5mm Stereo Mini-jack]
  • Output Ports:
    • 1 x HDMI Type A [19-pin female]
    • 1 x IR OUT [3.5mm Stereo Mini-Jack]
    • 1 x Service [Mini-USB, Update Port]
    • 1 x AUDIO OUT [3.5mm Stereo Mini-Jack]
• Power Supply
  • Input: AC 100- 240v 50/60Hz
  • Output: DC24v/1.0A (locking Connector)
  • POC (Power over Cable) Transmitter to Receivers
• ​Operating Environment:
  • Operating Temperature: 0 ~ 40°C
  • Storage Temperature: -20 ~ 60°C
  • Relative Humidity: 20 ~ 90% RH
• ​Mechanical Properties
  • Housing: Metal Enclosure
  • Color: Black
  • Weight
    • Transmitter: 853g
    • Receiver: 246g
  • Dimensions (WxDxH)
    • Transmitter: 140  x 65  x 18 mm
    • Receiver: 140 x 65 x 18 mm
  • Warranty: 3 Year parts and labor
