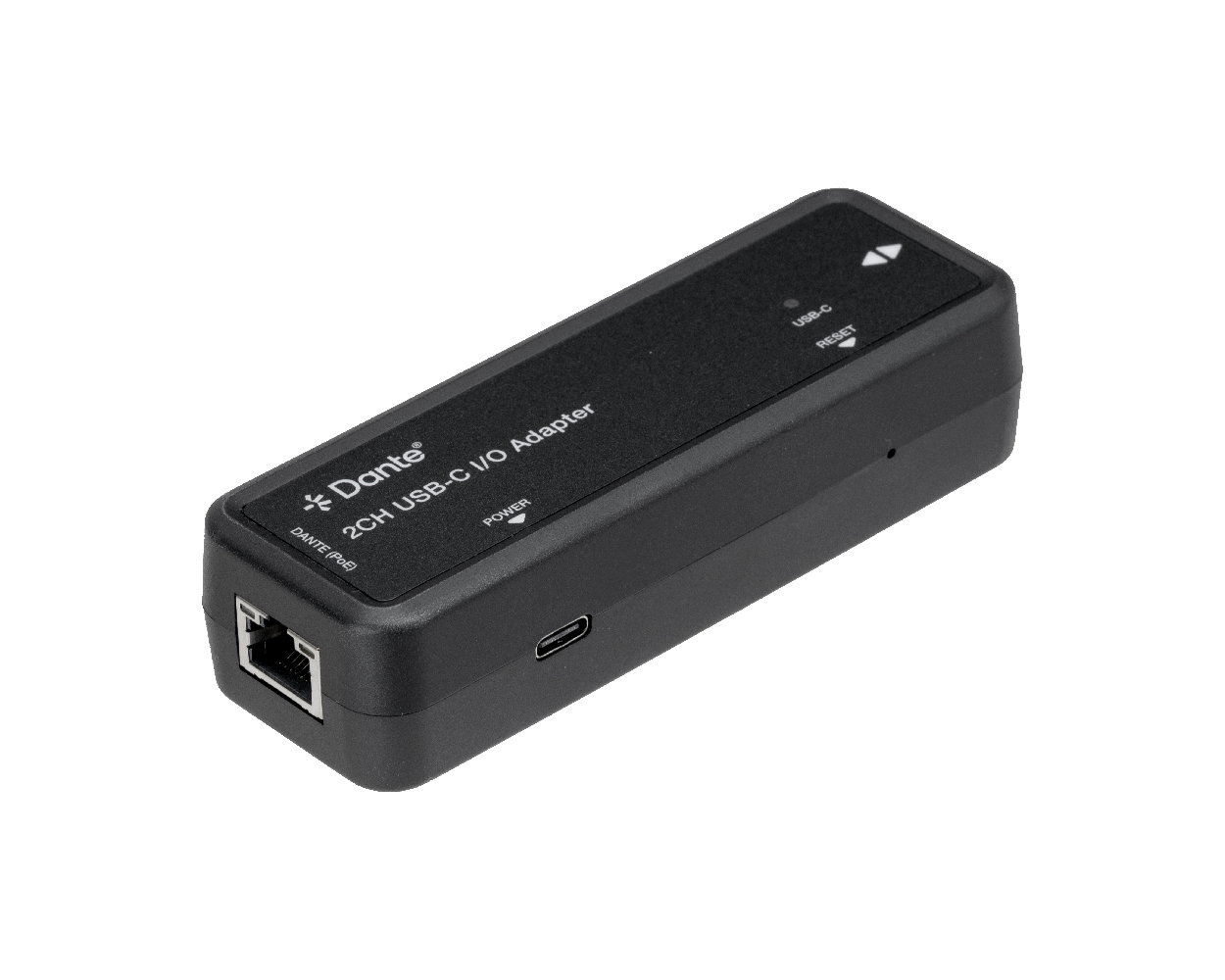

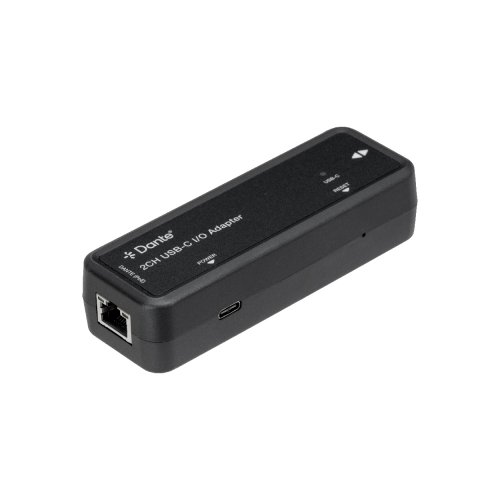

KanexPro Dante 2-Channel USB-C I/O Adapter

About: KanexPro Dante 2-Channel USB-C I/O Adapter

The AUD-DTE-USBC bridges any USB-C device directly into a Dante audio network — no drivers, no dedicated interface hardware, no additional power supply required. Built on the Dante Ultimo 2x2 engine, it converts two-channel USB audio from laptops, smartphones, and tablets into full-resolution Dante network audio at sampling rates up to 96kHz/24-bit, while simultaneously accepting USB audio output at up to 192kHz/24-bit. A single RJ45 connection to a PoE-capable switch delivers both the Dante network stream and device power over the same cable — eliminating the need for a separate power supply in most installations.

Designed for conference rooms, classrooms, houses of worship, and distributed audio systems, the AUD-DTE-USBC operates as a plug-and-play USB audio class 1.0/2.0 device, recognized natively by macOS, Windows, iOS, and Android. Dante Controller software manages routing, latency (1/2/5ms configurable), and AES67 interoperability — giving integrators full network audio control without touching the host device. The compact plastic enclosure includes integrated hook-and-loop mounting for concealed installation under tables, behind displays, or inside equipment enclosures.

• Interconverts two-channel USB audio and Dante 2CH digital audio via Dante Ultimo 2x2 engine
• USB audio device class 1.0/2.0-compatible — no driver installation required on macOS, Windows, iOS, or Android
• USB audio output up to 192kHz@24bit; USB audio input up to 96kHz@24bit
• Dante audio sampling rate supports 44.1/48/88.2/96kHz@24bit with AES67 interoperability
• Configurable Dante audio latency: 1ms, 2ms, or 5ms via Dante Controller
• Powered via PoE (IEEE 802.3af Class 0) or USB-C 5V/500mA — no external power supply required with PoE switch
• Compact form factor with included hook-and-loop for flexible concealed installation

Specification

• Technical
  • Control Method: Dante Controller
  • Network Bandwidth: 100M
  • Audio Formats
    • USB AUDIO IN: Digital audio input, PCM 2CH 44.1K–96KHz 16/24bit
    • USB AUDIO OUT: Digital audio output, PCM 2CH 44.1K–192KHz 16/24bit
    • DANTE IN/OUT: Digital audio input/output, PCM 2CH 44.1K–96KHz 16/24bit
  • Transmission Distance: 328ft / 100m (CAT6/6A/7)
  • Audio Latency: Configurable Dante device latency — 1ms, 2ms, or 5ms via Dante Controller
  • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
• USB Audio IN — Audio Parameters
  • Frequency Response: 20Hz to 20kHz (±0dB)
  • Audio S/N Ratio: >130dB, 1kHz A-weighted
  • Dynamic Range: >130dB, 1kHz A-weighted
  • Audio THD+N: <0.01% at +4dBu, 1kHz
  • Audio Output Sync Delay: <10ms
  • Line Input Level (Maximum): N/A
  • Input Impedance: N/A
• USB Audio OUT — Audio Parameters
  • Frequency Response: 20Hz to 20kHz (±0dB)
  • Audio S/N Ratio: >130dB, 1kHz A-weighted
  • Dynamic Range: >130dB, 1kHz A-weighted
  • Audio THD+N: <0.01% at +4dBu, 1kHz
  • Audio Output Sync Delay: <10ms
  • Line Output Level (Maximum): N/A
  • Output Impedance: N/A
• Connection
  • DANTE: 1x RJ45 connector — Digital audio in/out, PoE
  • USB-C (Audio): 1x USB-C with USB 1.0/2.0, USB audio in/out, 12-pin female
  • POWER: 1x USB-C power and firmware update port, 12-pin female
  • RESET: 1x System reboot button
  • USB-C LED: 1x Green color, USB 5V indicator
• Power
  • USB Input: 5V / 500mA
  • PoE Input: IEEE 802.3af Class 0
  • Power Consumption: 1.65W (Max)
• Mechanical
  • Housing: Plastic Enclosure
  • Color: Black
  • ​Environmental
    • Operating Temperature: 32°F – 104°F / 0°C – 40°C
    • Storage Temperature: -4°F – 140°F / -20°C – 60°C
    • Operating Humidity: 20% – 80% RH (non-condensing)
    • Storage Humidity: 10% – 90% RH (non-condensing)
  • Dimensions (WxDxH): 4.53 x 1.58 x 1.1 inch (115 x 40 x 28mm)
  • Weight: 0.21 lbs (94g)

What's in the Box

• 1x Dante 2CH USB-C I/O Adapter
• 2x Hook & Loop
• 1x User Manual
