Atlona AT-OME-ST31A Three-Input Switcher for HDMI and USB-C

About: Atlona AT-OME-ST31A Three-Input Switcher for HDMI and USB-C

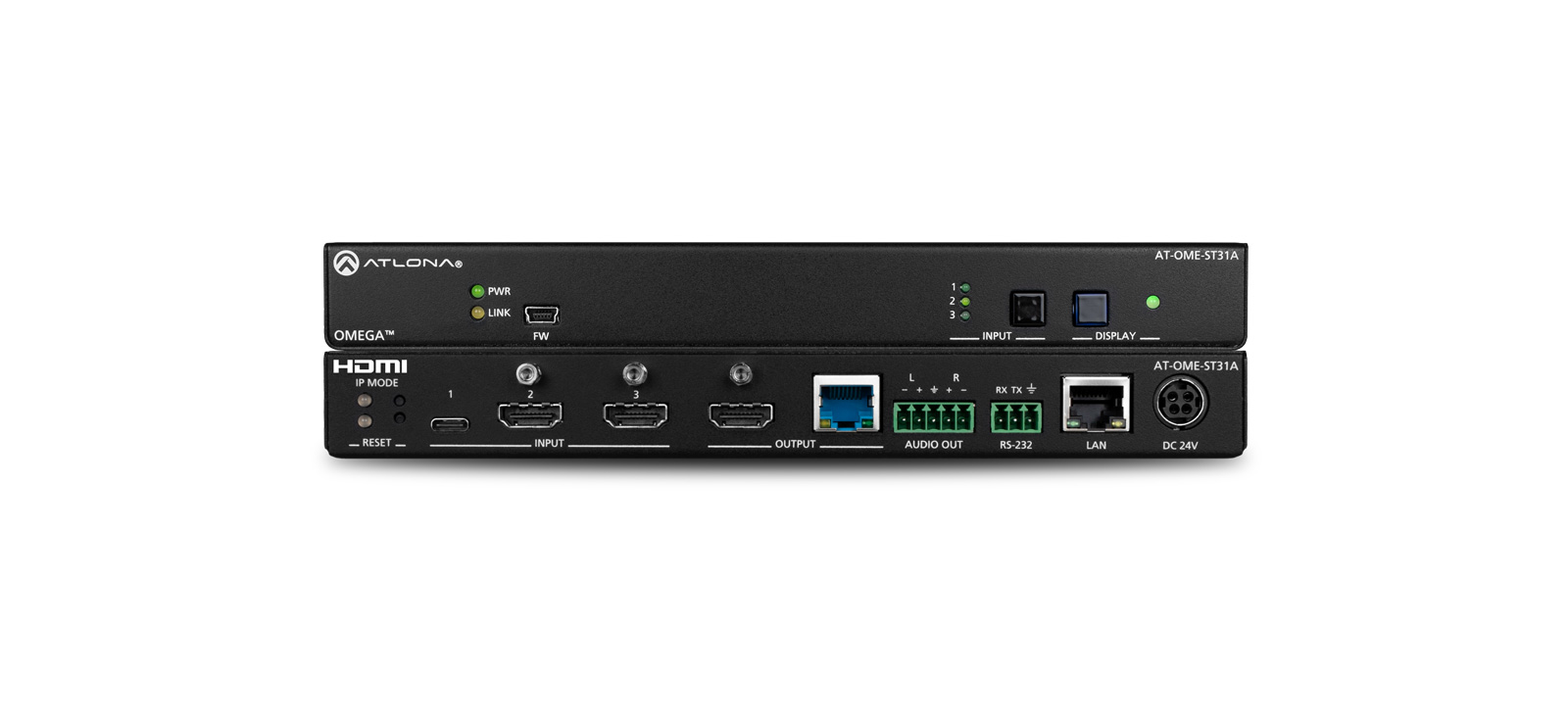

The Atlona AT-OME-ST31A is a 3×1 switcher and HDBaseT transmitter designed for remote powering, with HDMI and USB-C inputs. The OME-ST31A features two-channel audio de-embedding to an analog balanced audio output. Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-ST31A features mirrored HDMI and HDBaseT outputs and is HDCP 2.2 compliant. The USB-C input is ideal for AV interfacing with newer Mac, Chromebook, and Windows PCs, as well as smartphones and tablets. Video signals up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet can be transmitted over HDBaseT up to 330 feet (100 meters). All inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The OME-ST31A is designed for use with Omega Series receivers and switchers. See the Related Products tab for specific product compatibility.

All-in-One Switcher, Controller, and Extender

This switching transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It can be remotely powered by Atlona HDBaseT-equipped devices. With the optional AT-PS-245-D4 power supply, the OME-ST31A can charge laptops and mobile devices through the USB-C port. For additional integration convenience, the OME-ST31A features TCP/IP and RS-232 control, RS-232 insertion over HDBaseT, and remote management with Velocity Device Manager.

Automatic Display Control

The OME-ST31A provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the OME-ST31A can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the OME-ST31A forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The OME-ST31A display control capability can also be triggered by an external control system.

• * Consumer Electronics Control (CEC):  Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. Can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs.

Reliable Auto-Switching

The OME-ST31A automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

Applications

Complete system integration – The OME-ST31A and a compatible HDBaseT receiver provide a compact, yet comprehensive and cost-effective integration solution. When installed below a meeting table, the available Pocket 3H (AT-PKT-3H) provides convenient tabletop AV cable access for easy BYOD connectivity.

Larger system applications – The OME-ST31A is ideal for extending AV connectivity from a central equipment rack to a meeting table or lectern, where presenters can easily access the system.

Auditoriums and lecture halls – This switcher can be used for presenting 4K video content through the projector, while also optimizing for a 1080p confidence monitor.

Product compatibility

The AT-OME-ST31A is ideal for 4K/UHD extension to the AT-UHD-EX-100CE-RX-PSE receiver, and can also provide remote 4K/UHD input switching for Atlona HDBaseT-equipped switchers and matrix switchers. Additionally, the AT-OME-ST31A is compatible with the AT-HDVS-200-RX receiver and HD scaler, and the AT-HDVS-SC-RX receiver and 4K/UHD scaler.

The AT-OME-ST31A is available as the AT-OME-ST31A-KIT with the AT-UHD-EX-100CE-RX-PSE.

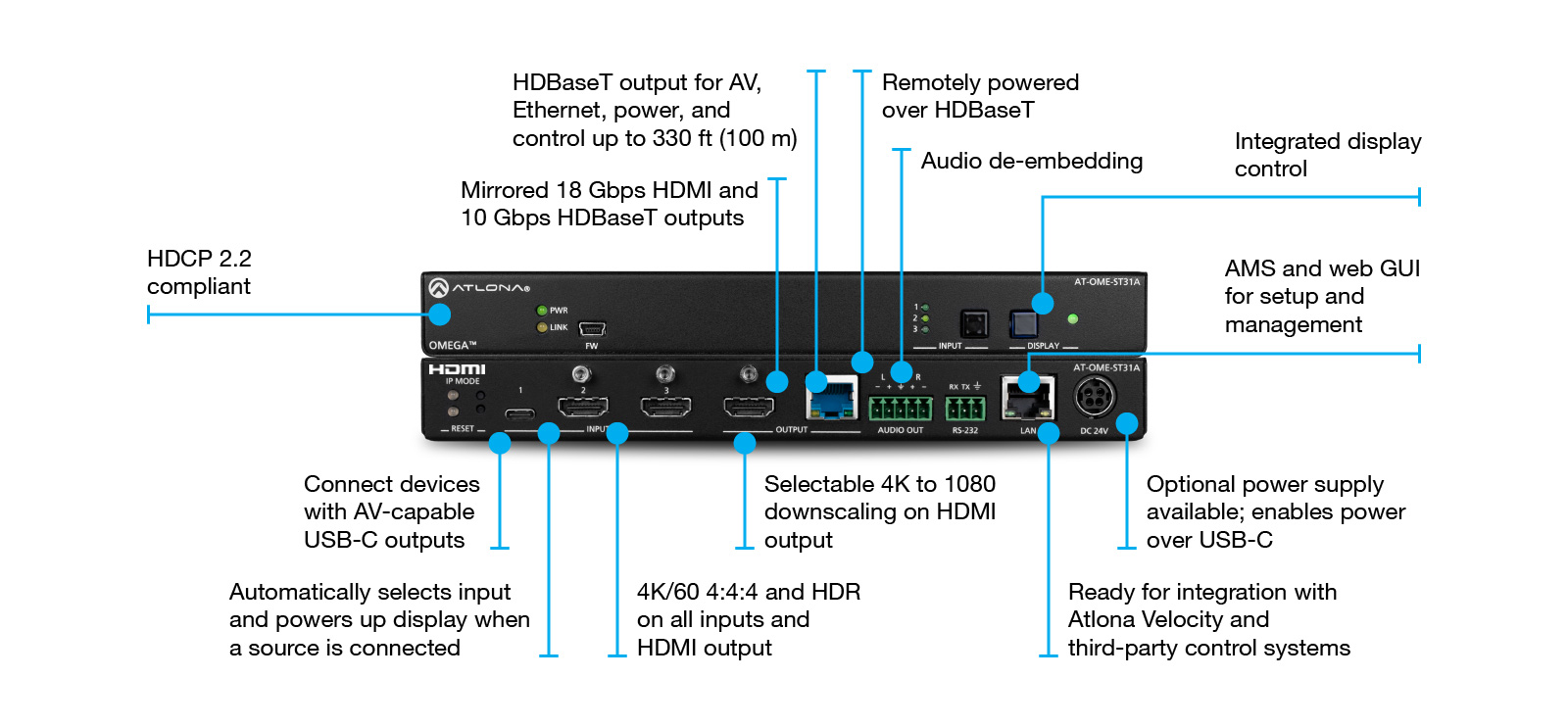

Features

• 3×1 HDBaseT switcher with HDMI and USB-C inputs
  • USB-C and two HDMI inputs
  • Immediate compatibility with laptops and tablets with USB-C ports supporting AV*
  • No need to provide USB-C to HDMI adapters
    • * USB-C port supports AV and device charging (with optional AT-PS-245-D4 power supply), but not USB data.
• Mirrored HDBaseT and HDMI outputs
  • Local and long-distance video outputs provide flexible options for AV system designs and applications
• Video, audio, power, and data over category cable utilizing HDBaseT technology
  • Transmits 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or up to 295 feet (90 meters) using CAT5e cable
  • Uses easy-to-integrate category cable for low-cost, reliable system installation
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling on local ports (HDMI and USB-C), plus support for HDR formats
  • HDBaseT output supports 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
  • HDMI and USB-C inputs, and HDMI output are compatible with 4K HDR10 @ 60 Hz and Dolby Vision @ 60 Hz, as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
• HDCP 2.2 compliant
  • Adheres to latest specification for High-bandwidth Digital Content Protection*
  • Allows protected content stream to pass between authenticated devices
    • * HDBaseT receiver or switcher must also be HDCP 2.2 compliant.
• Selectable 4K to 1080p downscaling
  • Integrated video processing available for down-converting 4K/UHD @ 60, 30, or 24 Hz to 1080p
  • Downscaling can be bypassed to allow pass-through up to 4K/60 4:4:4 and 4K HDR
  • Ideal for applications with 1080p displays, video conferencing codecs, and other HD sink devices
• Remote powering over HDBaseT or local powering
  • Industry standard IEEE 802.3af PoE is supplied by an Atlona receiver or switcher over HDBaseT
  • Allows convenient switcher installation at a table or other remote location, without the need for local AC power
  • Also can be locally powered by the optional AT-PS-245-D4 power supply – to charge a USB-C mobile device
• Automatic display control
  • Automatically changes display power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, or CEC.
  • Enables display and volume control. CEC enables control of consumer displays (as supported by the display manufacturer).
  • Includes an adjustable lamp cooldown mode to avoid prematurely powering up a projector after shutdown
  • Eliminates the need for a complex AV control system
• Automatic input selection using hot plug detect and video detection technology
  • Selects active input when sources are connected or if there is a change in source power status
  • Enables simplified, automatic system operation without user intervention
• Audio de-embedding
  • De-embeds two-channel source audio into an analog balanced audio output
• Multi-channel audio compliant
  • Passes through multi-channel audio formats from the HDMI or USB-C inputs
  • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
• EDID management
  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Ensures desired audio formats and video resolutions are provided to the AV system
• HDCP management
  • Automatically reports HDCP compliance status to the source based on the sink device
  • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
  • Displays a green splash screen as visual confirmation that protected content is being blocked from transmission to a non-compliant display
• Integrated HDBaseT link status monitoring
  • Tests integrity of the HDBaseT cable link between the transmitter and the receiver
  • Web GUI provides real-time link status
  • Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality
• Intuitive GUI-based configuration using integrated web server
  • Offers menu-based configuration of device settings including network access, input switching, signal processing, display control, HDCP and EDID management, and more
  • Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
• TCP/IP and RS-232 control
  • Flexible control options for compatibility with the Atlona Velocity control system, as well as other third-party control systems
  • Reduces integration time and costs
• Easy to configure and manage with Velocity Device Manager
  • Centralized, network-based configuration and management of Atlona IP-controllable products and systems
  • Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
  • Available as a part of Velocity control systems or as a free virtual machine software download
• Field-updatable firmware
  • Device can be updated in the field via the web GUI or Velocity Device Manager
  • USB port also available for firmware updates
• Front panel power and signal status LEDs
  • LED indicators provide power, HDBaseT link, and input selection status information
  • Provides local, convenient setup and troubleshooting when network access is not available
• Low-profile, 1.02 inch (26 mm) high enclosure
  • Easy installation into confined spaces below tables and in furniture
• Included accessories
  • Installation guide, surface mounting hardware, and 2 meter (6.5 foot) USB-C male-to-male cable (USB 3.1 Gen 1)
