KanexPro EXT-4KHD70M 4K60Hz HDMI Extender over Cat6 70M

About: KanexPro EXT-4KHD70M 4K60Hz HDMI Extender over Cat6 70M

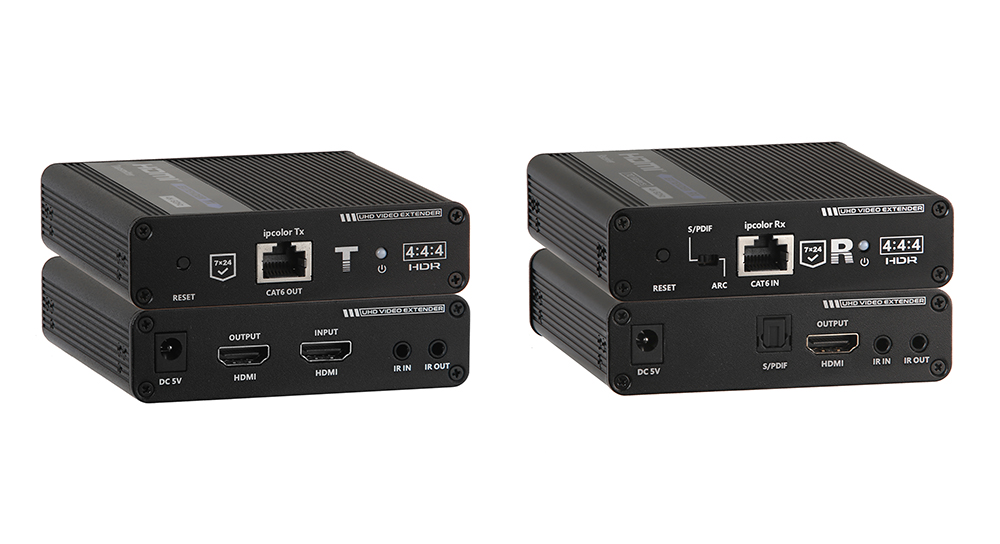

The KanexPro EXT-4KHD70M HDMI extender includes a transmitter and receiver units, allows for HDMI signals to be transmitted up to 70 meters at 4K resolution using a Cat6/6a/7 network cable. This is perfect for outdoor advertising, monitor systems, home entertainment and conference room solutions.

Applications:

Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.

Note: Use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.

Features

• Zero Latency
• Supports transmission distance up to 230ft. (70m)
• Supports HDR(YUV 4:4:4)
• Supports UHD 4K (4K x 2K @ 60Hz)
• IR bi-directional Pass through 20-60KHz (kits included)
• HDCP 2.2 & EDID support for multiple displays
• Simple set up with zero configuration
• Compact design for flexible installations
• Support ARC S/PDIF digital audio de-embedded outputs
• Backed by KanexPro's 3 Year limited warranty

Specifications

Power Supply:

• Voltage/Current: DC5V-12V
• Power Consumption: TX: <4W RX: <4W

HDMI Performance:

• HDMI Compliance: HDMI 2.0
• HDCP Compliance: HDMI 2.2
• HDMI Supported Resolutions:
  • 480i@60Hz, 480p@60Hz, 576i@50Hz,
  • 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,
  • 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz,
  • 4096x2160@24/25Hz, 1280x960, 1280x800,
  • 1280x768, 1680x1050, 1360x768, 1366x768,
  • 1600x900, 1024x768, 800x600
• Supported Audio Formats:100-240V , 50/60Hz, 0.3A

Transmission Distance:

• Cat6, Cat6A, or Cat7: up to 70M at 4K resolution

Operating Enviroment:

• Working Temperature: -20~60°C
• Storage Temperature: -30~70°C
• Humidity (No Humidity): -0~90%RH

Physical Properties:

• Dimentions:106.0(L) x 99.0(W) x 26.2(H)mm
• Material: Aluminum
• Color: Black
• Weight: TX-210g RX-210g
