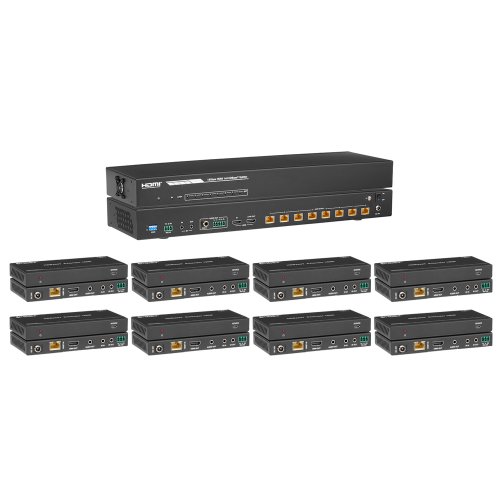

KanexPro 18G HDMI 2.0 Splitter Extender 150m Kit - 1x8

About: KanexPro 18G HDMI 2.0 Splitter Extender 150m Kit - 1x8

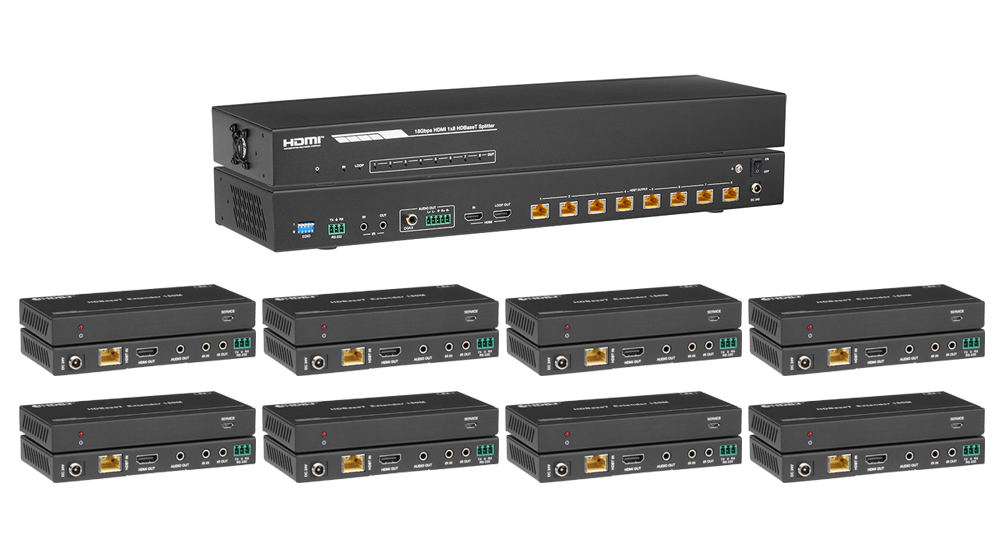

The KanexPro SP-1X8HD150M18Gbps HDMI 1x8 Premium Extender Splitter can extend and distribute a single high definition video / audio source at distances up to 492ft / 150 meters between transmitter and up to eight (8) receivers via a single CAT cable to any of the eight (8) display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 8 Cat5/6 outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract function and advanced EDID management. Receivers are remotely powered by the transmitter unit via POC (Power over Cable) technology.

Features

• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Support 18Gbps video bandwidth
• The maximum extended transmission distance via a single Cat5e/6 cable:
  • 394ft / 120 meters for 4K2K signal;
  • 492ft / 150 meters for 1080P signal
• Support one HDMI loop output on the transmitter
• Extract audio to analog stereo output on receiver
• With bi-directional IR, RS-232 and CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG function supported
• Support PoC (Power over Cable)
• Compact design for easy and flexible installation
• Covered by KanexPro’s 3 year limited product warranty

Industry Standard HDCP 2.2 & 4K/60

HDCP 2.2 authentication is present always on KanexPro extenders ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard.

Applications

Ideal for use with court rooms, classrooms, conference rooms or showrooms where audio-visual and control devices can be extended from a remotely located HDMI sources. With an 150m/492ft extender distance capability, this kit can extend at distances that are 50% longer than the leading industry (100m) extenders.

• Professional Performance - Built to commercial standards, KanexPro products offer premium features like locking power connectors, metal enclosures, and passive cooling designs which are a must for long term reliable and stable installations.
• Lecture hall installations - Connect HDMI computers or video processors to a transmitter and connect to an overhead projector or display that requires the cabling to run a very long distance or across rooms.
• House of Worship - The long distance extenders allow for audio video signals to be extended from the pulpit to the front of house which would require very long lengths of cabling.
• Reduce Complexity - Because the extender kit allows for transmission of Full HD video at distances up to 492ft, there is less need for video repeaters or additional equipment to make the long distance run to the display or sink device.

Specifications

• Technical Performance:
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth
  • HDMI: 18 Gbps
  • HDMI Supported Resolutions: Up to 4K2K@50/60Hz(YCbCr 4:4:4),[email protected] HDMI 3D TV format, etc.
  • Color Space: RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
  • Supported Audio Formats:100-240V , 50/60Hz, 0.3A
  • Transmission Distance:
  • Max distance (4K) : 394ft/120m overCAT5e/6 Max distance (1080p) : 492ft / 150m over CAT5e/6
• ​Connections

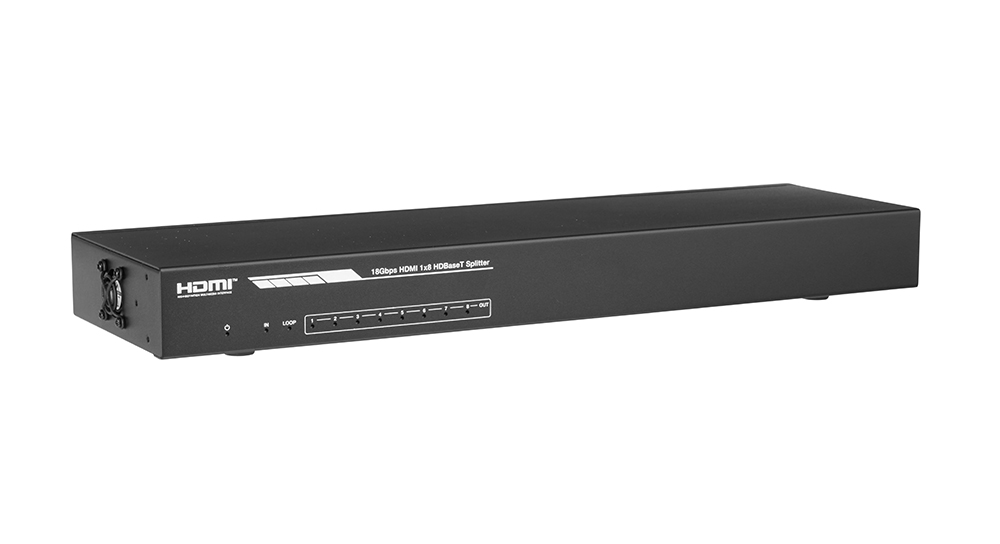

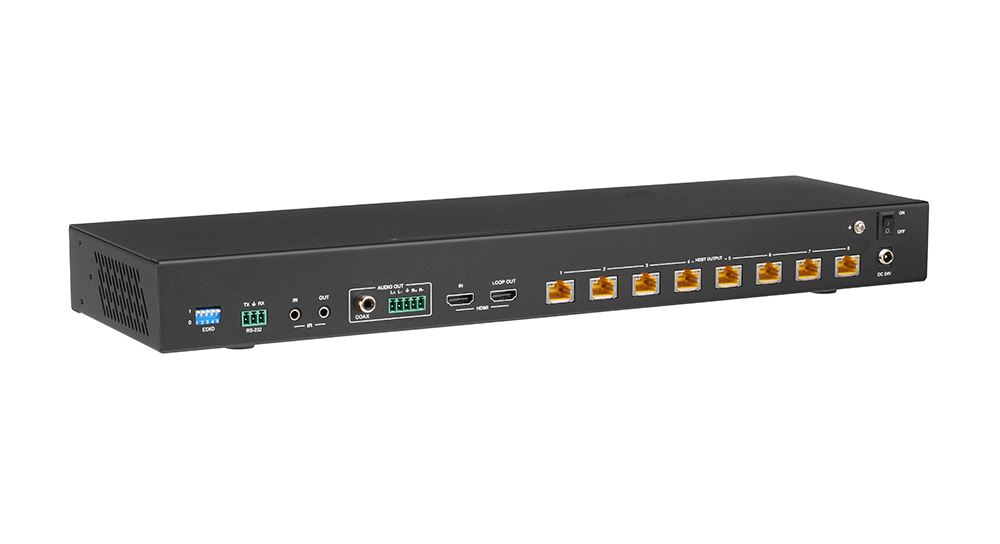

  • Transmitter
    • Inputs
      • 1x HDMI Type A [19-pin female]
      • 1x IR IN [3.5mm Stereo Mini-jack]
    • Outputs
      • 1x HDMI Type A [19-pin female]
      • 8x Premium Extender OUT [RJ45]
      • 1x Coaxial Audio OUT [RCA]
      • 1x L/R Audio OUT [5-pin phoenix connector]
      • 1x RS-232 [3-pin phoenix connector]
      • 1x EDID DIP switch [5-pin]
      • 1x IR OUT [3.5mm Stereo Mini-jack]
  • Receivers
    • Inputs
      • 1x CAT6 IN [RJ45, 8-pin female]
      • 1x IR IN [3.5mm Stereo Mini-jack]
    • Outputs
      • 1x HDMI Type A [19-pin female]
      • 1x IR OUT [3.5mm Stereo Mini-Jack]
      • 1x Service [Mini-USB, Update Port]
      • 1x AUDIO OUT [3.5mm Stereo Mini-Jack]
• ​Power Supply
  • Input: AC 100- 240v 50/60Hz
  • Output: DC24v/3.75A [locking Connector]
  • POC [Power over Cable] Transmitter to Receivers
• ​Operating Environment
  • Operating Temperature: 0 ~ 40°C
  • Storage Temperature: -20 ~ 60°C
  • Relative Humidity: 20 ~ 90% RH
• Mechanical Properties
  • Housing: Metal Enclosure
  • Color: Black
  • Weight
    • Transmitter: 1.62kg
    • Receiver: 246g
  • Dimensions (WxDxH)
    • Transmitter: 440 x 130 x 40 mm
    • Receiver: 140 x 65 x 18 mm
  • Warranty: 3 Year parts and labor
