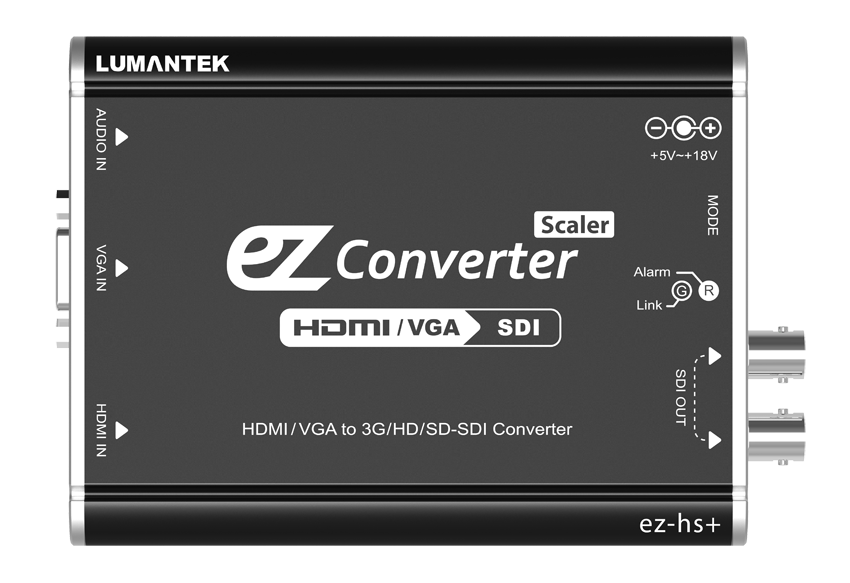

Lumantek ez-Converter HDMI/VGA to SDI Converter
Model: ez-hs+
About: Lumantek ez-Converter HDMI/VGA to SDI Converter

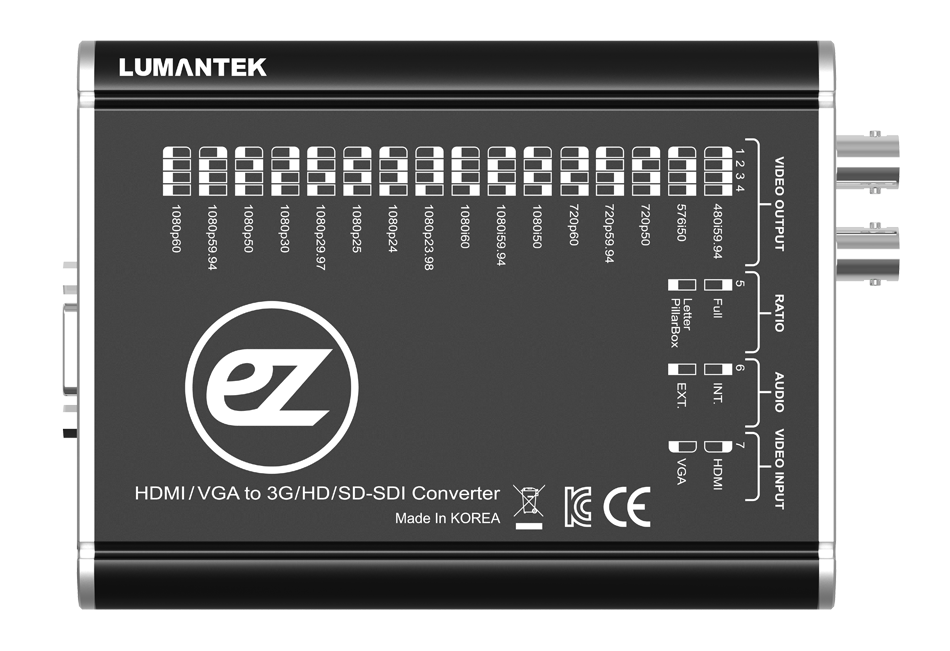

Scaler ez-Converter [ez-hs+] is a converter with far more options to facilitate video transference. By handling the 'dip switch', the user will be able to change the video resolution from 480i to 1080p60.
Scalable Resolutions
Scaler ez-Converter [ez-hs+] can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. Use the 'dip switch' on the side of the converter and match to the right resolution.
Screen Ratio Control
You can change the output ratio as well. Choose from either 16:9 or 4:3 screen ratio to fit your requirement.
Low Power Consumption
The maximum power consumption of Scaler ez-Converter [ez-hs+] is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity.
Global Power Adaptor
All ez-Converters come with AC/DC power adaptor. With three different types of replaceable plugs, make your work easy wherever you are.
ez-hs+ (HDMI/VGA to 3G/HS/SD-SDI with Scaler)
| Video Input Format | VGA 640x480 800x600 1024x768 1280x1024 1600x1200 1920x1080 HDMI [email protected]/60, 720x576i@50 1280x720p@50, [email protected]/60 1920x1080i@50, [email protected]/60 [email protected]/24, 1920x1080p@25, [email protected]/30 1920x1080p@50, [email protected]/60 |
| Video Output Format | [email protected]/60, 720x576i@50 1280x720p@50, [email protected]/60 1920x1080i@50, [email protected]/60 [email protected]/24, 1920x1080p@25, [email protected]/30 1920x1080p@50, [email protected]/60 |
| Video Aspect Ratio | Full / Center cut / Letter Box / 14:9 Center cut |
| Audio Input Connector | 3.5mm stereo Jack x 1 |
| Video Input Connector | HDMI (Type A)x1 VGA x 1 |
| Video Output Connector | BNC x 1 |
| DC Input Power | DC +5V ~ +18V
0.33A(333mA) when it's + 12V |
| Power Consumption | 3W (max.) |
| Operation Temperature | 0~45℃ |
| Dimensions | 131 x 98.8 x 28.4mm |
| Weight | 0.31 kg (0.68 lbs) |
UPC: 887367000122
Reviews: Lumantek ez-Converter HDMI/VGA to SDI Converter
Warranty: Lumantek ez-Converter HDMI/VGA to SDI Converter
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Lumantek Test & Measurement and Broadcasting products normally carry a 1-year limited warranty (including labor and parts)
Unless noted, Lumantek Digital Media products normally carry a 1-year limited warranty (including labor and parts).
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
