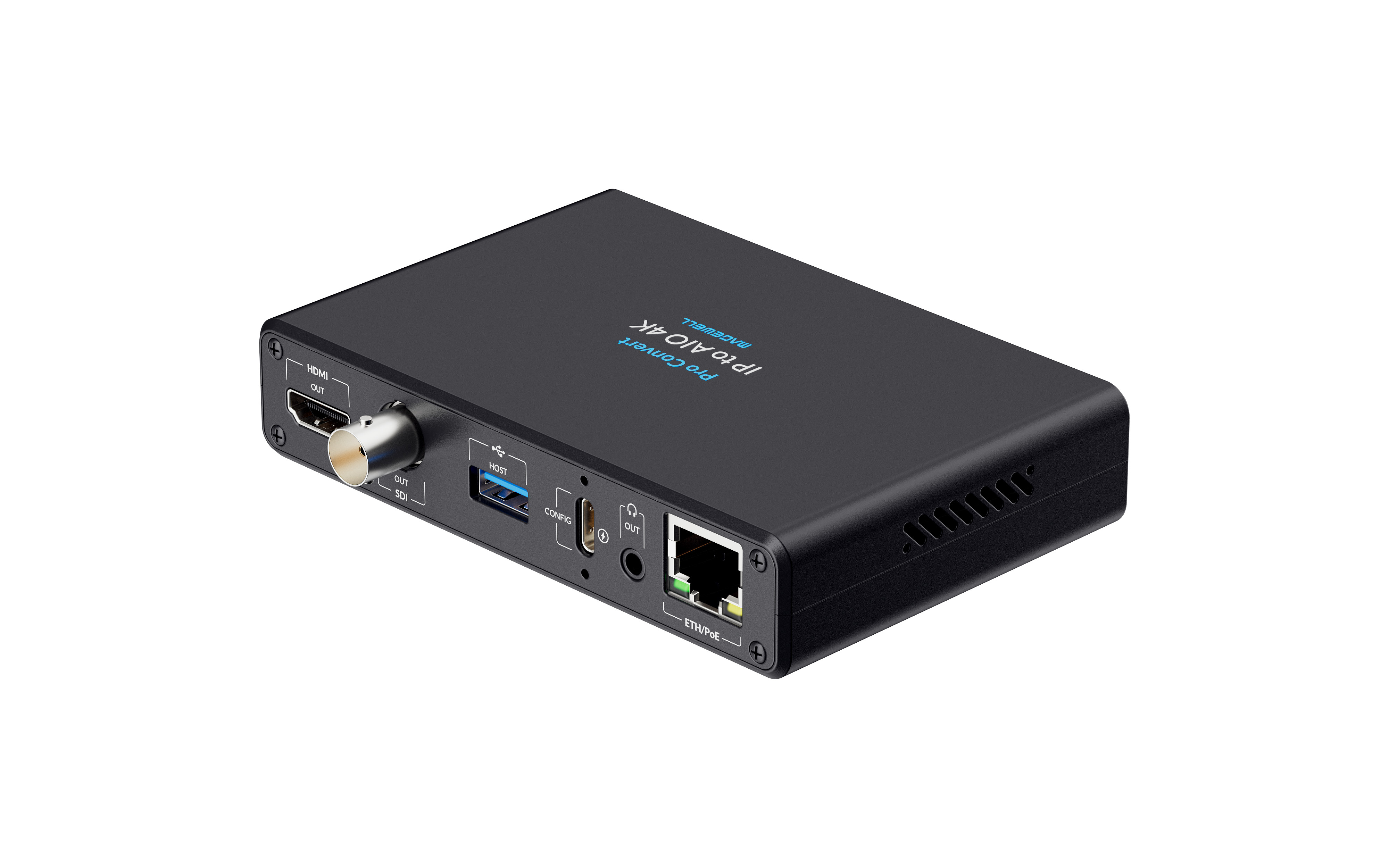

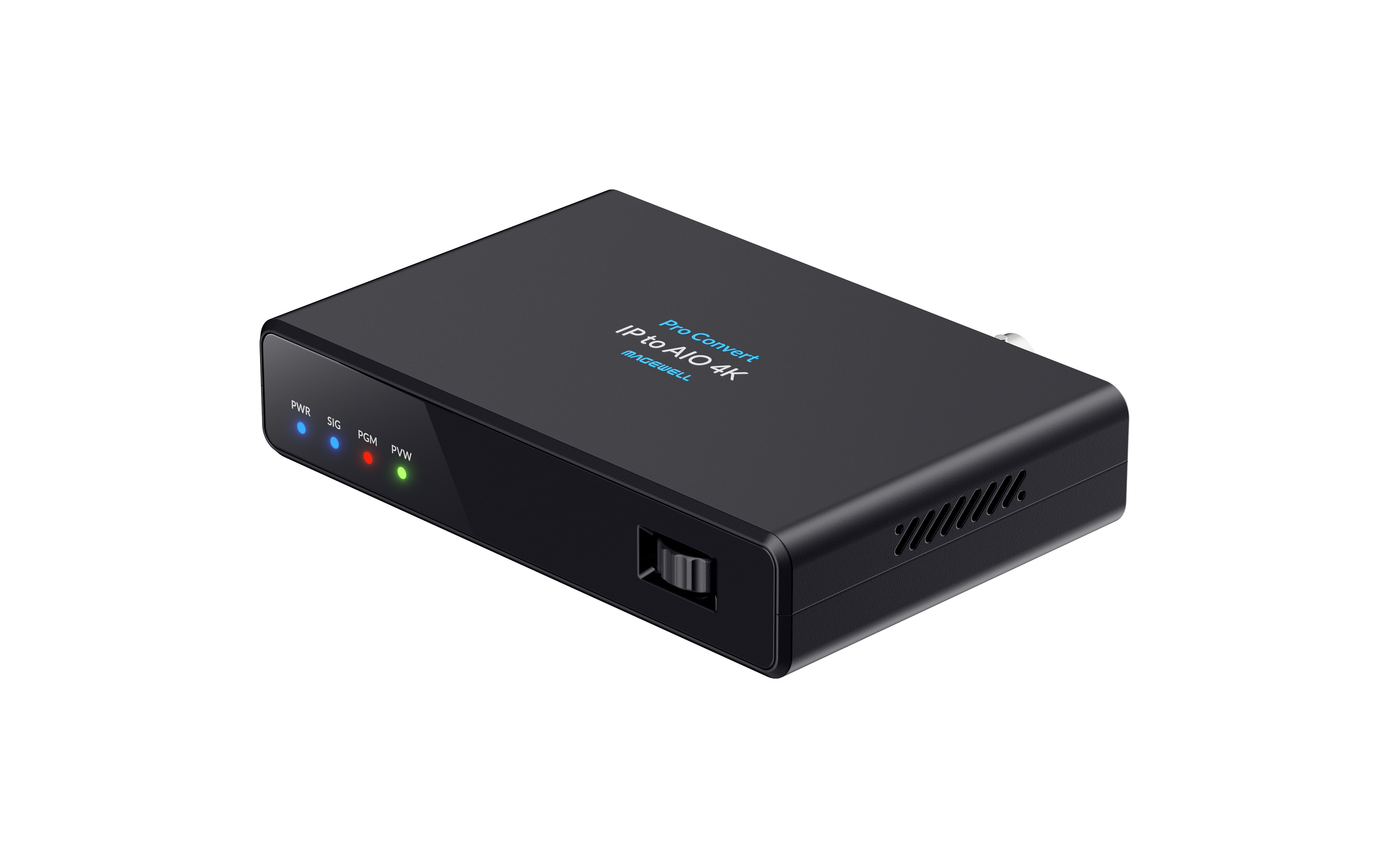

Magewell Pro Convert IP to AIO 4K

About: Magewell Pro Convert IP to AIO 4K

Converts up to four IP streams into one 4Kp60 HDMI and SDI signal

• Connects baseband presentation or distribution equipment into IP-based media networks
• Stays compatible with popular video formats and streaming protocols
• Supports HDR PQ/HLG
• Video preview, in real-time stream or MJPEG picture is available on the web GUI
• Remote centralized management via Control Hub or Zixi ZEN Master

Specifications and Features

• Decoding Features
  • Support multiple output modes for decoding of different protocol signals
    • Single View
      • Number of decoded channels: 1
      • Supported protocols: NDI High Bandwidth, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
      • Formats: H.264, H.265, SpeedHQ, MPEG2
      • Resolution: Up to 4096x2160p60
    • Picture-in-Picture
      • Number of decoded channels: 2
      • Supported protocols: NDI High Bandwidth*, NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
      • Formats: H.264, H.265, SpeedHQ, MPEG2*
      • Resolution: Up to 1920x1080p60
        • *Note: Only one NDI High Bandwidth or one MPEG2 format video signal can be decoded
    • Quad View
      • Number of decoded channels: 4
      • Supported protocols: NDI HX, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI
      • Formats: H.264, H.265
      • Resolution: Up to 1920x1080p60
  • Support decoding AAC, MP3, AC3, Opus, and G.711 audio formats
  • Support NDI 6.3
• HDMI Output Features
  • Maximum output: 4096x2160 60fps 4:4:4 8-bit, or 4096x2160 60fps 4:2:2 12-bit (transport depth 12-bit, video depth 10-bit)
  • Supported output formats:
    • 4096×2160p 23.98/24/25/29.97/30/50/59.94/60 256:135
    • 3840×2160p 23.98/24/25/29.97/30/50/59.94/60 16:9
    • 1920×1080p 24/25/29.97/30/59.94/60 16:9
    • 1920×1080i 50/59.94/60 16:9
    • 1280×720p 23.98/24/25/29.97/30/50/59.94/60 16:9
    • 720×576i 50 16:9/4:3
    • 720×480i 59.94 16:9/4:3
  • Color space: BT.601/BT.709/BT.2020
  • Support HDR PQ/HLG
  • Audio output: 48/96KHz 8-channel
  • HDMI interface: HDMI 2.0
• SDI Output Features
  • Maximum output: 4096x2160 60fps 4:2:2 10-bit
  • Supported output formats:
    • 4096×2160p 23.98/24/25/29.97/30/50/59.94/60 256:135
    • 3840×2160p 23.98/24/25/29.97/30/50/59.94/60 16:9
    • 1920×1080p 24/25/29.97/30/59.94/60 16:9
    • 1920×1080i 50/59.94/60 16:9
    • 1280×720p 23.98/24/25/29.97/30/50/59.94/60 16:9
    • 720×576i 50 16:9/4:3
    • 720×480i 59.94 16:9/4:3
  • Output YUV BT.601/709/2020 signals
  • Audio output: 48KHz 8-channel
  • SD/HD/3G/6G/12G-SDI output interface
  • Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) standards
  • Support Closed Caption compliant with CEA–608 or CEA–708 embedded CEA–608 standards
  • Output HDR (PQ / HLG) through ANC metadata
  • Output 12G-SDI signals up to 55m, 6G-SDI signals up to 75m, and 3G-SDI signals up to 130m
• Configuration Management
  • Support registration with Control Hub and ZIXI ZEN Master for remote centralized management
  • Provide WebUI tools
  • Provide comprehensive information regarding the device and decoded signals in real-time
  • Support preview of output images and PTZ control
  • Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, Ping test, security settings, configuration files import and export, and network connections
  • Support firmware upgrade
  • Support USB NET
  • Support Edge/Firefox/Chrome/Safari/Opera web browsers
  • Support HTTP APIs
• On-board Setting Button
  • Rotary encoder button:
    • Rotate: Switch options
    • Press: Bring up settings menu, enter current option, or confirm current parameter

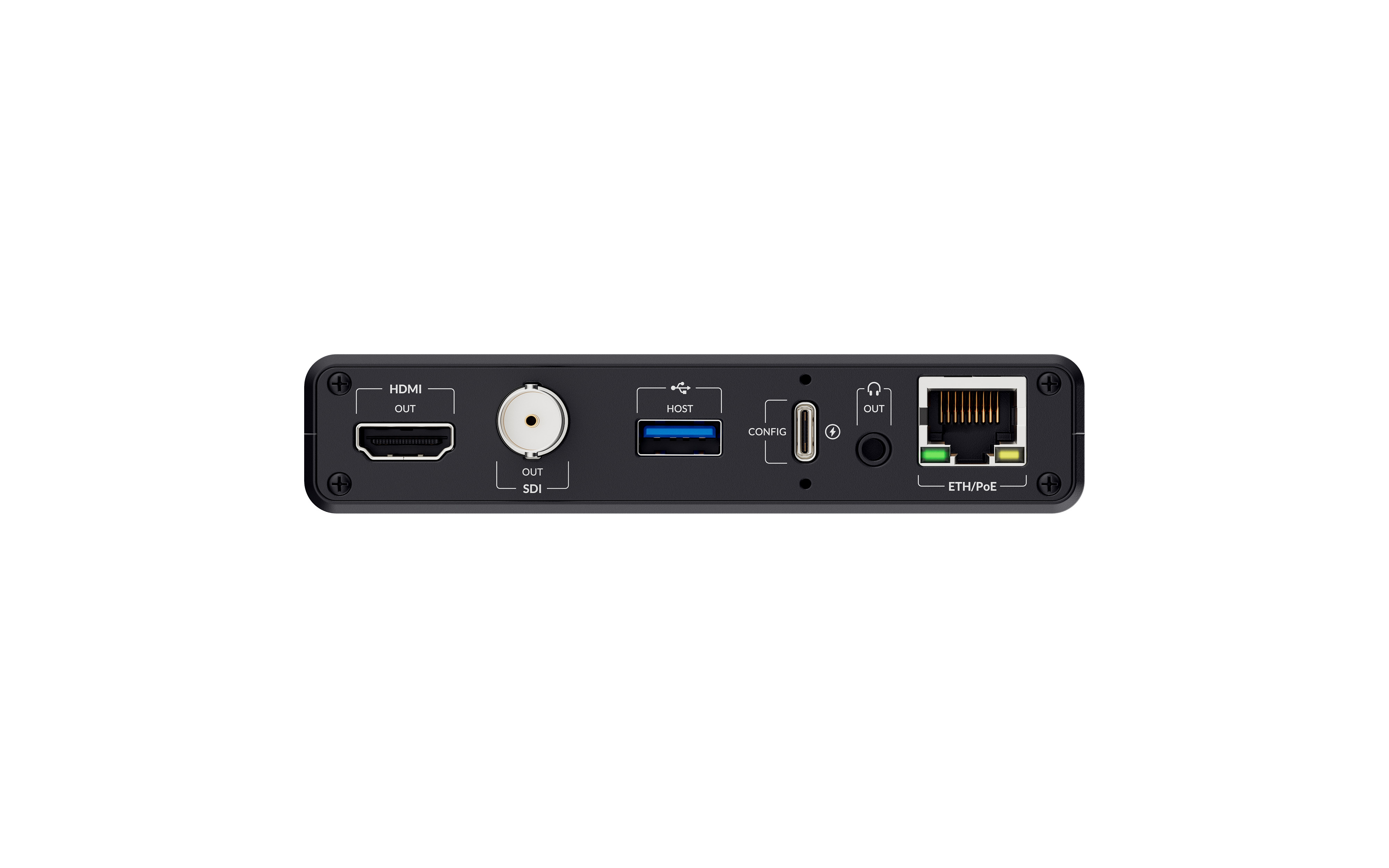

• Network Interface
  • 10/100/1000Mbps Ethernet port
  • Support IEEE 802.3at PoE+
• USB Interface
  • USB 3.0 Type C
    • 12V 20W power supply
    • USB NET
  • USB 3.0 Type A
    • Support connecting external keyboard and mouse for settings modification
• Audio Interface
  • 3.5mm LINE OUT

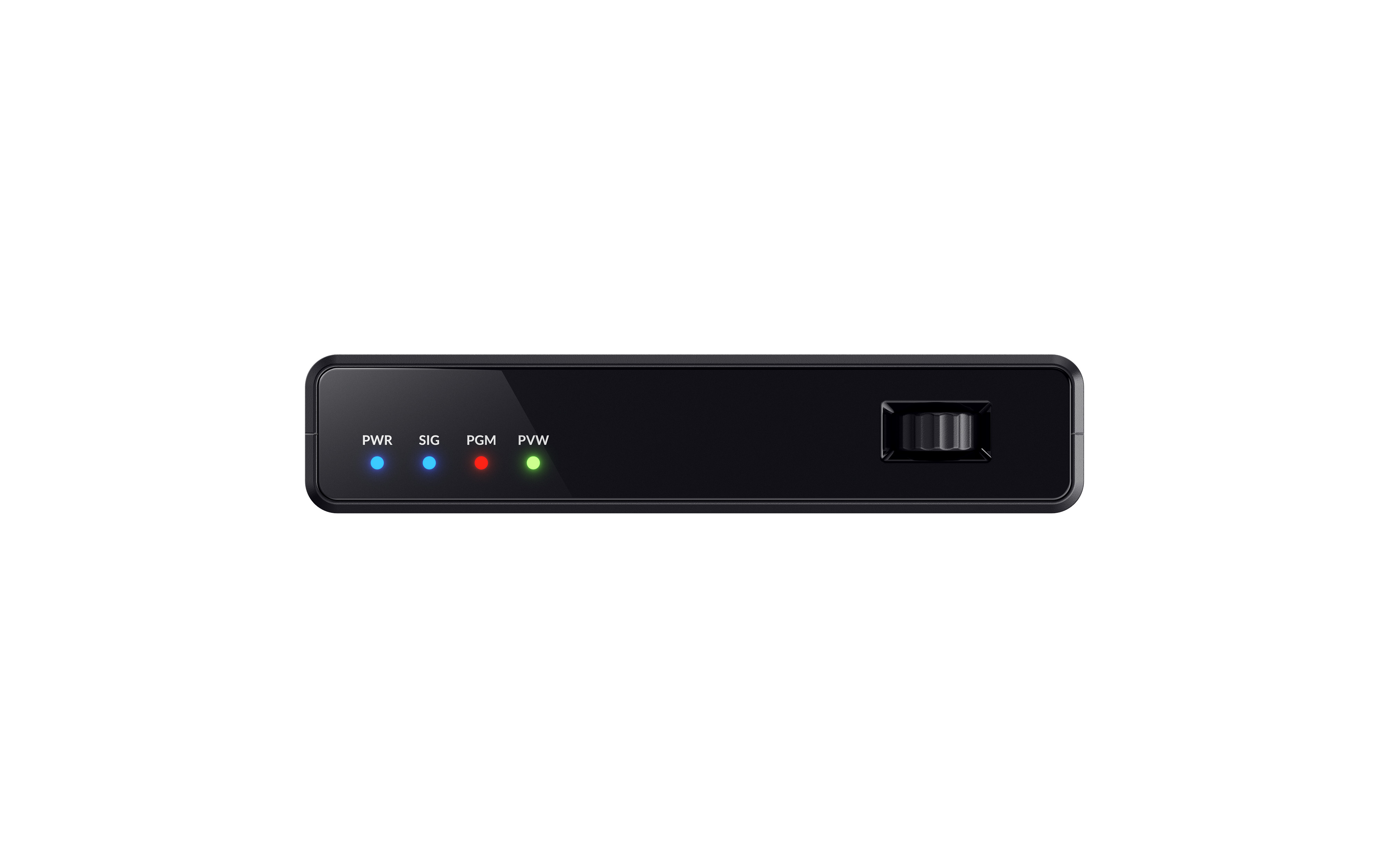

• LED Indicators
  • Power indicator (PWR)
    • Solid: Power connected
    • Off: No power connected
  • Decoding status indicator (SIG)
    • Solid blue: All selected sources in single/multiple decoding are decoding normally
    • Solid red: All selected sources in single/multiple decoding are decoding abnormally
    • Solid green: Both normal and abnormal decoding conditions exist in multiple decoding
    • Off: No sources selected in single/multiple decoding
  • Tally light
    • Live (PGM): Red light indicates NDI signal source is live
    • Preview (PVW): Green light indicates NDI signal source is in preview
• Mounting Holes
  • Diameter: Φ6.5mm mounting holes
• Power Consumption
  • Maximum current for 12V power supply: ~1.26 A
  • Maximum power consumption: ~15.1 W
• Operating Environment
  • Operating temperature: 0 to 40 degrees Celsius
  • Storage temperature: –20 to 70 degrees Celsius
  • Relative humidity: 5% to 90% (non-condensing)
• Dimensions (LxWxH): 4.72 x 3.12 x 0.96 in (120 x 79.3 x 24.5 mm)
