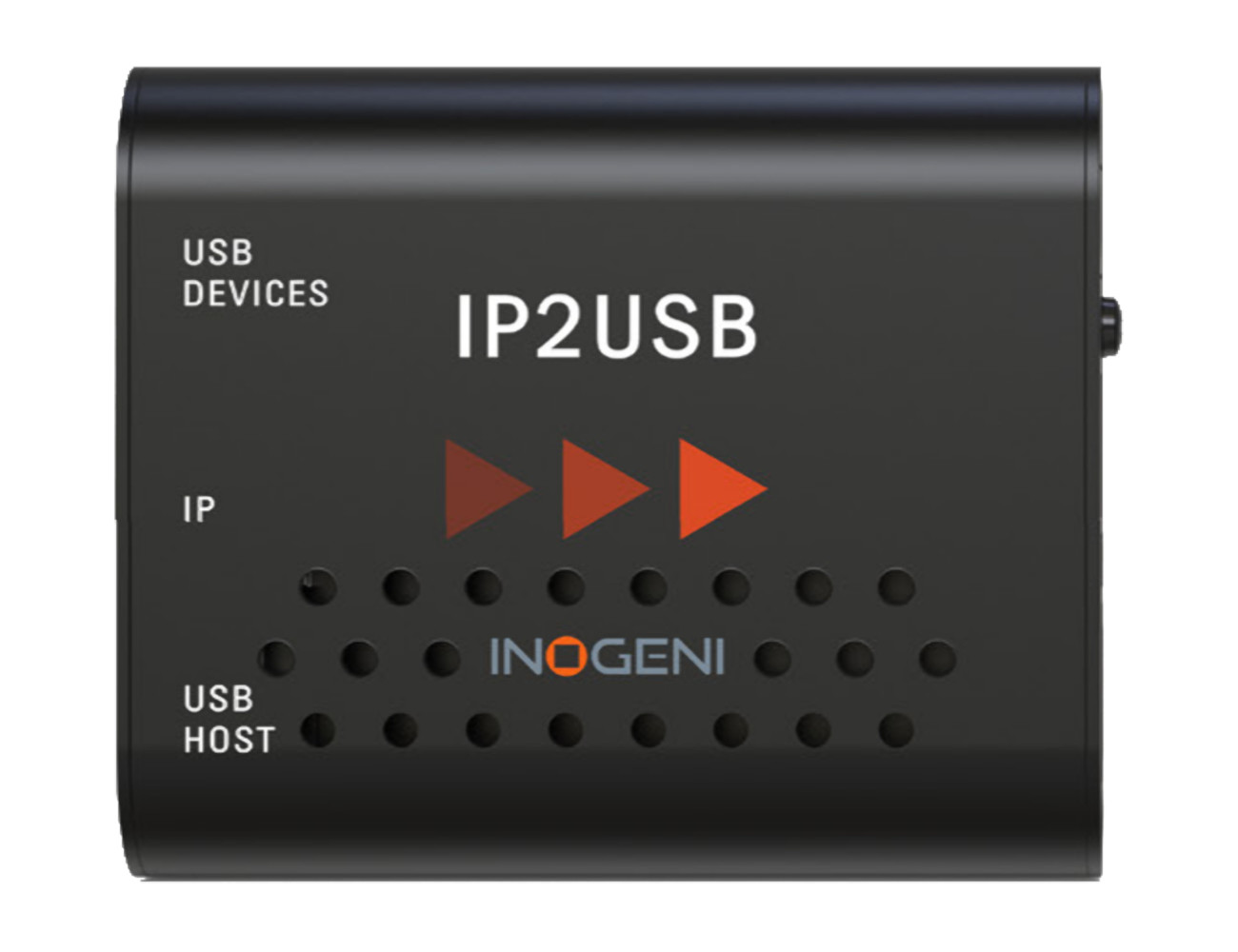

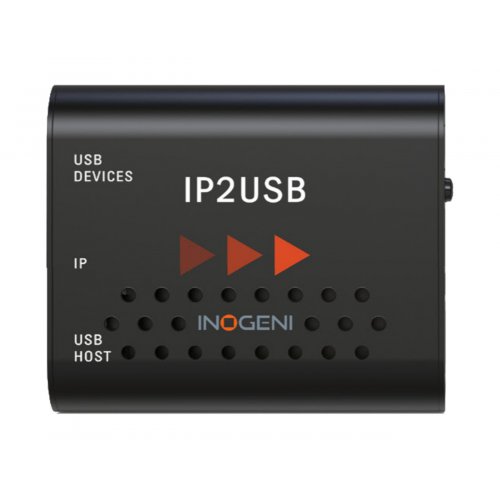

Inogeni IP2USB IP-to-USB Converter for AVoIP

About: Inogeni IP2USB IP-to-USB Converter for AVoIP

Next-level AV integration with IP-to-USB conversion

The INOGENI IP2USB is a specialized converter that allows users to connect sophisticated IP-based cameras to USB peripherals, eliminating the need for costly USB extenders. This solution is ideal for scenarios involving cameras with IP output. It enables a direct connection to the device without requiring an Ethernet switch, providing a simplified, cost-effective solution for integrating cameras and audio devices.

The IP2USB supports multiple AVoIP standards, including NDI/NDI HX/RTSP and Dante audio, enabling seamless transmission of video and audio across networks while ensuring low latency and high quality. This enables users to eliminate DSP systems, reducing costs while maintaining high-performance audio and video integration.

High-performance IP connectivity and USB interface

• Convert IP to USB and HDMI multiple AVoIP standards, including NDI, NDI HX and RTSP
• USB Host: 1x USB 2.0 Type-B for USB host PC connection
• UVC 1080p30 MJPEG video output
• UAC audio I/O support: Facilitates bi-directional audio via USB
• Dante audio integration with easy routing via Dante Controller

Connectivity and USB interface

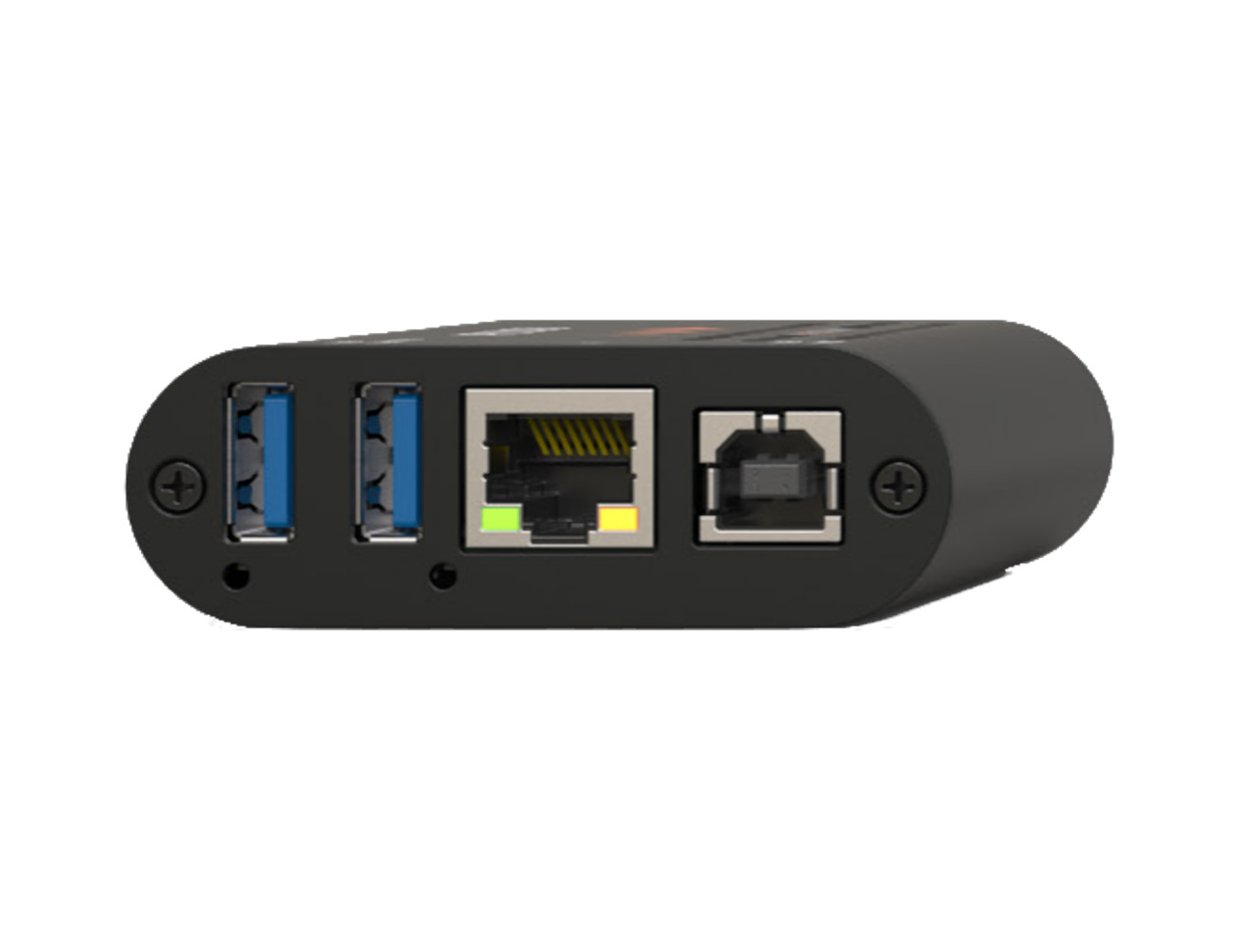

• USB devices: 2x USB3.0/USB2.0 Type-A for connection to peripherals, such as DSP, HID devices (keyboard, mouse, touch screen)
• HDMI: HDMI 1.4 output up to 2160p30 with audio
• Audio integration: Support for USB audio such as speakerphone/DSP to USB or HDMI sink

Seamless integration and flexible control

• Device can be controlled via IP, RS-232, or USB interfaces
• Camera control: Visca, PTZ, preset commands

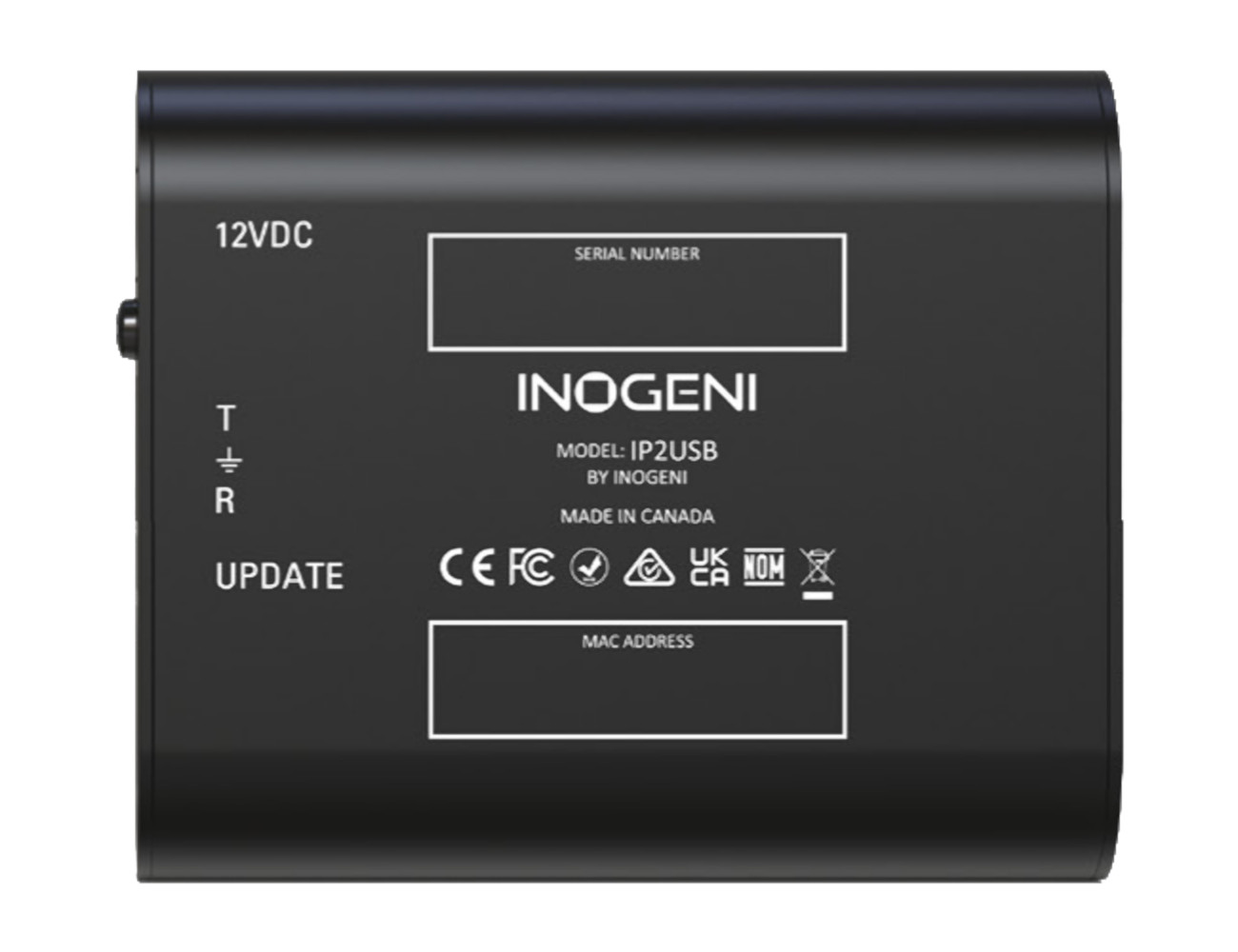

• LED indicators for power and RJ45 connection status
• Power: +12V power input from an external source

Versatile and reliable performance

• Supports NDI HQ (1080p30 in I-frame, low latency), NDI HX/HX2/HX3 (1080p60 in H.264/H.265), RTSP standards
• Seamless switching between multiple AVoIP sources with low latency
• Audio processing: Supports HDMI and USB-based audio routing

Reliable and efficient

• Direct connection using IP-based communication, reducing the need for expensive DSP systems
• Flexible solution for both video and audio integration, with the ability to route audio to HDMI and USB.
• Supports a wide range of peripherals and devices for a complete pro-AV solution
• Backed by a 5-year warranty
• Made in Canada and TAA-compliant

How it works

The INOGENI IP2USB allows you to easily connect IP-based cameras to a laptop or UC system via USB, eliminating the need for costly USB extenders. The device converts AVoIP signals, such as NDI/NDI HX and RTSP, into USB and HDMI outputs, simplifying integration with USB peripherals and video conferencing equipment. By leveraging IP-based communication, the IP2USB provides high-quality, low-latency video and audio streaming to laptops or CODEC systems, ensuring seamless connectivity in professional AV setups.

For environments with multiple cameras, the IP2USB can aggregate the signals from each camera, routing them over a single Ethernet connection to your laptop or codec system. This allows users to connect sophisticated cameras directly to their USB-enabled video conferencing hardware or software, without the need for additional infrastructure. The device also supports PTZ controls making it an ideal choice for dynamic, multi-camera setups.

In addition to video, the IP2USB offers full audio integration, with support for both UAC audio I/O over USB and HDMI audio output. This allows users to easily route audio from USB peripherals to HDMI sinks or USB-connected systems. With its flexible IP, USB, and RS-232 control options, the IP2USB is a versatile solution that simplifies pro-AV setups while providing reliable, professional-grade performance.

Dante audio integration with IP2USB

The IP2USB supports Dante audio, offering seamless, bidirectional audio over IP. This integration allows easy routing and flexible audio handling for professional AV systems.

• Dual configuration options:
  • 2x2 Audio interface
  • 1x1 Speakerphone mode
• Flexible Dante routing:
  • Signals can be routed via the Dante Controller, which is familiar to integrators who use Dante for networked audio.
  • Transmit 2x In and 2x OutDante audio channels to the USB interface in sync with video signals.

More about Dante capabilities

With Dante, the IP2USB integrates audio over a single network, eliminating the need for traditional DSP (Digital Signal Processing). This makes the setup simpler, faster, and improves efficiency, as the Dante Controller handles all routing. This setup is ideal for users already familiar with Dante in their AV workflows, offering both flexibility and reliability in networked audio integration.

Specifications

• Video input
  • Connector: 1x RJ45
  • Supported standards
    • NDI HQ/HX/HX2/HX3 (H.264/H.265)
    • RTSP
  • Video resolutions: Up to 1920x1080p60
• Audio
  • Supported USB devices: DSP & speakerphones
  • Supported Dante devices
    • DSP, microphones and speakers
    • Audio Channels: 2 in, 2 out
    • Sample rate: 48kHz
• USB output
  • Video scaler
    • 1x USB 2.0 Type-B
    • UVC interface up to 1080p30 MJPEG
    • UAC interface with audio I/O
    • PTZ control supported
  • Color space conversion: Automatic hardware-based
  • Sampling conversion: Automatic hardware-based
  • Frame rate conversion: Automatic hardware-based

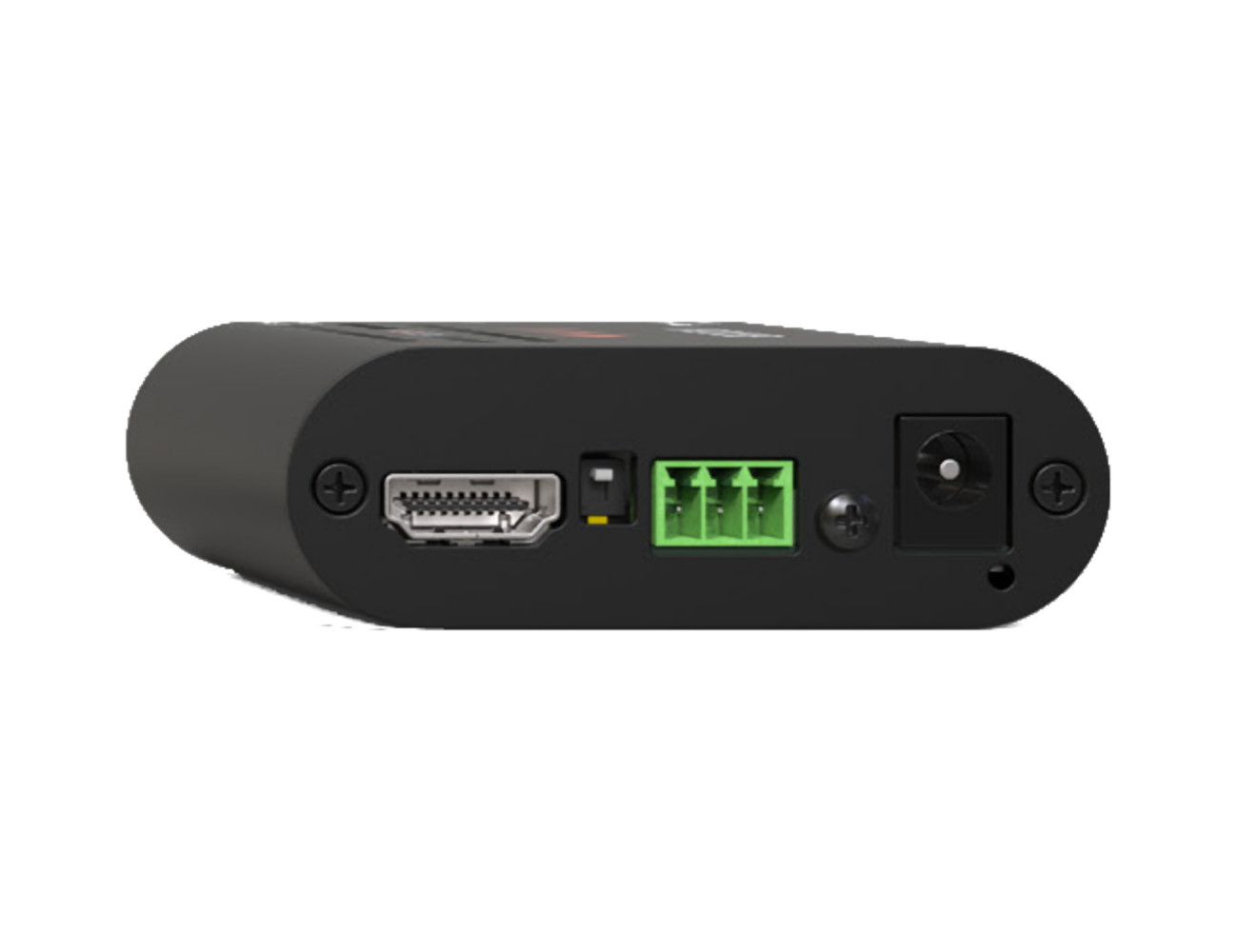

• HDMI output
  • Connector: 1x HDMI
  • Video resolutions
    • 3840x2160p23.98/24/25/29.97/30 fps
    • 1080p50/60 fps
    • 720p50/60 fps
  • Color space: YUV422 and YUV420 to RGB conversion
  • Embedded audio: Device will capture embedded audio from IP or external USB device and will output through HDMI.
  • Chroma subsampling
    • YUV/RGB
    • 4:4:4, 4:2:2
• Control
  • IP interface
    • 10/100 Mbps
    • Supports DHCP or static IP addressing
  • RS-232 interface
    • 3x positions – Terminal block
    • Baud rate: 9600
    • Data bits: 8
    • Stop bits: 1
    • Parity: None
    • Flow control: None
  • Presets: Able to recall camera presets from single and multiple cameras.
• Compatibility
  • Operating systems
    • NO driver installation necessary!
    • Windows 10 and above
    • macOS 10.10 and above
    • Linux (kernel v2.6.38) and above
  • Consumed USB tiers: 1 tier
  • Supported cameras: Any NDI HX and RTSP camera source that support up to 1080p60 are supported.
  • Software compatibility
    • UVC-compliant
    • Runs with all software compatible with DirectShow, AVFoundation and V4L2
    • Compatible with: Teams, Zoom, Webex, Google Meet, etc.
• Physical details
  • Operating temperature: 0° to 45° C (32° to 113° F)
  • Storage temperature: -40° to 105° C (-40° to 221° F)
  • Relative humidity: 0% to 90% non-condensing
  • Certifications: FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM
  • TAA-compliant: Yes
  • Power supply: 12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
  • Warranty: 5 years
  • Dimensions (WxLxH): 2.76 x 3.76 x 0.9 inch (7.0 x 8.3 x 2.3 cm)
  • Weight: 140 g (0.31 lb)

What's in the Box

• 1x IP2USB converter
• 1x 1 m (3 ft.) USB 2.0 cable (Type-A to Type-B)
• 1x RS-232 terminal block adapter
• 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
  • International adapters included in the box (AUS, EUR, UK and US)
