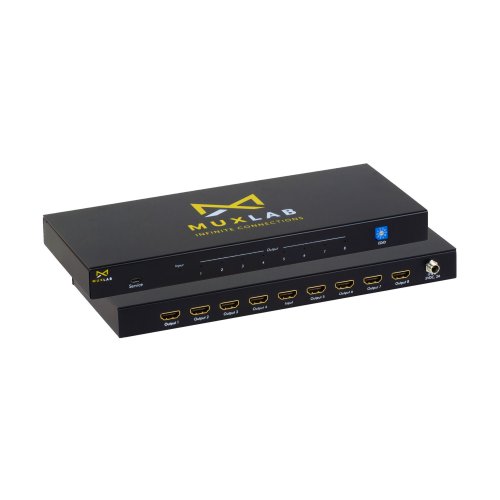

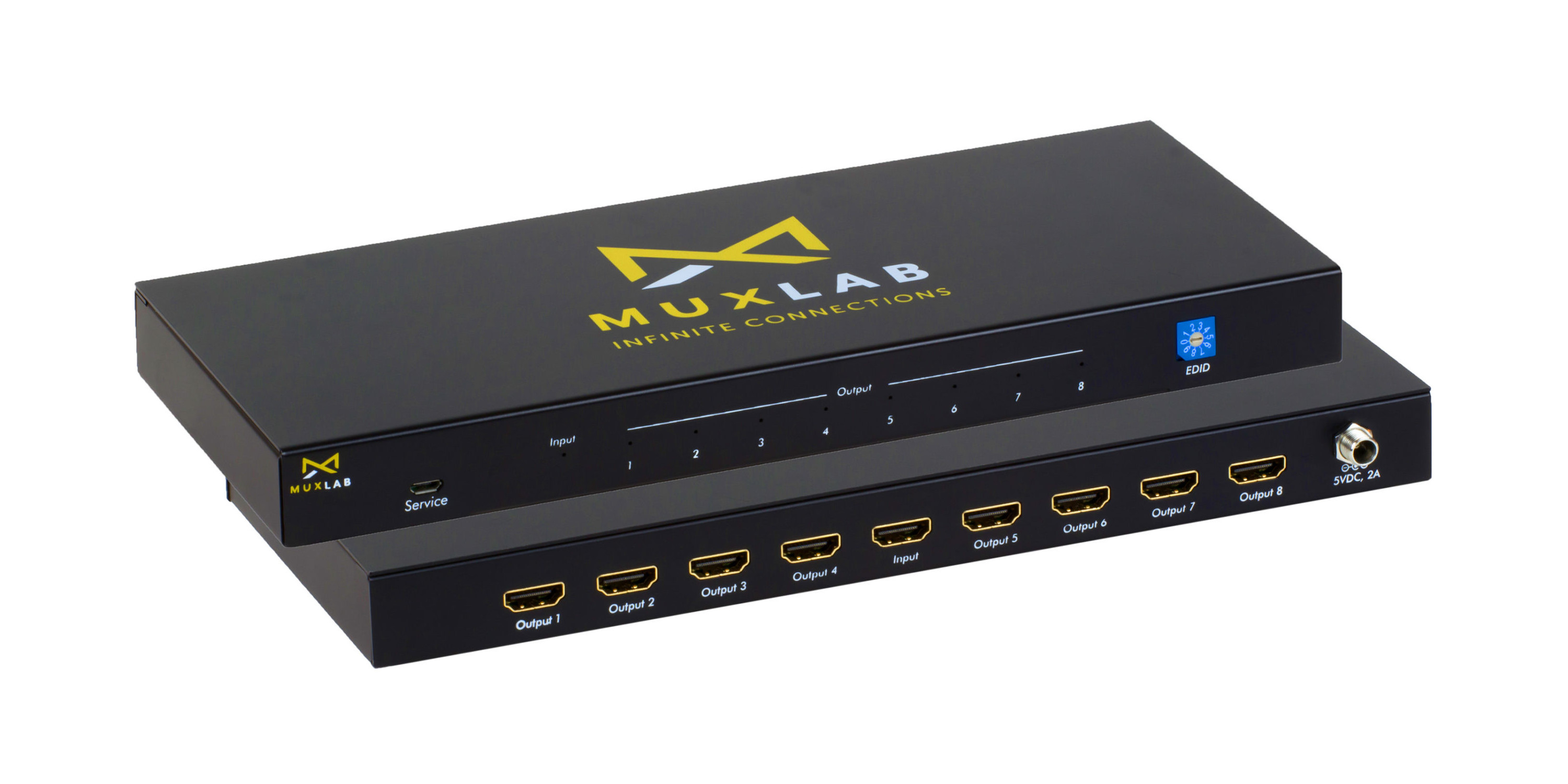

Muxlab 1x8 HDMI Splitter, 4K60
Model: 100507
About: Muxlab 1x8 HDMI Splitter, 4K60
The 1x8 HDMI Splitter allows one (1) HDMI source to be distributed to up to eight (8) HDMI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio. The splitter is HDCP 1.4 & 2.2 compliant, supports EDID management and features LED diagnostics. Additionally, all connectors are on the rear panel for neater cabling.
- Distribute one HDMI 2.0 source to eight displays
- Supports up to 4K @ 60Hz (4:4:4)
- HDCP 1.4 and 2.2 compliant
- Supports Dolby Vision, HDR and Deep Color
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Supports EDID management
- LED diagnostic
Specifications
- Environment: HDMI 2.0a
- Devices: Ultra HD Blu-Ray, projectors, monitors, TV, PC, laptops.
- Transmission: Transparent to the user.
- Video Bandwidth: 18 Gbps
- Frequency Range: 25 to 600 MHz
- Signals: HDMI 2.0a protocol.
- HDCP: Revision 1.4 & 2.2 compliant.
- Connectors: HDMI receptacle.
- Rotary Switch: For setting the EDID to be sent to the source
- LEDs
- Power: Blue
- Input & Output Link: Blue
- Resolution
- 480i to 1080p @ 50/60 FPS
- 1080p @ 24/50/60 FPS
- 3840 X 2160 @ 24/25/30/60 FPS
- Color: 8, 10 & 12 bit
- Audio: LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Cable: HDMI cable of appropriate length for video resolution selected.
- Power Supply :One (1) 110-240V/5VDC , 1A power supply
- Temperature
- Operating: 0° to 40°C Storage: -20° to 60°C
- Humidity: up to 90% non-condensing
- Enclosure: Metal enclosure
- Dimensions: 10.62” x 3.93” x 0.94” (270 mm x 100 mm x 24 mm)
- Weight: 2.4 lbs (1.09 Kg)
- Compliance: Regulatory: FCC, CE, RoHS
- Warranty: 1 year
UPC: 627699505076
