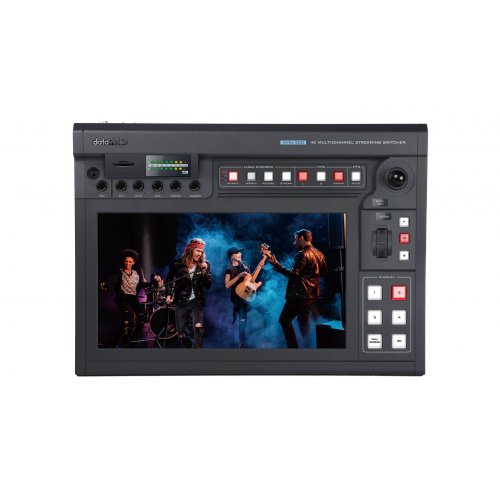

Datavideo KMU-300 4K Multi-Channel Touch Screen Region of Interest Switcher

About: Datavideo KMU-300 4K Multi-Channel Touch Screen Region of Interest Switcher

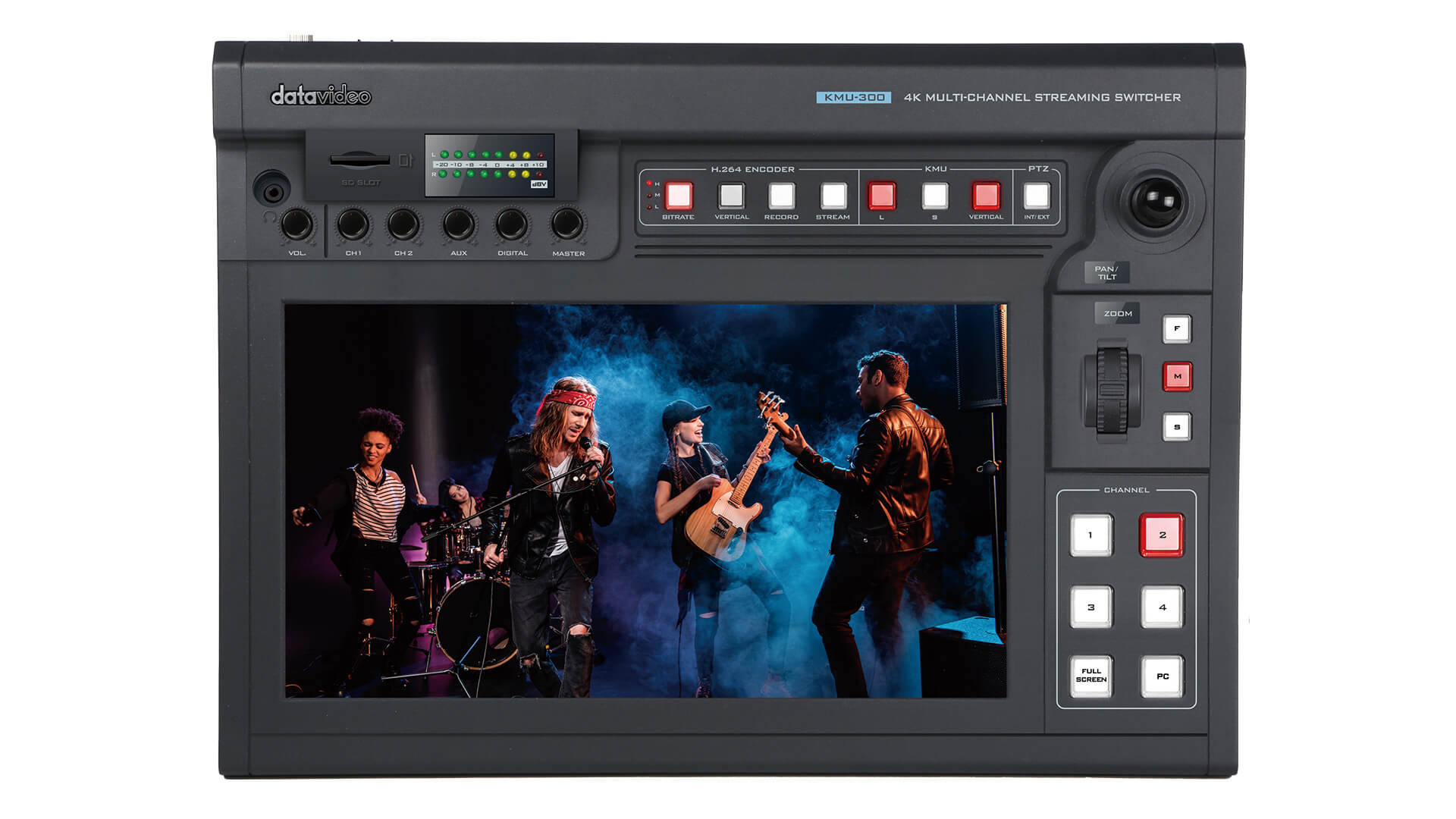

The KMU-300 is your all-in-one solution, converting 4K inputs into four 1080p high-definition output. With intuitive joystick and button controls, it manages PTZ camera movements and frame selection on its 14-inch capacitive touchscreen. This versatile device can output multiple landscape or portrait screens, facilitating real-time streaming to two platforms and SD card backup. Ideal for self-media studios, it streamlines camera control, audio mixing, dual-streaming, and recording, empowering a single operator for multitasking broadcasting.

Five HD Camera Angles, One 4K Camera

Unlock the magic of the KMU-300, which can transform a single 4K camera into the effect of five camera angles. Your streams will be enriched with versatile and engaging visuals, captivating your viewers.

Cinematic Precision at Your Fingertips

Elevate your video production with the KMU-300's effortless control over cropped video and external PTZ cameras. With an intuitive joystick and responsive zoom knob, you'll have the power to pan, tilt, and zoom with precision. Seamlessly switch between angles, capture essential moments, and create dynamic, professional-grade content.

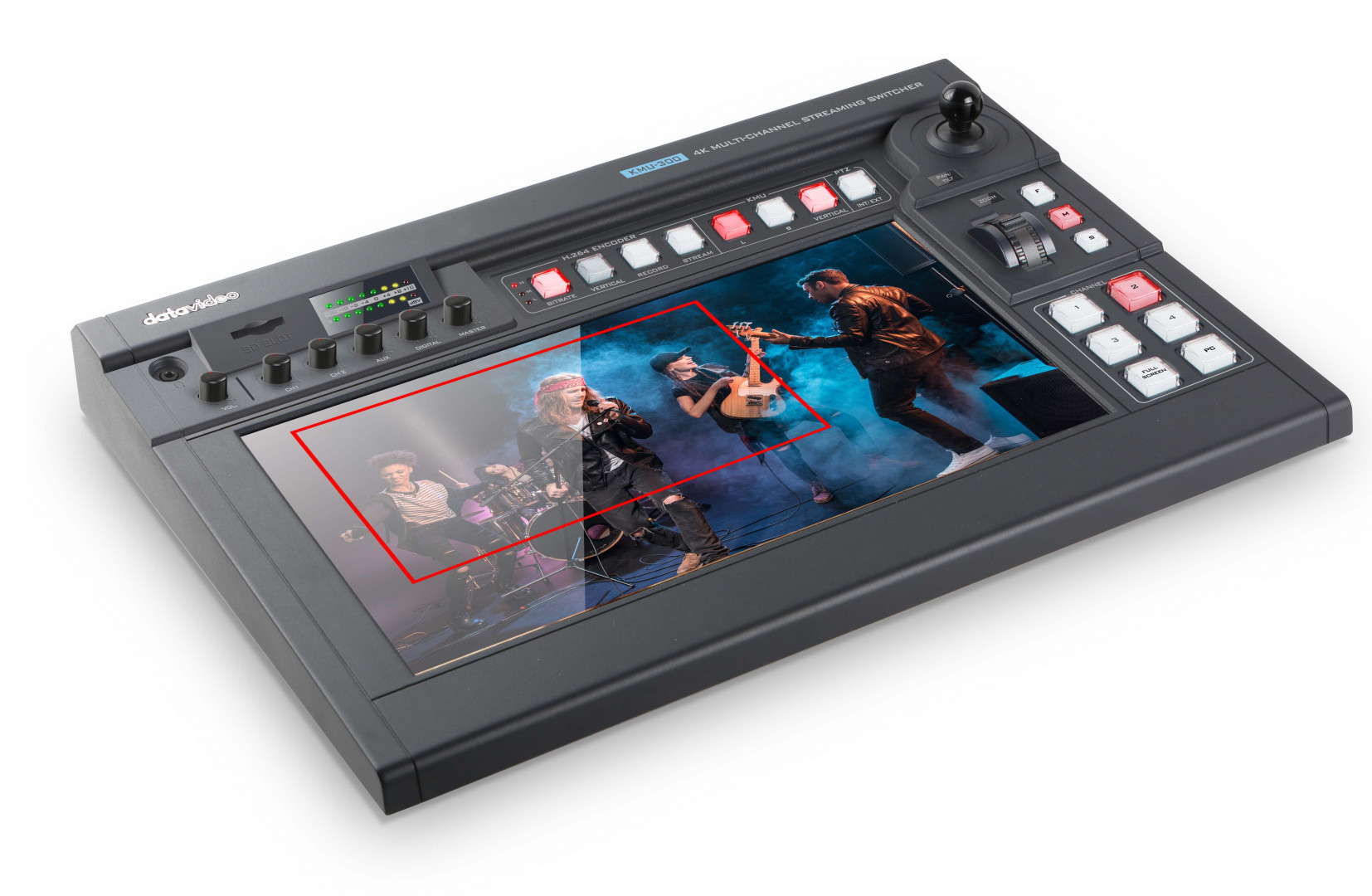

Effortless Control Through Intuitive Gestures

Experience seamless control of your content with the KMU-300's intuitive gesture interface. Zoom in and out, pan, and tilt effortlessly, all with simple, natural gestures such as pinching and swiping. The KMU-300 empowers you to fine-tune your camera angles and framing with the swipe of a hand. This innovation ensures your productions are not just high-quality, but also remarkably user-friendly, making it perfect for content creators of all levels.

Supports Audio Embedding in Video

The KMU-300 supports audio embedding with RCA, XLR, 4K camera, and PC audio embedding audio mixer, providing audio volume adjustment.

Direct H.264 Format Recording on SD Card

During live broadcasts, the KMU-300 enables you to simultaneously conduct dual-platform live streaming and on-site SD card recording, providing you with a complete solution.

Additional HDMI Interface for Presenter's PPT Input

Say goodbye to the hassles of switching screens for presentations. The KMU-300 comes equipped with dedicated HDMI inputs and outputs for PC signals, making it effortless to transmit presenter's PPT content. Directors can switch and monitor PPT content live on site with ease.

Supports 4K UHD Resolution Input

4K cameras are widely available and content online doesn’t require the full 4K resolution for streamed content. A single 4K camera can be utilized to obtain 4 cut outs or regions of interest. The KMU-300 is perfect for interview application with small panels or smaller houses of worship. With Social distancing becoming commonplace, the KMU-300 reduces the amount of cameras needed to get your production streamed live.

Make Your Streams More Reliable with SRT

Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility and packet loss. Streaming RTMP over unreliable networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently. As a result, your viewers will experience a better stream, with less buffering and pixelization.

Create Your Professional Landscape Program

When using the landscape switching mode with the KMU-300, you can easily switch between the four selected frame pictures on the right side of the screen, full-screen mode, or computer output using the corresponding buttons.

The operation is simple and user-friendly. The frame selection area can also be adjusted as presets in advance, making on-site video production convenient.

Create Your Professional Portrait Program

When using the portrait switching mode with the KMU-300, you can easily switch between the four frame pictures using the buttons on the right side of the screen.

The operation is simple and user-friendly. The frame selection areas can also be adjusted as presets in advance, making on-site video production convenient.

Vertical and Dual Streaming to Two Different Platforms and Seamlessly Compatible with dvCloud

Live streaming video directly from the KMU-300 is easier than ever. Just simply connect the KMU-300 to your local network, connect your PC to the same network and configure the streaming encoder.

After that you can simply start streaming by pressing the stream button. The built-in streaming encoder remarkably reduces, the need for different procedures and equipments.

Get the most out of your streaming hardware using dvCloud. The KMU-300 is seamlessly compatible with Datavideo’s dvCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.

You can also record your production on the dvCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.

Stream to 25 Platforms Simultaneously (dvCloud Professional)

dvCloud Professional (please refer to www.dvcloud.tv for more info) can stream to 25 platforms simultaneously. It can stream to either different platforms or different channels of the same platform. Thus, even if your local network bandwidth is limited, you can still stream to multiple platforms at the same time with dvCloud.

Real Time Statistics

dvCloud provides powerful real-time statistics for all video sources and destinations so you can be sure every frame reaches its destination:

• Monitor your video sources and be sure every frame makes it to the cloud
• Leave nothing to chance, check your networks performance and adjust your streaming settings before you go live
• Monitor your NVD-3X MARK II decoders and be sure every frame makes it to the decoder
• Monitor your streaming destinations in real time with our easy-to-use traffic light system
• All statistics are graphed, you can see the previous 10 minutes statistics.

Tutorial Videos Created Specifically for the KMU-300

Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.

Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the KMU-300 is available at Datavideo Academy to help you get the best performance out of the product.

Specifications

• Video Standard - UHD & HD
• Video Format
  • Input:
    • 3840x2160p 23.98/24/25/29.97/30/50/59.94/60
    • 1080p 50/59.94/60
  • Output:
    • 1080p 50/59.94/60
    • 720p 50/59.94/60
• Video Processing - 4:4:4 / 4:2:2 / 4:2:0

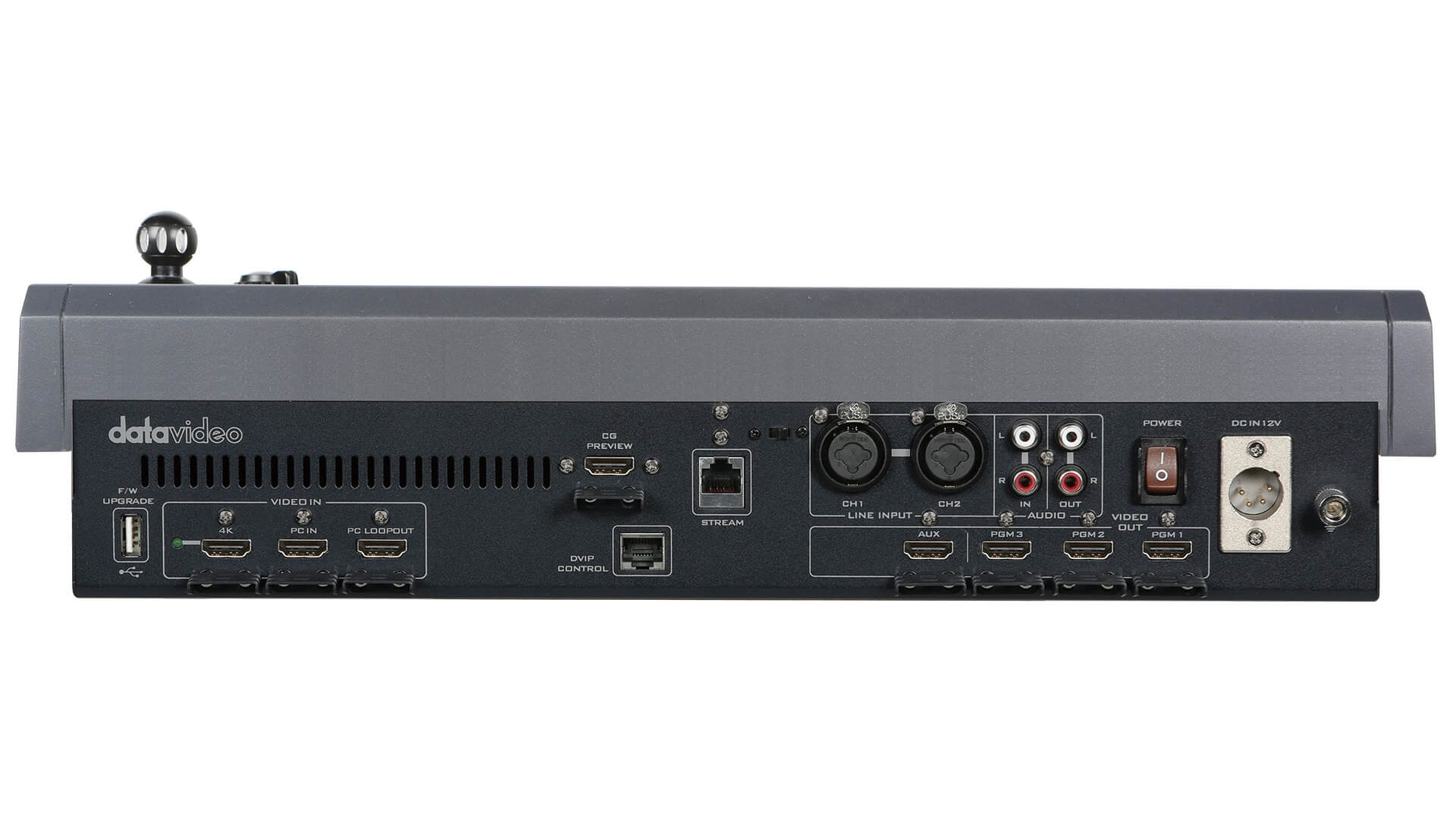

• Video Input
  • 1x HDMI 2.0
  • 1x HDMI 1.4 with Loop through
• Video Output
  • 3x HDMI 1.4 (Program)
  • 1x HDMI 1.4 (Aux: Ch1-Ch4)
• Support Video Output Resolution
  • 1920 x 1080p 50/59.94/60
  • 1280 x 720p 50/59.94/60
• Multiview Out - ---
• Multiview Mode - ---
• Streaming
  • Streaming Encode - H.264/AVC, Main/High Profile
  • Streaming Video Bitrate
    • Record Only: Up to 16Mbps (1080p50/60)
    • Stream Only: Up to 10Mbps (1080p50/60), dual stream
    • Record+Stream: 36Mbps (1080p50/60)
  • Streaming Video Rate Mode - CBR
  • Streaming Audio Mode - Stereo/Mono
  • Streaming Audio Bitrate
    • Stereo: 64~384Kbps
    • Mono: 32~192Kbps
  • Streaming Protocols
    • TS over TCP/UDP (unicast & multicast)
    • RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
    • RTMP/RTMPS (Publish)
    • HLS
    • SRT
  • Network Interface - 1x RJ45 (10/100Mbps Ethernet)
• Recording
  • Recording Storage Medium - SD Card (Class 10 above)
  • Recording Storage File System - NTFS, FAT, exFAT
  • Recorded File Format - MP4
  • Built-in Audio Mixer - Yes, 4 channels
• Audio
  • Audio Input
    • 2x XLR(Mic)
    • 2x RCA
  • Audio Output - 2x Unbalanced RCA
  • Audio Sampling - ---
  • Reference Input - ---
• Others
  • Control Interface - ---
  • Preview Display - 14” Capacitive Touch LCD
  • Controller - ---
  • Dimension (LxWxH) - 438 x 331 x 114 mm
  • Weight - 4.3 kg
  • Power Supply - DC 12V, 52W
  • Operating Temp. Range - 0~40 °C

What's in the box

• 1x KMU-300 Main Unit
• 1x AD Switch DC 12V with AC Cord
