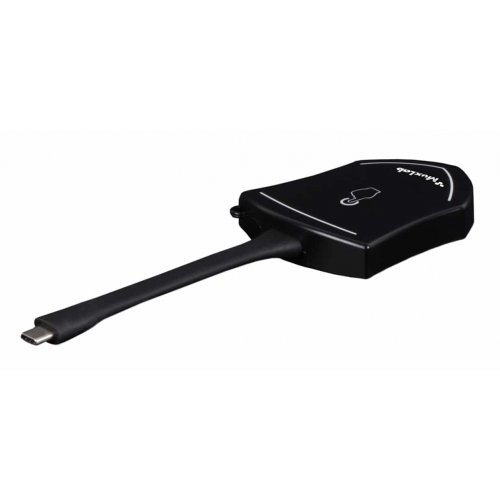

Muxlab MuxMeet Share USB-C Dongle

About: Muxlab MuxMeet Share USB-C Dongle

The MuxMeet Share Dongle-U1 is a USB-C Dongle that enables meeting participants using Windows or MAC based laptops to wirelessly share content with the push of a button, making connecting and sharing desktop screens in a meeting a simple and enjoyable experience.

The MuxMeet Share Dongle-U1 is easy to connect and easy to use. Thanks to its plug-and-play connectivity, there is no need to install drivers. Sharing your desktop screen is as easy as pushing a button on the attached MuxMeet Share Dongle-U1, and an LED indicates the unit status. This device works in conjunction with MuxMeet Share Base-1 or with MuxMeet Share Base-2. (MuxMeet Share Base-1 and MuxMeet Share Base-2 are sold separately.

• Can be plugged to a Windows or Mac based laptop
• Can wireless transmit the computer desktop to MuxMeet Share Base-1 or MuxMeet Share Base-2
• Supports transmit the computer desktop in mirror or extend mode
• Supports VESA PC resolution, auto-detecting
• No driver installation required
• With the push of a button, it is possible to start or stop a transmission

Specification

• Video Input Formats
  • Compliant with DP 1.2 for 1.62Gbps, 2.7Gbps, 5.4Gbps
  • Compliant with DP 1.2 and eDP1.4
  • Supports DP 1, 2, and 4 lanes Over type C
• HDCP - HDCP 1.3
• Video Input Resolution - VESA, maximum 1920x1080
• Video Input Timing - 1920x1080, 1680x1050, 1600x900, 1440x900, 1400x1050, 1366x768, 1280x1024, 1280x800, 1280x720, 1024x768, 1920x1200, 1600x1200, 2560x1440 @50HZ~60HZ
• Video Output Formats - 1 x Wireless
• Wireless Output - WIFI 11b/g/n/ac
• Audio Input Formats - PC embedded digital, 2CH PCM
• Audio Output Formats - WIFI 11b/g/n/ac
• USB Input - USB Type C
• Video Capacity - Wireless Transmission 1080P@ < 60Hz, 2560x1440 30Hz
• Distance - Typical: 35m without obstacle between WMT3-H and WMS
• Control Button - Capacitive touch Key and vibration
• Indicator - Green/Red/color back-lit LED indicator
• Operating temperature - -20°C ~ +45°C (-4°F ~ +113°F)
• Storage Temperature - -20°C ~ +60°C (-4°F ~ +140°F)
• Relative Humidity - 20% ~ 85% RH (No condensation)
• DC Power - USB Internal 5V
• Power Consumption - 3W (MAX)
• Unit Dimension (DxWxH) - 3.14” x 2.55” x 0.51” (80mm x 65mm x 13mm)
• Unit Weight - 0.18 lbs (0.081Kg)
