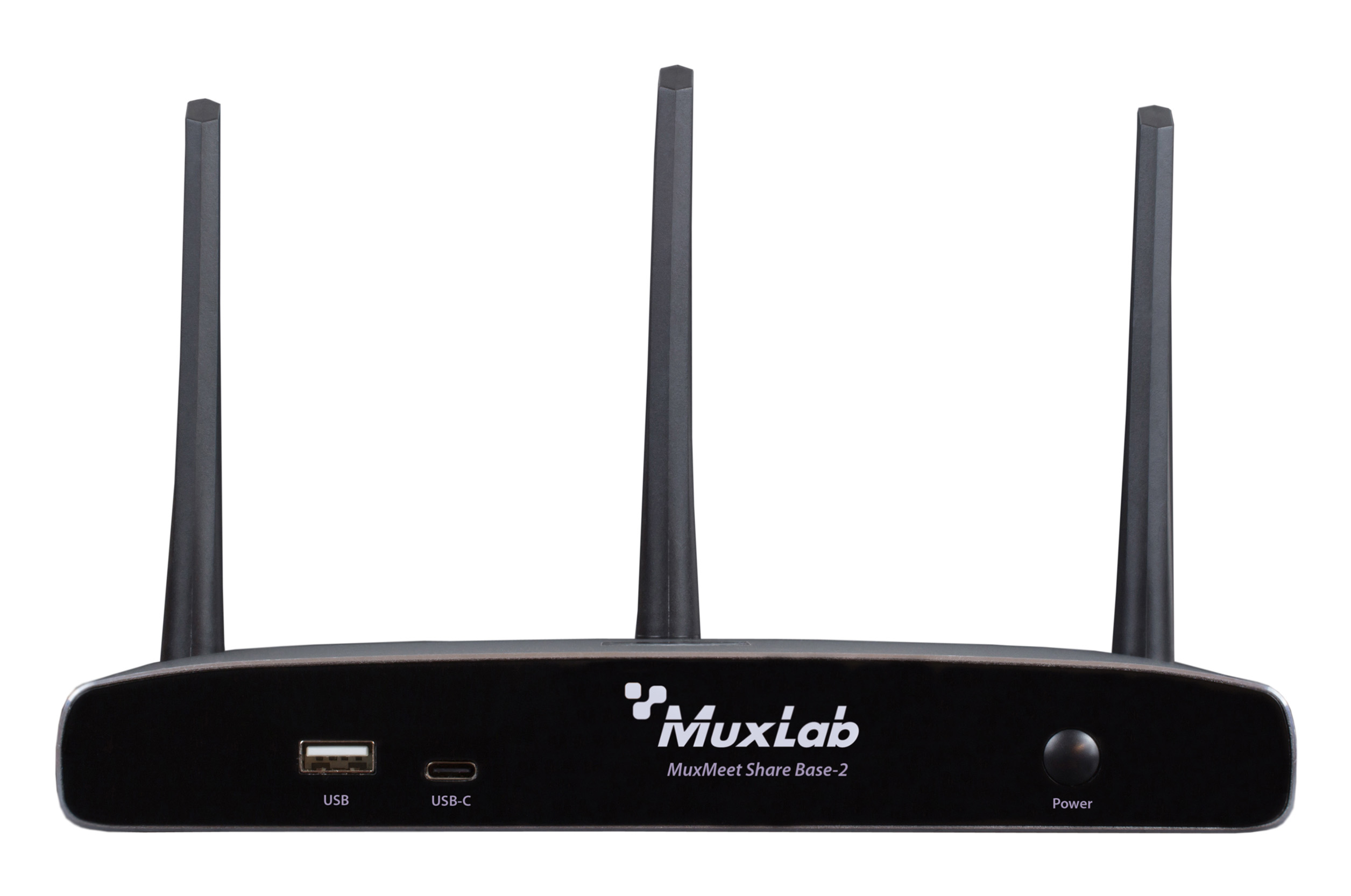

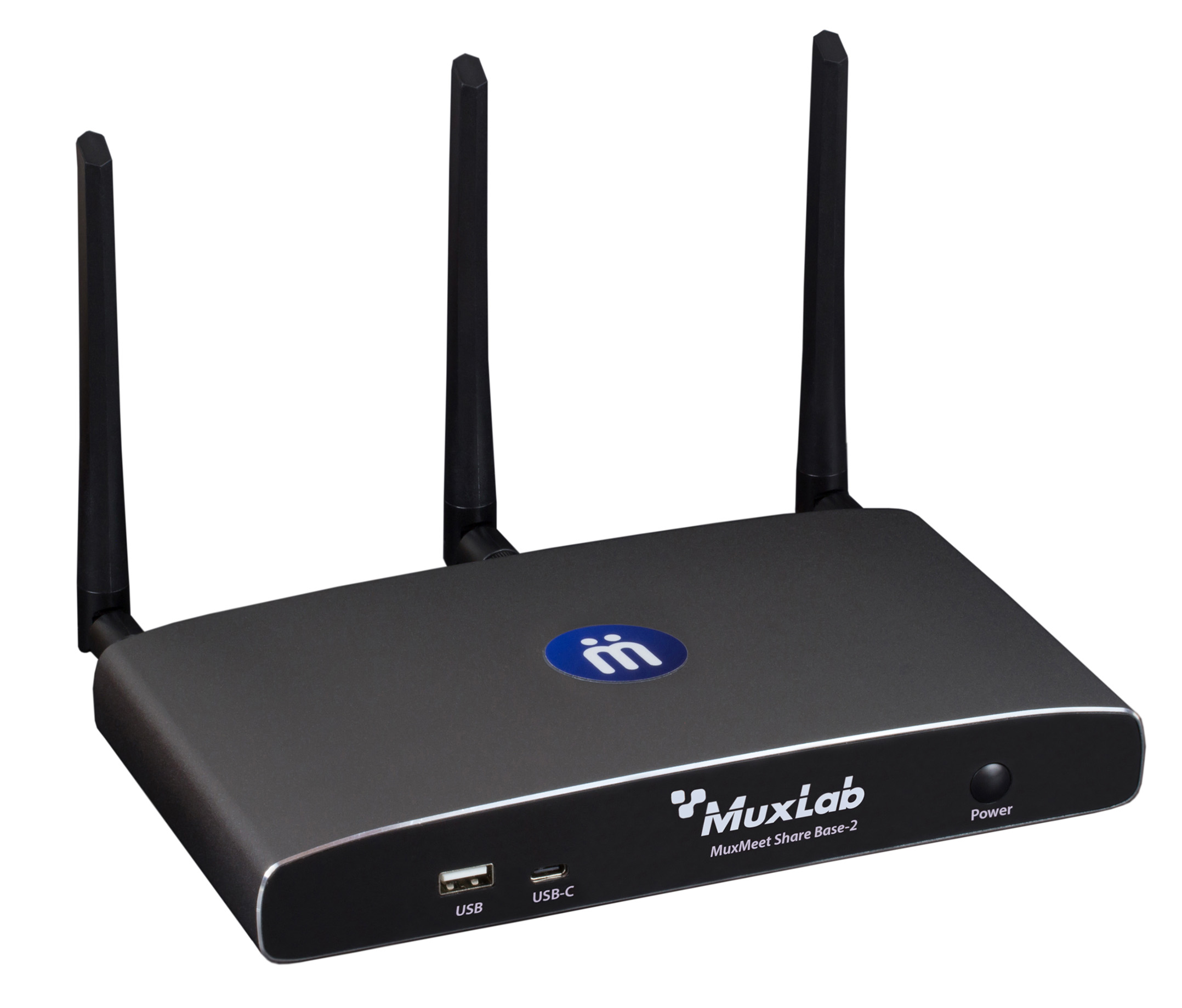

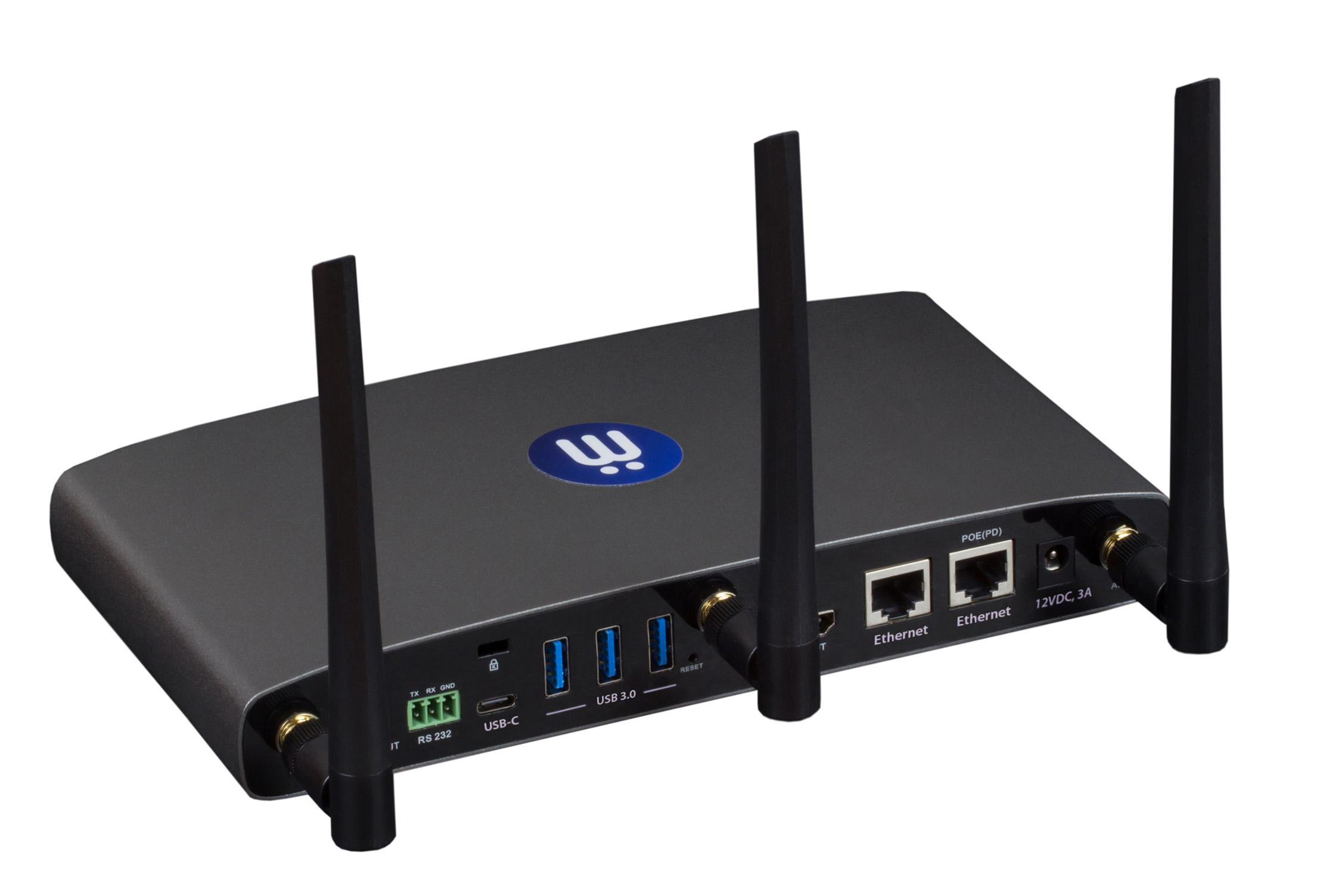

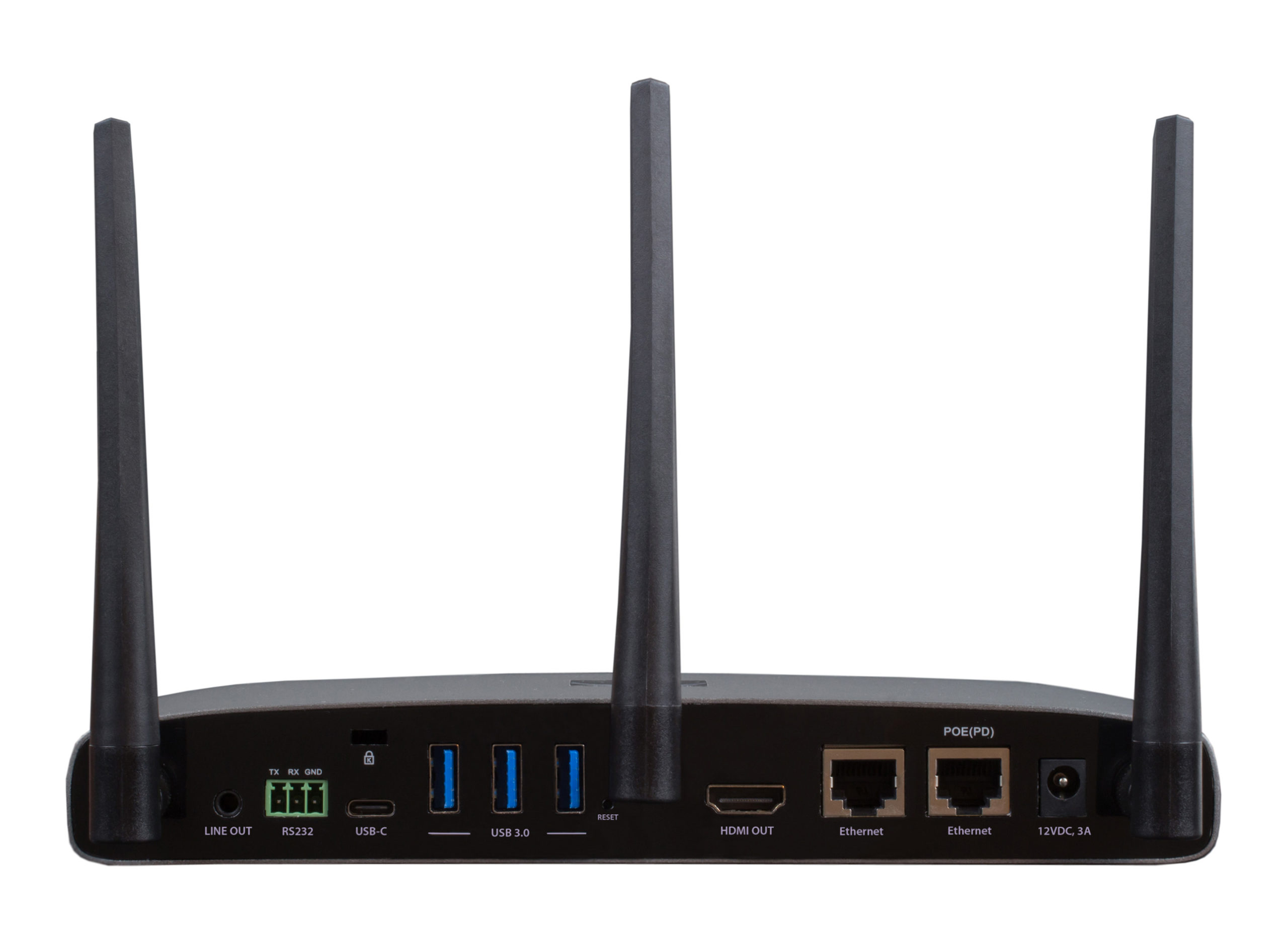

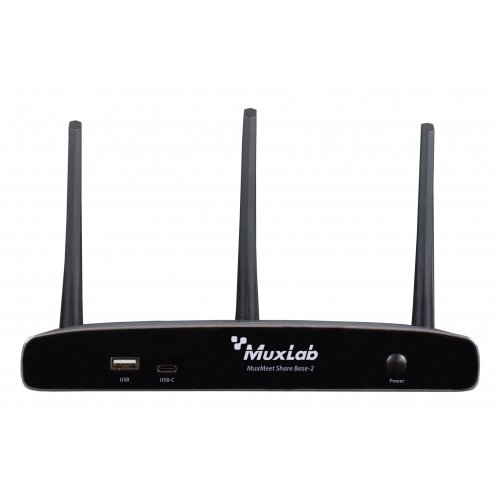

Muxlab MuxMeet Share Base-2 Wireless Presentation Module

Model: 500829

Muxlab MuxMeet Share Base-2 Wireless Presentation Module
Muxlab MuxMeet Share Base-2 Wireless Presentation Module
Muxlab MuxMeet Share Base-2 Wireless Presentation Module
Muxlab MuxMeet Share Base-2 Wireless Presentation Module
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

Share Base-1$649.00
Share Base-2$1,050.00


About: Muxlab MuxMeet Share Base-2 Wireless Presentation Module

MuxMeet Share Base-2 is a wireless conference room product that has been designed to meet today’s hybrid workforce’s requirement supporting not only local presentations but also allowing the user to collaborate with remote participants. It enables people to connect the room camera, mic, speaker (such as the MuxMeet Videobar, model: 500820, sold separately) and display with their own laptops wirelessly, so people can take advantage of room A/V system to collaborate with both in-room and remote meeting participants, without cable limitation and hassle.

MuxMeet Share Base-2 allows users to host a video conference call from their personal device using their preferred conferencing solution (eg Microsoft Teams, Webex, Zoom and many more), Users with iOS devices stream natively via AirPlay, Android users can download the MuxMeet Share app from Google Play, Chrome OS devices stream to the desktop or to tabs directly on a Chrome browser, and Windows and Mac laptop users can download the MuxMeet Share app on their computer from the MuxMeet Share Base-2 unit web server. In addition, users can also wirelessly share content with the push of a button if they use an HDMI or USB-C Dongle, models 500827 and 500828 respectively (Dongles sold separately).

  • Pure wireless presentation experience
  • Bring your own meeting (BYOM) with no messy cables
  • Wireless connection between your laptop and USB peripherals in the room such as camera, microphone, and speaker.
  • Fully compatible with the main video conferencing platforms such as Teams, Zoom, WebEx, etc.
  • Supports native wireless mirroring protocols like Airplay, Miracast, and Chromecast
  • Supports plug-and-play HDMI and USB-C dongles for wireless connection
  • Available Windows and MAC applications for wireless connection
  • Supports use in whiteboard and annotation mode
  • OSD control with preview function

Specification

  • HDMI Output - 1 x HDMI 19-pin female connector
  • Video Output Resolution - 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz
  • Format Compliance - HDMI 1.4 / HDMI 2.0
  • Video Capacity
    • 1080P @ <60Hz Airplay for iOS devices
    • 1080P @ <60Hz “MuxMeet Share” App
    • 1080P @ <60Hz for dongles
  • HDCP - HDCP 1.4 / HDCP 2.2
  • Analog Audio Output - 1 x 3.5mm PC audio female connector
  • Lan Port - RJ45 x 2: 1000Mbps x 1, 100Mbps x 1
  • USB Interface - USB 3.0 x 1, USB 2.0 x 1, USB-C x 1
  • Audio Input - AirPlay, Windows/MAC, WMH
  • Control Connectors - 3.5mm Phoenix terminal / RS232 interface
  • Number of window simultaneous on screen - ≤ 4+14 (4main windows + 14 thumbnail windows)
  • Number of simultaneous connections - ≤ 16
  • Data rate in wireless - Up to 1200Mbps
  • Video Playback Frame Rate - 20-60 FPS
  • Latency - <100ms, Min 20ms
  • Wireless Transmission Protocol - WIFI IEEE 802.11 a/g/n/ac
  • Frequency Band - 2.4GHz&5GHz
  • Operating Temperature - -20°C ~ +60°C (-4°F ~ +140°F)
  • Humidity (Storage / operating) - 20%-90% (non-condensing)
  • DC Power - 12V / PoE
  • PoE Standard - IEEE802.3af
  • Power Consumption - 10W (MAX)
  • Unit Dimension (DxWxH)
    • Without antenna: 4.72” x 8.66” x 1.61” (120mm x 220mm x 41mm),
    • Including antenna: 4.72” x 8.66” x 5.70” (120mm x 220mm x 145mm)
  • Unit Weight - 2.20 lbs (1.0 Kg)

UPC: 627699008294

Reviews: Muxlab MuxMeet Share Base-2 Wireless Presentation Module

There are currently no product reviews.


Warranty: Muxlab MuxMeet Share Base-2 Wireless Presentation Module

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

PASSIVE PRODUCTS: LIFETIME WARRANTY*

ACTIVE PRODUCTS: 2 YEAR LIMITED WARRANTY

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
