Muxlab MuxMeet Share HDMI Dongle

About: Muxlab MuxMeet Share HDMI Dongle

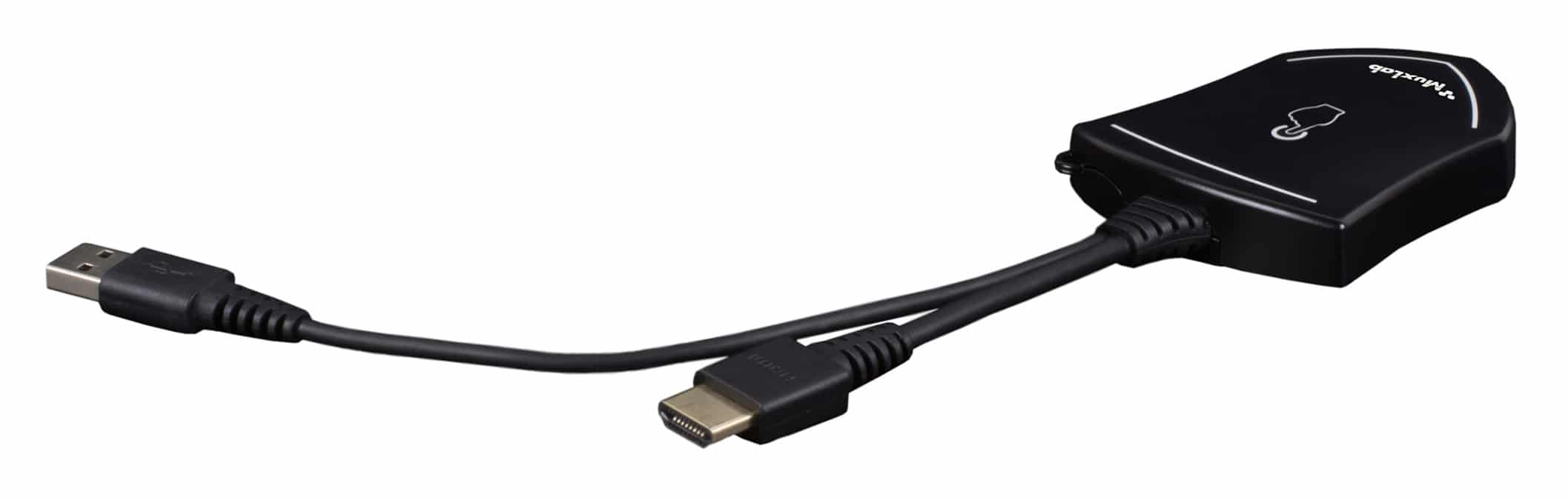

he MuxMeet Share Dongle-H1 is an HDMI Dongle that enables meeting participants using Windows or MAC based laptops to wirelessly share content with the push of a button, making connecting and sharing desktop screens in a meeting a simple and enjoyable experience.

The MuxMeet Share Dongle-H1 is easy to connect and easy to use. Thanks to its plug-and-play connectivity, there is no need to install drivers. Sharing your desktop screen is as easy as pushing a button on the attached MuxMeet Share Dongle-H1, and an LED indicates the unit status. This device works in conjunction with MuxMeet Share Base-1 or with MuxMeet Share Base-2. (MuxMeet Share Base-1 and MuxMeet Share Base-2 are sold separately.

• Can be connected to a Windows or Mac based laptop
• Can wireless transmit your computer desktop to MuxMeet Share Base-1 or MuxMeet Share Base-2
• Supports transmit the computer desktop in mirror or extend mode
• Supports VESA PC resolution, auto-detecting
• No driver installation required
• With the push of a button, it is possible to start or stop a transmission

Specification

• Video Input Connectors - 1xHDMI Type A 19P Male Connector
• Video Input Resolution - 2540x1440@60Hz, 1920x1080@60Hz, 1280x720@60Hz
• Format Compliance - HDMI 1.4
• HDCP - HDCP 1.4
• USB Interface - USB2.0x1
• Audio Input - HDMI PCM 2CH
• Control Connector - USB HID (Touch back)
• Video Playback Frame Rate - 20-60 FPS
• Latency - < 100ms
• Wireless Transmission Protocol - WIFI IEEE 802.11 a/g/n/ac
• Frequency Band - 2.4GHz&5GHz
• WIFI Antenna - MIMO 2x2
• Data Rate in Wireless - Up to 1200Mbps
• Operating temperature - -20°C ~ +45°C (-4°F ~ +113°F)
• Storage Temperature - -20°C ~ +60°C (-4°F ~ +140°F)
• Relative Humidity - 20% ~ 85% RH (No condensation)
• DC Power - USB Internal 5V
• Power Consumption - 2.5W (MAX)
• Unit Dimension (DxWxH) - 3.14” x 2.55” x 0.51” (80mm x 65mm x 13mm)
• Unit Weight - 0.2 lbs (0.09Kg)
