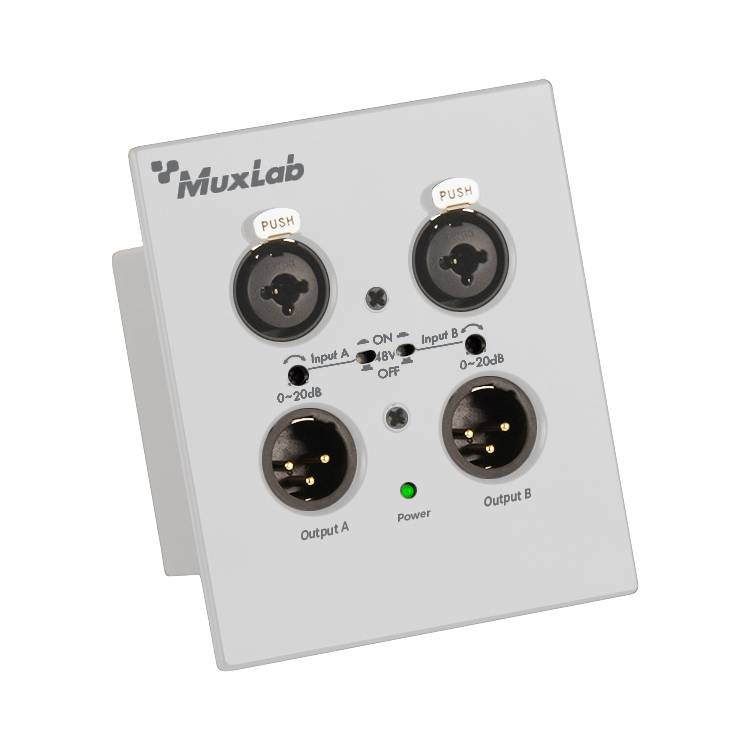

Muxlab Dante 2-Channel XLR Wall-Plate - White
Model: 500558-WH
About: Muxlab Dante 2-Channel XLR Wall-Plate - White
The Dante 2-Chanel XLR Wall-Plate (white) permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. The unit allows the transmission of full-range (20Hz to 20KHz) balanced or unbalanced two channel analog audio signals on XLR over the network to Dante equipment. It is powered using the PoE from any PoE network switch. The Dante 2 channel XLR Interface is designed to be compatible with standard double gang US wall boxes.
- Built-in Dante module
- Supports PoE power from PoE network switches
- Features 2 XLR balanced inputs and 2 XLR balanced outputs
- Features 2 channels Dante input and 2channels Dante output
- Audio sampling rate supports 48kHz (24bit)
- The input supports 48VDC phantom power supply
- Power supply and audio transmission integrated in one cable
- Designed to be compatible with standard double gang US wall boxes.
- Supports PoE (IEEE802.3af)
Specification
- XLR Impedance Input - Balance 20k Ohm
- XLR Impedance Output - Balance 100 Ohm
- Dante interface - RJ45 interface, with PoE
- Frequency response - 20Hz-20kHz
- Sampling rate - 48kHz 24bit
- Floor noise - -90dB
- Channel Isolation - 100dB @ 1kHz
- Form Factor - 2 Gang US
- Power consumption - 2W
- THD + N - <0.005% @4dBu
- Operating temperature - 0°C ~ +40°C
- Dimensions (LxWxH) - 123.5mm × 79mm × 35mm
- Net Weight - 156g
UPC: 627699015582
Reviews: Muxlab Dante 2-Channel XLR Wall-Plate - White
Warranty: Muxlab Dante 2-Channel XLR Wall-Plate - White
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
PASSIVE PRODUCTS: LIFETIME WARRANTY*
ACTIVE PRODUCTS: 2 YEAR LIMITED WARRANTY
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
