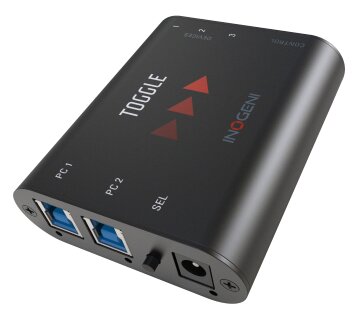

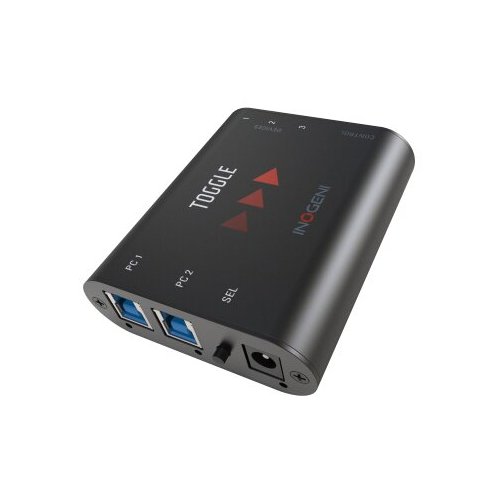

Inogeni TOGGLE USB 3.0 Switcher

About: Inogeni TOGGLE USB 3.0 Switcher

With the TOGGLE USB 3.0 Switcher, connect to three USB 3.0 devices and switch them between two hosts. It will switch automatically to a laptop when it is connected, and revert back to the room pc when disconnected. It can also be controlled remotely by RS-232 or GPI.

INOGENI’s TOGGLE USB 3.0 PRO AV switcher allows anyone in a conference room to access high-quality USB devices (cameras, microphones) in mere seconds. The TOGGLE USB 3.0 switcher offers an array of features for a smooth and seamless BYOD or BYOM experience:

• Three USB 3.0 device ports
• Automatically switch between two USB 3.0 hosts
• Compatible with USB 2.0
• Automatic, manual or remote control
• RS-232 control
• GPI control
• Rugged full-metal enclosure
• External power supply can provide power to USB 3.0 devices
• Two USB 3.0 cables included
• Device configuration via the  INOGENI Control App
• Firmware upgrade available via the  INOGENI Control App
• Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

How it works

The TOGGLE USB 3.0 professional switcher can connect to three USB 3.0 devices and switch them between two hosts. It will automatically switch to a laptop when it is connected, and revert back to the conference room’s computer when disconnected. It can also be controlled remotely by RS-232 or GPI.

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional switchers. Enable BYOM/BYOD with Lenovo ThinkSmart videoconferencing system.

Compatible with all cameras and devices (microphones, etc.)

This 4K pro AV camera converter is fully compatible with all cameras, including professional-caliber equipment such as Vaddio, Huddly, HuddleCAMHD, Aver, Jabra, Logitech, Marshall cameras, and web cameras.

Specifications

• Video input

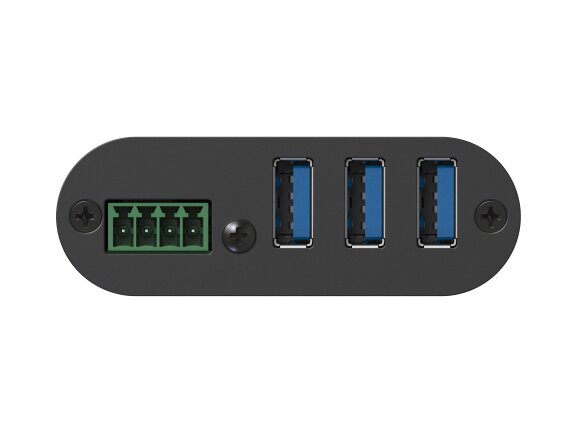

  • USB device ports Connector & Video Resolutions - 3 x Type-A USB 3.0/2.0 compatible

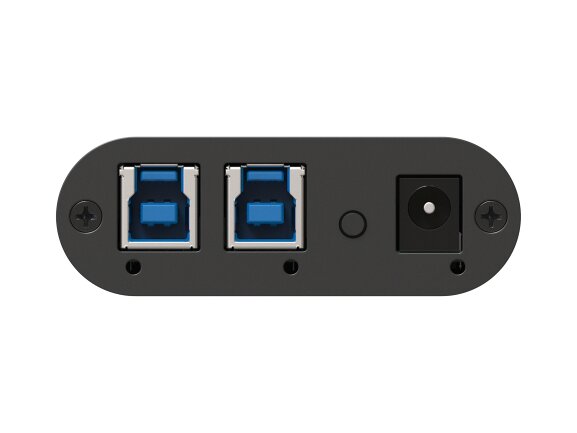

  • USB host ports Connector & Video Resolutions - 2 x Type-B USB 3.0/2.0 compatible
• Control
  • Software - Automatic, manual or remote control. Current configuration is saved onboard.
  • Device control
    • RS-232 control
    • GPI control
• Compatibility
  • Barco ClickShare compatible - Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)
  • Serial interface - Baud rate: 9600 bps For control purpose. See Serial communication protocol section for more details.
  • Push-button - Physical switch to select host.
  • GPIN - Contact-closure control. Controlled by open-drain IO (short to ground) or driven IO. Supported voltage range: 0V to +12V max. Voltage threshold is 2.3V.
  • Device current limit - 1.8A shared current limit for all 3 x USB device ports. You can monitor current consumption through RS-232 and our Control App.
• Software
  • Upgrade - Field upgradable through our  INOGENI Control App.
• General
  • Dimensions (WxLxH) - 2.75 x 3.25 x 0.9 Inch (7.0 x 8.3 x 2.3 cm)
  • Weight - 113g (0.25 lb)
  • Power supply - 12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
  • Operating temperature - 0° to 45° C (32° to 113° F)
  • Storage temperature - -40° to 105° C (-40° to 221° F)
  • Relative humidity - 0% to 90% non-condensing
  • Certifications - FCC, CE, RoHS, IEC62368, SoV, RCM, KC
  • TAA-compliant - Yes

What’s in the box

• 2x 3 ft USB 3.0 cables (Type-A to Type-B)
• 1x RS-232 terminal block adapter
• 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
  • International adapters included in the box (AUS, EUR, UK and US)
