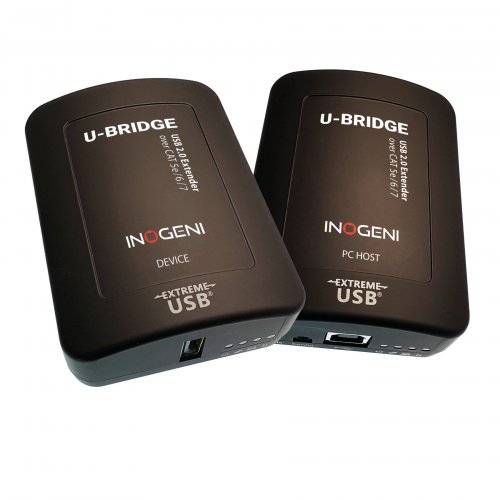

Inogeni U-BRIDGE USB 2.0 Camera and Device Extender

About: Inogeni U-BRIDGE USB 2.0 Camera and Device Extender

The new INOGENI U-BRIDGE USB 2.0 extender for cameras and any USB 2.0 device is the problem-solver to interoperability challenges faced by AV installers looking for a reliable long-distance USB camera extension while maintaining high-quality video. The U-BRIDGE USB 2.0 video camera and audio extender enables high-speed USB 2.0 connections up to 100 m /330 ft. over a single CAT 5e/6/7 cable.

Ideal for USB camera extension in videoconferencing rooms

• The U-BRIDGE is fully compatible with all USB cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Versatile Extreme USB 2.0 proven technology

It supports all USB 2.0/1.1 devices and is designed for use with USB cameras, whiteboards, microphones, audio devices, and any other USB device (hard drives, flash drives or keyboards).

• Flexible option to power either the PC HOST or the camera DEVICES modules.
• It provides plug-and-play convenience with no software drivers required.
• It works with all major operating systems, including Windows, macOS, and Linux.
• It comes with a two-year warranty for added peace of mind.
• It enables device access and control of USB devices.

How it works

Extend your USB 2.0 camera to any INOGENI USB input or CODECs or videoconferencing system

Use an INOGENI converter to extend your HDMI camera with the U-BRIDGE.

Extend USB 2.0 up to 100 m/330 ft. over a single CAT 5e/6/7 cable.

• Camera to PC Host
• INOGENI Devices to PC Host
• HDMI camera with INOGENI Devices
• Any standard USB 2.0 devices

By connecting your HDMI camera to any INOGENI mixers or converter (HDMI to USB converter), you can effortlessly transmit high-quality video signals in MJPEG format, along with audio, to your computer or PC-based videoconferencing setup in any room and up to 100 m/330 ft. long.

Extend USB 2.0 camera to PC Host

The U-BRIDGE is fully compatible with all USB cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Extend USB camera, microphone or any USB 2.0 devices uo to 100m /330 ft. over a single CAT 5e/6/7 cable. The U-BRIDGE USB 2.0 Extender provides plug-and-play convenience, eliminating the need for complex software installations. It effortlessly connects USB devices to the videoconferencing system, ensuring a seamless setup process.

Extend USB 2.0 INOGENI device to PC Host

The U-BRIDGE will connect an USB 2.0 Cameras, devices or INOGENI device to any PC or videoconferencing system like Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs or Room PC from videoconference system like Lenovo, Poly, Crestron, Cisco, Logitech, Q-SYS and Barco.

• Extend BYOM to the laptop with the TOGGLE and the U-BRIDGE

Keep all cameras, microphones, INOGENI devices and systems connected on the TOGGLE around the TV wall side and use the U-BRIDGE to extend your USB 2.0 connection to the Laptop.

Extend USB 2.0 with any HDMI camera with INOGENI’s mixers, switchers and converters

Use an INOGENI converter to extend your HDMI Camera with the U-BRIDGE. By connecting your HDMI camera to any INOGENI’ Mixers or converters (HDMI to USB converter), you can effortlessly transmit high-quality video signals in MJPEG format, along with audio, to your computer or PC-based video conferencing setup in any room and this up to 100 m/330 ft. long.

Use an HDMI camera and convert it to USB before the U-BRIDGE with an INOGENI converter: SHARE2U, SHARE2, CAM300, CAM230, 4KXUSB3, 4K2USB3 and HD2USB3

Extend any USB 2.0 standard device to connect INOGENI switchers, mixers and converters.

The high-quality MJPEG video and audio signals can be extended using the U-BRIDGE.

This innovative device is particularly well-suited for a wide range of applications, including whiteboard cameras like the Huddly Canvas or the Logitech Scribe, microphones, audio devices, and various other USB devices, such as hard drives, flash drives, and keyboards. Its versatility makes it a perfect choice for industrial control systems, interactive whiteboard setups, and sensor/data acquisition tasks. Moreover, the U-BRIDGE provides seamless keyboard and mouse extensions, allowing users to operate their systems from a distance. Additionally, it supports webcam extensions, enabling enhanced videoconferencing and communication capabilities. With the U-BRIDGE, you can effortlessly extend USB 2.0 connectivity and enjoy reliable and efficient performance across various domains.

Plug & Go

INOGENI has developed advanced testing to ensure reliability and avoid any interoperability issues for the USB 2.0 extension. The U-BRIDGE will connect a USB 2.0 cameras anddevice or an INOGENI device to any PC or videoconferencing system like Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs or Room PC from Lenovo, Poly, Crestron, Cisco, Logitech, Q-SYS and Barco.

Features

The U-BRIDGE offers versatility and reliability for USB 2.0 extensions of up to 100 m. (330 feet). The U-BRIDGE enables users to extend beyond the standard 5 m cable limit for USB peripheral devices.

Designed for extension of USB 2.0 devices and systems

• DEVICES: USB 2.0 devices
  • Cameras, whiteboards, microphones, audio devices, and any other USB devices (hard drives, flash drives or keyboards)
• PC HOST: Videoconference systems:
  • Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs or Room PC from Lenovo, Poly, Crestron, Cisco, Logitech, Q-SYS or Barco
• INOGENI devices before or after the U-BRIDGE:
  • Mixers and switchers: SHARE2, SHARE2U, CAM300, CAM230, TOGGLE
  • Converters: 4KX-PLUS, 4KXUSB3, 4K2USB3, HD2USB3 and the U-CAM
• Supports all USB 2.0/1.1 devices of up to 480 Mbps
• Flexible power: Connect the power adapter to either the PC Host or device
• Supplies up to 1 Amp to USB port
• Mass storage acceleration for USB 2.0 device bulk transfers
• Included:
  • 1x USB 2.0 cable and 1x AC power adapter with International powers cords
• Extreme USBsuite of features:
  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems:  Windows, macOS, and Linux
• Easy to install with two mounting slots on each side for use with a cable ties/zap straps
• Two-year warranty

Specifications

• Range -  Direct connect up to 100m (330 ft) over CAT 5e/6/7
• USB Speeds
  • USB 2.0: up to 480 Mbps
  • USB 1.1: up to 12 Mbps
• PC Host extender
  • USB connector -  1 x USB Type B Receptacle
  • Link connector -  1 x RJ45
  • Dimensions (W x L x H) -  ​65.0 x 87.5 x 30.0 mm / 2.6 x 3.4 x 1.2 in
  • Weight -  81 g (0.18 lb)
  • Mounting -  Slots for cable ties
  • Enclosure material -  Black ABS with rubberized coating
• Device extender
  • USB connector -  1 x USB Type A Receptacle
  • Link connector -  1 x RJ45
  • Available current -  Up to 1A to USB port
  • Dimensions (W x L x H) -  65.0 x 87.5 x 30.0 mm / 2.6″ x 3.4″ x 1.2 in
  • Weight -  89 g (0.20 lb)
  • Mounting -  Slots for cable ties
  • Enclosure material -  Black ABS with rubberized coating
• Physical details

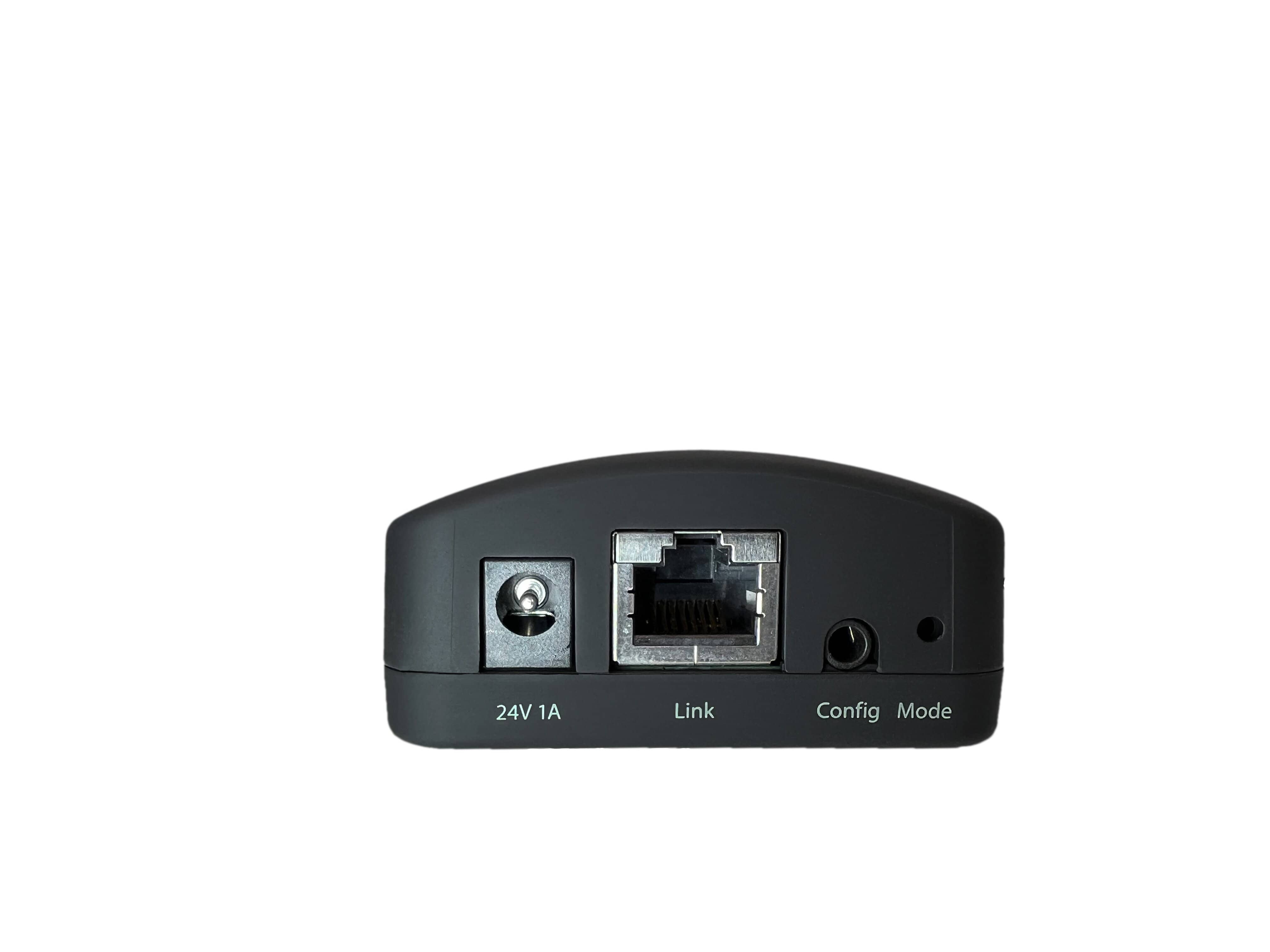

  • Power supply -  100-240V AC Input, 24V 1A DC Output.
    • Apply at either PC Host or Device modules.
  • Operating temperature -  0° to 50° C / 32° to 122° F
  • Storage temperature -  -20° to 70° C / -4° to 158° F
  • Operating humidity -  20% to 80% relative humidity, non-condensing
  • Storage humidity -  10% to 90% relative humidity, non-condensing

• Certifications
• EMC: FCC (Class A), CE (Class A)
• Environmental: RoHS2, REACH, Conflict Minerals
• Safety: Flammability V-0
• IEC62368-1
• RCM

What's in the Box

• 1x PC Host Extender module
• 1x Device Extender module
• 1x USB 2.0 Cable
• 1x Quick Start Guide
• 1x power supply 100-240V AC Input, 24V 1A DC Output.
  • International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)
