Atlona 4K HDR 5×2 HDMI Matrix Switcher w/ HDMI and HDBaseT Outputs

About: Atlona 4K HDR 5×2 HDMI Matrix Switcher w/ HDMI and HDBaseT Outputs

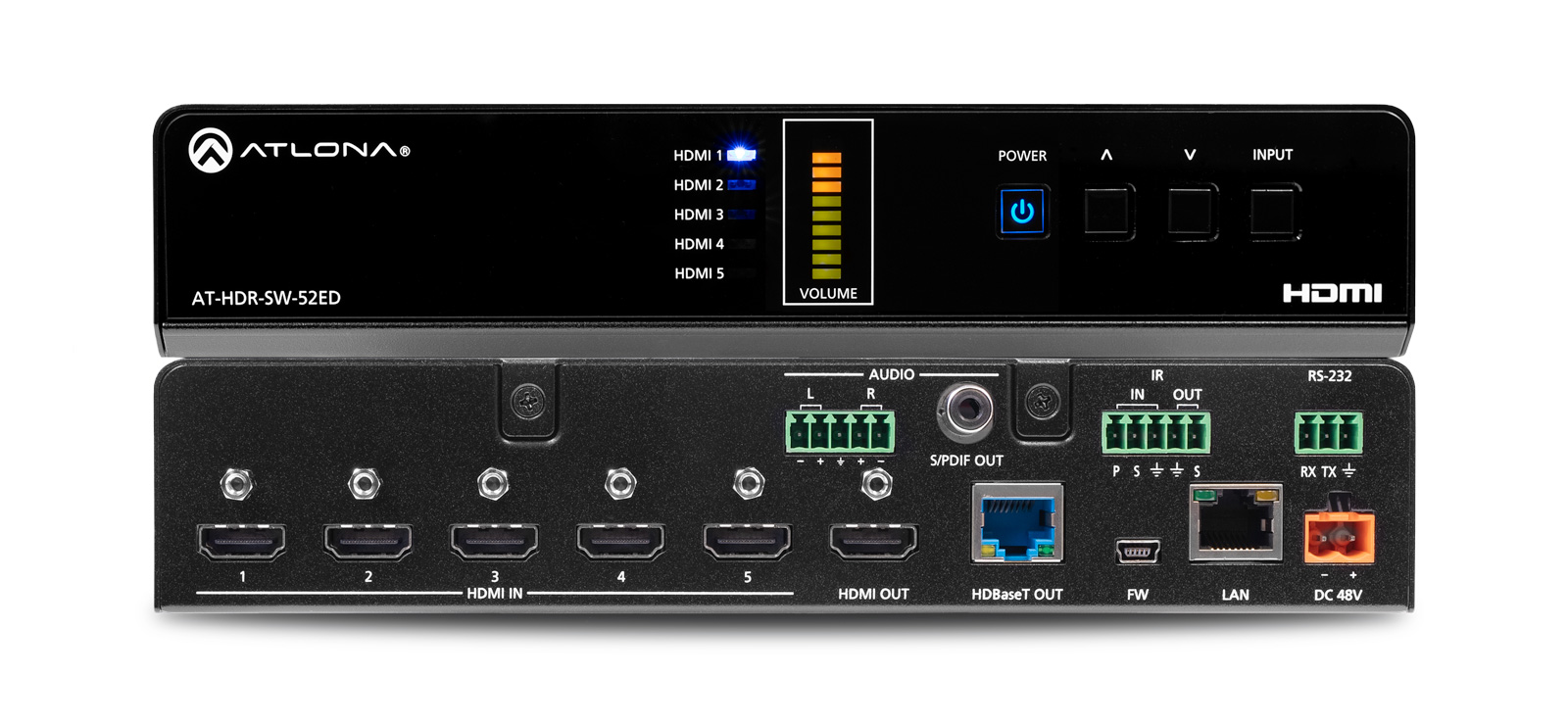

The Atlona AT-HDR-SW-52ED is a 5×2 HDMI matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it features five HDMI inputs and matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output transmits video, embedded audio, and Ethernet over distances up to 330 feet (100 meters) to the AT-HDR-EX-100CEA-RX receiver (available separately). The HDR-SW-52ED is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It is ideal for the latest as well as emerging 4K/UHD and HDR sources and displays, and includes EDID management features, automatic input switching, and automatic display control. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the outputs when connected to an HD display. The HDR-SW-52ED can de-embed audio from an HDMI input, or return audio from the HDR-EX-100CEA-RX receiver, to S/PDIF or balanced analog audio outputs. This HDMI switcher can be controlled via Ethernet, RS-232, and IR.

Features

• 5×2 HDMI matrix switcher
  • HDMI inputs
  • HDBaseT and HDMI outputs
  • Delivers flexible matrix switching capability for meeting and presentation spaces
• HDBaseT and HDMI outputs with selectable AV switching modes
  • Selectable switching modes available with mirrored or matrixed outputs
  • Enables simple configuration and effortless user operation, tailored to the specific AV application
• Video, audio, power, and data over category cable utilizing HDBaseT technology
  • Transmits 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or up to 295 feet (90 meters) using CAT5e cable
  • Recommended receiver: AT-HDR-EX-100CEA-RX
  • Uses easy-to-integrate category cable for low-cost, reliable system installation
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
  • Compatible with 4K HDR10, Dolby Vision, and HLG (Hybrid Log-Gamma)
• Selectable 4K to 1080p downscaling
  • Integrated video processing available for down-converting 4K/UHD @ 60, 30, or 24 Hz to 1080p
  • Downscaling can be bypassed to allow pass-through up to 4K/60 4:4:4 and 4K HDR
  • Ideal for applications with 1080p displays, video conferencing codecs, and other HD sink devices
• Automatic display control*
  • Automatically changes display power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, or CEC.
  • CEC enables control of consumer displays (as supported by the display manufacturer)
  • Includes an adjustable lamp cooldown mode to avoid prematurely powering up a projector after shutdown
  • Enables effortless, automated system operation without the need for an external control system
    • * Available when the switching mode is set to mirrored outputs.
• Automatic input selection using hot plug detect and video detection technology*
  • Selects active input when sources are connected or if there is a change in source power status
  • Enables simplified, automatic system operation without user intervention
    • * Available when the switching mode is set to mirrored outputs.
• Remotely powers receiver over HDBaseT
  • Supplies industry standard IEEE 802.3af PoE over HDBaseT to the receiver (AT-HDR-EX-100CEA-RX recommended)
  • Allows convenient endpoint installation at remote locations without the need for local AC power
• Audio de-embedding
  • De-embeds two channel PCM audio from the selected HDMI source to S/PDIF and balanced, analog audio outputs
  • De-embeds 5.1 channel bitstream audio from the selected HDMI source to S/PDIF audio output
  • Provides direct interfacing into an external audio system
• Delivers return audio from the AT-HDR-EX-100CEA-RX receiver
  • Receives HDBaseT return audio from a display or television (via TOSLINK connection to the receiver), and delivers to S/PDIF and analog audio outputs
  • Easy and convenient integration of television audio for over-the-air broadcasts, OTT (over-the-top) media services, and more
• Multi-channel audio compliant
  • Passes through multi-channel audio formats from the selected HDMI input
  • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
  • EDID management
  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Ensures desired audio formats and video resolutions are provided to the AV system
• HDCP 2.2 management
  • Automatically reports HDCP compliance status to the source based on the sink device
  • HDCP compliance can also be disengaged through Velocity Device Manager or a control system
  • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
  • Displays a green splash screen as visual confirmation that protected content is being blocked from transmission to a non-compliant display
• Integrated HDBaseT link testing and status monitoring
  • Tests integrity of the HDBaseT cable link between each input or output and the corresponding transmitter or receiver
  • Web GUI provides real-time link status
  • Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality
• Intuitive GUI-based configuration using integrated web server
  • Offers menu-based configuration of device settings including network access, input switching, I/O routing for video and audio, signal processing, display control, HDCP and EDID management, and more
  • Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
• TCP/IP, RS-232, and IR control
  • Flexible control options for compatibility with the Atlona Velocity control system, as well as other third-party control systems
  • Reduces integration time and costs
• IP to RS-232 translation
  • Converts TCP/IP commands to RS-232 commands for output to external devices over HDBaseT
  • Enables single IP connection to control processor to control both IP and RS-232 connected devices at remote endpoints
• Easy to configure and manage with Velocity Device Manager
  • Centralized, network-based configuration and management of Atlona IP-controllable products and systems
  • Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
  • Available as a part of Velocity control systems or as a free virtual machine software download
• Field-updatable firmware
  • Device can be updated in the field via the web GUI or Velocity Device Manager
• Front panel volume controls and LED indicator
  • Volume button controls for adjusting analog audio output level
  • Buttons can also be configured to control volume over IP, RS-232, or CEC
• Rack-mountable, 1U, half rack width enclosure
  • Includes surface mounting hardware for easy installation into confined spaces below tables and in furniture
  • Installs easily in equipment racks with included rack mounting hardware
• Included accessories
  • Installation guide, surface mounting hardware, short and long rack mount ears (for full rack width installation), and external universal power supply

Automatic Display Control

The HDR-SW-52ED provides control to a display through IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDR-SW-52ED can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDR-SW-52ED forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDR-SW-52ED display control capability can also be triggered by an external control system.

Automatic display control is available when the HDBaseT and HDMI outputs are mirrored.

• * Consumer Electronics Control (CEC):  Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. Can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs.

Reliable Auto-Switching

The HDR-SW-52ED can automatically select an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

• Auto-switching is available when the HDBaseT and HDMI outputs are mirrored.

Applications

• Conference rooms and meeting rooms – The HDR-SW-52ED is compact and ideal for under-table mounting. It conveniently provides automatic switching and display control for simplified user operation, especially when laptops are brought into the system.
• Presentation spaces where two displays are needed – This matrix switcher can feed separate content into the main presentation display and an auxiliary display.
• Auditoriums and lecture halls – The HDR-SW-52ED can be installed in a lectern to serve a confidence monitor, plus the primary display in a remote location.
• Localized video source switching – This switcher can be used to feed into a larger, multi-zone AV distribution platform, such as the Atlona OmniStream AV over IP system.
