Inogeni TOGGLE ROOMS USB 3.0/HDMI Switcher

About: Inogeni TOGGLE ROOMS USB 3.0/HDMI Switcher

The TOGGLE ROOMS 4Kp60 USB/HDMI switcher effortlessly connects to three USB 3.0 devices and an HDMI display. Seamlessly switching between two hosts, it automatically transitions to a connected laptop, providing convenient charging capabilities of up to 100W via USB-C. Additionally, this versatile solution allows for remote control through RS-232 or GPI, ensuring a seamless and user-friendly experience in any videoconference setting.

TOGGLE ROOMS provides a 4Kp60 pro-AV and unified communication system enabling users to seamlessly switch from a Room PC to laptop host, ensuring a user-friendly and efficient meeting experience. One cable to Own the room!

• Advanced USB/HDMI devices to 2 PCs switcher
  • 4kp60 in 16:9 and 21:9 wide screen capable (HDMI)
• Flexible options:
  • USB-C with power delivery 100W
  • or USB-B + HDMI
• Compatible by design:
  • Crestron, Logitech, Lenovo, Poly, MAXHUB
  • Teams, Zoom…
• Made in Canada
  • Quality
  • Reliability
  • Peace of mind (no driver required and TAA compliance)
• New Maestro device controller for easy configuration and update

TOGGLE ROOMS facilitates videoconferencing management without any hassles. Users can switch in a flash without waiting.

Switch 4 peripherals between 2 hosts: Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering the flexibility of a push button or control pad for various meeting scenarios.

ROOM PC HOSTS THE MEETING

Room PC BYOD mode: In this mode, the USB and HDMI devices are routed only to the Room PC.

Laptop sharing and Room PC BYOD: If the user would like to send HDMI content from the laptop’s USB-C or HDMI connection to the Room PC, it is possible to do so with the HDMI SHARE output connection.

 LAPTOP HOSTS THE MEETING

Laptops BYOM mode: In this mode, the laptop is the system that is currently selected to the main USB and HDMI peripherals. The Room PC is completely disconnected from the setup.

How it works

TOGGLE ROOMS seamlessly integrates into a Room PC environment, allowing users to connect peripherals and charge their laptops via versatile options, such as USB-C or USB-B and HDMI for older laptop models.

This flexibility extends across various settings, from huddle rooms to large boardrooms, classrooms, and auditoriums, making it an ideal solution for unified videoconferences.

ONE CABLE SOLUTION TO TAKE CONTROL OF THE ROOM

• 2-meter USB-C 100W cable included
• USB-C solutions tested up to 10 meters
• 1 or 2 monitors 4Kp60 or 21:9 wide screen capable

Features

SWITCH BYOD/BYOM with one cable for Room PC and laptop:

Switch 4 peripherals between 2 hosts (3 USB + display): Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility via a push button or control pad for various meeting scenarios.

• AUTOMATIC/MANUAL HOST SWITCHING
  • Up to 4Kp60 and 21:9 wide screen capable:
• PC 1 (Laptop)
  • 1x USB-C host connection (USB 3.0, DP alternate mode and power delivery 100W)
  • or, 1x USB-B host connection and 1x HDMI 2.0 video input, up to 4Kp60
• PC 2 (Room PC)
  • 1x USB-B host connection and 1x HDMI 2.0 video input, up to 4Kp60
• INPUTS
  • 3x USB 3.0/2.0 devices (high-quality cameras, videobar or audio devices)
  • 1x HDMI 2.0, up to 4Kp60 for each LAPTOP and ROOM PC host
• OUTPUTS
  • 1x HDMI 2.0, up to 4Kp60 for DISPLAY connection from selected host
  • 1x HDMI 2.0, up to 4Kp60 for SHARE connection from BYOD to Room PC HDMI ingest
  • 21:9 wide screen capable (HDMI)
• COST-EFFECTIVE & RELIABLE SOLUTION
  • Simple to install and connect (no driver required)
  • Compatibility with leading MTR, Zoom Rooms, and pro-AV systems
  • Compatible with USB cameras, videobars and videoconferencing audio devices
• SWITCHING CONTROL
  • Controllable by RS-232
  • IP control
  • 2x GPI / relay control (PC selection: BYOD/BYOM)
  • Host switch button: Table surface-mounted button for BYOM laptop selection. Accessories are available separately.
    • INO – Host button (OPTIONAL)
• SUPPORT
  • Bidirectional audio system AEC works for videobars, such as Cisco, Poly, Logitech and Bose
  • 100WpPower delivery over USB-C host laptop connection
  • Multiple mounting options
  • Visual LED status

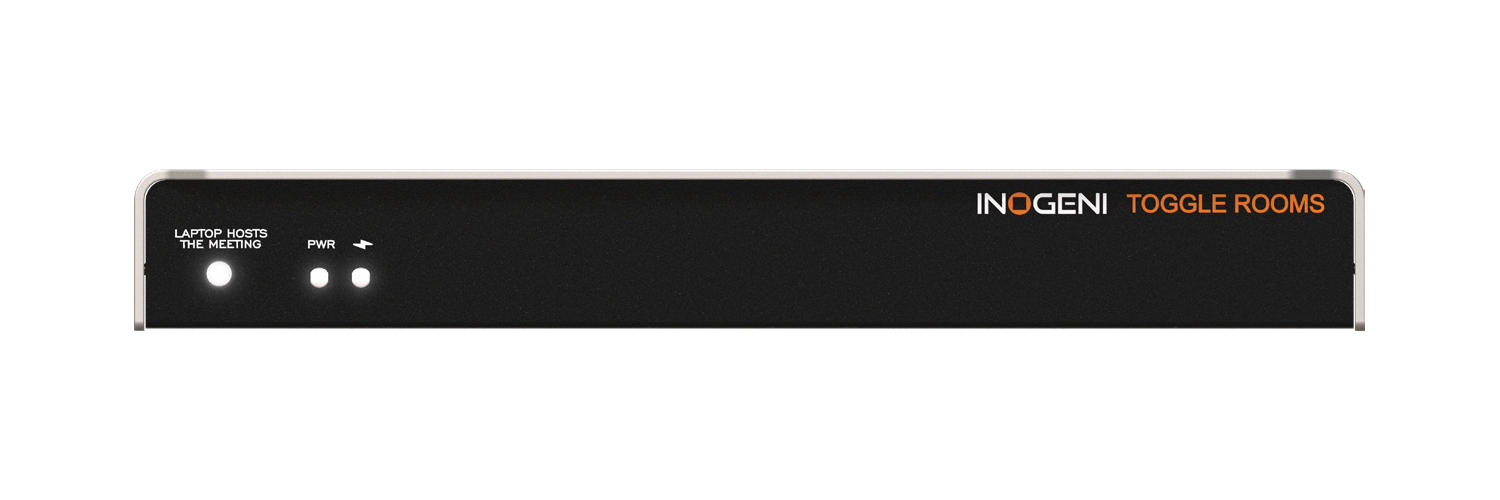

  • Switch button on the front of the devices
  • Embedded audio in USB and HDMI
• ADVANCED VIDEO QUALITY
  • Automatic scaling
  • Supports multiple devices on the same host
  • Device configuration via the INOGENI MAESTRO device controller

Plug & Go with the INOGENI’s TOGGLE ROOMS!

This user-friendly switcher requires no drivers, allowing smooth transitions between 3x USB 3.0 devices and 1x HDMI display. Effortlessly switch between your Room PC and laptop for a seamless and dynamic collaboration experience. It is compatible with leading MTR, Zoom Rooms, and pro-AV systems. Elevate your meetings with INOGENI’s reliable and robust technology.

THE MOST POPULAR VIDEOCONFERENCE SYSTEMS NEED TOGGLE ROOMS

These videoconferencing systems (Room PC) need TOGGLE ROOMS to enable BYOM-BYOD so that users can easily switch peripherals (cameras, microphones, speakerphones, display screens or videobars) to the guest laptop in the meeting room.

Compatible with all USB cameras, videobars and pro-AV audio devices

Unlock ultimate versatility with INOGENI’s TOGGLE ROOMS! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Specifications

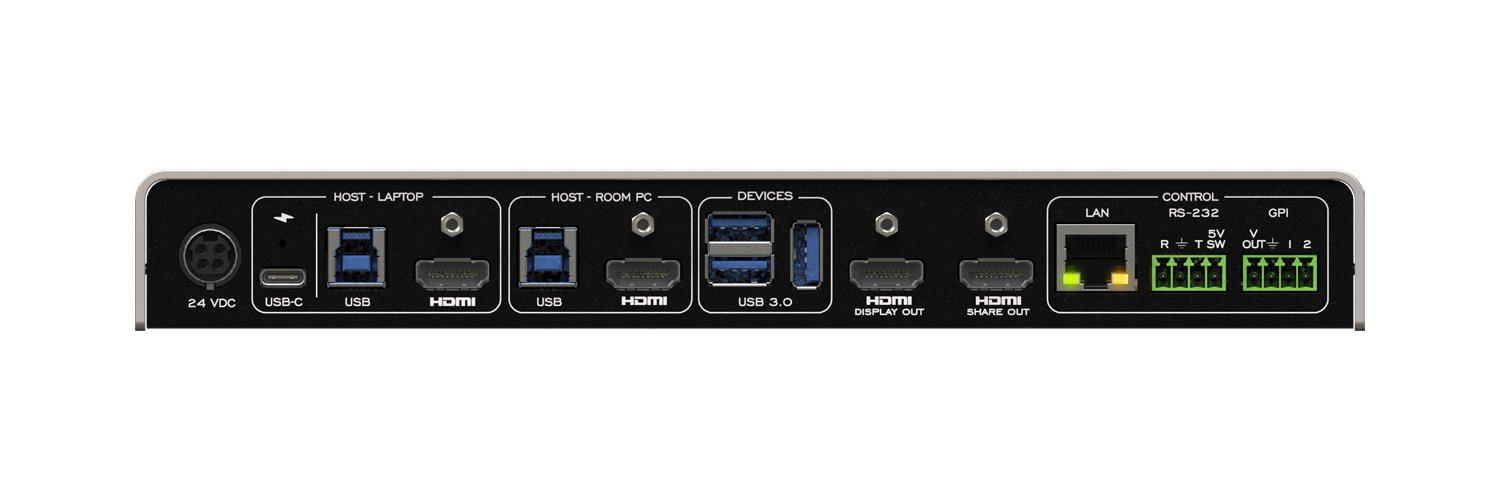

• Host - Laptop
  • 1x USB-C connector
    • Supports USB-C DisplayPort Alternate Mode
    • DisplayPort up to 3840x2160p60 / 4096x2160p60
    • USB 3.0 (USB 3.1 Gen 1 / 5 Gbps)
    • USB 2.0 (480 Mbps)
    • Charges up to 100W
    • USB-C cable locking option
  • 1x USB connector - USB 3.0 Type-B
  • 1x HDMI connector - Up to 3840x2160p60 / 4096x2160p60
    • Cable locking option
• Host - Room PC
  • 1x USB connector - USB 3.0 Type-B
  • 1x HDMI connector - Up to 3840x2160p60 / 4096x2160p60
    • Cable locking option
• HDMI display output
  • Resolution - Up to 3840x2160p60 / 4096x2160p60 /  21:9 wide screen capable
  • Connector - HDMI with cable locking option
• HDMI share output
  • Resolution - Up to 3840x2160p60 / 4096x2160p60 /  21:9 wide screen capable
  • Connector - HDMI with cable locking option
• USB devices
  • Connectors - 3 x USB 3.0 Type-A ports
  • Power - 1.8A shared between downstream ports
• Video - HDMI
  • HDCP compliance - Compliant with HDCP2.3, HDCP2.2 and HDCP1.4
  • HDMI compliance - Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
  • Sampling frequency - 600MHz
  • Video scaling - Crosspoint switch supports video downscaling from 4K to 1080p
  • Chroma subsampling
    • YUV/RGB
    • 4:4:4, 4:2:2
  • CEC - Ability to send CEC commands to connected HDMI display sink
• Audio - HDMI
  • Audio - Audio passthrough from input to output
  • Formats - LPCM, Dolby Digital and DTS up to 192kHz
• Control
  • Control options
    • Front button – For laptop selection
    • RS232
    • GPI
    • LAN
    • USB
  • IP interface
    • 10/100Mbps
    • Supports DHCP or static addressing
    • IP control available through RESTAPI and Telnet connections
  • RS-232 interface
    • 4-pos terminal block connector
    • Baud rates: 9600 [default], 19200, 38400 and 115200
    • Data bits: 8
    • Stop bits: 1
    • Parity: None
    • Flow control: None
  • GPI interface
    • 4-POS terminal block connector
    • 2x Contact-closure control
    • GPI:
      • Controlled by open-drain IO (short to ground) or driven IO
      • Supported voltage range: 0 to 12V max
      • Voltage threshold is 2.3V
    • VOUT:
      • ​Able to power up the led on the button of our INO-Button accessory
      • Logic-low level: 0 @ 0.5V
      • Logic-high level: 4.5 @ 5V
• Compatibility
  • Operating system
    • NO driver installation necessary!
      • Windows 7 and above (32/64-bit)
      • macOS 10.10 and above
      • Linux (kernel v2.6.38 and above)
• Compatible videoconferencing systems
  • Crestron – Flex Series
  • Crestron – Flex Advanced Series
  • Poly – Studio Room Kit with HP Mini Conferencing PC
  • MAXHUB – MAXHUB XCore Kit
  • Logitech – Tap with Rally
  • Logitech – Tap with MeetUp
  • Logitech – Rally Bar Tap room systems
  • Lenovo – ThinkSmart Hub Gen 2 Microsoft Teams Rooms
  • Lenovo – ThinkSmart Core + Controller
  • Lenovo – ThinkSmart Core & IP Controller Kit
  • Jabra – PanaCast 50 Room System
• General
  • Dimensions (WxLxH) - 9.89 x 4.32 x 1.28 Inch (25.11 x 10.97 x 3.26 cm)
  • Weight - 770 g (1.69 lb)
  • Power supply - 160W (85-264VAC 50/60Hz to 24V/6.67A DC)
  • Operating temperature - 0° to 45° C (32° to 113° F)
  • Storage temperature - -40° to 105° C (-40° to 221° F)
  • Relative humidity - 0% to 90% non-condensing
  • Mounting options - Ability to mount under the table or on a wall
  • Certifications device - FCC, CE, UKCA, RoHS, IEC62368, RCM, SoV
  • Certifications power supply - FCC, CE, UKCA, RoHS, IEC62368, RCM, CCC, CB, EAC, VI, UL
  • TAA - Compliant - Yes

What is in the box

• 1x TOGGLE ROOMS
• 1x USB-C to USB-C cable – 6 ft.
• 1x USB 3.0 cable (USB-A to USB-B) – 3 ft.
• 2x terminal block 4-pos
• 2x mounting brackets
• 4x M2.5 mounting screws for brackets on product
• 4x screws for Toggle Rooms table/wall mount
• 1x 24V/160W PSU
• 1x power supply 85-264VAC 50/60Hz to 24V/6.67A DC
  • International adapters included in the box (USA/CA or EU/UK/AU/BIS)
• 1x PSU mounting bracket
• 4x screws for PSU table/wall mount
• 4x rubber feet
